Kamaxel S&S 625G Softail 07-17

13 020 kr

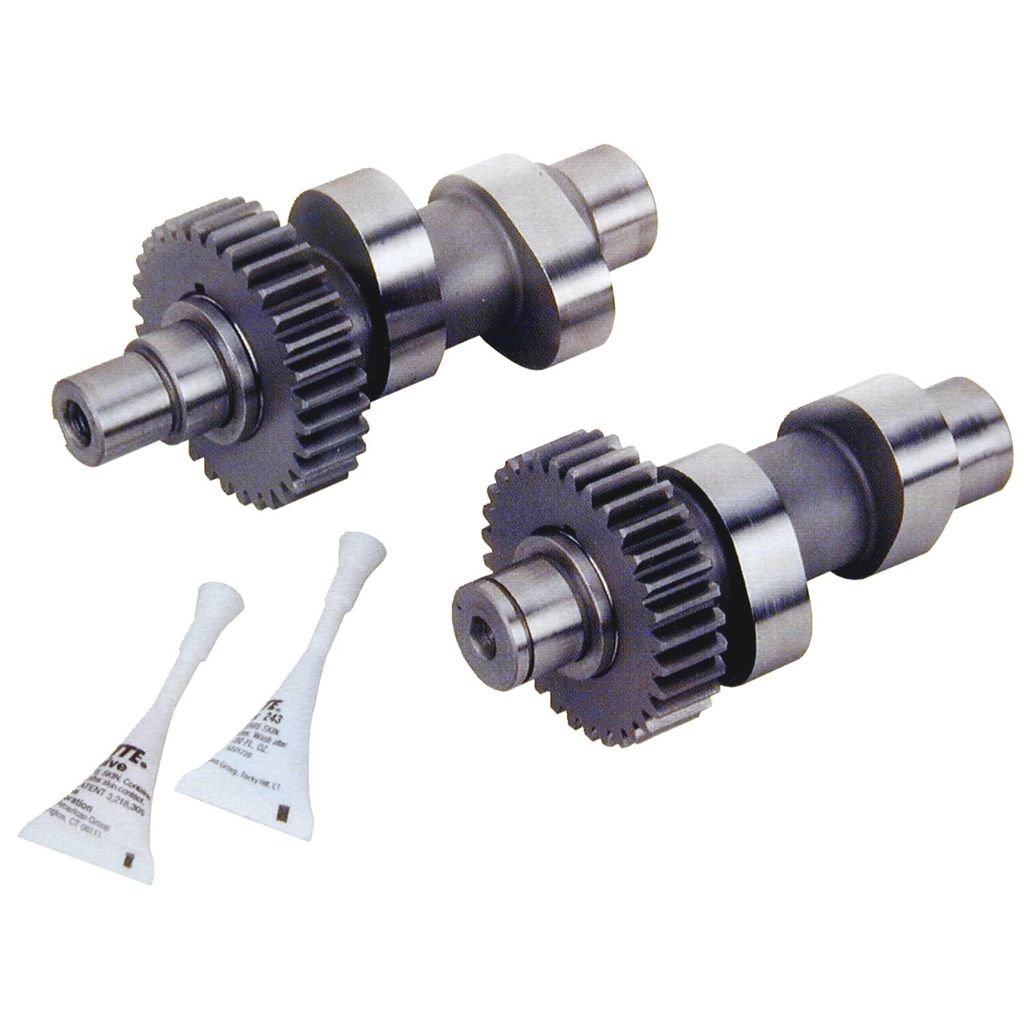

S&S 625G kamaxelsats med kuggdrivning (IOG)
Läs mer

531262 S&S
  • Ventillyft på .625"
  • Avsedd för 95" och större motorer med 10.0:1 till 10.8:1 i kompressionsförhållande
  • IOG-utförande med inre och yttre drivkugghjul
  • Kuggdrivning ger mer pålitlig konstruktion och exaktare ventiltider än kedjedrift
  • Eliminerar originalkedjesträckare och kedjestyrare som riskerar att haverera
  • Komplett sats inklusive monteringsdetaljer, lager och packning

Kräver justerbara stötstänger, ventilfjädrar för höglyft samt frigångsbearbetning i vevhuset och eventuellt i transmissionskåpan.

Passar: Softail 07-17

Gear drive 625G camshaft set (IOG)

  • 625" valve lift
  • IOG = gear drive cams with Inner & Outer drive Gears
  • Complete kit with installation hardware, bearings and gasket
  • 95"-up with 10.0:1 to 10.8:1 CR
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The S&S gear drive kit will increase valve timing accuracy, and therefore horsepower, by eliminating the timing chain lash and loosely fit stock cam gears
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • The S&S gear drive kit reverses the direction of rotation of the rear cam, providing additional operating clearance between cam lobes
  • As a result, higher cam lifts are possible with the S&S gear driven cams
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: Material may have to be removed from the inner surface of the OEM gear cover before installation of the S&S outer drive gears (which are required and available as 503577)
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
  • Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs
  • Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
