Kamaxel S&S Easy Start HP103 Twin Cam 99-06

7 420 kr

S&S Easy Start HP103 kamaxelkit med kedjedrivning
Läs mer

592007 S&S
  • Ventillyft: .575"

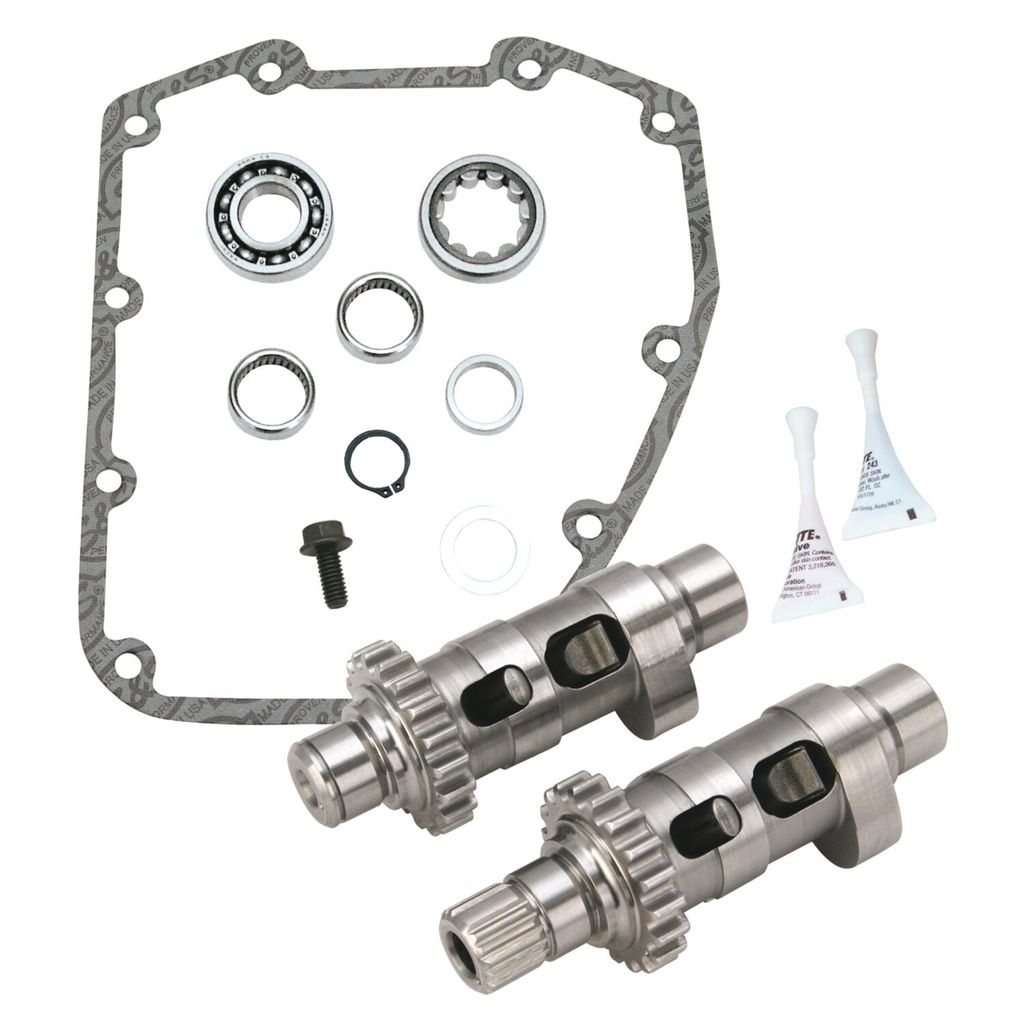

  • Komplett kit med kamaxlar, packning och lager
  • För 103" originalmotorer med 9.7:1 upp till 10.5:1 i kompressionsförhållande
  • Fungerar bra med oportade toppar och utmärkt med S&S CNC-portade toppar
  • Bästa effekt i det högre varvtalsregistret, 3000–6000 RPM
  • Easy Start-funktion underlättar start genom att lätta på avgasventilen via en fjäderbelastad dekompressionsventil i kamaxeln
  • Fungerar med originalstartmotor och batteri, dekompressionen kopplas ur automatiskt vid start

Ej kompatibel med S&S 79cc-toppar. Kräver kontroll av frigång samt ventilfjädrar för höglyftande kammar då ingen Easy Start kamslipning är bolt-in för dessa 99-06 Twin Cam-modeller. Vid tomgång under 900 RPM kan ett klickande ljud uppstå, justera tomgången till 1000–1100 RPM.

Passar: Twin Cam 99-06

Easy Start chain drive HP103 camshaft set (CD)

  • 575" valve lift
  • CD = Chain Drive camshafts, complete kit with gasket and bearings
  • For stock 103" engines with stock 9.7:1CR up to 10.5:1CR
  • Works well with un-ported heads and great for S&S CNC ported heads
  • Best power in the higher RPM range
  • 3000-6000 RPM
  • Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
  • This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
  • After starting the compression release lobe is retracted by centrifugal force
  • The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
  • A stock starter and battery is enough
  • When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
  • Note: Not compatible with S&S 79cc heads
  • Note: No Easy Start Cam grind is bolt-in for these 99-06 Twin Cam models
  • All will / may require clearancing and require high lift valve springs
  • Note: Camshafts made before Jan
  • 2010 will require adjustable pushrods
  • Note: Below 900 RPM you may hear a clicking sound
  • Adjust idle speed to 1000-1100 RPM

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
