Kamaxelsats S&S Easy Start MR103 Twin Cam 99-06

7 420 kr

S&S Easy Start MR103 kedjedriven kamaxelsats
Läs mer

592013 S&S
  • MR103-kamslipning med kedjedrift
  • .585" ventillyft
  • Effektregister: 2500–5500 RPM
  • För 103" originalmotorer med 9.7:1 upp till 10.5:1 i kompressionsförhållande
  • Fungerar bra med omodifierade toppar och utmärkt med S&S CNC-portade toppar
  • Easy Start-dekompressionsventil lyfter avgasventilen lätt vid start för enklare elstart med originalbatteri och startmotor
  • Levereras komplett med packning och lager

Ej kompatibel med kickstart. Ingen Easy Start-kamslipning är 'bolt-in' för 99-06 Twin Cam, utan kräver ventilfjädrar för höglyft samt eventuell kontroll av frigång. Justera tomgång till 1000–1100 RPM för att undvika klickande ljud under 900 RPM.

Passar: Twin Cam 99-06

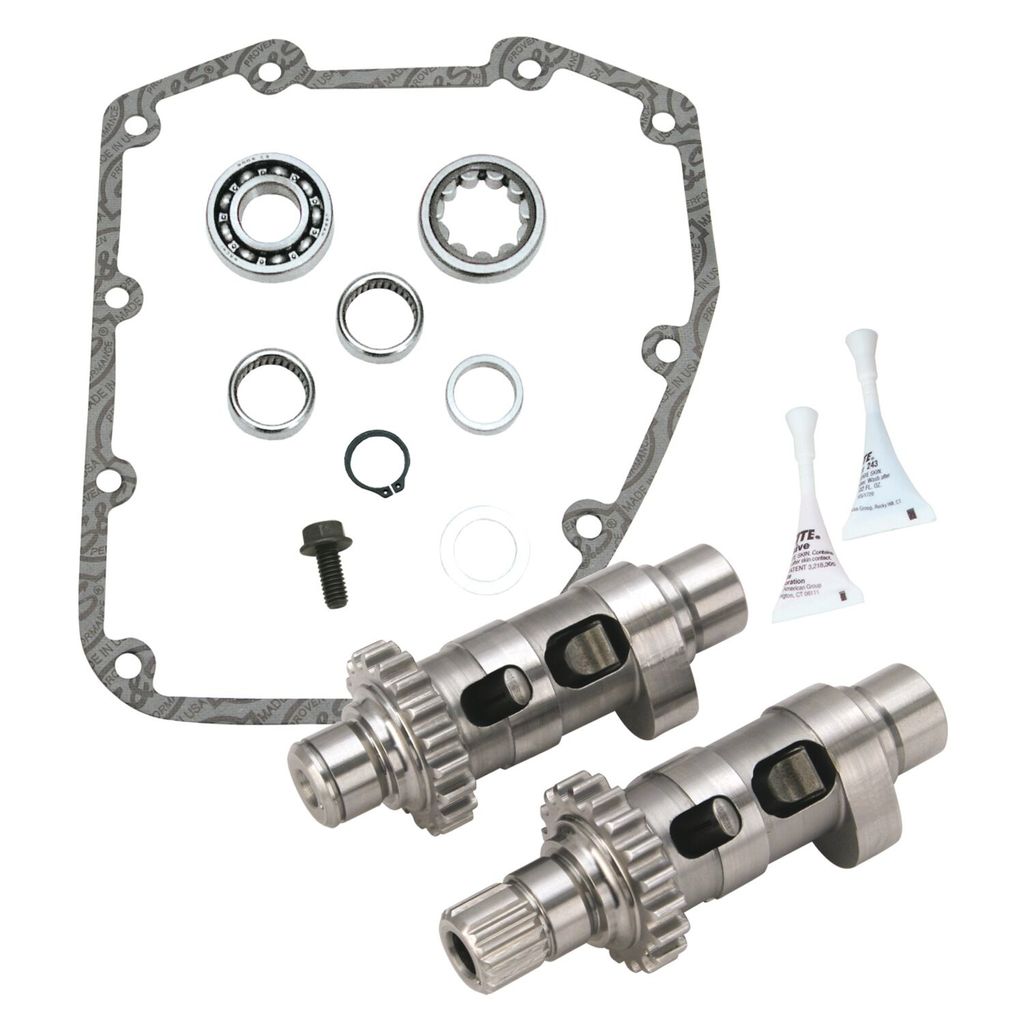

Easy Start chain drive MR103 camshaft kit (CD)

  • 585" valve lift
  • CD = Chain Drive camshafts, complete kit with gasket and bearings
  • For stock 103" engines with stock 9.7:1CR up to 10.5:1CR
  • Works well with un-ported heads and great for S&S CNC ported heads
  • More power across RPM range
  • 2500-5500 RPM Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
  • This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
  • After starting the compression release lobe is retracted by centrifugal force
  • The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
  • A stock starter and battery is enough
  • When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
  • Note: No Easy Start Cam grind is bolt-in for these 99-06 Twin Cam models
  • All will / may require clearancing and require high lift valve springs
  • Note: Not compatible with kickstart models
  • Note: Camshafts made before Jan
  • 2010 will require adjustable pushrods
  • Note: Below 900 RPM you may hear a clicking sound
  • Adjust idle speed to 1000-1100 RPM

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
