Kamaxel S&S 640G Twin Cam 99-06
S&S 640G kuggdrivet kamaxelkit (IG)
Läs mer
- Kuggdrivet kamaxelkit med monterade inre kuggdrev (IG)
- Ventillyft på .640"
- Mer pålitlig konstruktion som eliminerar problem med original kedjesträckare och kedjestyrare
- Ökar precisionen i ventilstyrningen och ger högre effekt jämfört med kedjedrift
- Vänder rotationsriktningen på bakre kamaxeln för ökat spelrum mellan kamloberna
- Satsen innehåller ett set kamlager, låsring och packning
Kräver justerbara stötstänger, S&S yttre drivkugghjul (artikelnr 503577) och performance-ventilfjädrar (ersätter original då lyftet överstiger .590"). Frigångsjustering av vevhus krävs vid .640" lyft, och material kan behöva tas bort från original kåpans insida. S&S installationssats (artikelnr 503566) finns att köpa separat vid behov.
Passar: Twin Cam 99-06

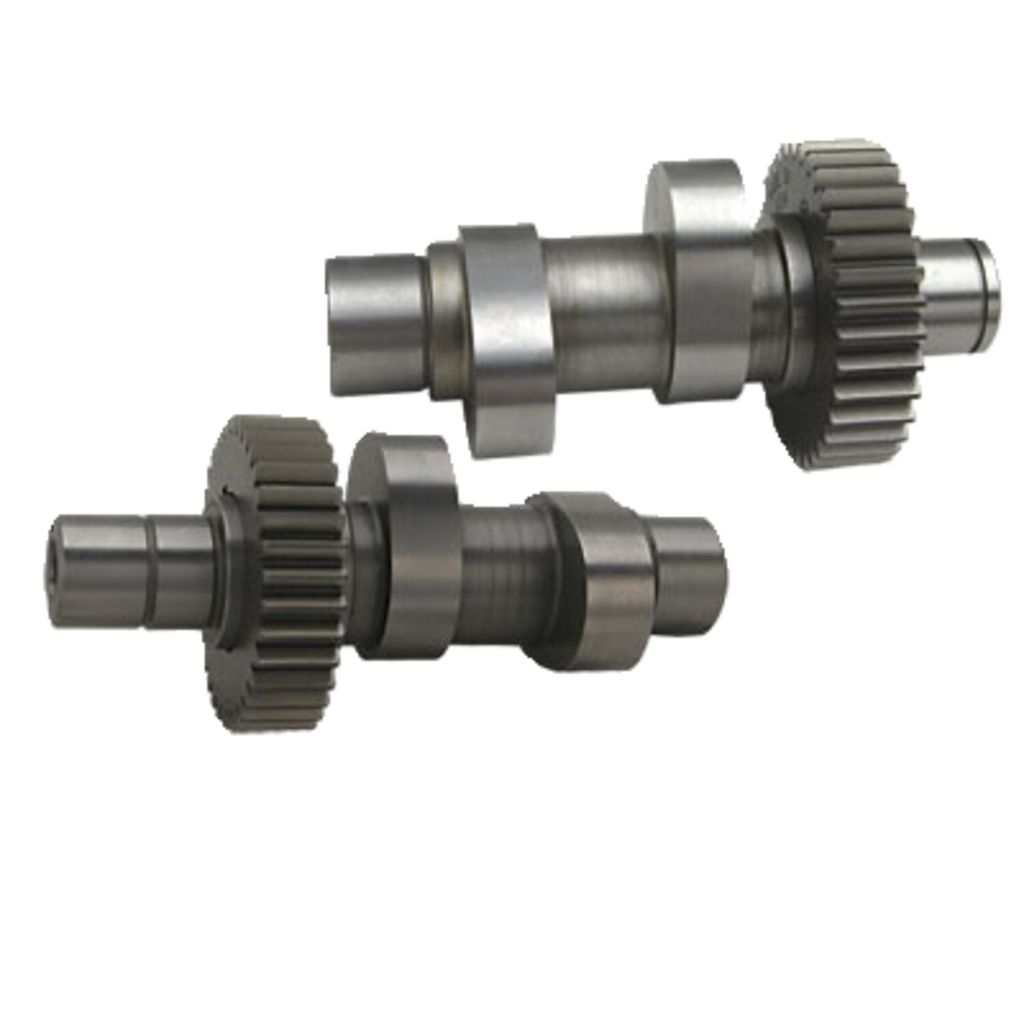

Gear drive 640G camshaft set (IG)
- 640" valve lift
- IG = gear drive cam set with installed Inner Gears only
- The gear drive system is in fact a revolutionary different and much more reliable construction
- Especially in high lift/performance applications, when compared with the OEM chain-drive design
- A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
- The S&S gear drive kit will increase valve timing accuracy, and therefore horsepower, by eliminating the timing chain lash and loosely fit stock cam gears
- The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
- It has no other mechanical advantages whatsoever
- Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
- The S&S gear drive kit reverses the direction of rotation of the rear cam, providing additional operating clearance between cam lobes
- As a result, higher cam lifts are possible with the S&S gear driven cams
- Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
- Note: An S&S gear drive installation support kit (MCS 503566) can be ordered separately if required
- Kit includes a set of cam bearings, retaining ring and gasket
- Note: Material may have to be removed from the inner surface of the OEM gear cover before installation of the S&S outer drive gears (which are required and available as 503577)
- Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
- Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
- Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs
Fits: 99-06 Twin Cam (Excl. 2006 Dyna) with non-hydraulic chain tensioners (NU)
