Kamaxel S&S Easy Start 585 inre Softail 07-17
S&S Easy Start 585 kamaxelset med kuggdrivning (IG)
Läs mer
- Ventillyft: .585"
- IG = Kamaxlar för kuggdrivning med endast inre drev (Inner Gears)
- Bolt-in för 88" till 106" (kompression 9.7:1 till 10.5:1) och 106" till 124" (kompression 9:1 till 10:1)
- Varvtalsområde: 3500–6000 RPM för 88" till 103", 2500–5500 RPM för större motorer
- Easy Start-teknik underlättar start genom att en fjäderbelastad dekompressionsventil lyfter avgasventilen något
- Centrifugalkraften drar tillbaka dekompressionsloben efter start, varpå kamaxeln fungerar normalt utan effektförlust
- Möjliggör elstart av högkomprimerade motorer med originalstarter och standardbatteri
- Kräver inte justerbara stötstänger (gällde endast kamaxlar tillverkade före januari 2010)
Ej kompatibel med modeller med kickstart. Nödvändig monteringssats för kuggdrivning säljs separat (artikelnr 531268). Ett klickande ljud kan uppstå under 900 RPM, justera tomgång till 1000–1100 RPM.
Passar: Softail 07-17

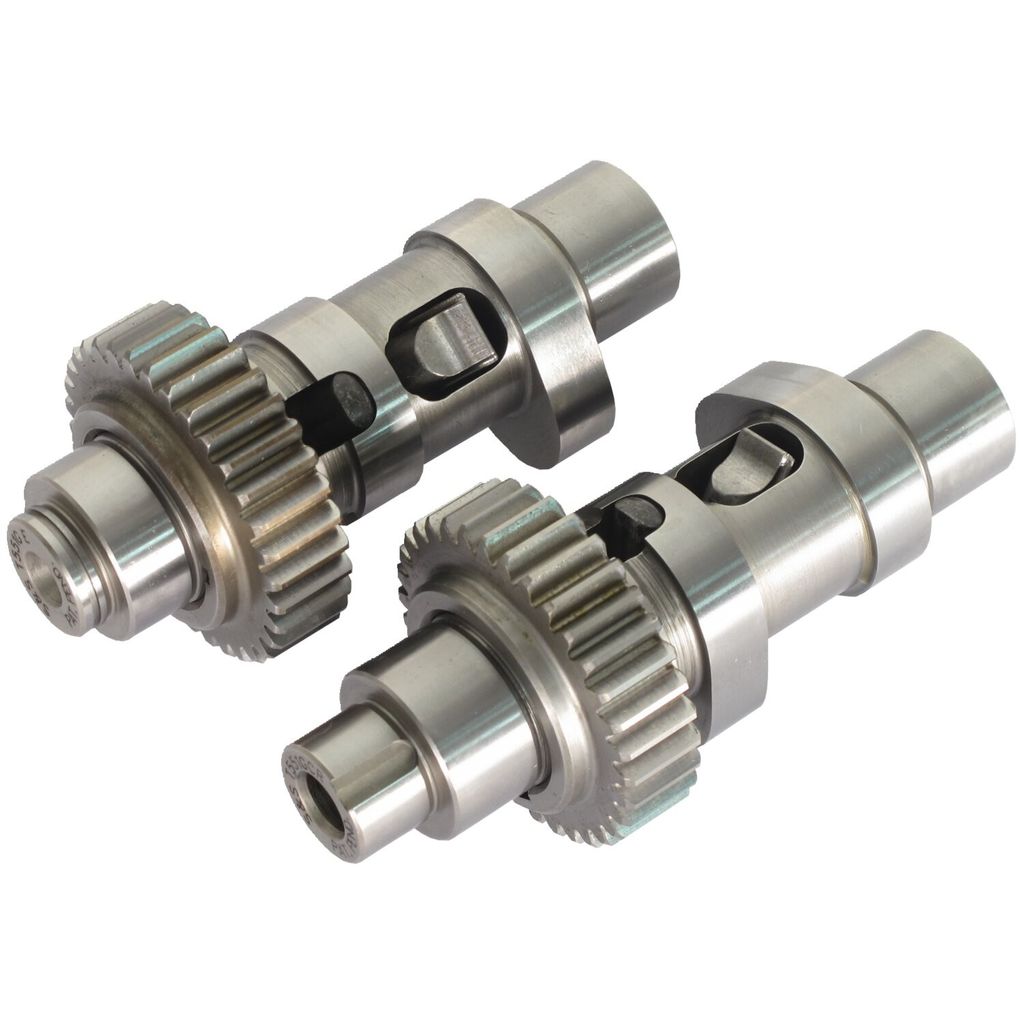

Easy Start gear drive 585 camshaft set (IG)
- 585" valve lift
- IG = Gear drive cams with Inner Gears only
- Bolt-in 88" to 106" with 9.7:1 to 10.5 CR and 106" to 124" with 9:1 to 10:1 CR
- 3500-6000 RPM for 88" to 103" and 2500-5500 for larger engines
- Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting

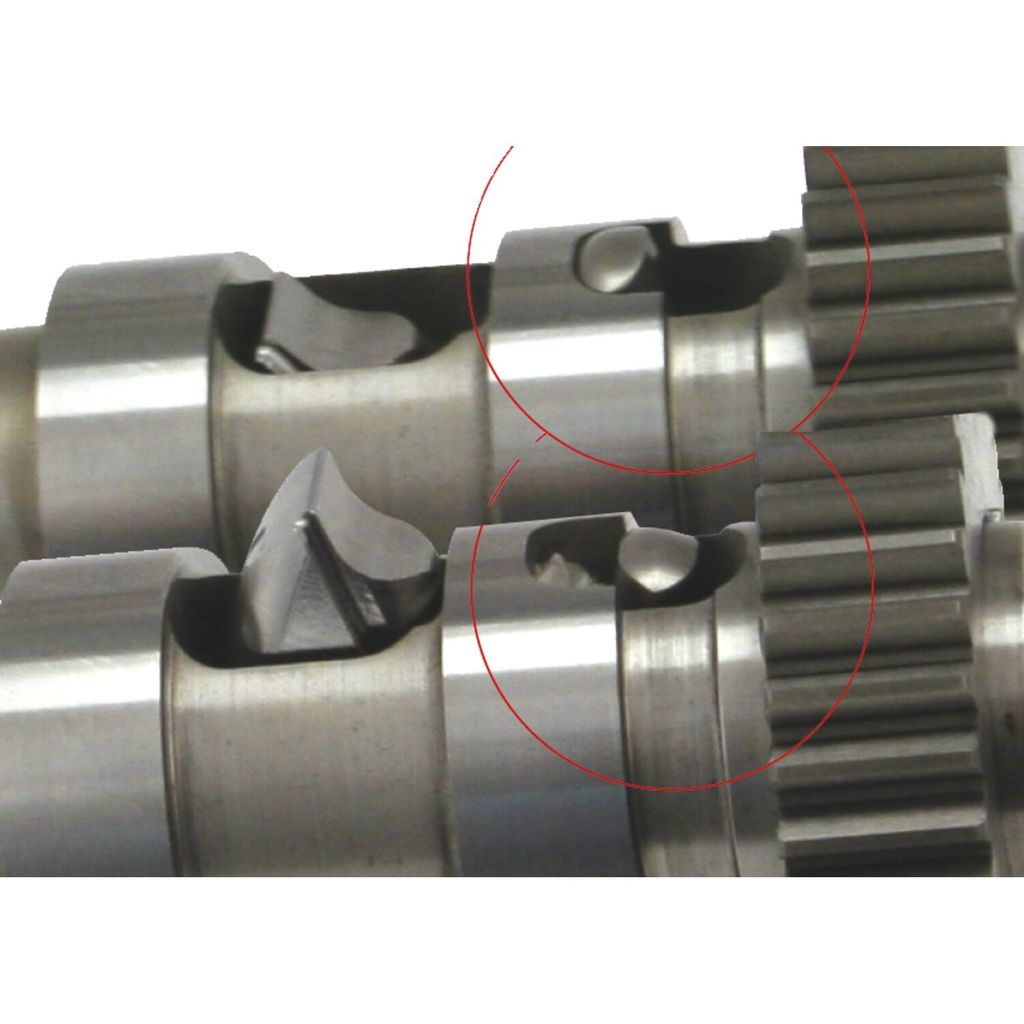

- This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
- After starting the compression release lobe is retracted by centrifugal force
- The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
- A stock starter and battery is enough
- When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
- Note: Required installation kit for Easy Start Cams are included in complete kits (IOG) only
- The installation kit for this kit is separately available as 531268 and compatible with gear drive models only
- Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs
- Note: Not compatible with kickstart models
- Note: Only camshafts made before Jan
- 2010 will require adjustable pushrods
- Note: Below 900 RPM you may hear a clicking sound
- Adjust idle speed to 1000-1100 RPM
Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
