Kamaxelsats S&S 625G Twin Cam 99-06

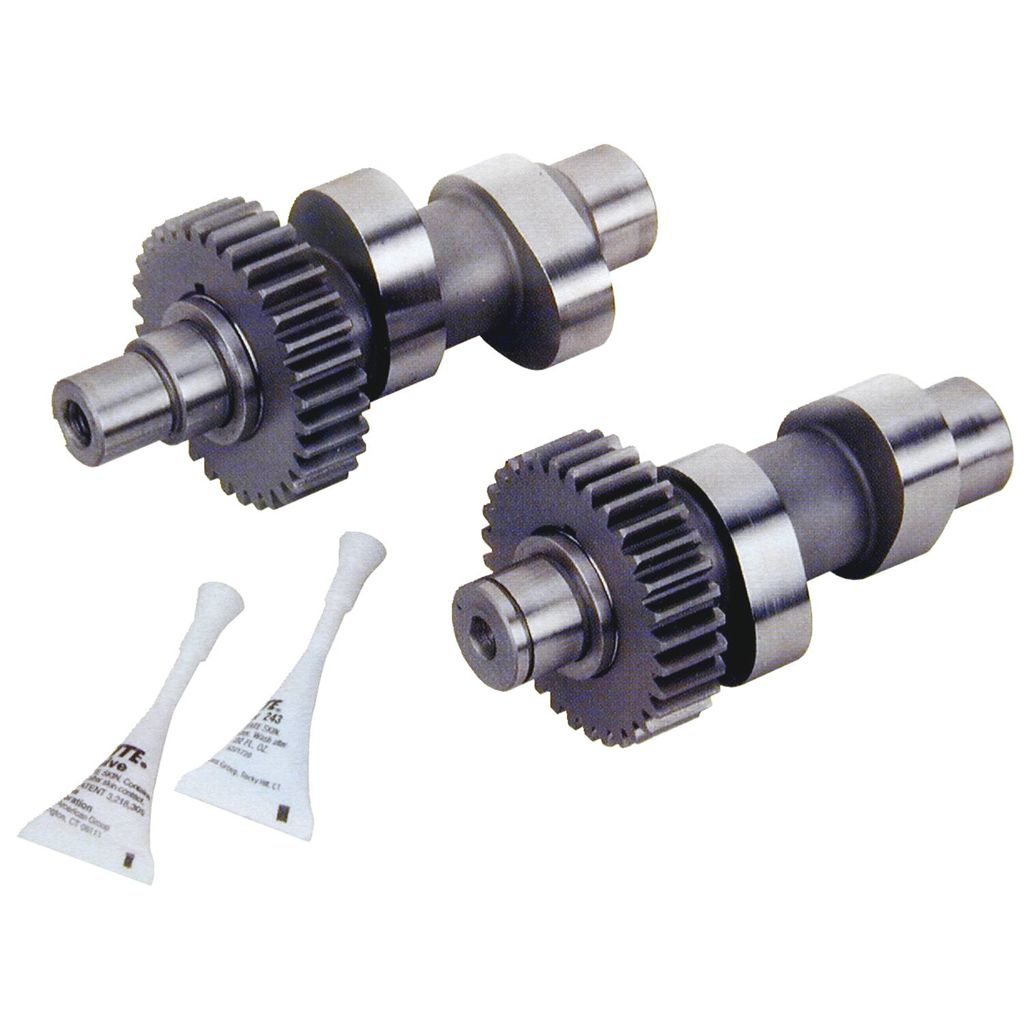

S&S 625G kamaxelsats med kuggdrivning
Läs mer
- Kamaxellyft på .625"
- För motorer på 95" och uppåt med kompressionsförhållande 10.0:1 till 10.8:1
- IOG-utförande med både inre och yttre kugghjul för drivning
- Komplett sats med monteringsdetaljer, lager och packning
- Kuggdrivning eliminerar kedjesträckare och kedjespel för exaktare ventiltider
- Kräver justerbara stötstänger på grund av mindre bascirkel på kamaxeln
- Kräver frigångsarbete i vevhuset vid montering
Kräver eftermarknads ventilfjädrar då lyftet överstiger .590". Material kan behöva slipas ur från insidan av transmissionskåpan för frigång mot de yttre kugghjulen. Ett svagt ökat mekaniskt ljud kan uppstå vid kuggdrivning.
Passar: Twin Cam 99-06
Gear drive 625G camshaft kit (IOG)
- Note: Special Order Product only
- To order please contact your MCS sales representative. .625" valve lift
- IOG = gear drive cams with Inner & Outer drive Gears
- Complete kit with installation hardware, bearings and gasket
- 95"-up with 10.0:1 to 10.8:1 CR
- The gear drive system is in fact a revolutionary different and much more reliable construction
- Especially in high lift/performance applications, when compared with the OEM chain-drive design
- A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
- The S&S gear drive kit will increase valve timing accuracy, and therefore horsepower, by eliminating the timing chain lash and loosely fit stock cam gears
- The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
- It has no other mechanical advantages whatsoever
- Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
- The S&S gear drive kit reverses the direction of rotation of the rear cam, providing additional operating clearance between cam lobes
- As a result, higher cam lifts are possible with the S&S gear driven cams
- Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
- Note: Material may have to be removed from the inner surface of the OEM gear cover before installation of the S&S outer drive gears
- Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
- Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
- Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs
Fits: 99-06 Twin Cam (Excl. 2006 Dyna) with stock non-hydraulic chain tensioners (NU)
