Kamaxelsats S&S Easy Start 640 Softail 07-17
S&S Easy Start 640 kamaxelsats med kuggdrivning
Läs mer
- Kamaxelsats med kuggdrivning (inre och yttre drev ingår)
- Ventillyft: .640"
- Komplett sats med monteringshårdvara, lager och packning
- För 95" och uppåt med 10.5:1 till 11.5:1 i kompressionsförhållande (standard i S&S 124"-motorer)
- Easy Start-teknik minskar startkompressionen via en fjäderbelastad dekompressionsventil i kamaxeln
- Gör att stora motorer kan startas enkelt med originalstartmotor och standardbatteri
- Dekompressionsnocken dras in med centrifugalkraft så snart motorn startar
Kräver ventilfjädrar för högt lyft och kontroll av frigång vid montering. Ej kompatibel med modeller med kickstart. Justera tomgång till 1000–1100 RPM för att undvika klickande ljud under 900 RPM. Monteringssats finns separat som 531268 (endast kompatibel med kuggdrivna modeller).
Passar: Softail 07-17

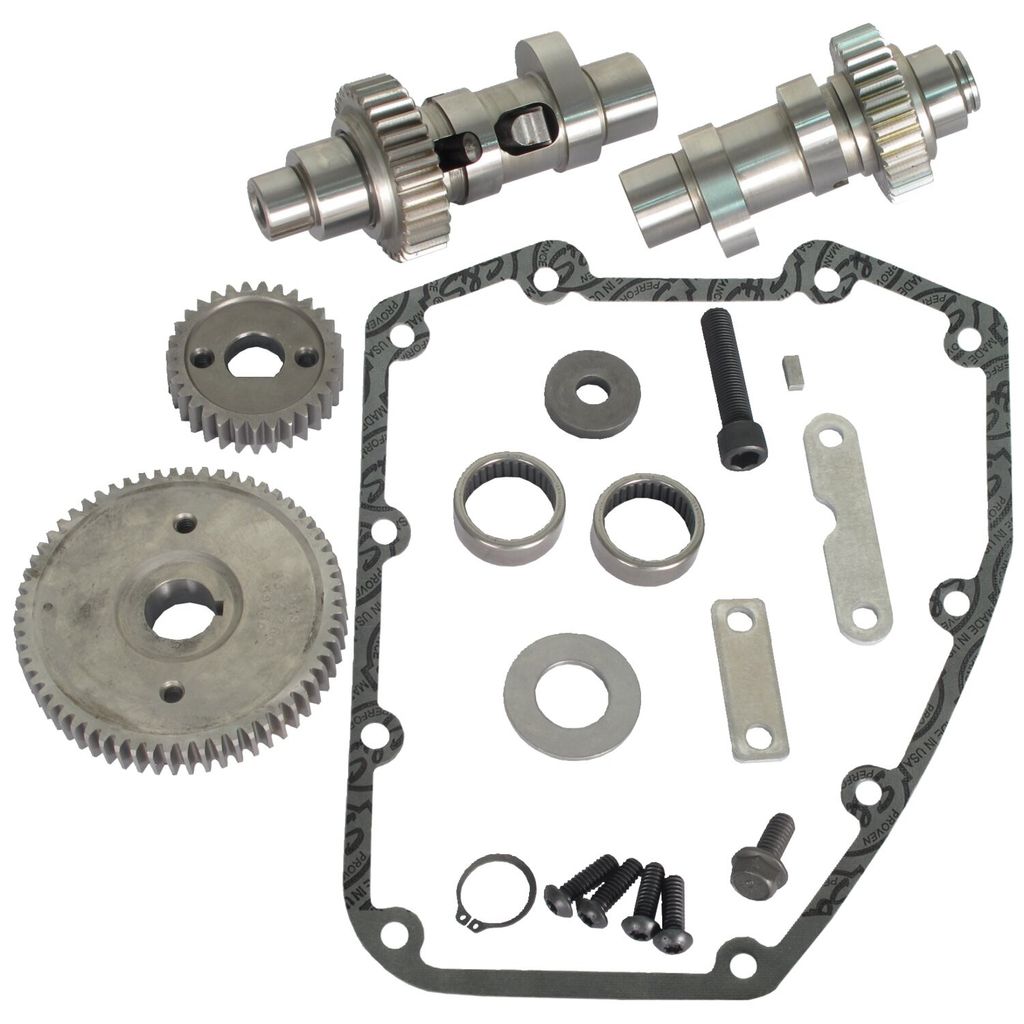

Easy Start gear drive 640 camshaft kit (IOG)
- 640" valve lift
- IOG = gear frive cams with Inner & Outer drive Gears
- Complete kit with installation hardware, bearings and gasket
- 95"-up with 10.5:1 to 11.5:1 CR (stock in S&S 124" engines)
- Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting

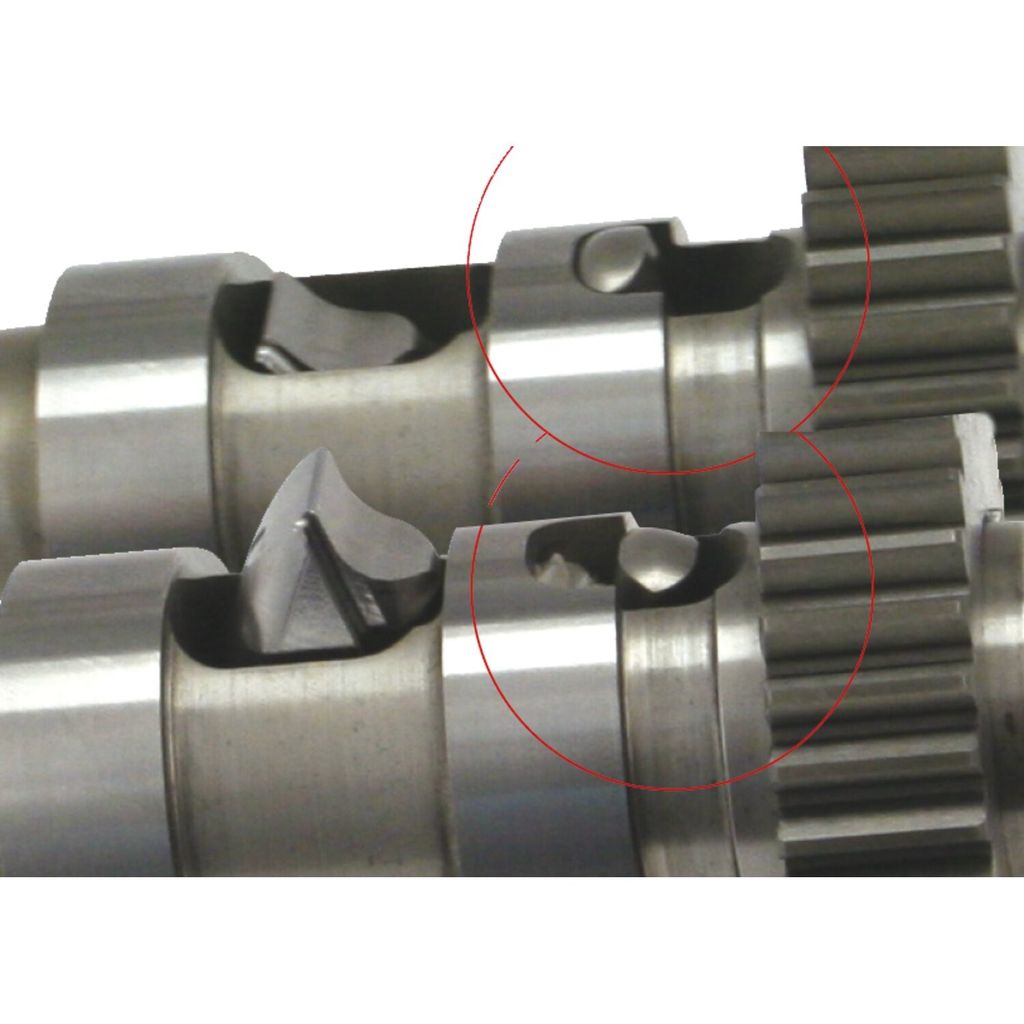

- This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
- After starting the compression release lobe is retracted by centrifugal force
- The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
- A stock starter and battery is enough
- When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
- The installation kit for this kit is separately available as 531268 and compatible with gear drive models only
- Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs
- Note: Not compatible with kickstart models
- Note: Only camshafts made before Jan
- 2010 will require adjustable pushrods
- Note: Below 900 RPM you may hear a clicking sound
- Adjust idle speed to 1000-1100 RPM
- Note: Special Order Product only
- To order please contact your MCS sales representative
Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
