Kamaxelsats S&S Easy Start HP103 Softail 07-17

14 470 kr

S&S Easy Start HP103 kamaxelsats med kuggdrivning
Läs mer

532603 S&S

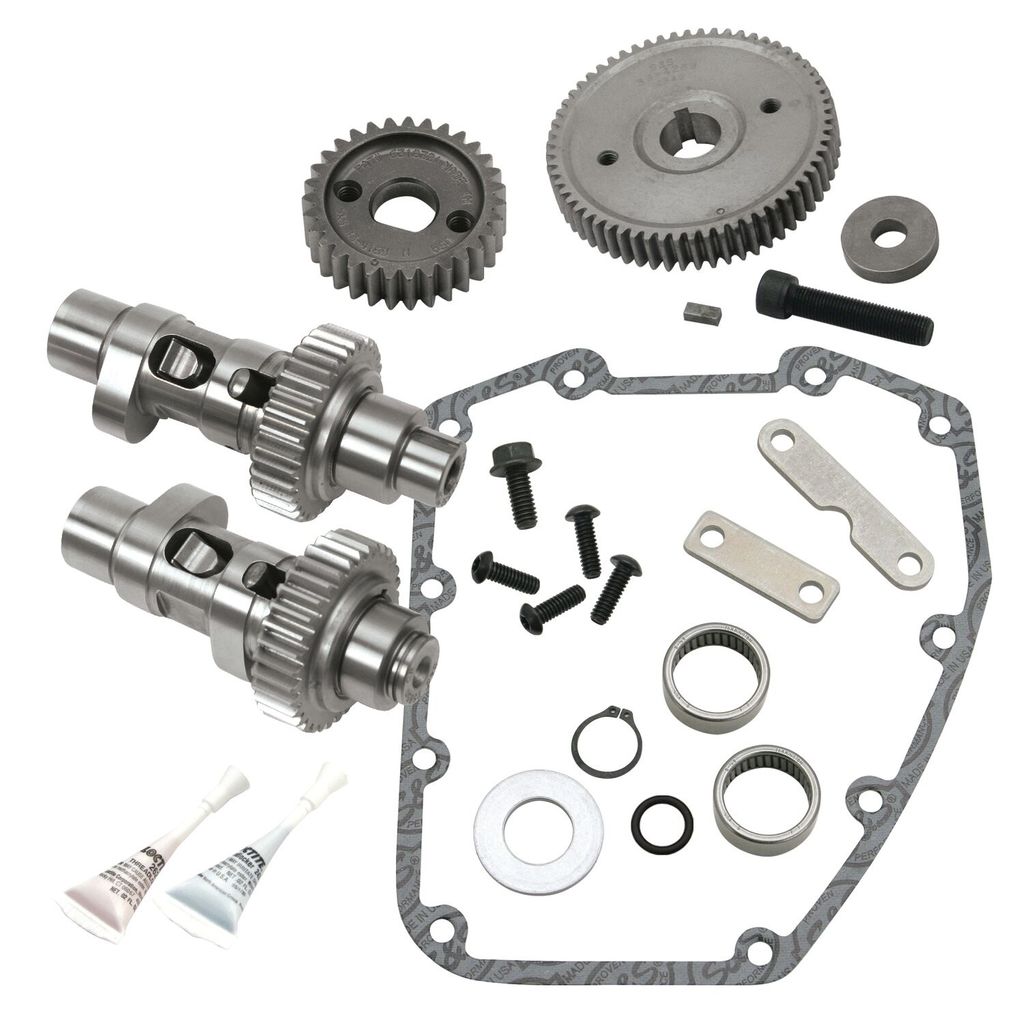

  • Kuggdriven kamaxelsats (IOG) inklusive inre och yttre kuggdrev
  • Ventillyft: .575"
  • Komplett sats med monteringshårdvara, lager och packning
  • Ger starkt vridmoment från tomgång upp till 4000 RPM för 96" till 106"
  • Easy Start-teknik underlättar start genom att lyfta avgasventilen via en fjäderbelastad dekompressionsventil
  • Gör att stora motorer kan startas utan kraftigare startmotor eller batteri
  • Rekommenderas inte för kompressionsförhållande på 10:1 eller högre

Ej kompatibel med 79cc S&S-toppar. Monteringssats finns tillgänglig separat som 531268 och är kompatibel med modeller med kuggdrivning. Vid tomgång under 900 RPM kan ett klickande ljud uppstå, justera tomgången till 1000–1100 RPM.

Passar: Softail 07-17

Easy Start gear drive HP103 camshaft kit (IOG)

  • 575" valve lift
  • IOG = gear drive cams with Inner & Outer drive Gears
  • Complete kit with installation hardware, bearings and gasket
  • Torque for stock 96" Touring bikes
  • Strongest cam from idle to 4000 RPM for 96" to 106"
  • Not recommended for 10:1 or higher CR
  • Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
  • This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
  • After starting the compression release lobe is retracted by centrifugal force
  • The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
  • A stock starter and battery is enough
  • When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
  • The installation kit for this kit is separately available as 531268 and compatible with gear drive models only
  • Note: Not compatible with 79cc S&S heads
  • Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs
  • Note: Only camshafts made before Jan
  • 2010 will require adjustable pushrods
  • Note: Below 900 RPM you may hear a clicking sound
  • Adjust idle speed to 1000-1100 RPM

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
