Spegel fällbar Motogadget mo.view Sport 60 83mm 122mm svart universal

2 350 kr

Styrändsspegel i metall utan glas från Motogadget med fällbar arm
Läs mer

994296 MotoGadget
  • Patenterad glasklös design där själva spegelytan är slipad direkt ur aluminiumkroppen
  • Fällbar spegelarm med 3 fasta låsningslägen i 45°-intervall
  • CNC-fräst ur massiv aluminium med anodiserad ytfinish samt rostfria skruvar
  • Mått spegelhus: 122 mm bredd, 83 mm höjd och 4,5 mm tjocklek (utan kulled)
  • Spegelarmens längd: 72 mm
  • Klämdiameter: passar 22 mm (7/8") och 1" (25,4 mm) styren, klämbredd: 12 mm
  • Kan monteras över eller under styret på både höger och vänster sida
  • ECE-godkänd

Monteras direkt i styränden eller via mo.view styradapter om handtag och reglage inte kan flyttas. Se valfria styradaptrar 575352 (endast spegel) eller 994295 (spegel samt mo.view blinkers).

Passar: Universal

mo.view Sport Flip 60 mm Handlebar End Mirror

  • The handlebar end mirror with swivel mirror arm and defined detent angles is perfect for narrow passages or space problems in the garage. The mirror can be mounted above or below the handlebar.

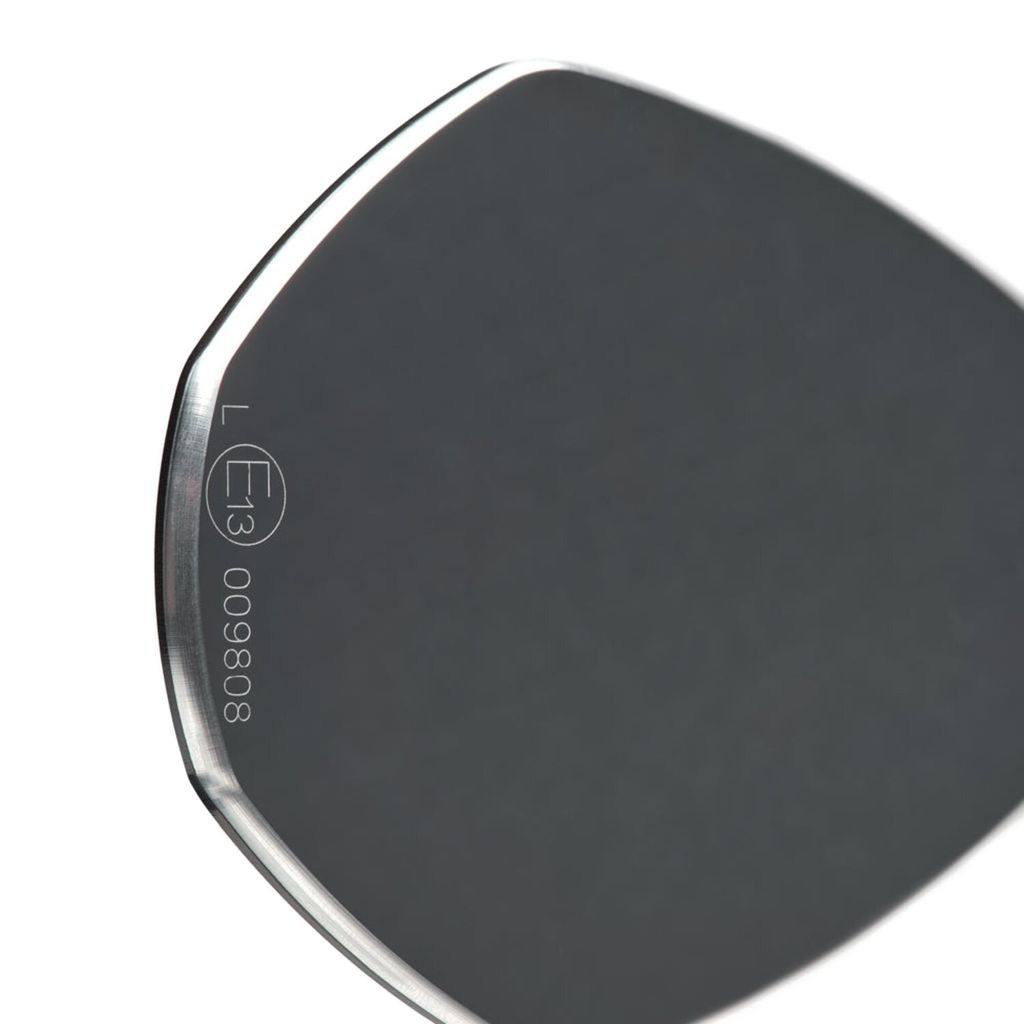

  • Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body. The aluminium itself is the mirror surface!
  • The mirror body itself is very thin and light, creating a weightless design without a rim or frame. The convex mirror surface is produced by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.
  • The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible!

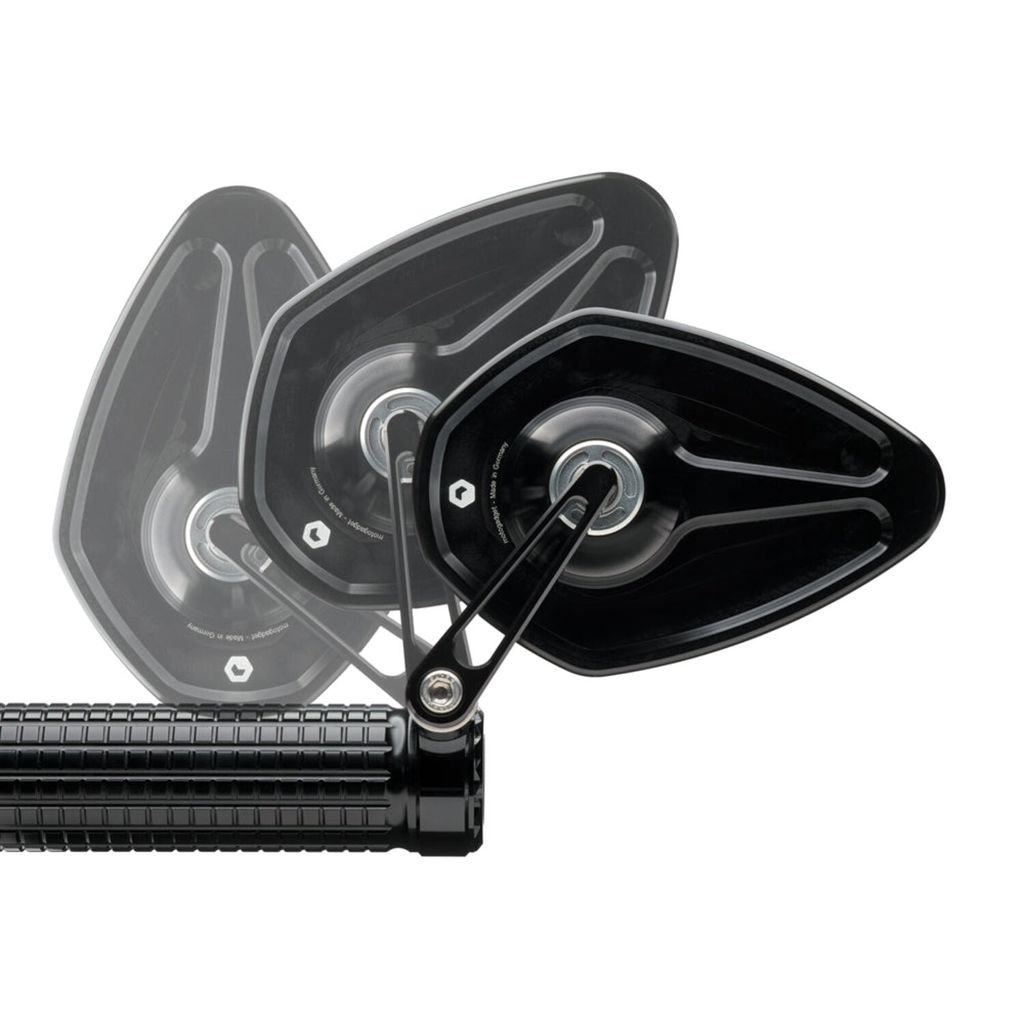

  • A special feature of the flip series mirrors is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.
  • Extremely practical for narrow passages, space problems in the garage or for transportation. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate, even at high speeds, if fitted correctly.
  • The mirror can be mounted both above or below the handlebar and is suitable for the right and left side. Mounting is directly on the end of the handlebar (22 mm and 1 inch) or if the grips and fittings can not be moved, using a mo.view bar adapter.
  • Mirror body width: 122 mm.
  • Mirror body height: 83 mm.
  • Thickness of the mirror body without ball head: 4.5 mm.
  • Length of the mirror arm: 72 mm.
  • Clamp diameter: can be used for 22 mm and 1 inch handlebars.
  • Clamp width: 12 mm.
  • Weight: 150 g.
  • Scope of delivery: 1x mo.view sport 60 flip (with ECE marking) with arm, 1x clamp & instructions manual.
  • Adjusts in 3 sturdy locking intervals of 45°, from up, half way to side ways
  • It is CNC machined aluminum with an anodized finished, but a regular glass lens is not used
  • Note: See optional in-bar handlebar adapters 575352 (mirror only) or 994295 (mirror + mo.view turn signal)
  • For left or right side use - 'Teardrop' mirror body: 83mm high x 122mm wide
  • Fits 7/8" (22mm) and 1" (25.4mm) handlebars
  • Clamp width: 12mm
  • Easy cleaning: Use a mild cleaning agent and a microfiber cloth
  • Avoid abrasive cleaning agents that could damage the surface
  • ECE marked
  • Stainless hardware
  • Weight: 128 gram

Fits: Universal for 22mm and 1 inch handlebar
