Spegel fällbar Motogadget mo.view Classic 60 99mm svart universal
Styrändsbackspegel i aluminium utan spegelglas med vinklingsbar arm.
Läs mer
- Patenterad spegelyta i metall direkt integrerad i aluminiumkroppen
- Svängbar spegelarm med fasta spärrlägen i intervall om 45°
- Kan monteras över eller under styret, på höger eller vänster sida
- CNC-fräst ur massivt aluminium med anodiserad yta och skruvar i rostfritt stål
- Spegeldiameter: 99 mm (rund)
- Klämdiameter: passar 22 mm (7/8") och 1" (25,4 mm) styren (klämbredd 12 mm)
- Vikt: 150 g
- ECE-godkänd
Monteras direkt på styränden eller med mo.view styradapter om handtag och reglage inte kan flyttas (se adapter 575352 för enbart spegel eller 994295 för spegel och mo.view blinkers). Levereras styckvis med arm, klämma och manual.
Passar: Universal
mo.view Classic Flip 60 mm Handlebar End Mirror
- The handlebar end mirror with swivel mirror arm and defined detent angles is perfect for narrow passages or space problems in the garage. The mirror has an ECE marking and can be mounted above or below the handlebar.
- Our glassless mirror series mo.view is unique worldwide. The special feature of our mirrors is the patented mirror surface, which is made directly from the metal of the body. The aluminium itself is the mirror surface!
- The mirror body itself is very thin and light, creating a weightless design without a rim or frame. The convex mirror surface is produced by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by an elaborate plasma coating in a vacuum.
- The mirror body, mirror arm and the clamp for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality. All screws are made of stainless steel. The precise ball joint allows the mirror to be adjusted comfortably and very stably. Glass breakage or glass falling out is simply not possible!

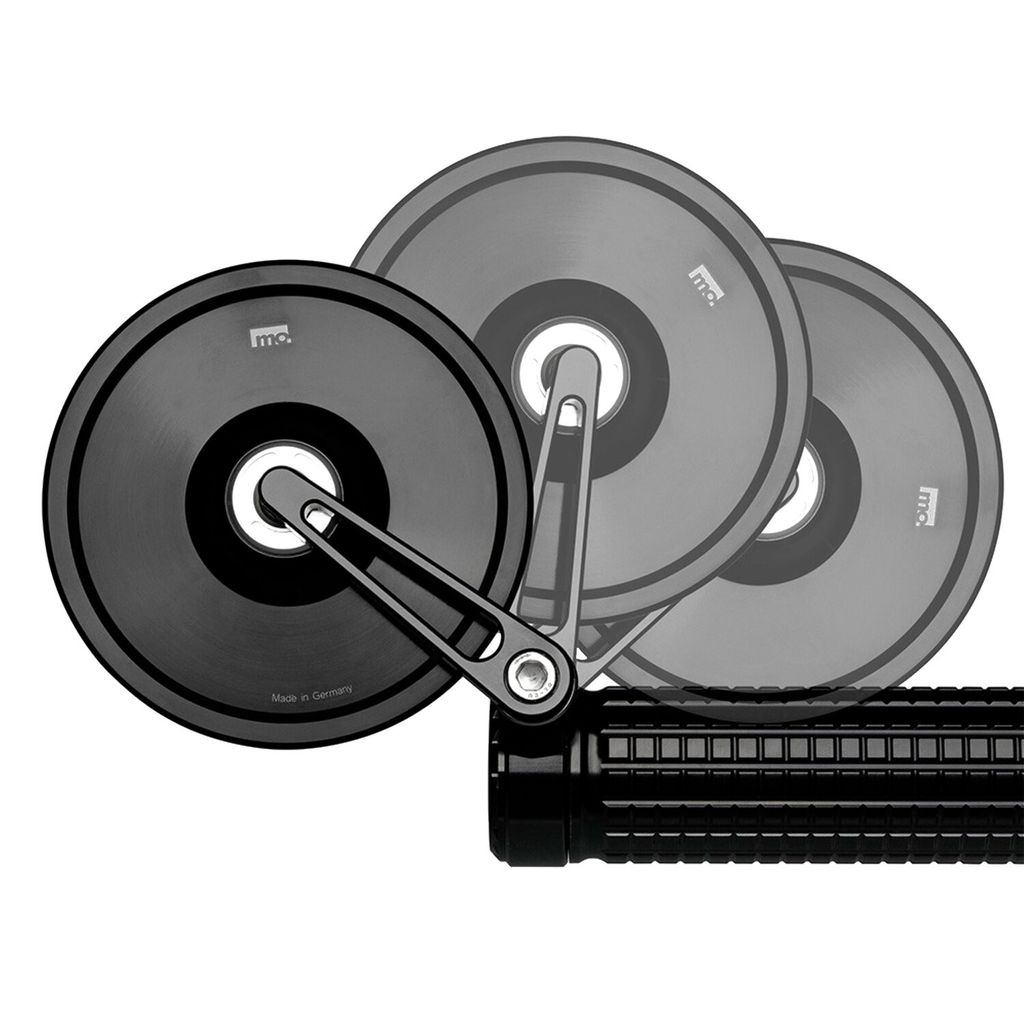

- A special feature of the flip series mirrors is the pivoting mirror arm with defined locking angles at 45° intervals. This allows the mirror to be tilted upwards as required without changing the mirror setting.
- Extremely practical for narrow passages, space problems in the garage or for transportation. The locking mechanism is very stable and cannot be adjusted accidentally. The mirror does not vibrate, even at high speeds, if fitted correctly.
- The mirror can be mounted either above or below the handlebars and is suitable for the right and left side. It is mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using a mo.view bar adapter.
- Diameter of the mirror body: 99 mm.
- Thickness of the mirror body without ball head: 4.2 mm.
- Length of the mirror arm: 72 mm.
- Clamp diameter: can be used for 22 mm and 1 inch handlebars.
- Clamp width: 12 mm.
- Weight: 150 g.
- Scope of delivery: 1x rear-view mirror mo.view classic 60 flip (with ECE marking) with arm, 1x clamp & instructions manual.
- Adjusts in 3 sturdy locking intervals of 45°, from up, half way to side ways
- It allows upside down mounting for a 'below bar' stance and allows left or right side use
- It is CNC machined aluminum with an anodized finished, but a regular glass lens is not used
- Note: See optional in-bar handlebar adapters 575352 (mirror only) or 994295 (mirror + mo.view turn signal)
- Round mirror body: 99mm diameter
- Fits 7/8" (22mm) and 1" (25.4mm) handlebars
- Clamp width: 12mm
- Easy cleaning: Use a mild cleaning agent and a microfiber cloth
- Avoid abrasive cleaning agents that could damage the surface
- ECE marked
- Stainless hardware
- Weight: 150 gram
Fits: Universal for 22mm and 1 inch handlebar
