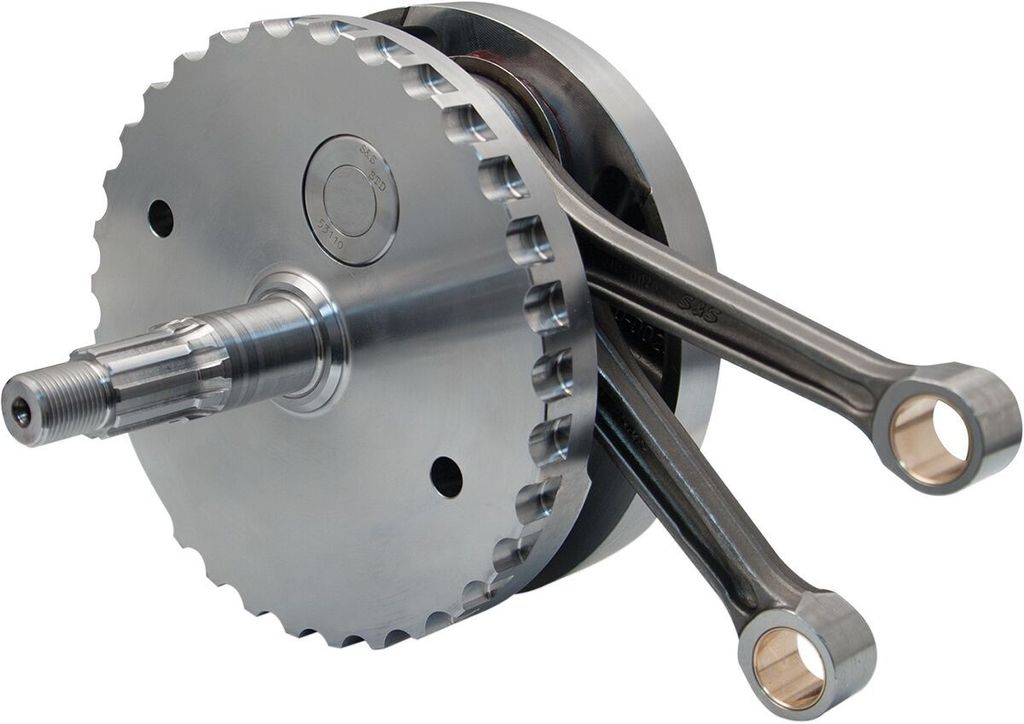

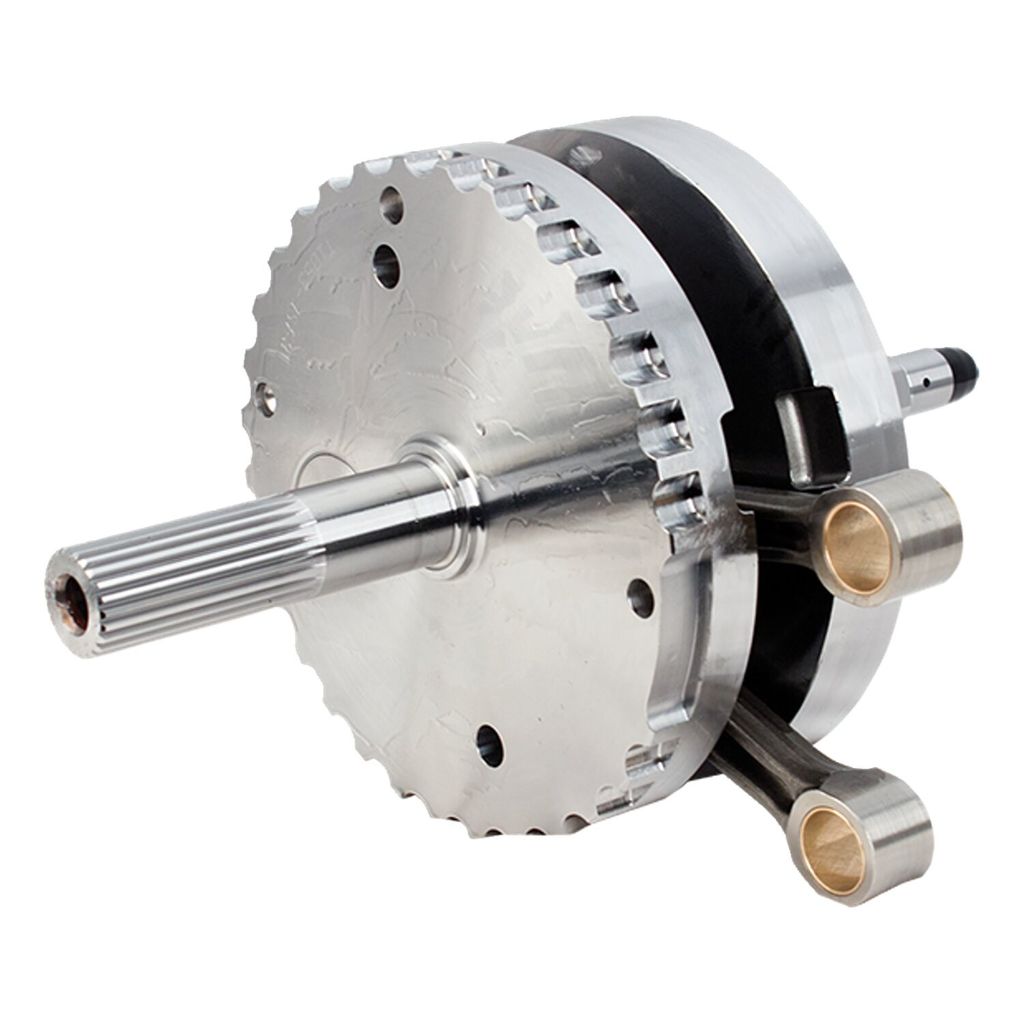

Svänghjul S&S 106″ H-D 07-17

28 730 kr

S&S 106" Stroker svänghjulssats med 4-1/2" slaglängd
Läs mer

09220115 S&S
  • Tredelat monterat svänghjul med axlar
  • Slaglängd på 4-1/2"
  • Kräver inga modifieringar av motorblocket
  • Balanserat för en total kolvvikt på 1108 gram
  • Vevstakar saknar koniska kolvbultsändar och är ej kompatibel med original H-D-kolvar eller original sprocket shaft-lager
  • Originalcylindrar kräver uppborrning till 3.875"
  • Vevlagertappar med 1.671" diameter och utbytbara lagerbanor i vevstakarnas storände
  • Tillverkad i USA

Avsett för Timken-lager på sprocket shaft, passar 99–02 originalblock samt S&S-block utan modifiering. För 03–17 Twin Cam krävs konvertering till Timken-lager (garantin gäller inte med original rullager). Motorer med insprutning kräver omkalibrering, och motorer med över 4" slag kan kräva S&S kolvkylningsmunstycken samt urtag i kolvkjolen.

Passar: Dyna 06-17

OEM-nr: 24004-03B, 24605-07

Produkt-typ Flywheel Assembly
Tillverkarens Art. Nr. 320-0450

106" Stroker Flywheel Kit

  • Feature three-piece assembled flywheels with shafts
  • Do not require any motor case modification
  • 4-1/2" stroke
  • 103" stock motors or motors with factory 95" kits require piston kit only; stock or S&S cylinder heads can be used
  • Stock cylinders will require boring to 3.875"
  • Made in the USA
  • Fuel-injected motors will require recalibration of the fuel-injection system.
  • This project requires a skilled technician. It is the responsibility of the person assembling the parts to check all clearances and assembly specifications.
  • For 106" stroker engine
  • S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings
  • Balanced to 1108 grams total piston weight
  • Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
  • Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
  • The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
  • The second generation crankpins, in use since 2013, have the larger 1.671" OEM diameter crankpins
  • Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
  • Note: Following is regarding 03-17 models
  • S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
  • Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
  • However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
  • S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
  • To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
  • This kit includes a tool, a Timken bearing and a steel crankcase bearing insert for one motor
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

Fits: 06-17 Dyna; 07-16 FLT/Touring (NU)
