Kamaxelsats S&S 551G H-D 06-17

13 070 kr

S&S 551G kuggdriven kamaxelsats
Läs mer

09250959 S&S
  • Konstruerad för motorer på 96 till 106 CID med 9:1 till 9:9 i kompression
  • Bolt-in-kamaxel som ger mer effekt och förbättrat vridmoment vid 1 000–4 000 rpm
  • Kuggdrivning eliminerar kedjesträckare och kedjespel för mer exakt ventilstyrning
  • Ventillyft: 550"
  • Vänder bakre kamaxelns rotationsriktning för ökat frigångsutrymme mellan nockarna

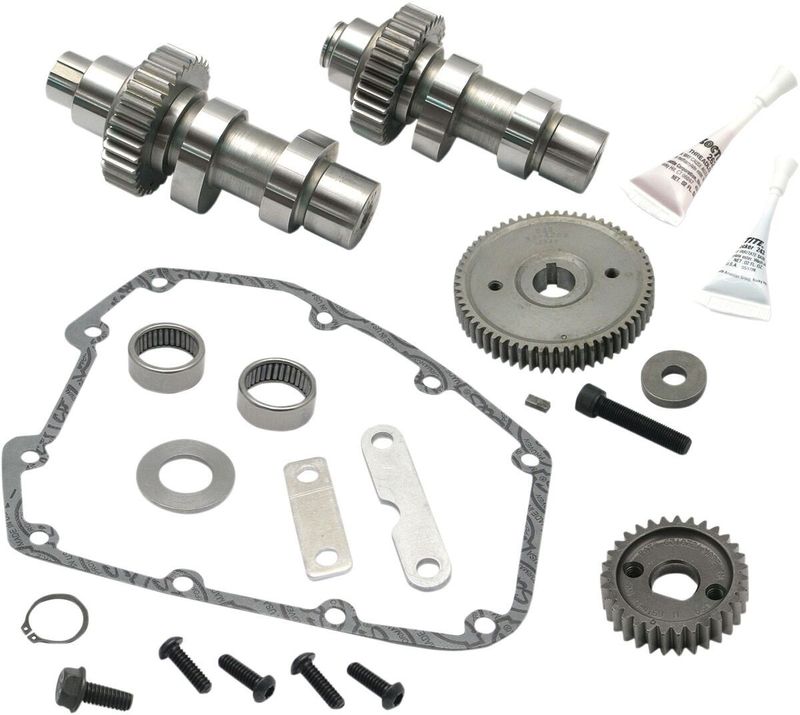

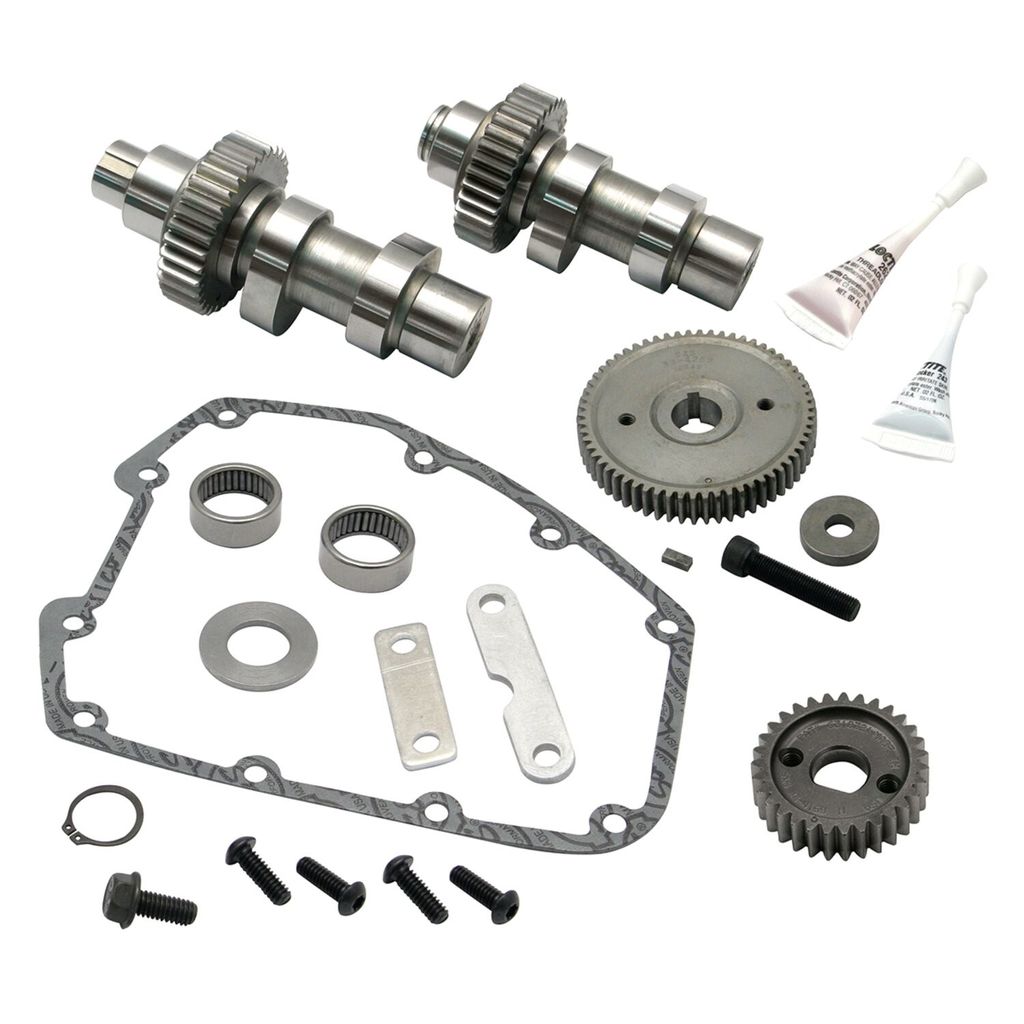

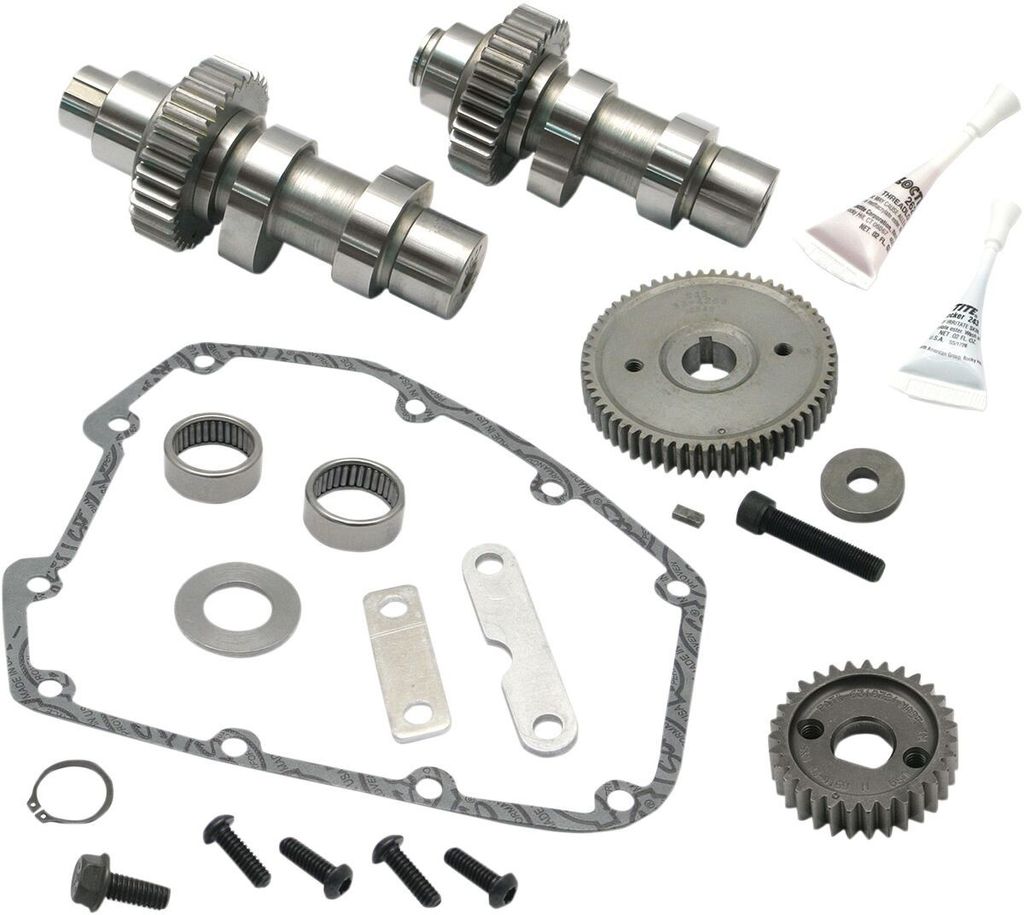

  • Satsen innehåller inre och yttre kugghjul, inre och yttre lager, packningar och monteringsanvisning
  • Tillverkad i USA

Rekommenderas inte för kompressionsförhållanden på 10:1 eller högre. Justerbara stötstänger krävs för att kompensera för kamaxelns mindre bascirkel. Montering kräver hydraulpress och specialverktyg, och material måste avlägsnas från insidan av transmissionskåpan.

Passar: H-D 06-17

Produkt-typ Camshaft
Tillverkarens Art. Nr. 106-4868

551G Gear Drive Camshaft Kit

  • Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible
  • More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm
  • Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
  • Material must be removed from inner surface of the stock gear cover to install
  • A hydraulic press and other professional level tools are required for installation
  • Cam bearings and gaskets must be replaced when installing new cams
  • S&S recommends that adjustable pushrod/cover kit be used
  • Not recommended for compression ratios of 10:1 or greater
  • Kit includes inner gears, outer gears, inner and outer bearings, gaskets and instructions
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance, and valve to piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • 550" valve lift
  • Complete kit with installation hardware, bearings and gasket
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
  • Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs

Can be used with stock pushrods, springs, and lifters.

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
