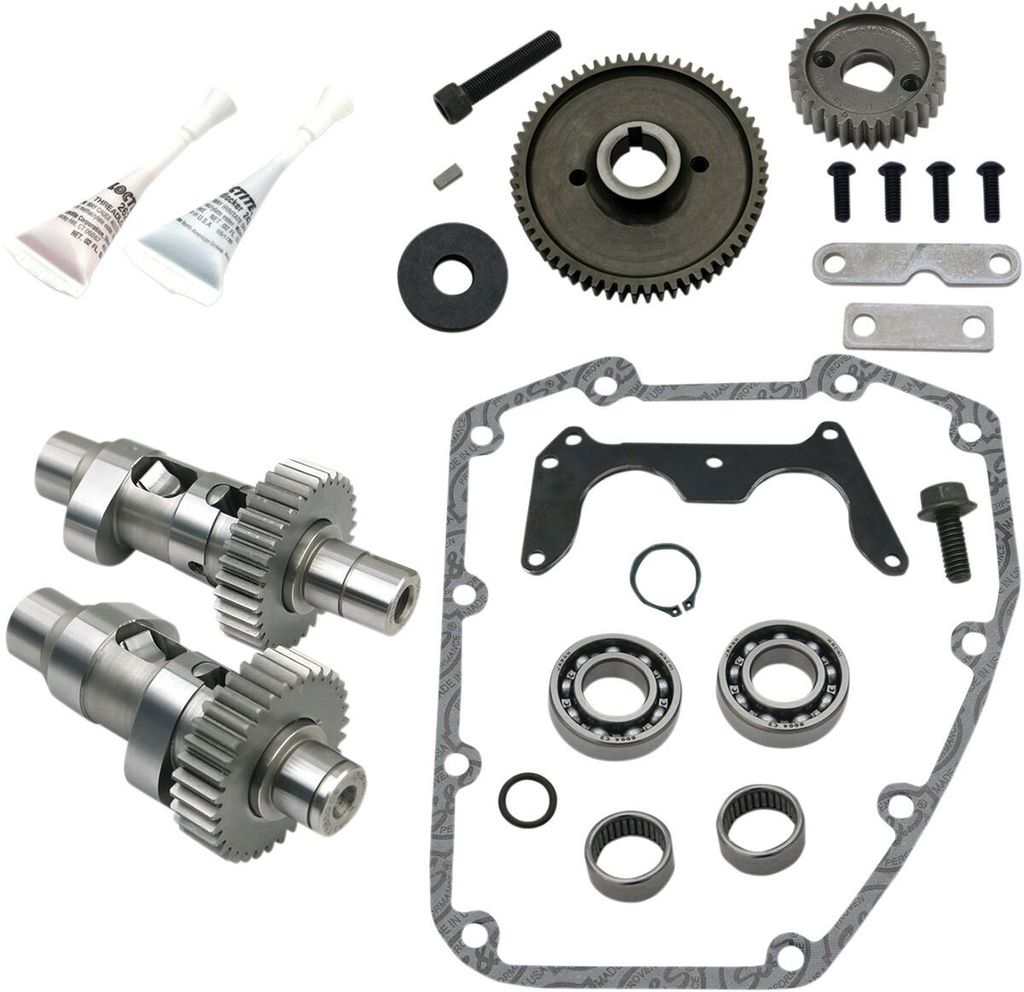

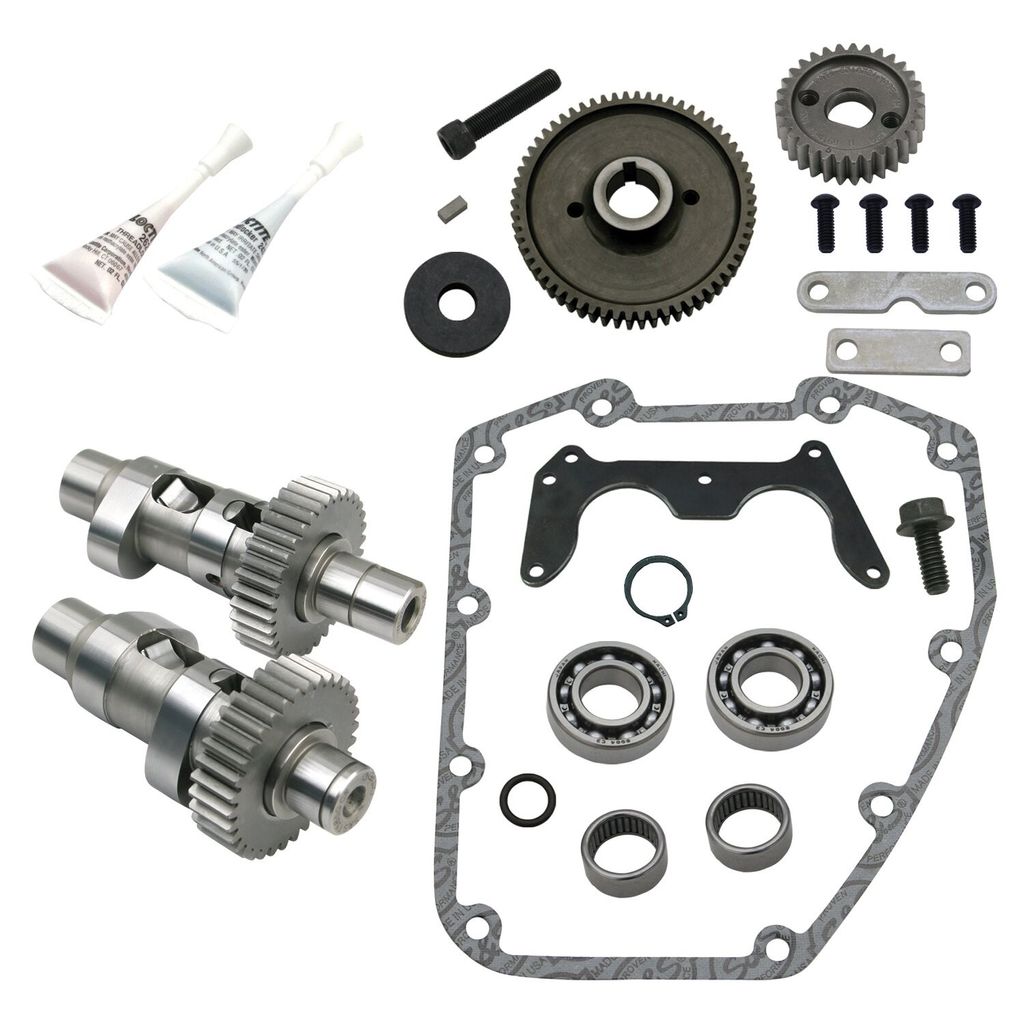

Kamaxelsats S&S Easy Start MR103 inre yttre Twin Cam 99-06

16 930 kr

S&S MR103 Easy Start kamaxelsats med kuggdrivning
Läs mer

09251046 S&S
  • Kuggdriven kamaxelsats (IOG) inklusive 4-kugghjulssats (inre och yttre drev)
  • Easy Start-teknik lyfter avgasventilen vid start för minskat startmotstånd
  • Konstruerad för 103"-motorer med kompressionsförhållande från 9,7:1 upp till 10,5:1
  • Ger mer effekt över hela registret med bäst resultat mellan 2500–5500 RPM
  • Lyft: .585"
  • Fungerar med orörda originaltoppar samt S&S CNC-portade toppar
  • Innehåller kamaxlar, transmissionskåpspackning, lager, låsring, o-ring, gänglåsning och anvisningar
  • Tillverkad i USA

Passar inte modeller med OEM dekompressionsventiler och är ej kompatibel med kickstart. Kamslipningen är inte bolt-in för 99–06 Twin Cam utan kräver ventilfjädrar för högt lyft samt kontroll av frigång för ventil-till-ventil, ventil-till-kolv och ventilfjäderbottning. Kamaxlar tillverkade före jan 2010 kräver justerbara stötstänger, tomgång bör justeras till 1000–1100 RPM och kuggdrivning kan medföra ökat transmissionsljud.

Passar: H-D 99-06

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 330-0466

MR103 Easy Start Camshaft kit

  • Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
  • Designed as bolt-in cams for 103" engine with stock 9.7:1 compression ratio up to 10.5:1
  • More power across the rpm range best results from 2500 rpm - 5500 rpm
  • Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
  • Made in the USA
  • Works with stock, un-ported heads, but is great for S&S CNC ported heads.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
  • Not for models with OEM compression releases.
  • 585" valve lift
  • IOG = gear drive cams with Inner & Outer drive Gears
  • Complete kit with installation hardware, bearings and gasket
  • 2500-5500 RPM Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
  • This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
  • After starting the compression release lobe is retracted by centrifugal force
  • The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
  • A stock starter and battery is enough
  • When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
  • It is separately available as replacement from S&S for this kit as 503566
  • Note: No Easy Start Cam grind is bolt-in for these 99-06 Twin Cam models
  • All will / may require clearancing and require high lift valve springs
  • Note: Not compatible with kickstart models
  • Note: Camshafts made before Jan
  • 2010 will require adjustable pushrods
  • Note: Below 900 RPM you may hear a clicking sound
  • Adjust idle speed to 1000-1100 RPM

Includes 4-gear set. Due to the inherent characterics of gear drives, there may be more valve train noise.

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
