Kamaxelsats S&S 509G 88″ .625″ Twin Cam 99-06
S&S 509G kamaxelsats med kuggdrivning
Läs mer
- Bolt-in-kamaxlar för 88"-motorer med originalkompression
- Ventillyft: .509"
- Starkast från tomgång/1000 till 4000–4500 RPM
- 180 psi (12,41 bar) startkompression – dekompressionsventiler behövs inte
- Kuggdrivning ger mer exakta ventiltider och eliminerar kedjespännare och kedjesläpor

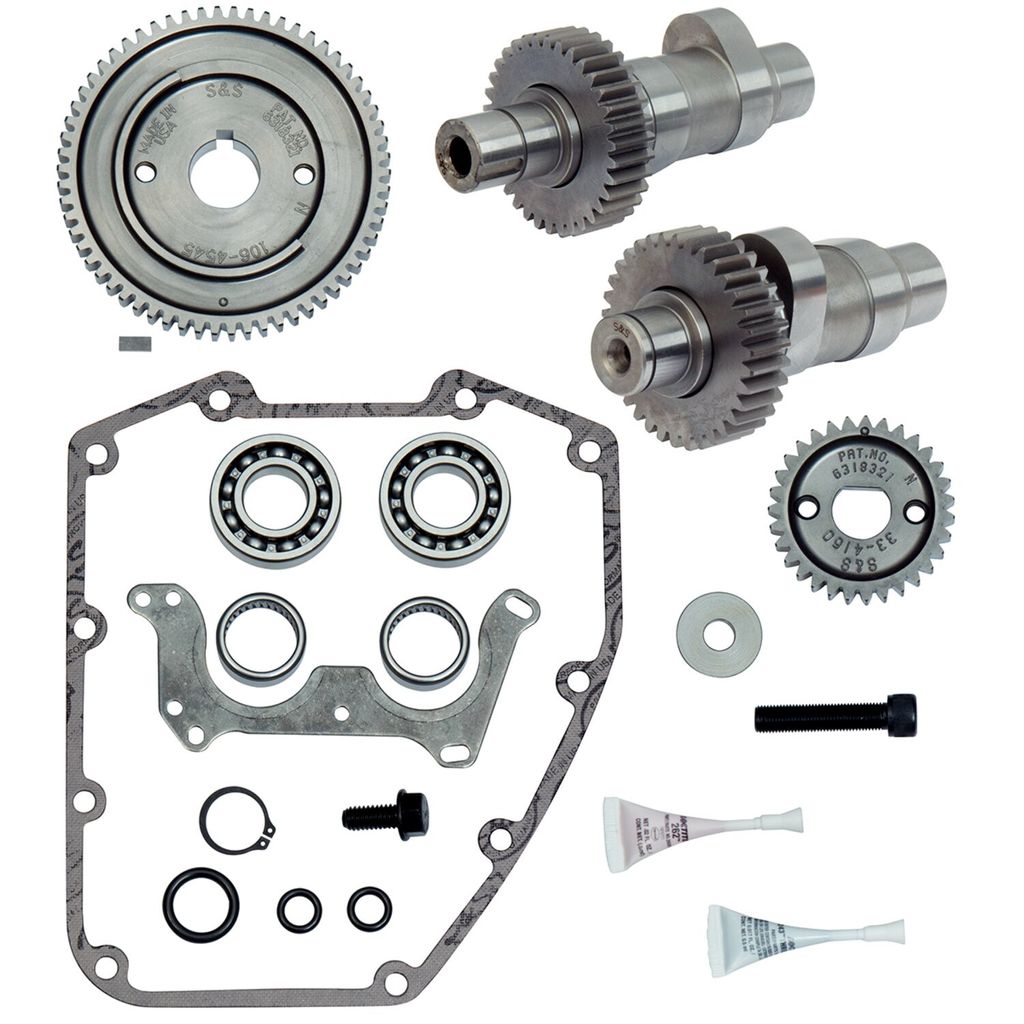

- Satsen innehåller kamaxlar, inre och yttre drev, inre och yttre lager, packningar och monteringsdelar
- Tillverkad i USA
Passar inte '06 Dyna. Material måste avlägsnas från original transmissionskåpas insida och hydraulisk press samt professionella verktyg krävs för montering. Justerbara stötstänger krävs för att kompensera för kamaxlarnas mindre bascirkel, och ventilfjädrar, ventilspel samt ventil-till-kolvspel måste kontrolleras. Kuggdrivning kan medföra något mer mekaniskt ljud från ventilsystemet.
Passar: H-D 99-06
| Produkt-typ | Cam Kit |
| Tillverkarens Art. Nr. | 330-0017 |
509G Gear Drive Camshaft Kit
- Bolt in cams for 88 CID engines with stock compression ratios
- Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; resulting in higher cam lifts that are possible with the gear kit
- Material must be removed from inner surface of the stock gear cover to install
- S&S recommends that adjustable pushrod/cover kit to be used
- Cam bearings and gaskets must be replaced when installing new cams
- Lowers loft allows cams to be bolted into 96"-106" '06 engines with stock valve springs
- Strongest from 1000-4500 rpm
- 180 psi cranking compression; no need for compression releases
- A hydraulic press and other professional level tools are required to install

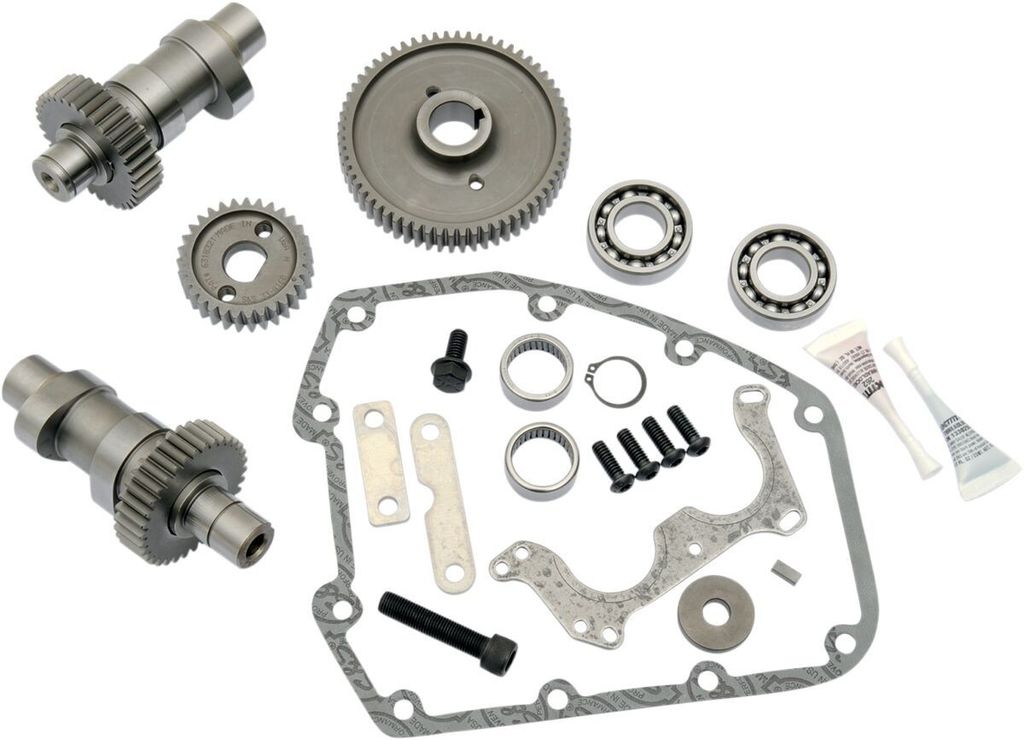

- Kit includes cams, inner gears, outer drive gears, inner and outer bearings, gaskets and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
- EU: 12,41 Bar cranking compression; no need for compression releases
- 509." valve lift
- Complete kit with installation hardware, bearings and gasket
- Bolt-in, high torque from idle to 4000 RPM for 88" engines with stock compression
- The gear drive system is in fact a revolutionary different and much more reliable construction
- Especially in high lift/performance applications, when compared with the OEM chain-drive design
- A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
- The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
- It has no other mechanical advantages whatsoever
- Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
- Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
- Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
- Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
- Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs
Not for '06 Dyna.
Fits: 99-06 Twin Cam (Excl. 2006 Dyna) with stock non-hydraulic chain tensioners (NU)
