Kamaxelsats S&S 510G H-D 03-16

13 070 kr

S&S 510G kamaxelsats med kugghjulsdrivning
Läs mer

09250156 S&S
  • Bolt-in-kamaxel för 88", 95", 96" och 103" motorer med kompressionsförhållande under 9.7:1
  • Ger starkast effekt mellan 3000–5500 RPM
  • Ventillyft: .510"
  • Kugghjulsdrivning ger mer exakt ventilstyrning och eliminerar problem med originalkedja och sträckare
  • Kan användas med stötstänger och ventilfjädrar i originalutförande

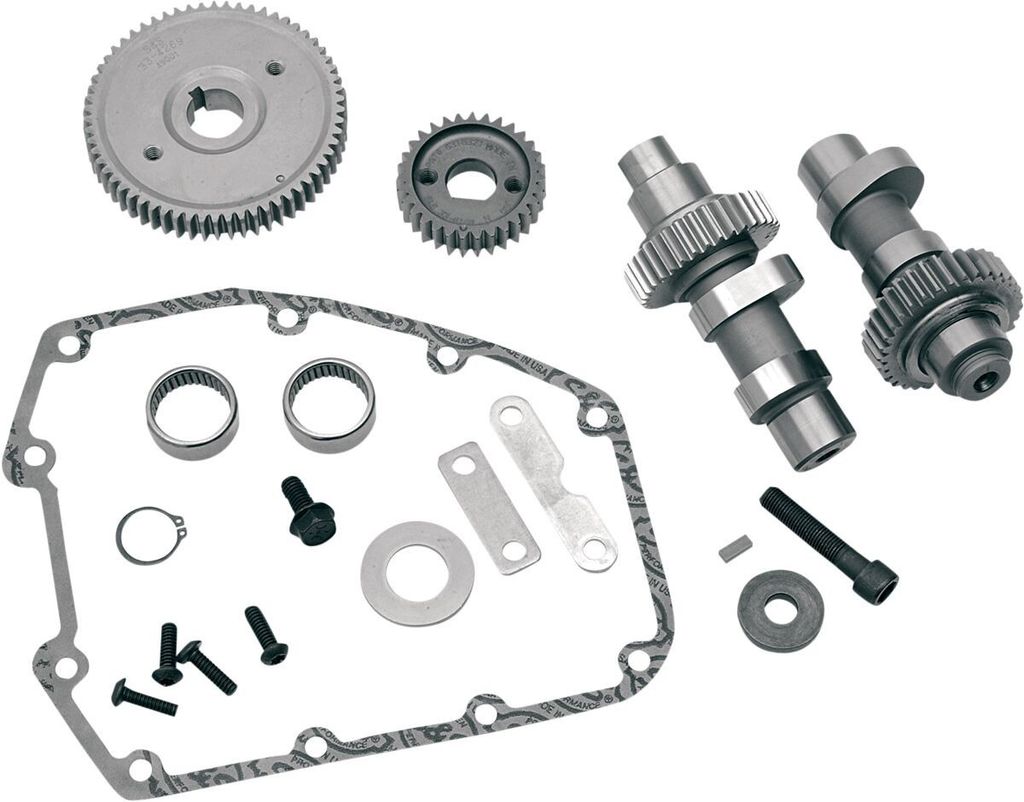

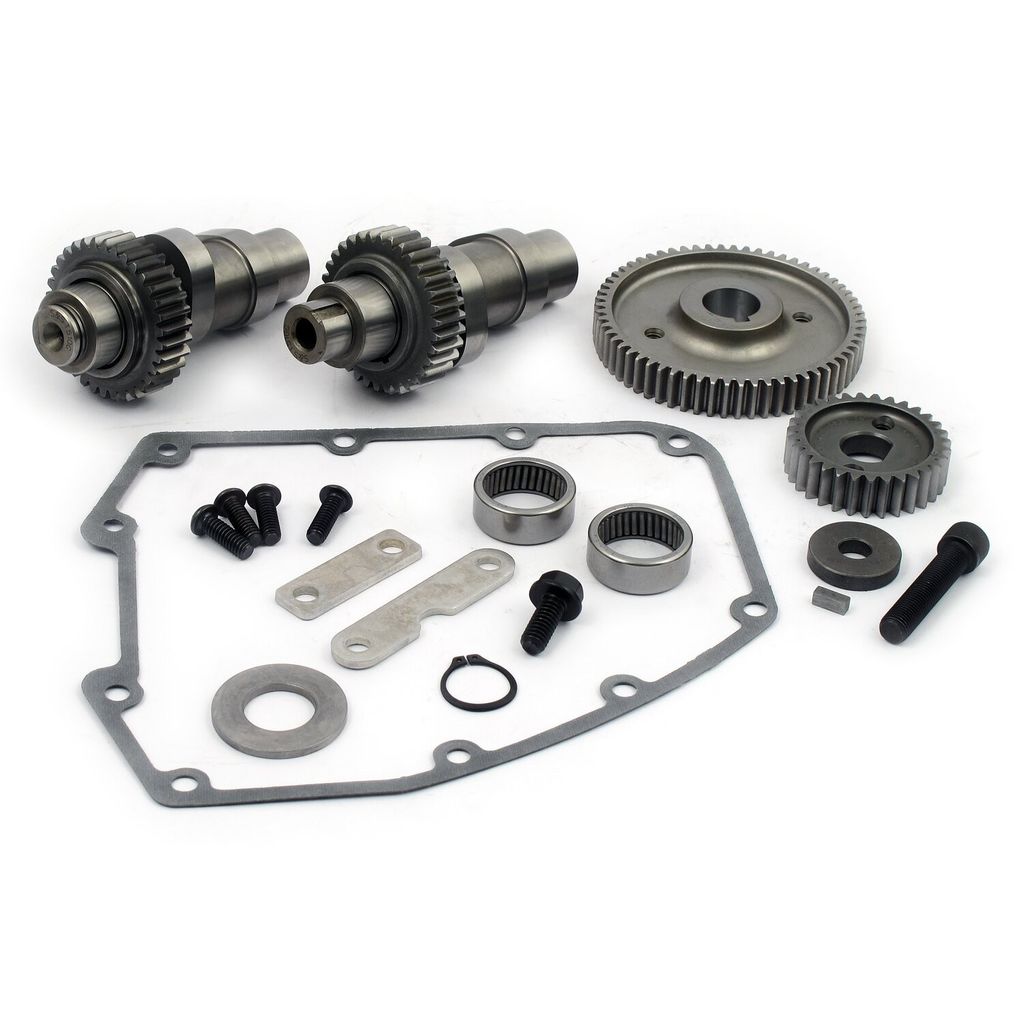

  • Satsen innehåller kamaxlar med inre drev, kamdrev (yttre) samt monteringssats
  • Monteringssatsen innehåller kåppackning, lager, pluggningssats för oljekanal, låsring, O-ring och instruktioner
  • Tillverkad i USA

Material kan behöva slipas bort från insidan av transmissionskåpan innan montering av S&S yttre drivdrev. Kugghjulsdrivning kan ge ett något högre mekaniskt ljud jämfört med kedjedrift.

Passar: H-D 03-16

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 33-5266

510G Camshaft Kit

  • Cams designed as bolt-in cam for 88", 95", 96" and 103" engines with compression ratios below 9.7:1
  • Kit includes camshafts with inner gears, outer cam drive gear kit and camshaft installation kit: gearcover gasket, bearings, oil passage block off kit, retaining ring. o-ring and instructions
  • Stock pushrods and valve springs are acceptable
  • Strongest from 3000-5500 RPM
  • Made in the USA
  • 510" valve lift
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The S&S gear drive kit will increase valve timing accuracy, and therefore horsepower, by eliminating the timing chain lash and loosely fit stock cam gears
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • The S&S gear drive kit reverses the direction of rotation of the rear cam, providing additional operating clearance between cam lobes
  • As a result, higher cam lifts are possible with the S&S gear driven cams
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: Material may have to be removed from the inner surface of the OEM gear cover before installation of the S&S outer drive gears (which are required and available as 503577)
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
  • Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
