Kamaxelsats S&S 551G H-D 99-06

13 070 kr

S&S 551G kugghjulsdriven kamaxelsats
Läs mer

09250742 S&S
  • Utvecklad för motorer på 96–106 CID med 9:1–9,9:1 i kompression
  • Ger mer effekt genom hela registret med fokus på vridmoment mellan 1 000–4 000 rpm
  • .550" ventillyft
  • Kugghjulsdrift eliminerar kamkedjor och sträckare för exaktare ventiltider och ökad driftsäkerhet
  • Kugghjulsdriften kan medföra ett något högre mekaniskt ljud från ventiltåget

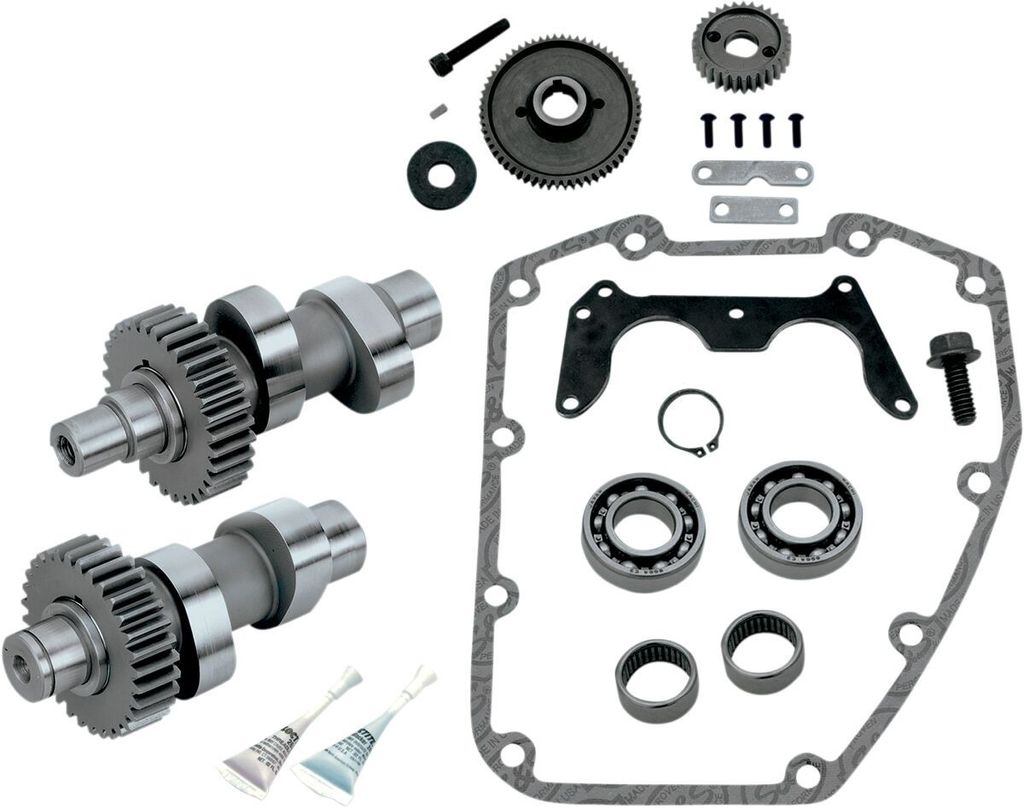

  • Satsen innehåller inre och yttre drev, inre och yttre lager, packningar och monteringsanvisning
  • Tillverkad i USA

Passar inte '06 Dyna och rekommenderas inte för kompressionsförhållanden på 10:1 eller högre. Justerbara stötstänger krävs för att kompensera för kamaxlarnas mindre bascirkel. Montering kräver hydraulpress och specialverktyg samt att material avlägsnas från insidan av original transmissionskåpa.

Passar: H-D 99-06

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 330-0100

551G Gear Drive Camshaft Kit

  • Designed for engines with 96 to 106 CID and 9:1 to 9:9 compression, this is a bolt-in cam set for stock or mildly modified touring bikes
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible
  • More power across the rpm range, with improved low and midrange torque, strongest from 1,000-4,000 rpm
  • Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
  • Material must be removed from inner surface of the stock gear cover to install
  • A hydraulic press and other professional level tools are required for installation
  • Cam bearings and gaskets must be replaced when installing new cams
  • S&S recommends that adjustable pushrod/cover kit be used
  • Not recommended for compression ratios of 10:1 or greater

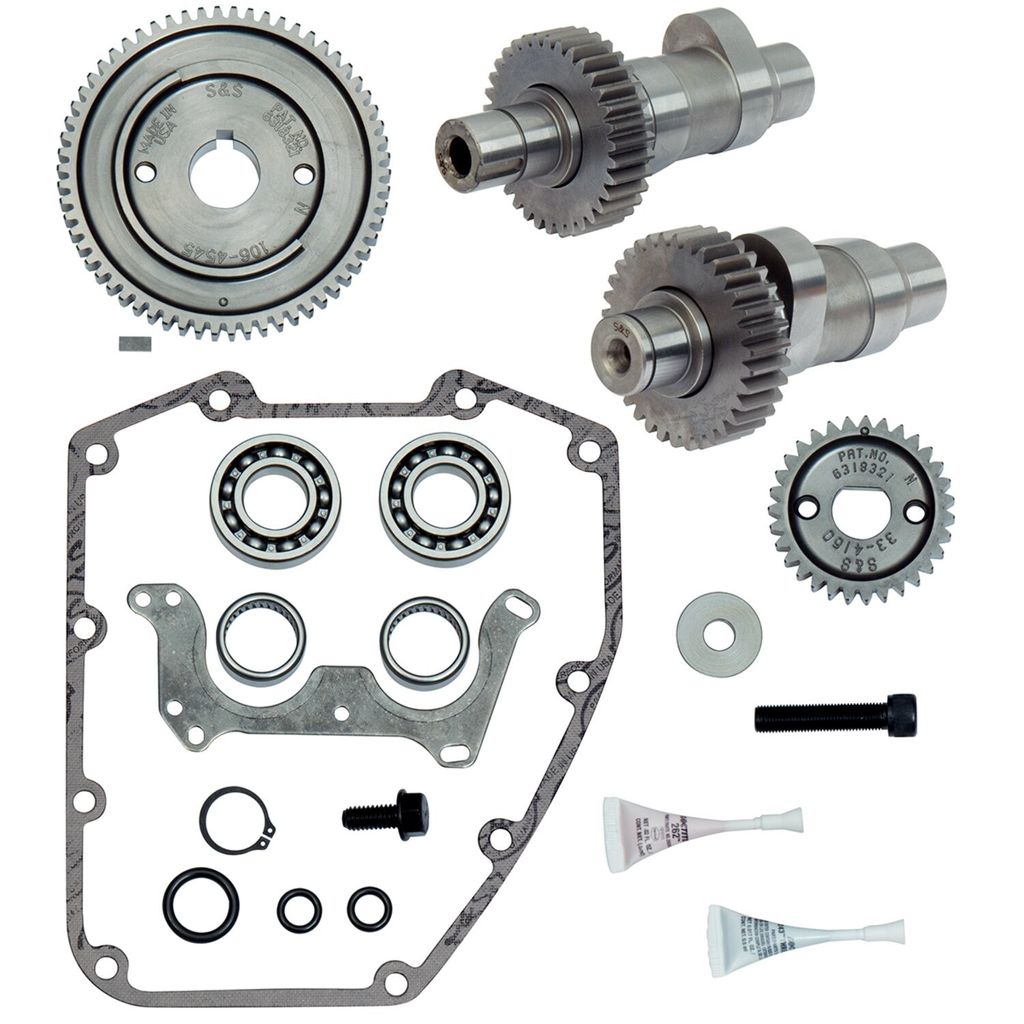

  • Kit includes inner gears, outer gears, inner and outer bearings, gaskets and instructions
  • Made in the USA
  • Installer must check coil bind, valve to valve clearance, and valve to piston clearance.
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • 550" valve lift
  • Complete kit with installation hardware, bearings and gasket
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM

Not for '06 Dyna.

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) with stock non-hydraulic chain tensioners (NU)
