Kamaxelsats S&S 570G H-D 03-16

15 000 kr

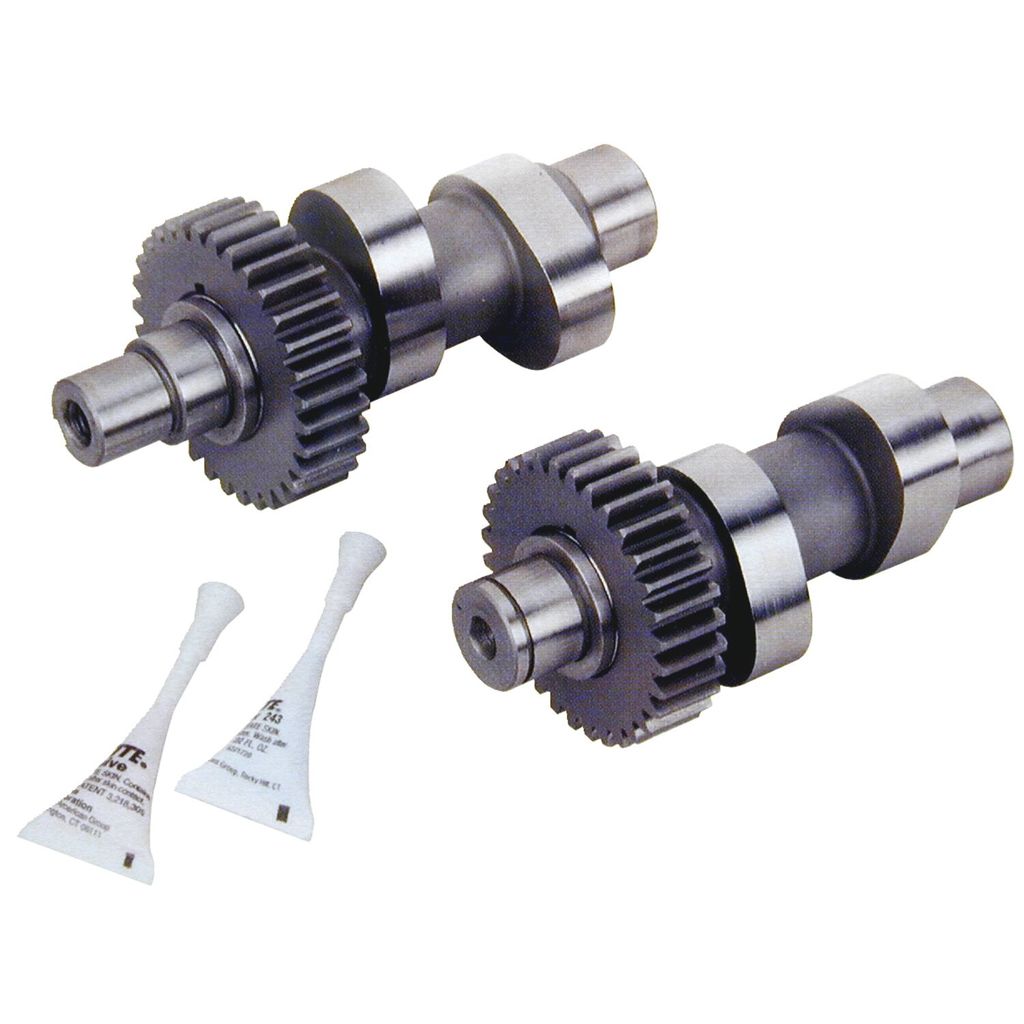

S&S 570G kugghjulsdriven kamaxelsats
Läs mer

09250157 S&S
  • Utvecklad för 88" till 103" CID-motorer med kompressionsförhållande mellan 9:1 och 10:1
  • Ventillyft: .570"
  • Effektökning mellan 3200–5700 rpm, starkast vid 3200–3700 rpm
  • Kugghjulsdrift ger högre precision i ventilstyrningen och eliminerar problem med originalkedjesträckare och kedjeslitage

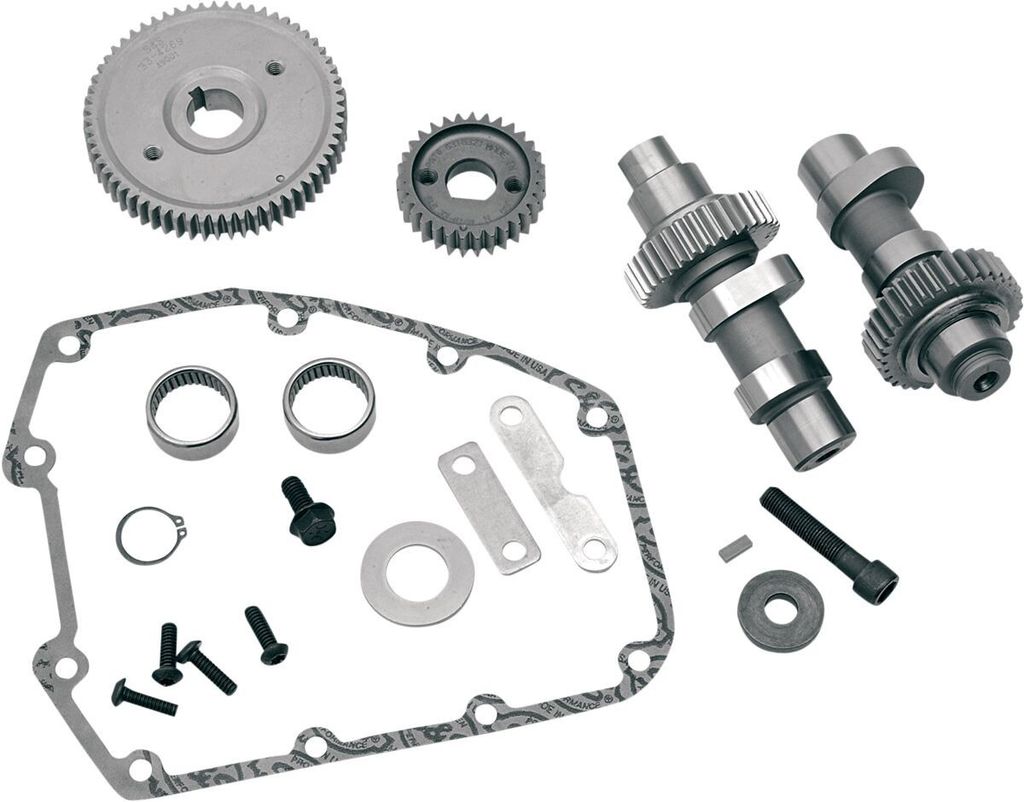

  • Satsen innehåller kamaxlar, inre och yttre drev, kåppackning, lager, pluggningssats för oljekanal, låsring och o-ring
  • Tillverkad i USA

Kräver justerbara stötstänger på grund av mindre baskrets. Material måste slipas ur på insidan av original kamkåpa och hydraulpress samt specialverktyg krävs för montering. Mekaniskt ljud från ventilstyrningen kan öka något med kugghjulsdrift, och frigång för ventilfjädrar, ventil-till-ventil samt ventil-till-kolv måste kontrolleras.

Passar: H-D 03-16

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 33-5267

570G Camshaft Kit

  • Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1
  • Strongest from 3200-3700 rpm
  • Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes resulting in higher cam lifts
  • Material must be removed from inner surface of stock gear cover to install
  • A hydraulic press and other professional level tools required to install kit
  • S&S recommends that adjustable pushrod/cover kit be used
  • Cam bearings and gasket must be replaced when installing new cams
  • Kit includes camshafts, gearcover gasket, bearings, oil passage block off kit, retaining ring, o-ring, inner and outer gears
  • Made in the USA
  • Due to the inherent characteristics of gear drives, you may experience more valve train noise.
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • 570" valve lift
  • Complete kit with installation hardware, bearings and gasket
  • 3200-5700 RPM overall power increase
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
  • Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
