Kamaxelsats S&S 583G H-D 99-06

15 000 kr

S&S 583G kuggdriven kamaxelsats
Läs mer

09250744 S&S
  • Kamaxelsats med kugghjulsdrivning som ger högre precision och eliminerar kamkedjor och spännare
  • Ger starkt vridmoment på låga varvtal och bra hästkrafter, starkast mellan 1500–5000 rpm
  • Ventillyft på .583"
  • Konstruktion i stål som roterar bakre kamaxeln i motsatt riktning för ökat frigångsutrymme mellan nockarna

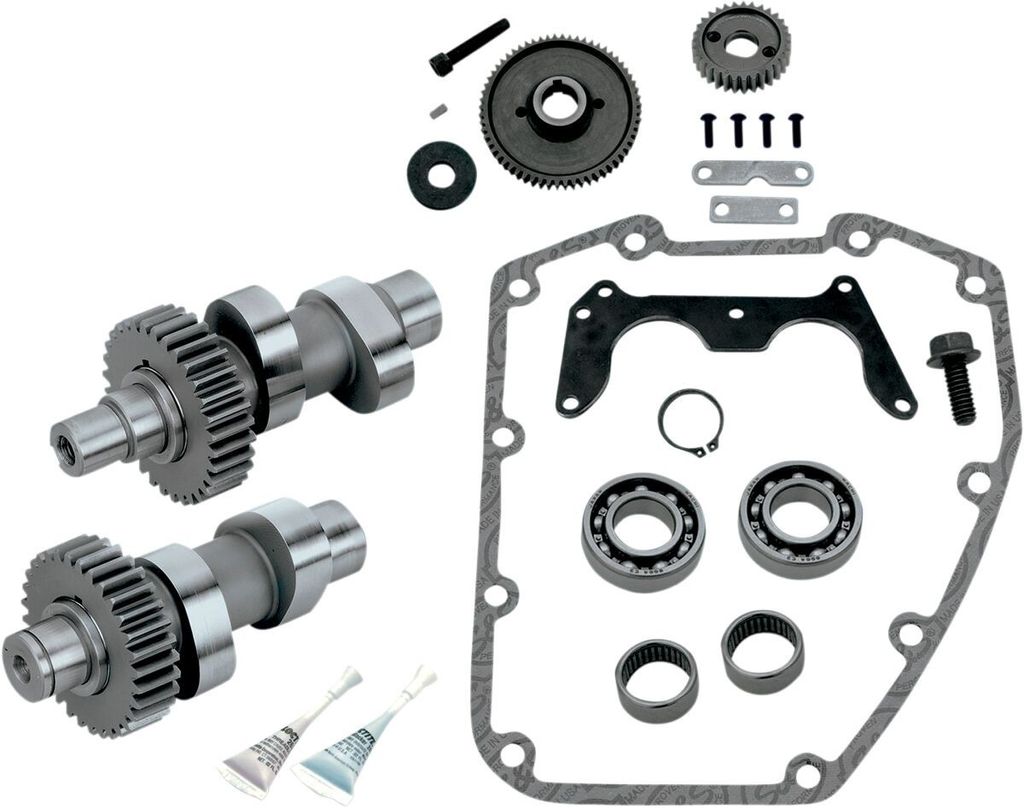

  • Satsen innehåller kamaxlar, inre drev, yttre drivkugghjul, inre och yttre lager, packning samt instruktioner
  • Tillverkad i USA

Passar inte '06 Dyna. För installation på '99 Twin Cam krävs ett splinat yttre drev (S&S rekommenderar Andrews 4340 ståldrev). Justerbara stötstänger krävs och säljs separat. Kräver hydraulpress och professionella verktyg för montering, samt att material avlägsnas från insidan av original transkåpa/kamkåpa. Kuggdrivning kan medföra ett något högre mekaniskt ljud från ventiltåget. Montören måste kontrollera frigång för ventiler och fjädrar (coil bind, ventil mot ventil och ventil mot kolv).

Passar: H-D 99-06

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 330-0107

583G Gear Drive Camshaft Kit

  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
  • Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
  • Provides strong low end torque and horsepower
  • Strongest from 1500-5000 rpm
  • Material must be removed from inner surface of the stock gear cover to install
  • A hydraulic press and other professional level tools are required for installation
  • Cam bearings and gaskets must be replaced
  • S&S recommends that adjustable pushrod/cover kit be used (sold separately)

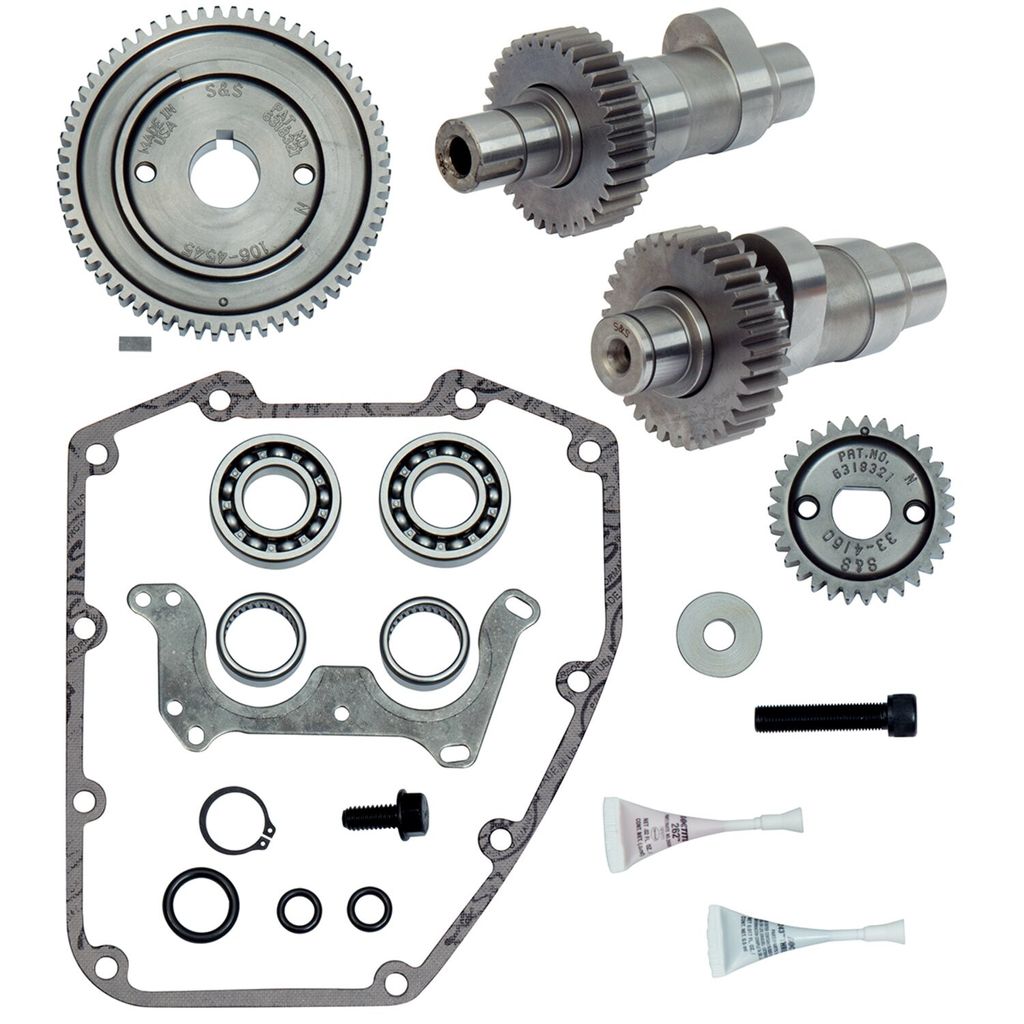

  • Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions
  • Made in the USA
  • Due to inherent characteristics of gear drives, more valve train noise maybe heard.
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • Not recommended for engines having compression ratios greater the 10.1:1.
  • 583" valve lift
  • Bolt-in
  • 88 to 103" engines with compression ratios between 9.7:1 to 10.5:1 and 106" to 124" engines with 9:1 to 10:1 CR
  • The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: Using .625", .635", .640" and .675" lift cams will require crankcase clearancing
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM

Not for '06 Dyna Cams for '00-'06 Twin Cams are for use with stock splined drive gears; for installation on '99 Twin Cams requires splined outer sprocket, S&S recommends Andrews 4340 steel drive sprocket.

Fits: 99-06 Twin Cam (Excl. 2006 Dyna) with stock non-hydraulic chain tensioners (NU)
