Kamaxelsats S&S 583 Easy Start Gear-driven 583GE H-D 03-16
S&S 583 Easy Start kamaxelsats med kugghjulsdrivning
Läs mer
- Easy Start-teknik minskar startkompressionen via avgasventilen för enkel start
- Kuggdrivna kamaxlar (gear drive) med inre och yttre drev (4-gear set)
- Ventillyft på .583"
- Bolt-in-montering som ger starkt vridmoment och effekt från 1500 till 5000 rpm

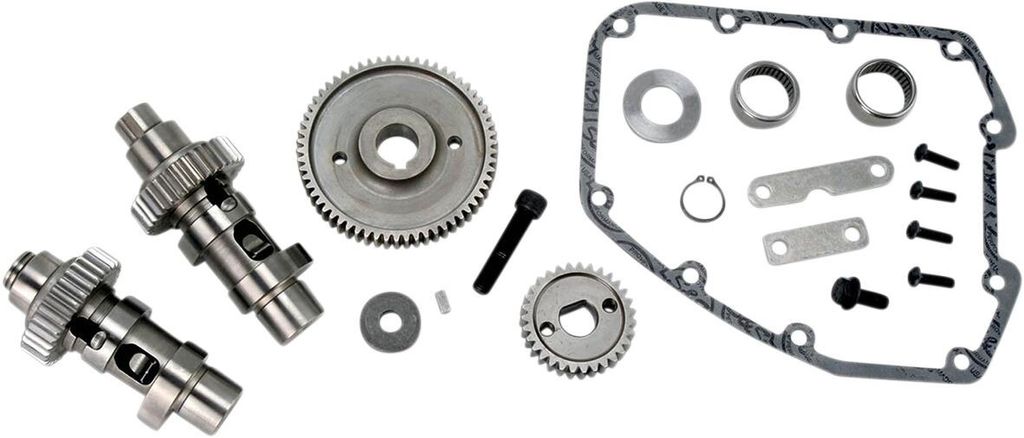

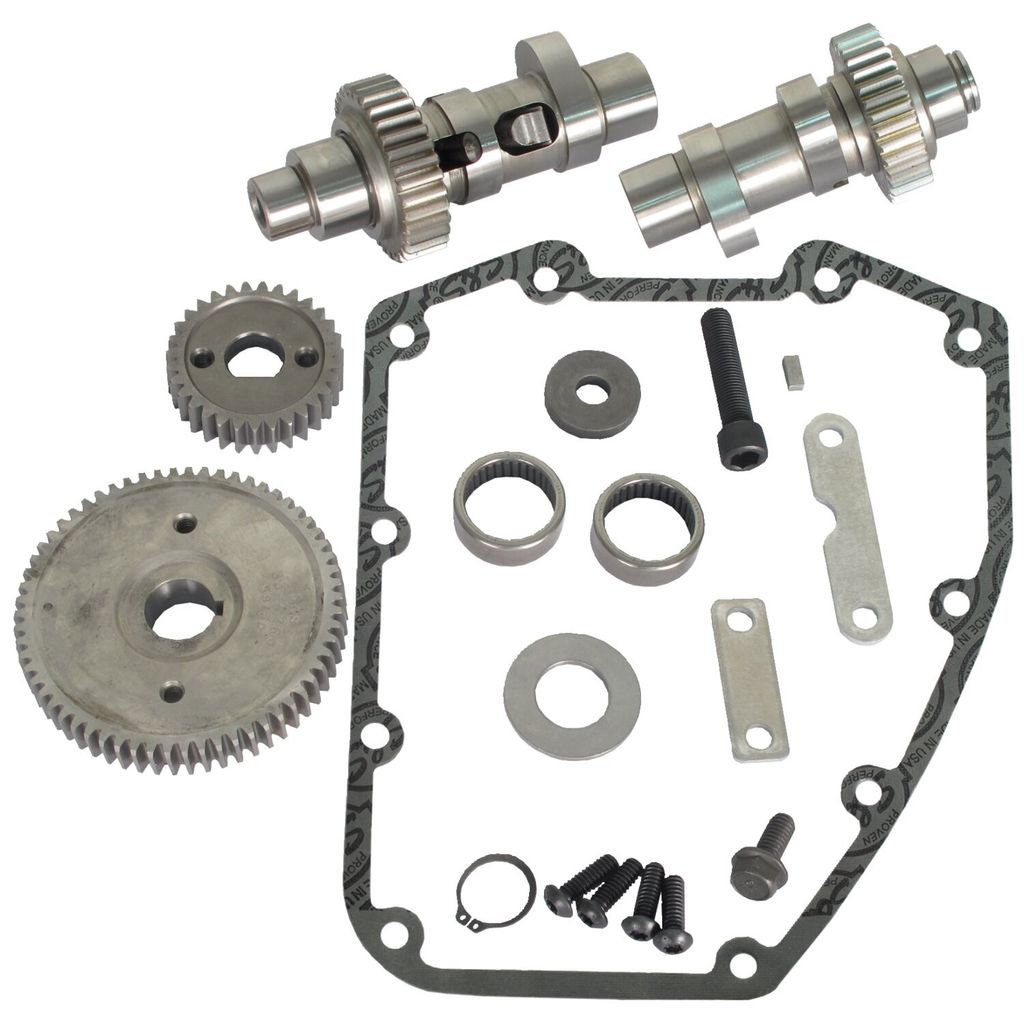

- Innehåller kamaxlar, drev, packning till transmissionskåpa, lager, låsring, o-ring och gänglåsning
- Tillverkad i USA
Montören måste kontrollera ventilspel, frigång mellan ventiler och kolv samt fjäderbottning. Ej kompatibel med modeller med kickstart eller originalmonterad dekompressionsventil, och årsmodell 2010 kräver justerbara stötstänger. Justera tomgång till 1000–1100 rpm för att undvika klickljud under 900 rpm, kugghjulsdrivning kan även medföra ökat transmissionsljud.
Passar: H-D 03-16
| Produkt-typ | Cam Kit |
| Tillverkarens Art. Nr. | 106-5811 |
583 Easy Start Camshaft Kit
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Optimiized for use as a great overall camshaft for Softail and Dyna, but can be used in any Big Twin
- Provides strong low-end torque and horsepower
- Strongest from 1500 rpm to 5000 rpm in Softail and Dyna models
- Bolt-in
- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- Not recommended for compression ratios of 10.0:1 or greater.
- 583" valve lift
- IOG = gear drive cams with Inner & Outer drive Gears
- Complete kit with installation hardware, bearings and gasket
- 88 to 103" engines with compression ratios between 9.7:1 to 10.5:1 and 106" to 124" engines with 9:1 to 10:1 CR
- Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting

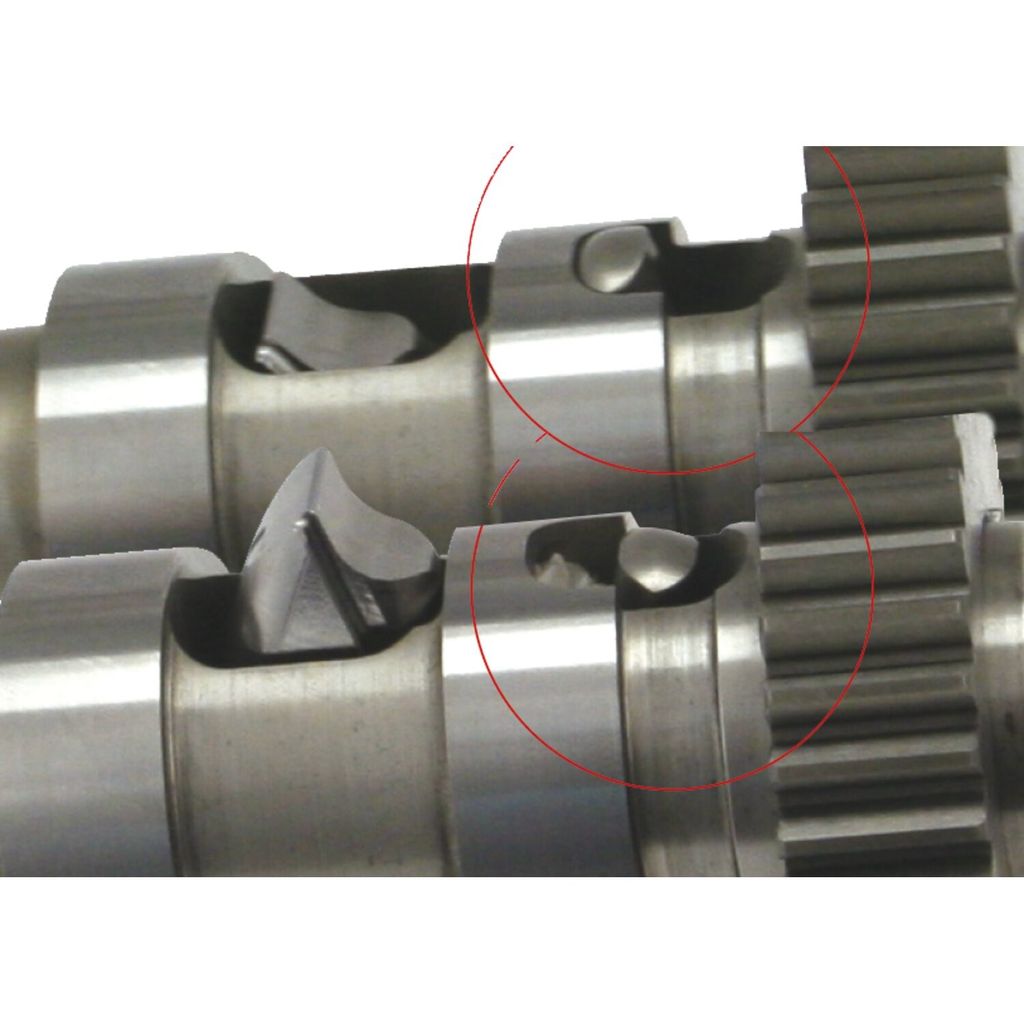

- This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
- After starting the compression release lobe is retracted by centrifugal force
- The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
- A stock starter and battery is enough
- When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
- Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs
- Note: Not compatible with kickstart models
- 2010 will require adjustable pushrods
- Note: Below 900 RPM you may hear a clicking sound
- Adjust idle speed to 1000-1100 RPM
Includes 4-gear set. Due to the inherent characterics of gear drives, there may be more valve train noise.
Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
