Kamaxelsats S&S 585G H-D 03-16

15 000 kr

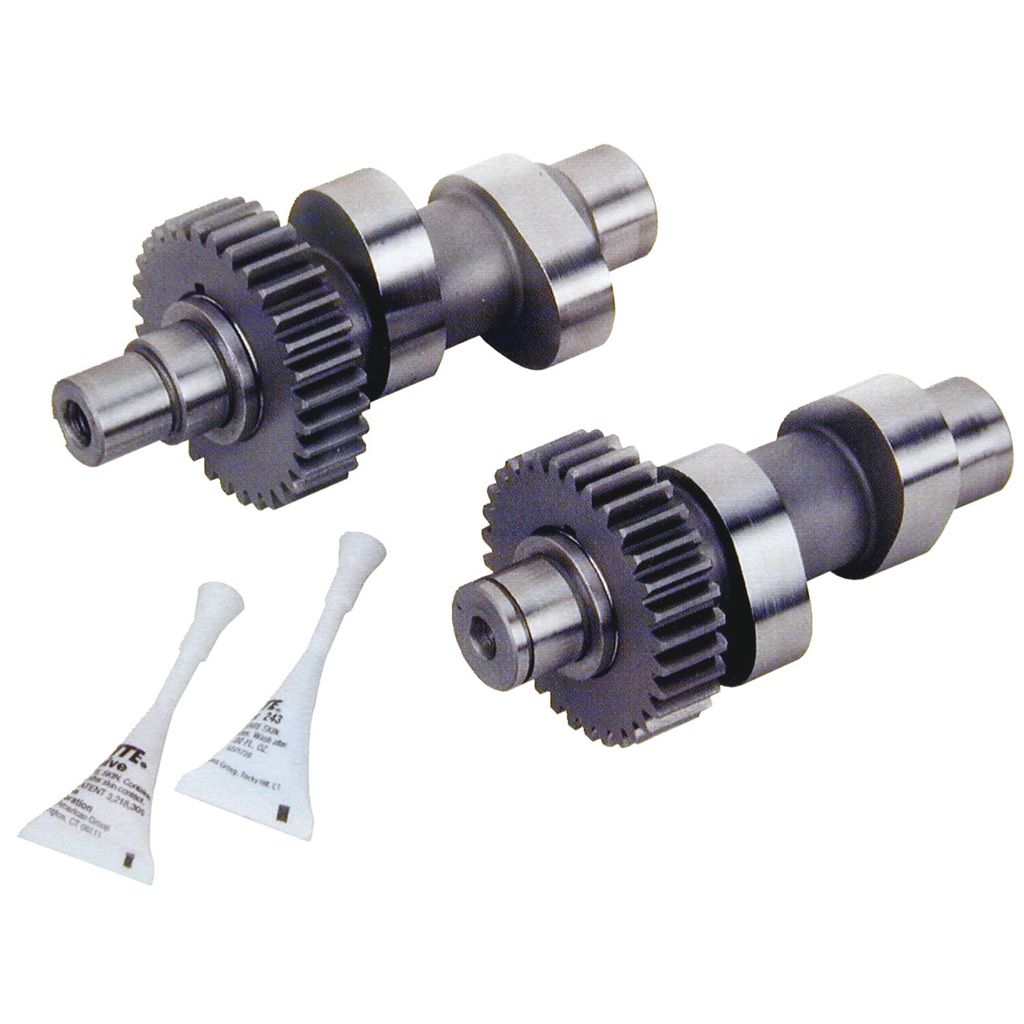

S&S 585G kugghjulsdriven kamaxelsats
Läs mer

09250158 S&S
  • Ventillyft: .585"
  • Effektområde: 3500–6000 rpm för 88" till 103"-motorer och 2500–5500 rpm för större motorer
  • Kugghjulsdrift ger högre precision i ventilstyrningen och eliminerar kedjesträckare och kedjeslitage
  • Vänder den bakre kamaxelns rotationsriktning för extra spel mellan kamnockarna

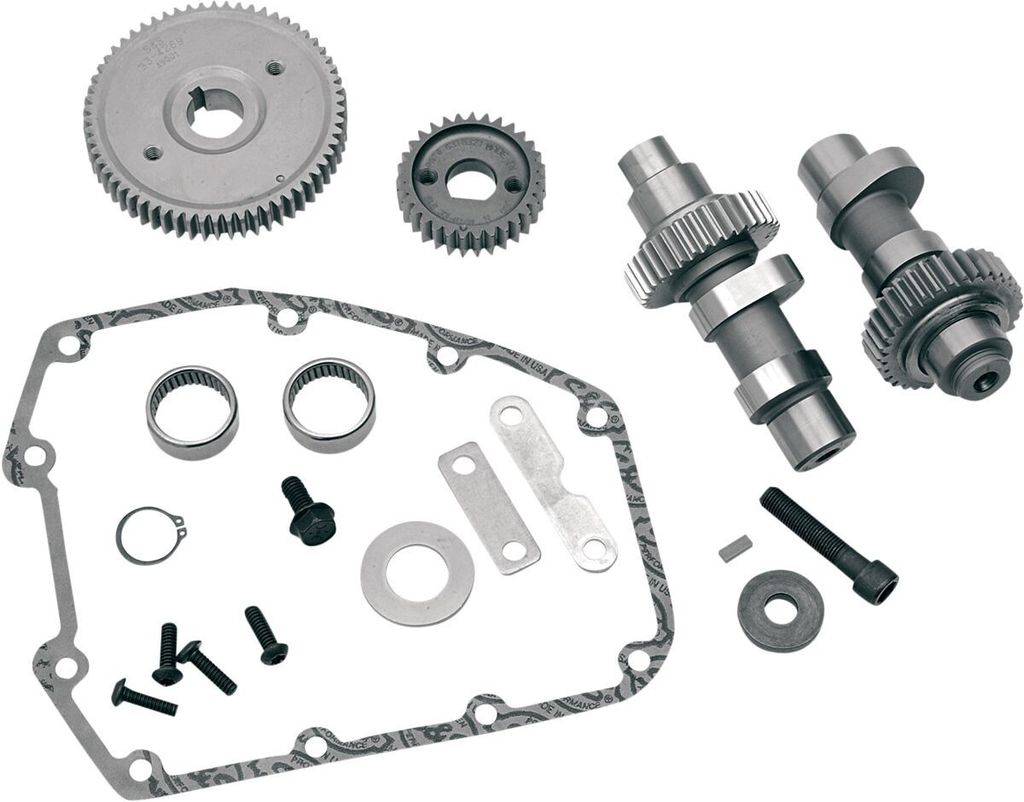

  • Satsen innehåller kamaxlar, inre och yttre drev, inre och yttre lager, packning samt instruktioner
  • Tillverkad i USA

Material måste slipas ur på insidan av transmissionskåpan vid montering. Hydraulisk press samt professionella verktyg krävs för installation, och justerbara stötstänger krävs för att kompensera för den mindre baskretsen. Montören måste kontrollera ventilfjädrarnas sammanpressning samt frigång mellan ventiler inbördes och mot kolv.

Passar: H-D 03-16

Produkt-typ Cam Kit
Tillverkarens Art. Nr. 33-5268

585G Gear Drive Camshaft Kit

  • Designed for 88/96/103/110 cubic-inch engines with compression ratios from 10.0:1 to 10.5:1
  • Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes making higher cam lifts possible
  • Increases valve timing accuracy by eliminating chain lash and loosely fit stock chain drive
  • Material must be removed from inner surface of the stock gear cover to install
  • 3500-6000 rpm for 88" to 103" engines and 2500-5500 rpm for larger engines
  • A hydraulic press and other professional level tool are required for installation
  • S&S recommends that adjustable pushrod/cover get be used
  • Cam bearings and gaskets must be replaced when installing new cams
  • Kit includes camshafts, inner gears, outer gears, inner bearings, outer bearings, gasket and instructions
  • Installer must check coil bind, valve to valve clearance and valve to piston clearance.
  • Due to the inherent characteristics of gear drives, more valve train noise may occur.
  • Made in the USA
  • 585" valve lift
  • Bolt-in 88" to 106" with 9.7:1 to 10.5 CR and 106" to 124" with 9:1 to 10:1 CR
  • 3500-6000 RPM for 88" to 103" and 2500-5500 for larger engines The gear drive system is in fact a revolutionary different and much more reliable construction
  • Especially in high lift/performance applications, when compared with the OEM chain-drive design
  • A gear driven camshaft is stronger and will not give any of the mechanical problems connected with the OEM chain driven camshafts
  • The only downside of gear drive is that you may experience a slight increase in mechanical sound, this is why OEM is using a chain
  • It has no other mechanical advantages whatsoever
  • Since the chain guides and tensioner are eliminated there is no longer the possibility for these parts to fail and damage other engine parts
  • Note: With the exception of the 475G and 510G cam, adjustable pushrods (like MCS 503573) are required to compensate for the smaller camshaft base circle of these cams
  • Note: OEM beehive valve springs of 04-17 Dyna; 04-17 Softail and 04-16 Touring models will acommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM
  • Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs

Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
