Kamaxelsats S&S 585 Easy Start H-D 99-06
S&S 585 Easy Start kamaxelsats med kuggdrivning
Läs mer
- Kuggdriven kamaxelsats (IOG) med inre och yttre drev (4-gear set)
- Easy Start-teknik som lyfter avgasventilen vid start för minskat startmotstånd
- Centrifugaldriven dekompressionsventil återgår automatiskt när motorn startat
- Avsedd för 88–106 CID (kompression 9,7:1 till 10,5:1) och 106–124 CID (kompression 9,0:1 till 10,0:1)
- Ventillyft: .585"
- Effektområde: 3500–6000 rpm för 88"–103" samt 2200–5000 rpm för större motorer

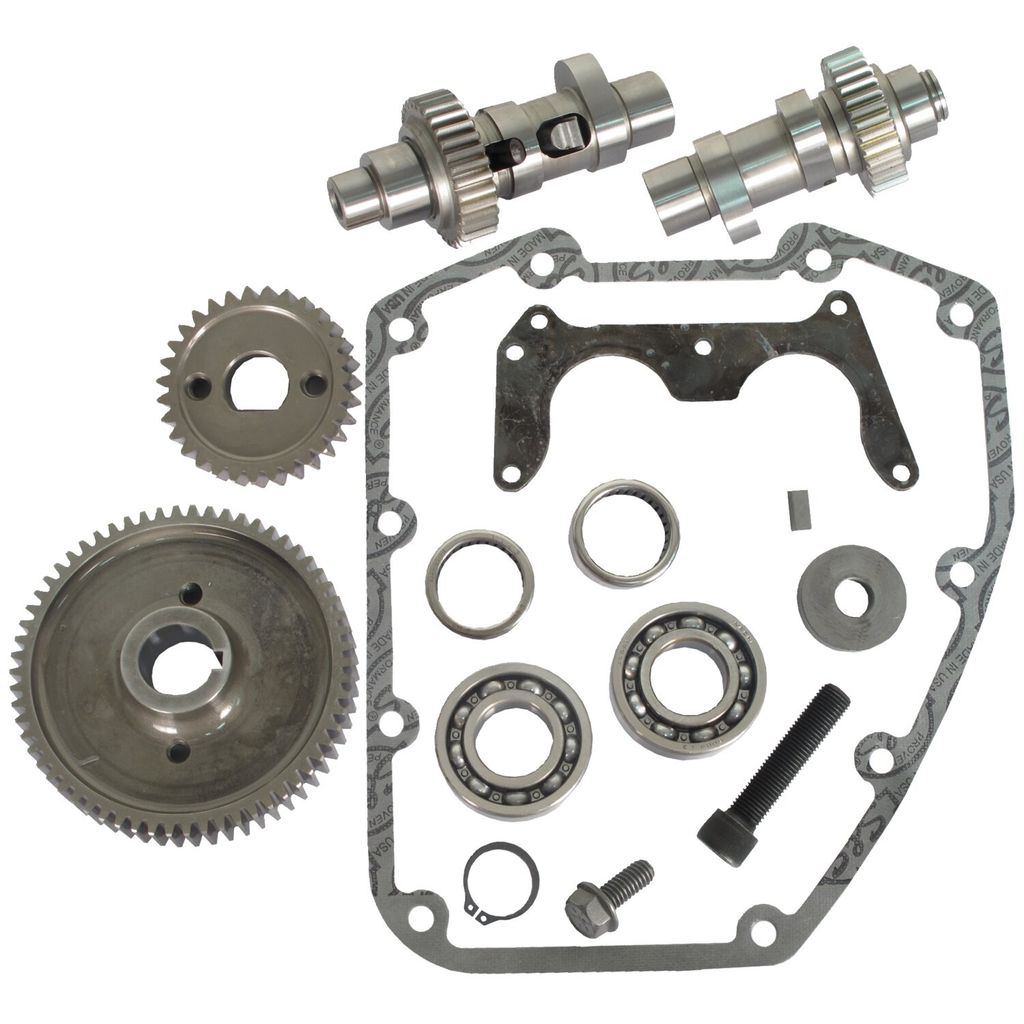

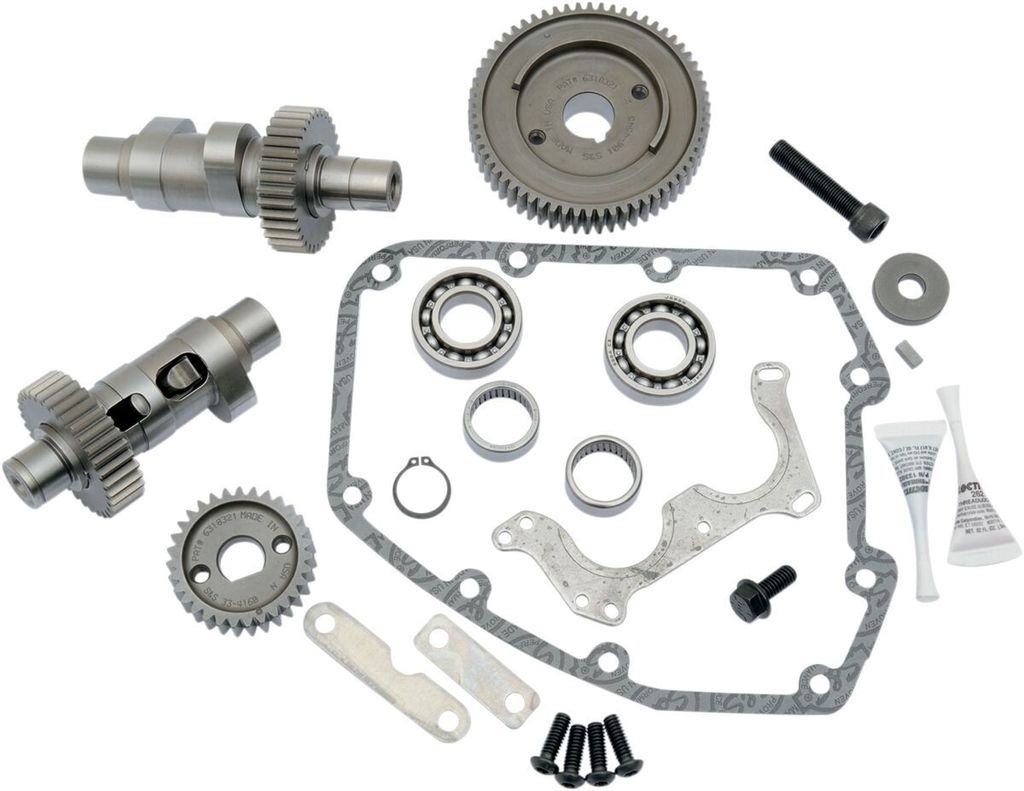

- Innehåller kamaxlar, drevkåpspackning, lager, låsring, O-ring, gänglåsning och instruktioner
- Tillverkad i USA
Ej kompatibel med kickstart eller modeller med OEM dekompressionsventiler. För 99–06 Twin Cam är ingen Easy Start-kamslipning bolt-in, kontroll av frigång (coil bind, ventil mot ventil, ventil mot kolv) samt ventilfjädrar för höga lyft krävs. Justera tomgång till 1000–1100 rpm för att undvika klickande ljud under 900 rpm.
Passar: H-D 99-06
| Produkt-typ | Cam Kit |
| Tillverkarens Art. Nr. | 106-5247 |
585 Easy Start Camshaft Kit
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Designed for 88 - 106 CID engines with compression ratios from 9.7:1 to 10.5:1 and 106 - 124 CID engines from 9.0:1 to 10.0:1 compression
- Provides massive horsepower and torque increasses starting at 3000 rpm and hold steady to redline
- 3500 rpm - 6000 rpm for 88"-103" engines and 2200 rpm - 5000 rpm for larger engines
- Bolt-in
- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- 585" valve lift
- IOG = gear drive cams with Inner & Outer drive Gears
- Complete kit with installation hardware, bearings and gasket

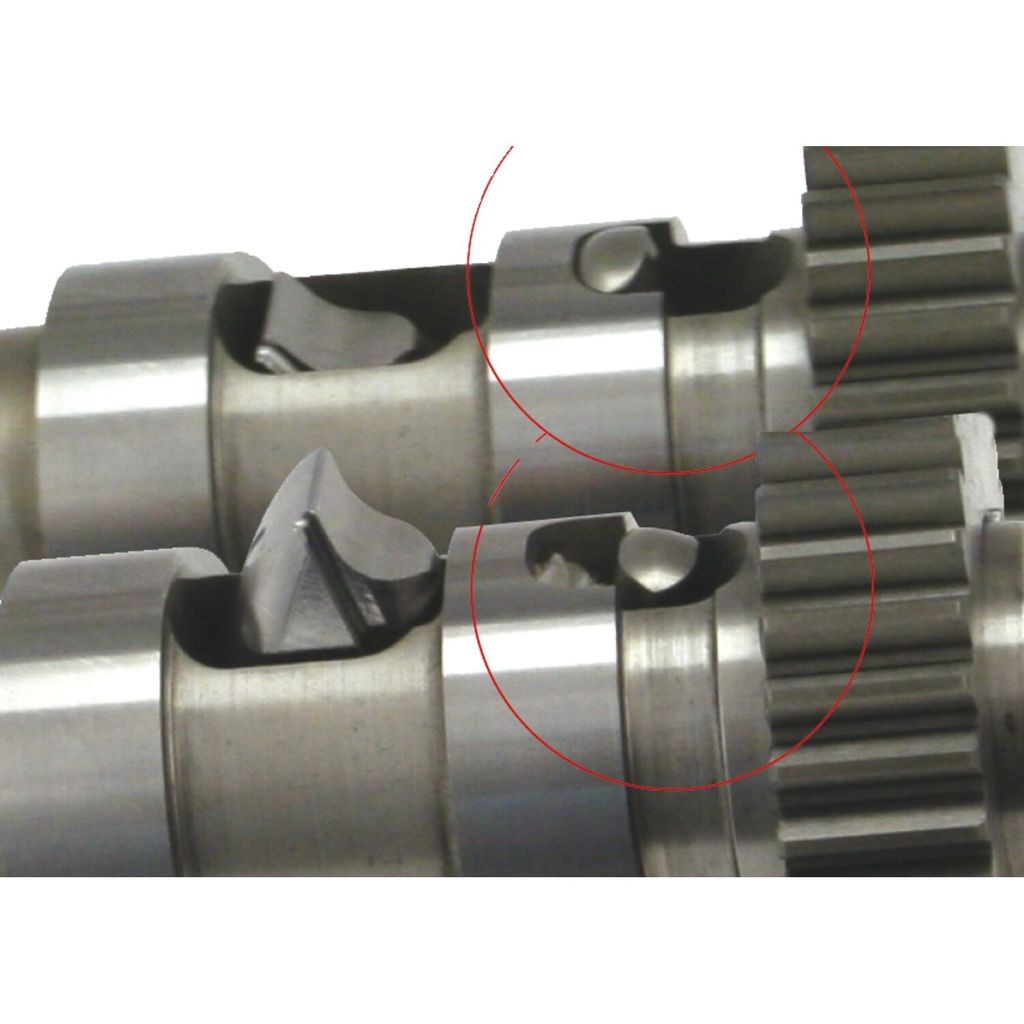

- Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
- This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
- After starting the compression release lobe is retracted by centrifugal force
- The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
- A stock starter and battery is enough
- When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
- It is separately available as replacement from S&S for this kit as 503566
- Note: No Easy Start Cam grind is bolt-in for these 99-06 Twin Cam models
- All will / may require clearancing and require high lift valve springs
- Note: Not compatible with kickstart models
- Note: Camshafts made before Jan
- 2010 will require adjustable pushrods
- Note: Below 900 RPM you may hear a clicking sound
- Adjust idle speed to 1000-1100 RPM
Includes 4-gear set. Due to the inherent characterics of gear drives, there may be more valve train noise.
Fits: 99-06 Twin Cam (Excl. 2006 Dyna) (NU)
