Kamaxelsats S&S MR103 Easy Start Chaindrive H-D 06-16
S&S Easy Start MR103 kamaxelsats med kedjedrivning
Läs mer
- Easy Start-teknik minskar startkompressionen via fjäderbelastad nock på avgasventilen
- Bolt-in-kamaxlar utvecklade för 103"-motorer med kompressionsförhållande från 9.7:1 upp till 10.5:1
- Mer effekt genom hela registret, med bäst resultat mellan 2500 och 5500 rpm
- Ventillyft på .585"
- Kedjedriven (chain drive)
- Fungerar med orörda originaltoppar samt S&S CNC-portade toppar

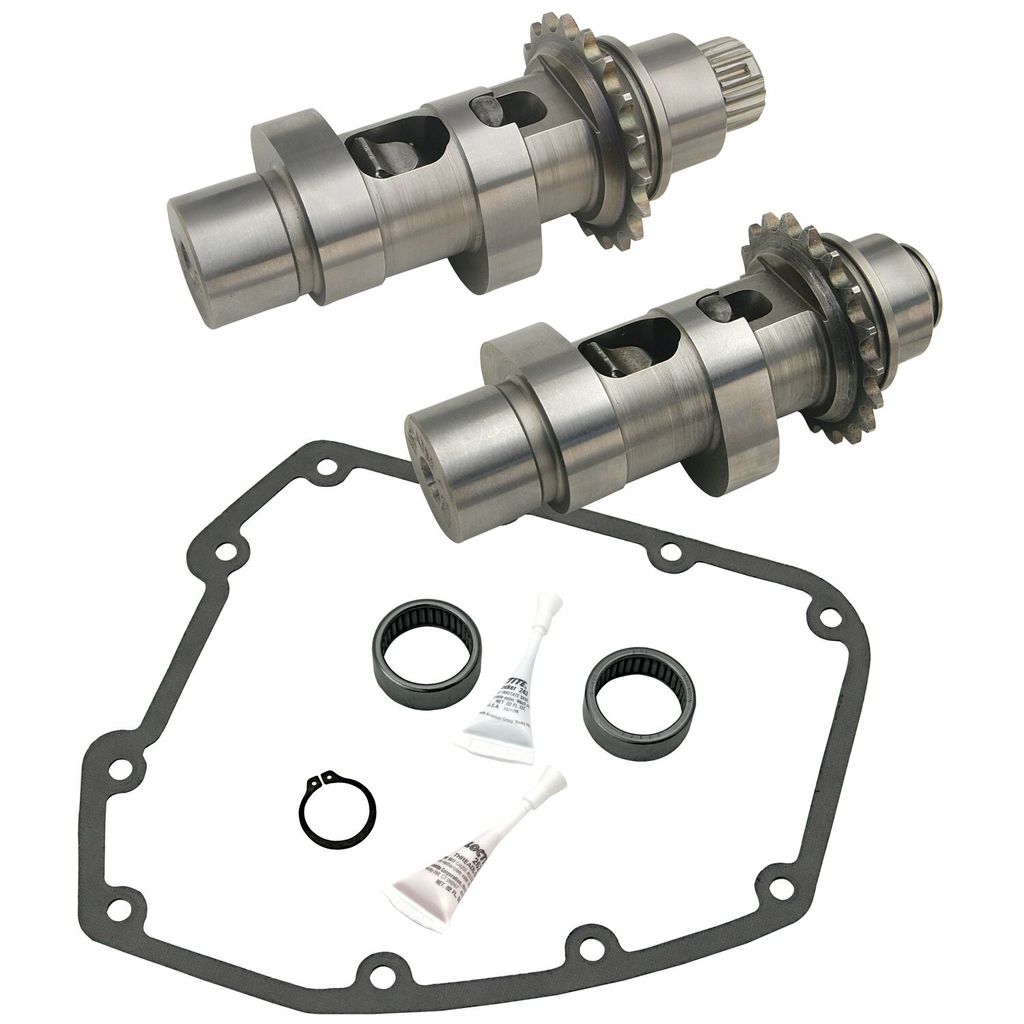

- Innehåller kamaxlar, transmissionskåpspackning, lager, låsring, O-ring, gänglåsning och anvisningar
- Tillverkad i USA
Passar inte modeller med OEM dekompressionsventiler och är ej kompatibel med kickstart. Montören måste kontrollera frigång mellan ventil och kolv, mellan ventilerna samt coil bind. Justera tomgång till 1000–1100 rpm (klickande ljud kan uppstå under 900 rpm), och notera att 2010 års modeller kräver justerbara stötstänger.
Passar: H-D 06-16
| Produkt-typ | Cam Kit |
| Tillverkarens Art. Nr. | 330-0299 |
MR103 Easy Start Camshaft kit
- Allows for easy start by initially reducing crank compression, but once the engine starts and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance
- Designed as bolt-in cams for 103" engine with stock 9.7:1 compression ratio up to 10.5:1
- More power across the rpm range best results from 2500 rpm - 5500 rpm

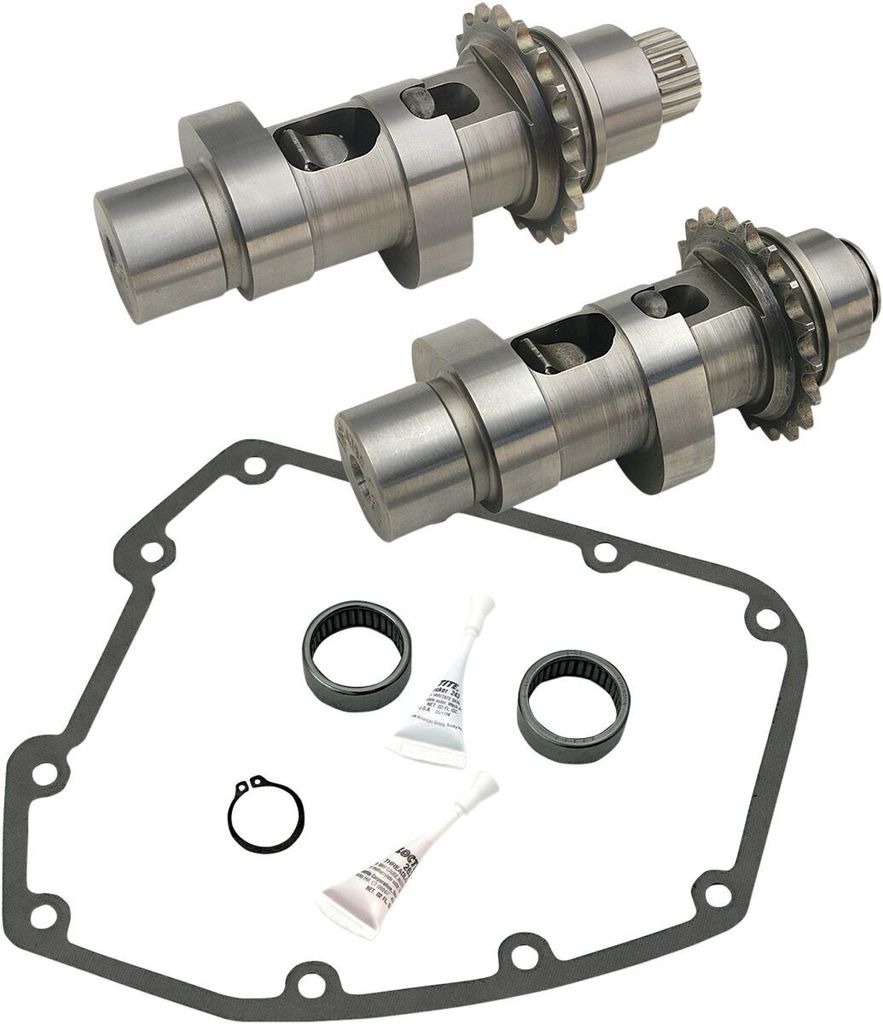

- Includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, threat lock and instructions
- Made in the USA
- Works with stock, un-ported heads, but is great for S&S CNC ported heads.
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- Not for models with OEM compression releases.
- Easy Start chain drive MR103 camshaft set (CD)
- 585" valve lift
- Easy Start Cams make starting easier by reducing the build-up of cranking pressure in the cylinders during starting
- This is done by lifting the exhaust valve slightly of its seat, with a spring loaded compression release lobe inside the camshaft
- After starting the compression release lobe is retracted by centrifugal force
- The only difference is during starting since you will now be able to electric start your Big Inch engine effortless, without the use of big batteries and/or starter motors
- A stock starter and battery is enough
- When the engine is running the camshafts function as regular cams, without any loss in power, torque or anything else
- Note: Only 551, 570, 583, 585, HP103 and MR103 series cams are bolt-in, all others may / will require clearancing and require high lift valve springs
- Note: Not compatible with kickstart models
- 2010 will require adjustable pushrods
- Note: Below 900 RPM you may hear a clicking sound
- Adjust idle speed to 1000-1100 RPM
Fits: 07-17 Softail; 06-17 Dyna; 07-16 FLT/Touring (NU)
