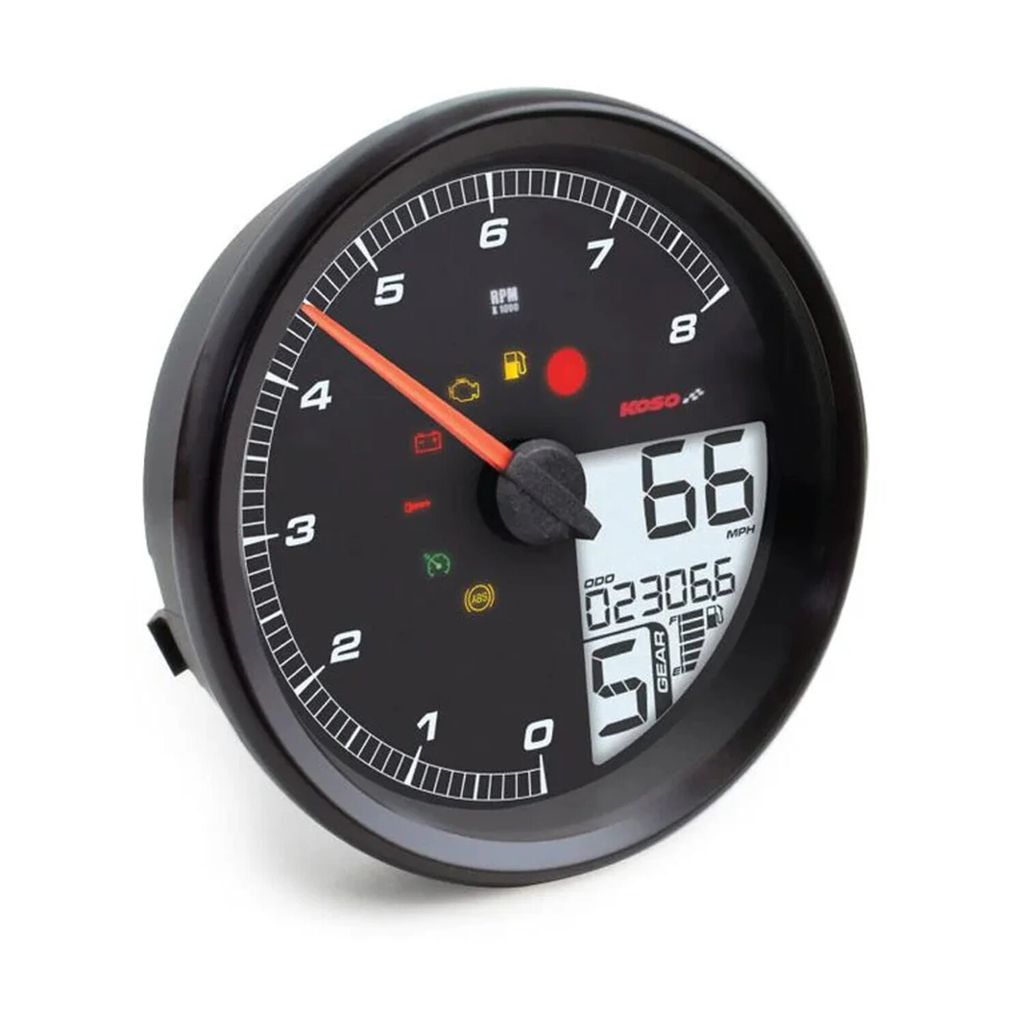

Varvräknare hastighetsmätare Koso HD-05 svart Softail 04-10
Koso HD-05 kombinerad hastighetsmätare och varvräknare för tankmontering
Läs mer
- Hastighetsmätare (0–225 mph / km/h) och varvräknare (0–8 000 RPM) i ett
- Plug-and-play-installation till befintlig kabelhärva
- Svart mätartavla med svart sarg

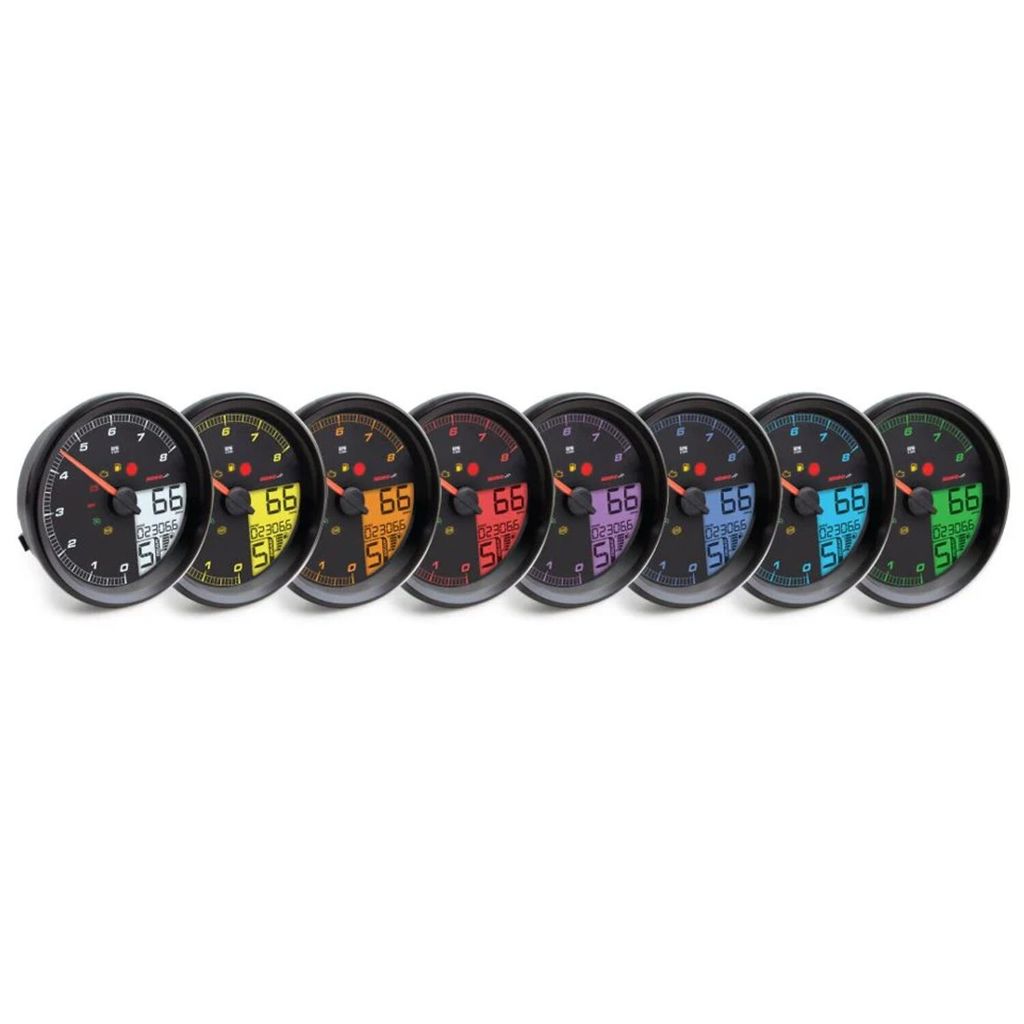

- Justerbar bakgrundsbelysning i flera färger: röd, orange, gul, grön, blå, indigo, lila och vit
- Visar växelindikator, motortemperatur, batterispänning, bränslemätare och snittförbrukning
- Utrustad med växlingslampa, trippmätare, klocka samt serviceintervall
- Mått: Ø 4-5/8" x 1-3/4" (Ø 117 x 45 mm), vikt: 208,5 g
- Drivs med 12 V DC och uppfyller JIS D 0203 S2
Ersättning för tankmonterade 4-1/2" (11,43 cm) mätare på modeller med CAN-bus eller tidigare modeller utan CAN-bus enligt källspecifikation.
Passar: Softail 04-10
HD-05 Meter for Harley Davidson
- The new PLUG&PLAY HD-05 series for 4 ½” (=11.43cm) Harley-Davidson models with attached tank contains a speedometer and tachometer in one.
- In addition, the color of the background lighting is changeable and contains a gear indicator.
- The meter provides real measurements such as engine temperature, battery voltage, average fuel efficiency and a complete system of indicators to monitor the vital parameters of your motorcycle.
- This PLUG&PLAY set fits exactly to the existing wiring harness and interacts directly with the CANBUS system of your motorcycle.
- Speedometer (0 - 225 mph)
- Tachometer (0 - 8,000 RPM)
- Odometer (0 - 999,999 miles)
- Tripmeter (0 - 9,999 miles)
- Volt meter ( DC 8V - 18V)
- Fuel Meter (6 levels | 1 level = 16.6%)
- Fuel Tank Volume (Off/1 - 9.9 US Gallons) - (approx. 37 liters)
- Black face, black bezel
- For earlier non CAN-bus wired models
- Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers
- Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more
- 12V DC
- Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
- Display delay : < 0.5 seconds
- 9,999.9 km (miles) with auto reset after 9.99.9 km (miles)
- Tire circumference adjustment: 50 to 210%, per 1%
- Warning light flashes when set rpm is exceeded
- Sets per 100 rpm
- Maximum speed warning adjustable (light or flash)
- 215 °C (40
- 419 °F) adjustable
- Clock: 12h / 24h
- Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles)
- When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display
- Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control
- Works in: 14 to 140 °F (10 to 60 °C)
- Required voltage DC 12 V
- Confirm JIS D 0203 S2
- Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm)
- Weight: 208.5 gram (7.36 oz.)
Fits: 04-10 Softail; 04-13 FLHR; 04-11 FXDWG ,FXDC,FXDF (NU)
