Varvräknare hastighetsmätare Koso HD-05 svart Softail 11-17

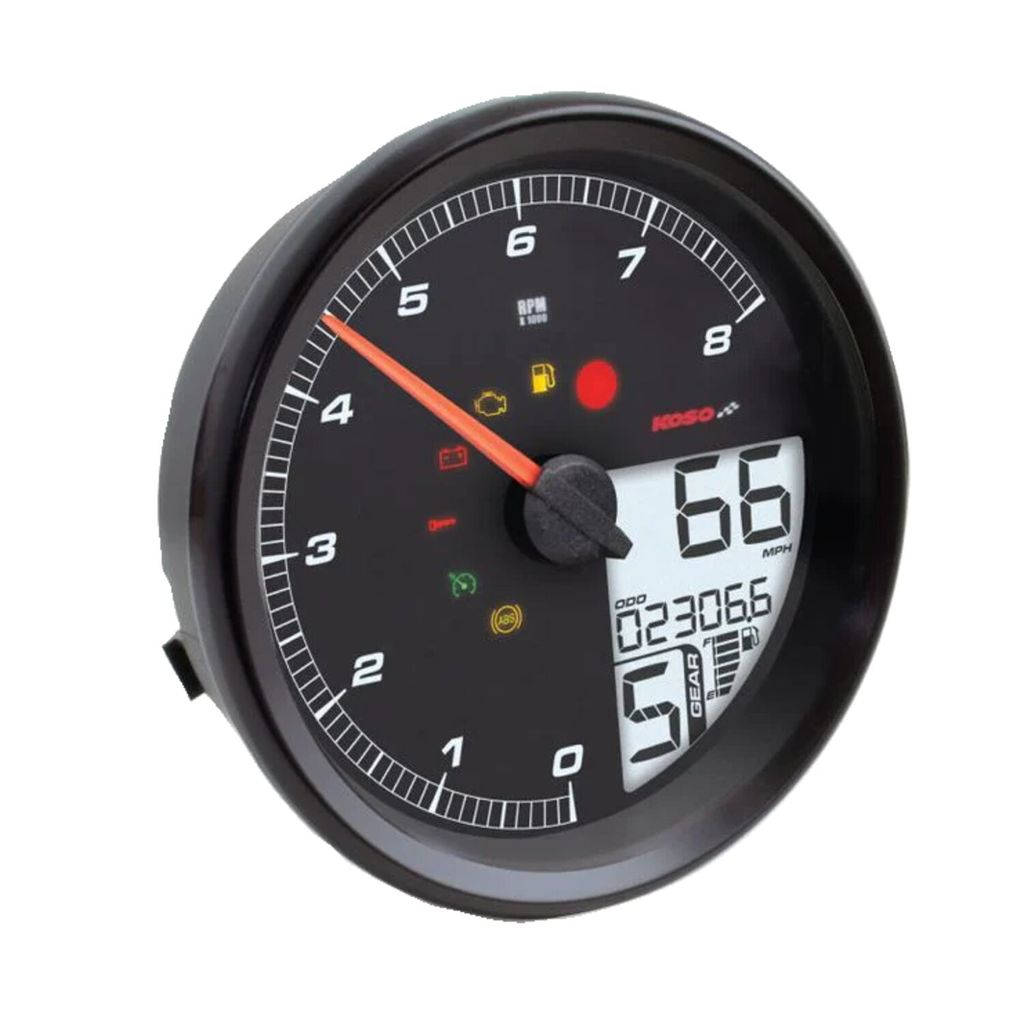

Koso HD-05 plug & play hastighetsmätare och varvräknare för tankmontering
Läs mer
- Hastighetsmätare (0–225 mph / km/h) och varvräknare (0–8 000 RPM) i ett
- Plug & play-installation mot befintlig kabelhärva, fullt kompatibel med CAN-bus
- Svart urtavla med svart sarg, dimensioner Ø 4-5/8" x 1-3/4" (Ø 117 x 45 mm)

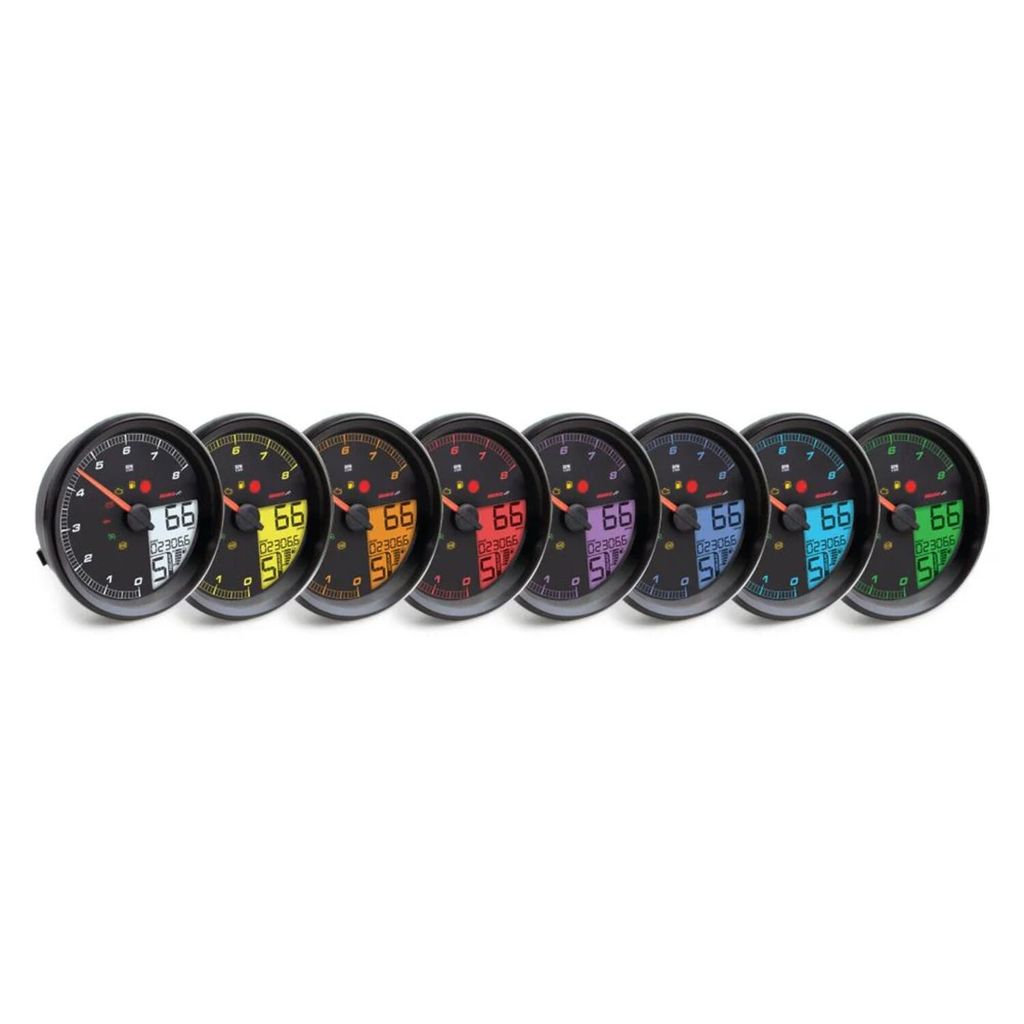

- Växlingsbar bakgrundsbelysning i rött, orange, gult, grönt, blått, indigo, lila och vitt
- Visar växelindikator, motortemperatur, batterispänning, bränslenivå och genomsnittlig förbrukning
- Trippmätare, vägmätare, klocka (12h/24h) samt justerbara serviceintervaller
- Justerbar växlingslampa, maxhastighetsvarning och justering för däckomkrets (50–210 %)
- Indikatorer för motorvarning, bränslereserv, låg spänning, stöldskydd och farthållare
Ersättning för 4-1/2" (11,43 cm) tankmonterade mätare på modeller med CAN-bus-system.
Passar: Softail 11-17
HD-05 Meter for Harley Davidson
- The new PLUG&PLAY HD-05 series for 4 ½” (=11.43cm) Harley-Davidson models with attached tank contains a speedometer and tachometer in one.
- In addition, the color of the background lighting is changeable and contains a gear indicator.
- The meter provides real measurements such as engine temperature, battery voltage, average fuel efficiency and a complete system of indicators to monitor the vital parameters of your motorcycle.
- This PLUG&PLAY set fits exactly to the existing wiring harness and interacts directly with the CANBUS system of your motorcycle.
- Speedometer (0 - 225 mph)
- Tachometer (0 - 8,000 RPM)
- Odometer (0 - 999,999 miles)
- Tripmeter (0 - 9,999 miles)
- Volt meter ( DC 8V - 18V)
- Fuel Meter (6 levels | 1 level = 16.6%)
- Fuel Tank Volume (Off/1 - 9.9 US Gallons) - (approx. 37 liters)
- Black face, black bezel
- Replacement for the later 4.5 (11.43cm) diameter tank mounted H-D speedometers
- Connects plug & play to the existing wiring and is fully compatible with the bike's CAN-bus system
- Offers speedometer (kmh/mph), tachometer, odometer, two trip meters, rev limit setting, shift light, multiple color backlights, gear indicator, engine temperature, battery voltage, fuel level indicator, average fuel consumption and more
- 12V DC
- Multiple color backlight: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White
- Display delay : < 0.5 seconds
- 9,999.9 km (miles) with auto reset after 9.99.9 km (miles)
- Tire circumference adjustment: 50 to 210%, per 1%
- Warning light flashes when set rpm is exceeded
- Sets per 100 rpm
- Maximum speed warning adjustable (light or flash)
- 215 °C (40
- 419 °F) adjustable
- Clock: 12h / 24h
- Maintenance intervals: Off / 500 to 16,000 km (300 to 10,000 miles)
- When range is less than 10 miles (16 km) 'LO RNG' warning will appear on display
- Indicator lights: RPM warning, fuel reserve, engine check, low voltage, anti-theft devise, cruise-control
- Works in: 14 to 140 °F (10 to 60 °C) - |Required voltage DC 12 V - |Confirm JIS D 0203 S2
- Dimensions: (D x W) Ø 45/8 x 13/4 "(Ø 117 x 45 mm)
- Weight: 208.5 gram (7.36 oz.)
Fits: 11-17 (NU) Softail; 14-22 (NU) FLHR Road King; 17-25 FLHRXS Road King Special; 12-17 (NU) FXDWG. (excl. models with traction control)
