Axel Joost Elektronik, Brain Box D Null
2660 kr
- Översikt
- Passar till
Ge ditt omdöme
Artikelnummer: 567420
Leveranstid:
Frakt:

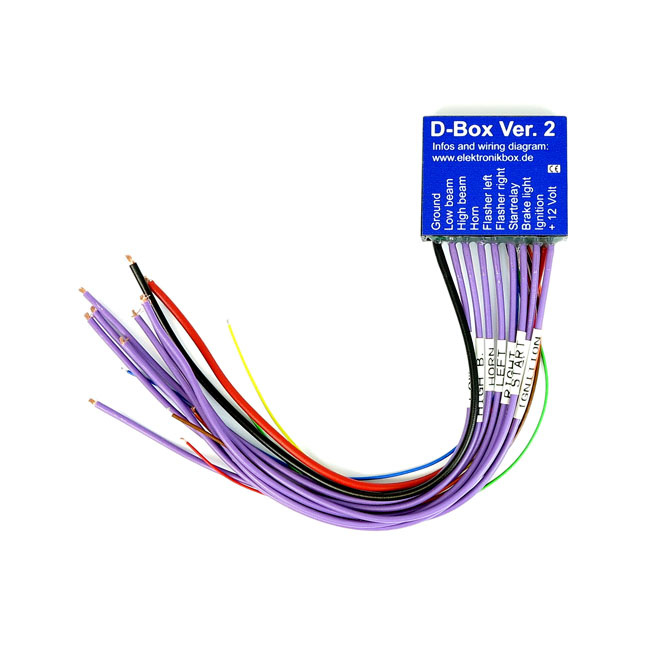

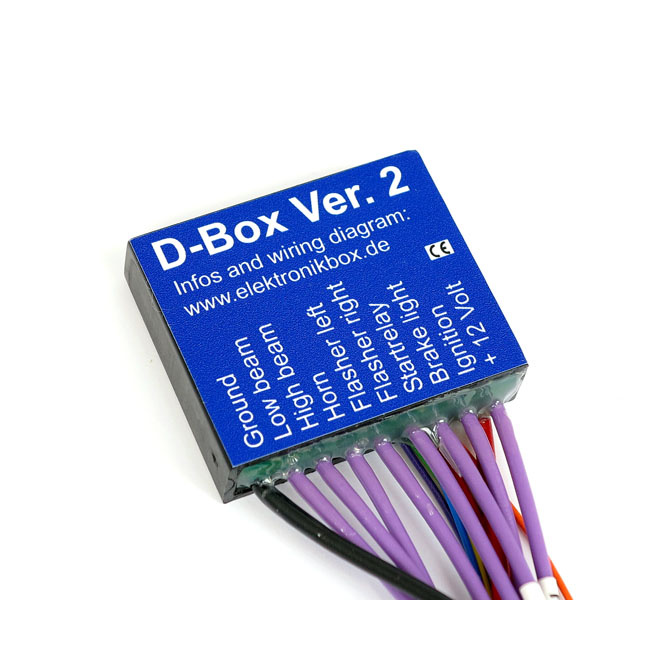

Axel Joost Elektronik, brain box D

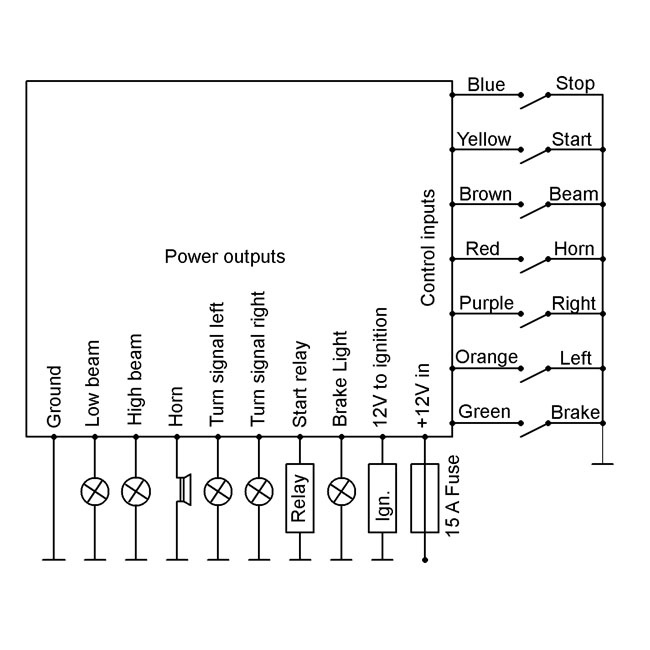

On-bike programmable through 8 menu items. When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system. Lights are dimmed at starting. The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market. Compatible with miniature pushbutton control knobs that function with super thin wiring. Brain boxes can easily be tie-wrap clamped to frame tubes or similar. All come complete with super clear installation instructions. - Works with pushbutton or switches - High / Low beam - Built-in turn signal relays & position/running lights - Horn - Start relais - Brake light - Ignition - Neutral switch connection - Jiffy / side stand switch connection - Turn signal & light possible through switches - LED out for neutral, turn Signal, oil and high beam - Dimensions: 50mm long x 12.5mm wide x 42mm high - Maximum ambiant temperature: 80°C - Material: Black ABS, waterproof cast - Input voltage: 6 - 18 Volt - Connections: Control unit 0.14mm², user 0.75mm², input 1.5mm², with 20 cm long wires - Max Amp out: 5Amp per output - Max Amp. from 12V connection: 20 Amp, short-circuit proof Note: Connecting the starter motor directly on brain box will cause damage. The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid. Note: Replacement for 567421 Box G& 567422 Box G2.
NULL
- Click here to see product in MCS catalog -
| Enhet: | Styck |
| Kategori: | C - Material: Black ABS, waterproof cast - Input voltage: 6 - 18 Volt - Connections: Control unit 0.14mm² |
| Produkt-typ: | Wiring misc |
On-bike programmable through 8 menu items. When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system. Lights are dimmed at starting. The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market. Compatible with miniature pushbutton control knobs that function with super thin wiring. Brain boxes can easily be tie-wrap clamped to frame tubes or similar. All come complete with super clear installation instructions. - Works with pushbutton or switches - High / Low beam - Built-in turn signal relays & position/running lights - Horn - Start relais - Brake light - Ignition - Neutral switch connection - Jiffy / side stand switch connection - Turn signal & light possible through switches - LED out for neutral, turn Signal, oil and high beam - Dimensions: 50mm long x 12.5mm wide x 42mm high - Maximum ambiant temperature: 80°C - Material: Black ABS, waterproof cast - Input voltage: 6 - 18 Volt - Connections: Control unit 0.14mm², user 0.75mm², input 1.5mm², with 20 cm long wires - Max Amp out: 5Amp per output - Max Amp. from 12V connection: 20 Amp, short-circuit proof Note: Connecting the starter motor directly on brain box will cause damage. The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid. Note: Replacement for 567421 Box G& 567422 Box G2.
