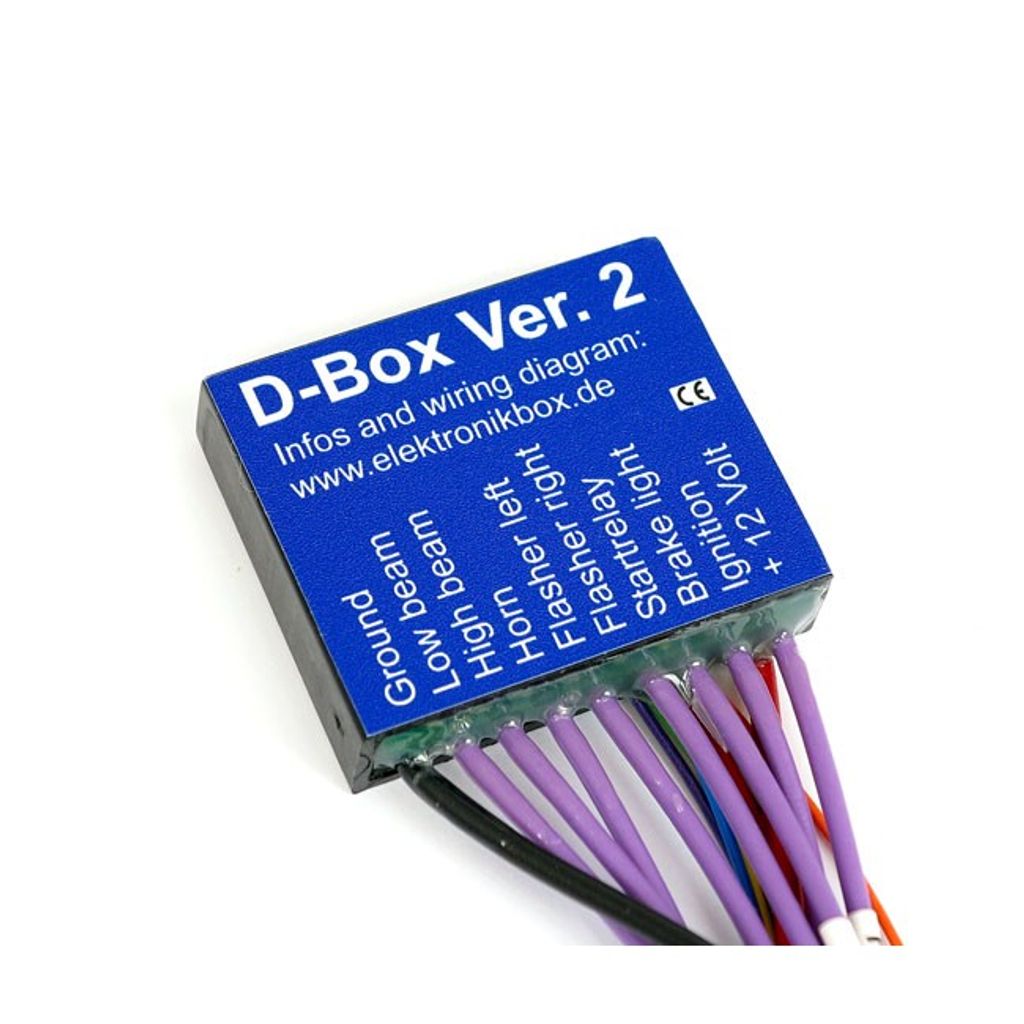

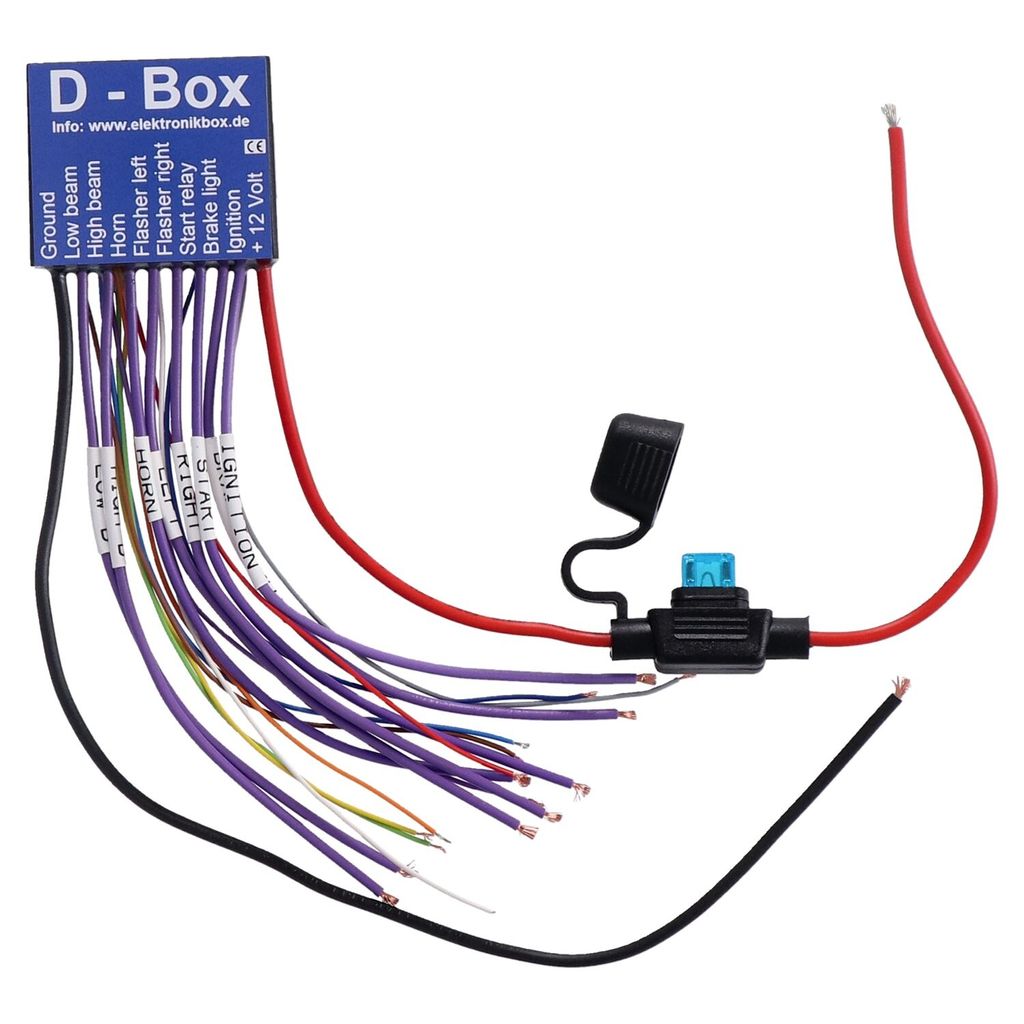

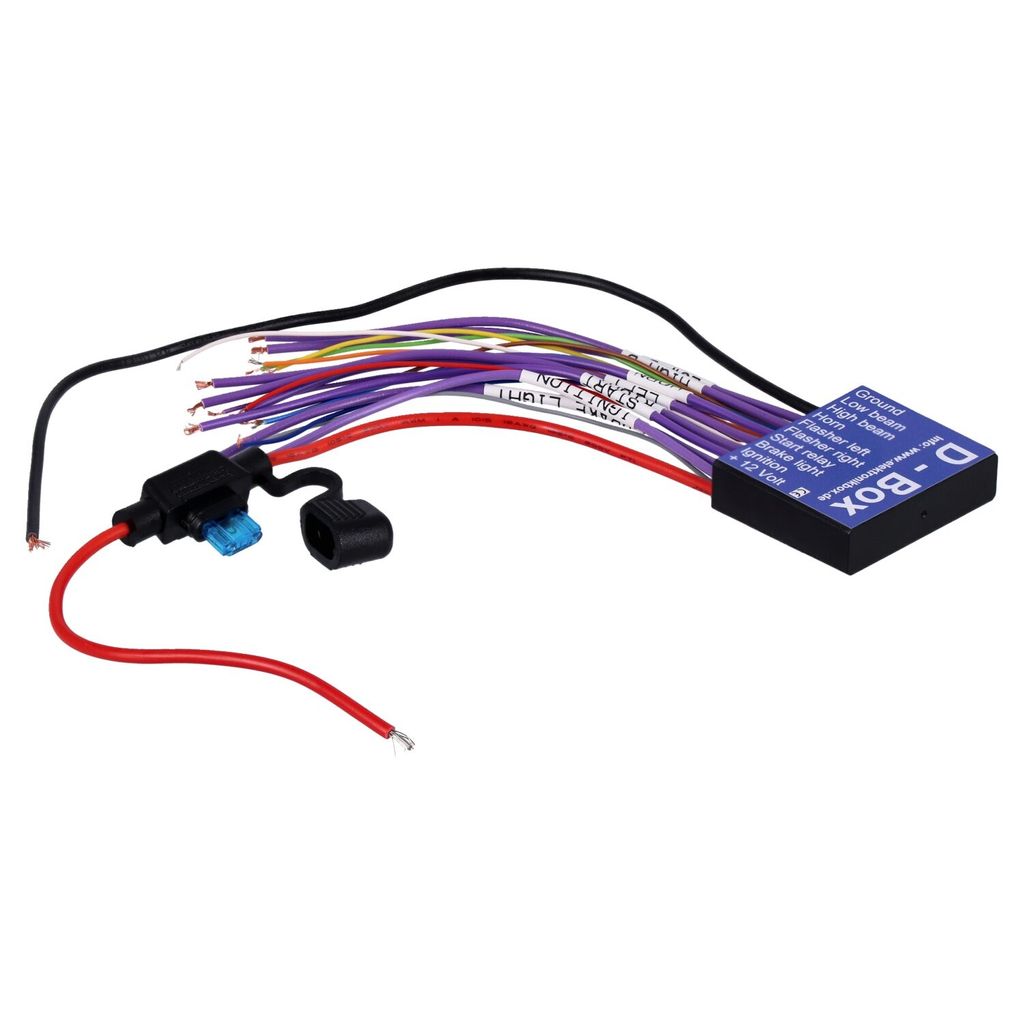

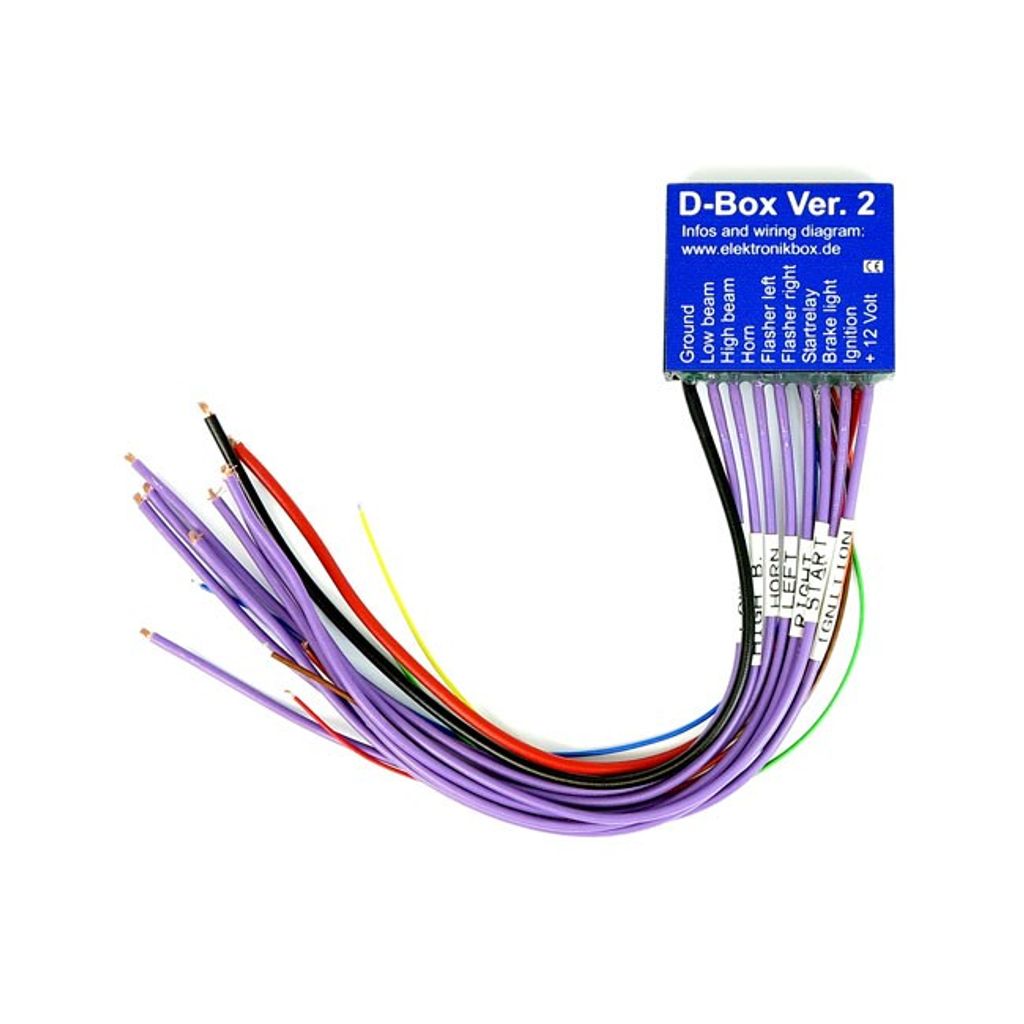

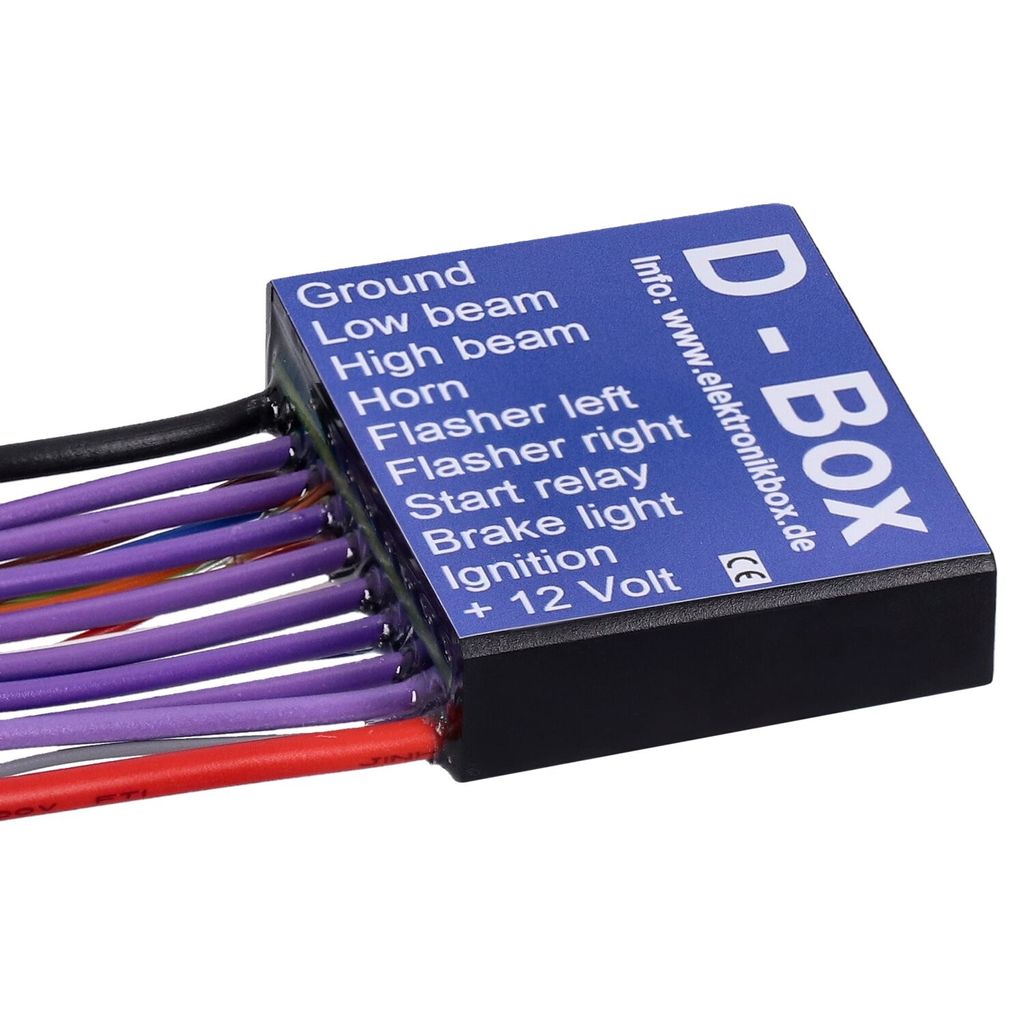

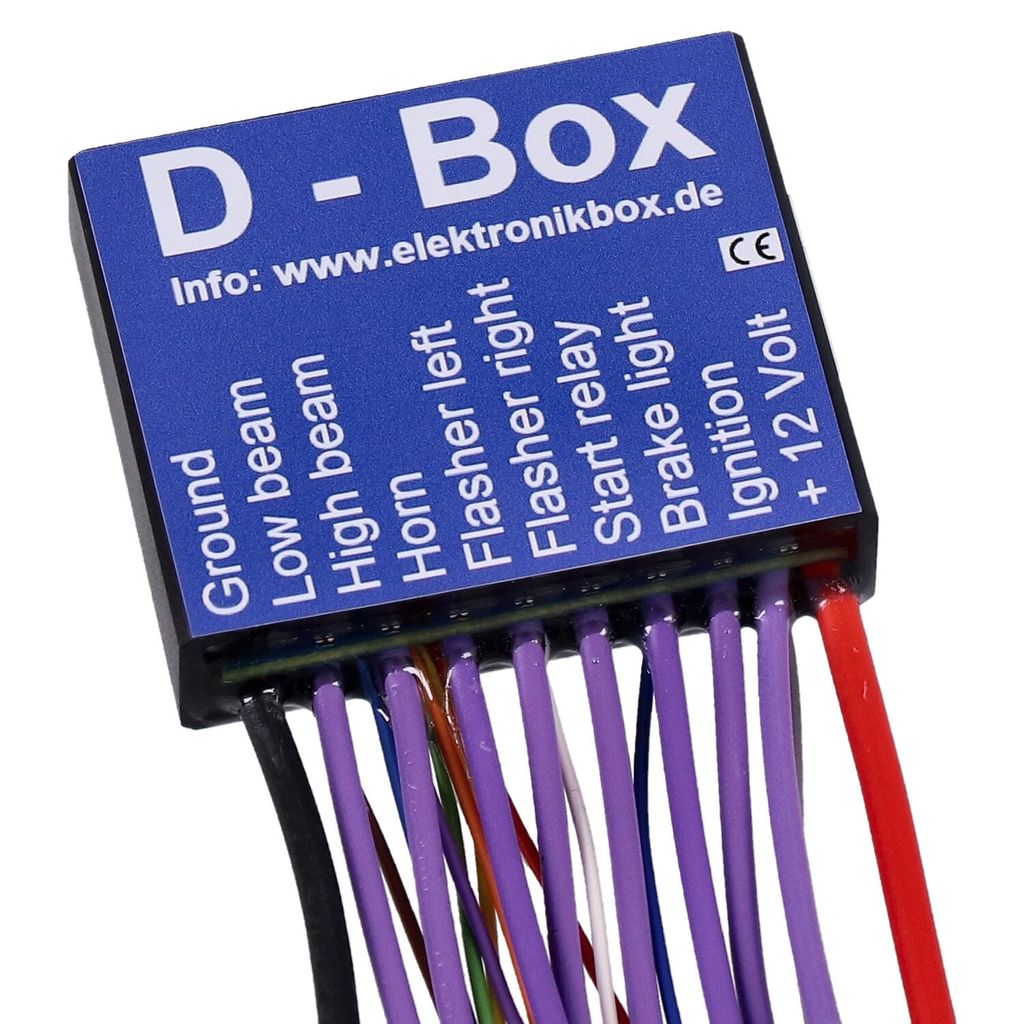

Axel Joost Elektronik, brain box D
Axel Joost Elektronik Brain Box D styrenhet
Läs mer
- Programmerbar direkt på motorcykeln via 8 menyval

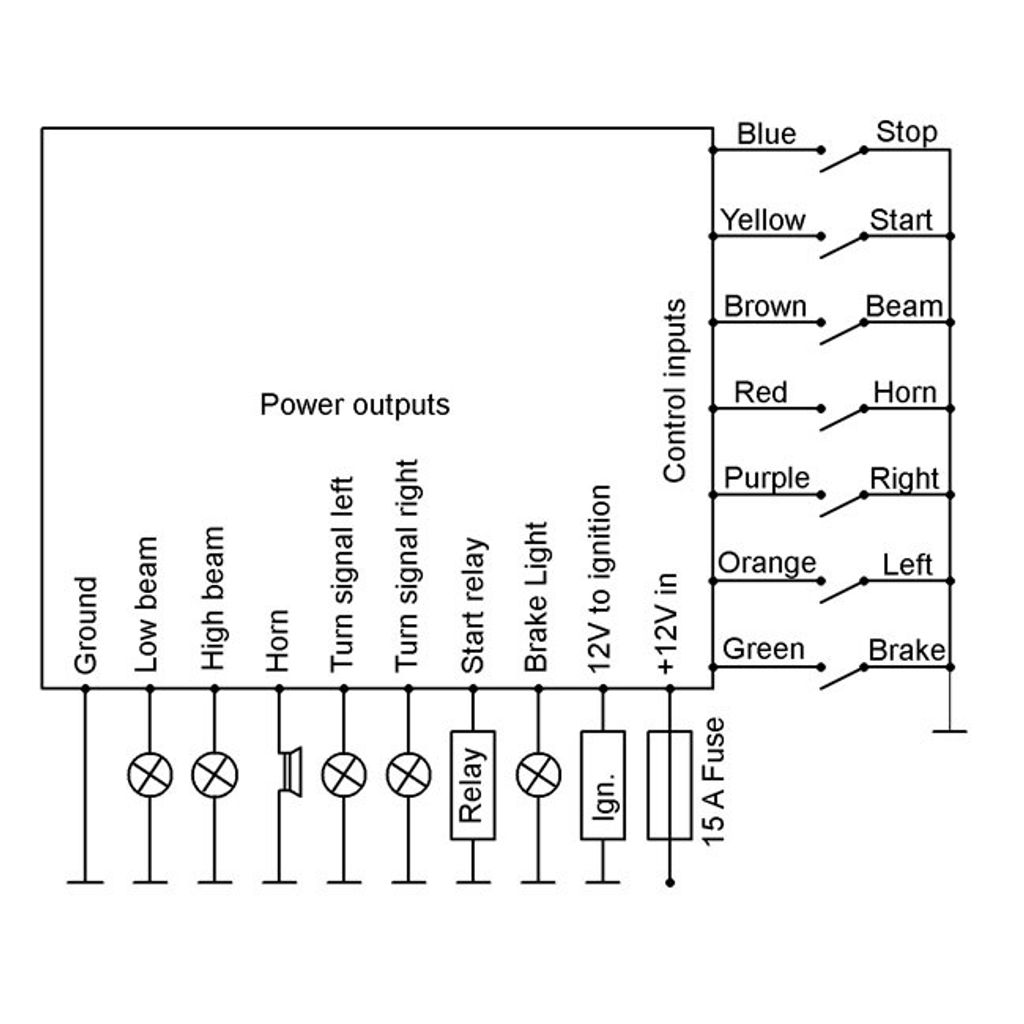

- Styr hel-/halvljus, inbyggda blinkersreläer, positionsljus, tuta, startrelä, bromsljus och tändning
- Anslutningar för neutralkontakt, sidostödsbrytare och LED-indikeringar (neutral, blinkers, olja, helljus)
- Fungerar med tryckknappar eller strömbrytare samt dämpar belysningen vid start
- Kompakt hölje i svart ABS, vattentät gjuten konstruktion
- Mått: 50 mm lång x 12,5 mm bred x 42 mm hög
- Driftspänning 6–18 V, max 5 A per utgång och max 20 A totalt från 12 V (kortslutningssäker)

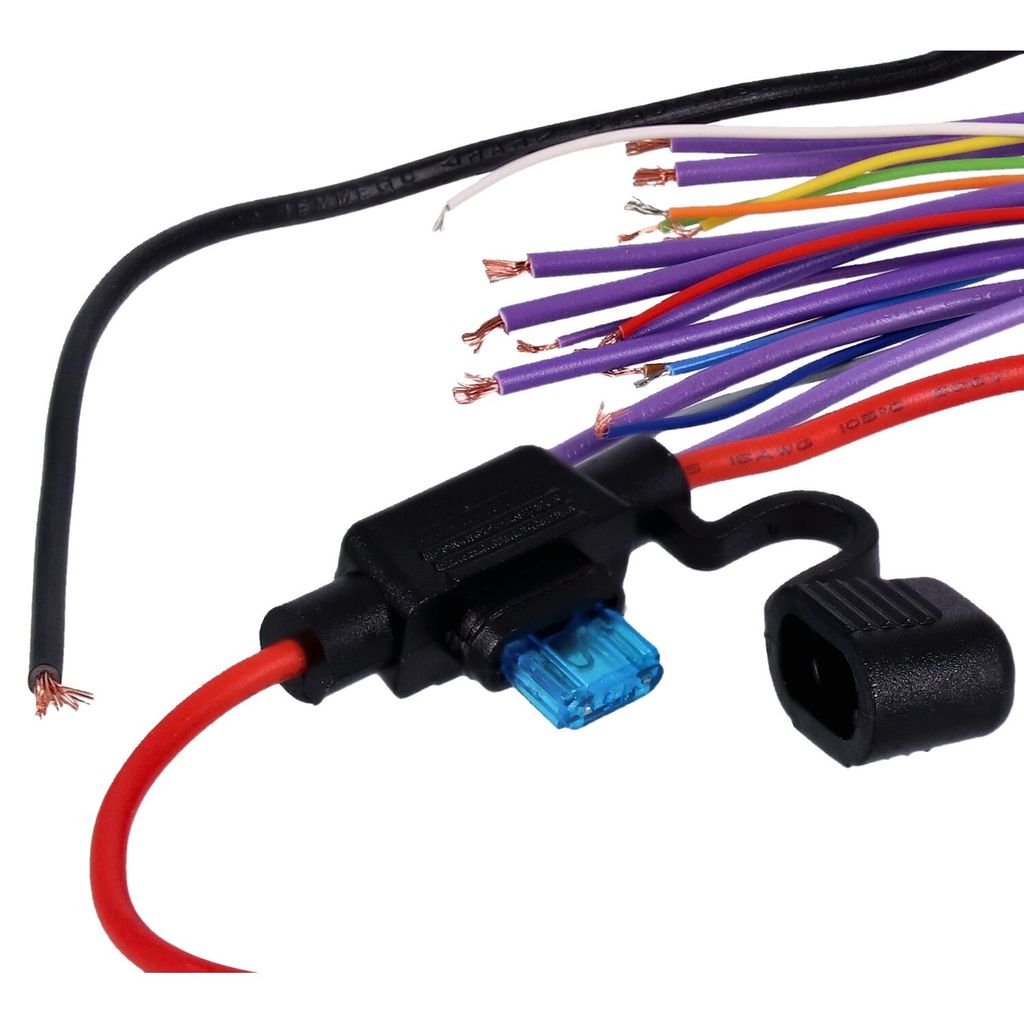

- Kablage: styrenhet 0,14 mm², förbrukare 0,75 mm², ingång 1,5 mm² med 20 cm kabellängd
Ersättning för 567421 Box G och 567422 Box G2. Vid montering på Harley-Davidson krävs ett externt relä mellan styrenhetens startutgång och startsolenoid då startmotorn drar 10 A för tillslaget, direktkoppling skadar boxen. Levereras med installationsanvisningar.
| Produkt-typ | Wiring misc |
| Kategori | C - Material: Black ABS, waterproof cast - Input voltage: 6 - 18 Volt - Connections: Control unit 0.14mm² |
Axel Joost Elektronik, brain box D
- On-bike programmable through 8 menu items
- When building a bike, or fully replacing the electrical wiring of an existing motorcycle, a brain box is a good option for a simple, solid and dependable wiring system
- Lights are dimmed at starting
- The brain boxes with handlebar wiring adapters simplify wiring and make it almost invisible when compared with some other brain boxes on the market
- Compatible with miniature pushbutton control knobs that function with super thin wiring
- Brain boxes can easily be tie-wrap clamped to frame tubes or similar
- All come complete with super clear installation instructions
- Works with pushbutton or switches
- High / Low beam
- Built-in turn signal relays & position/running lights
- Horn
- Start relais
- Brake light
- Ignition
- Neutral switch connection
- Jiffy / side stand switch connection
- LED out for neutral, turn Signal, oil and high beam
- Dimensions: 50mm long x 12.5mm wide x 42mm high
- Maximum ambiant temperature: 80°C
- Material: Black ABS, waterproof cast
- Input voltage: 6
- 18 Volt
- Connections: Control unit 0.14mm², user 0.75mm², input 1.5mm², with 20 cm long wires
- Max Amp out: 5Amp per output
- Max Amp. from 12V connection: 20 Amp, short-circuit proof Note: Connecting the starter motor directly on brain box will cause damage
- The H-D starter motor takes 10Amp for the solenoid to switch and requires an additional small automotive relay between starter output of the brain box and the starter solenoid
- Note: Replacement for 567421 Box G& 567422 Box G2
