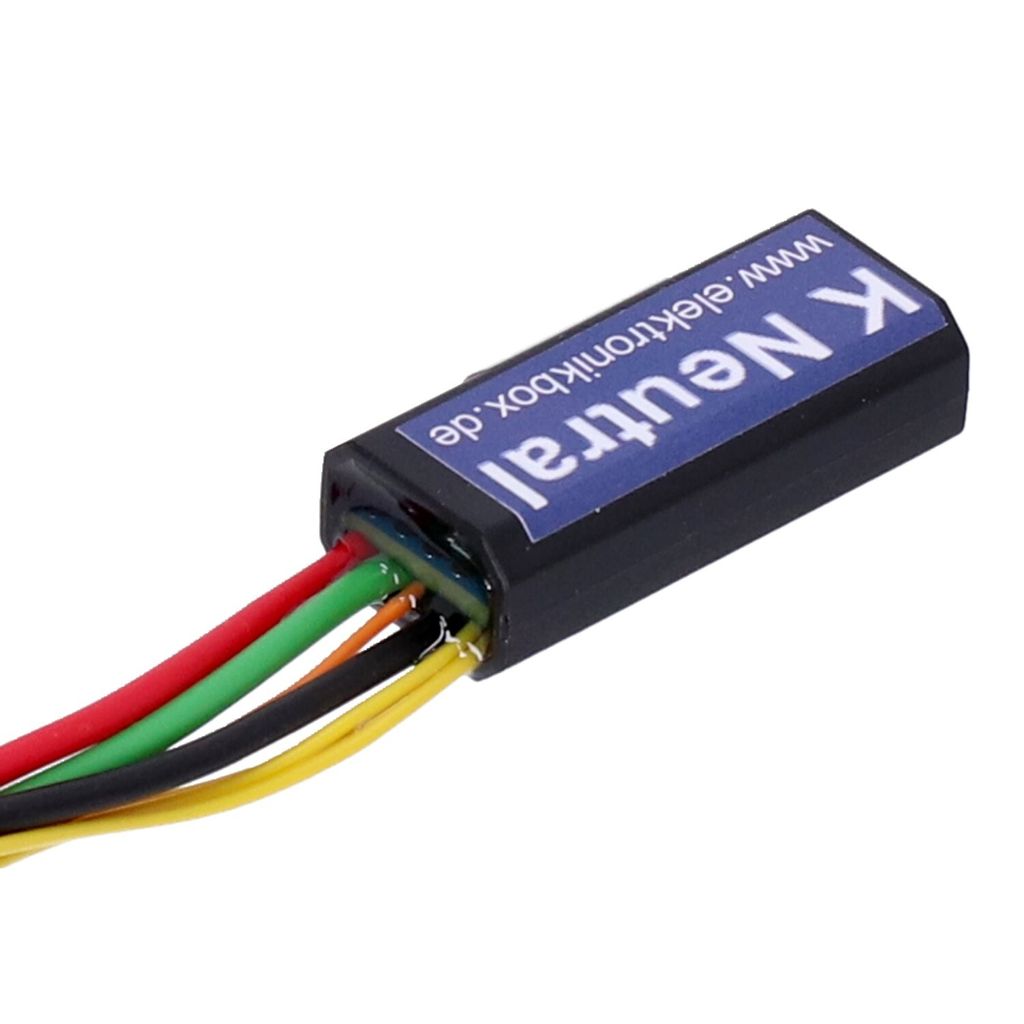

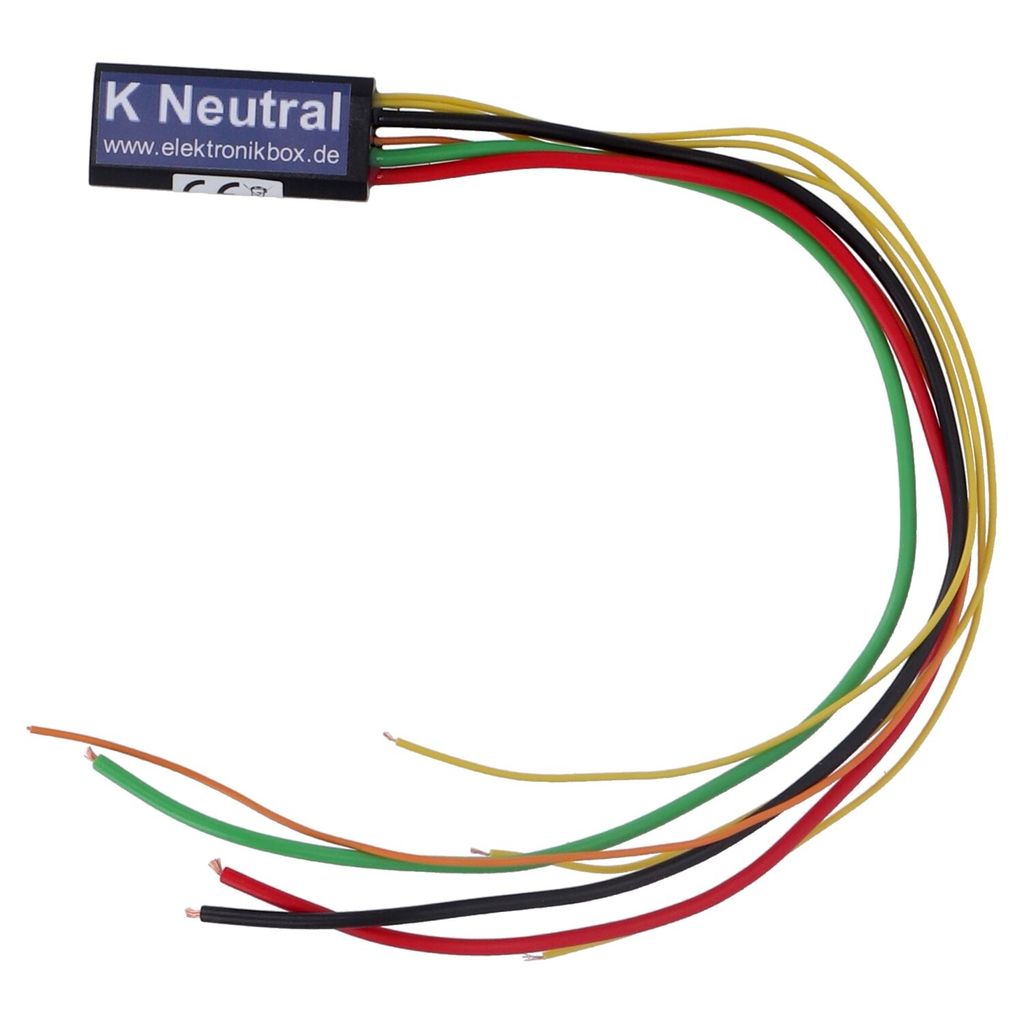

Axel Joost Elektronik, BMW K Neutral
Elektronikbox för neutrallägesindikering på BMW K-modeller
Läs mer
- Ger neutrallägesindikering till valfri ny hastighetsmätare
- Använder de 3 växellägesbrytarna på BMW K-motorcyklar
- Strömutgång för både neutrallampa (LED) och startrelä
- Möjliggör start med startrelä utan att kopplingshandtaget behöver dras in
- Hus i stöttålig ABS-plast, ingjuten och vattentät
- Mått: 38 mm längd x 16 mm bredd x 11 mm höjd
- Strömförbrukning: ca 20 mA
- Spänningsintervall 6–18 V, tål omgivningstemperatur upp till 80 °C
Levereras med 20 cm anslutningskablar (0,14 mm² och 0,5 mm²).
Passar: BMW K-modeller
| Kategori | Electrical |
| Produkt-typ | Electrical |
Axel Joost Elektronik, BMW K Neutral

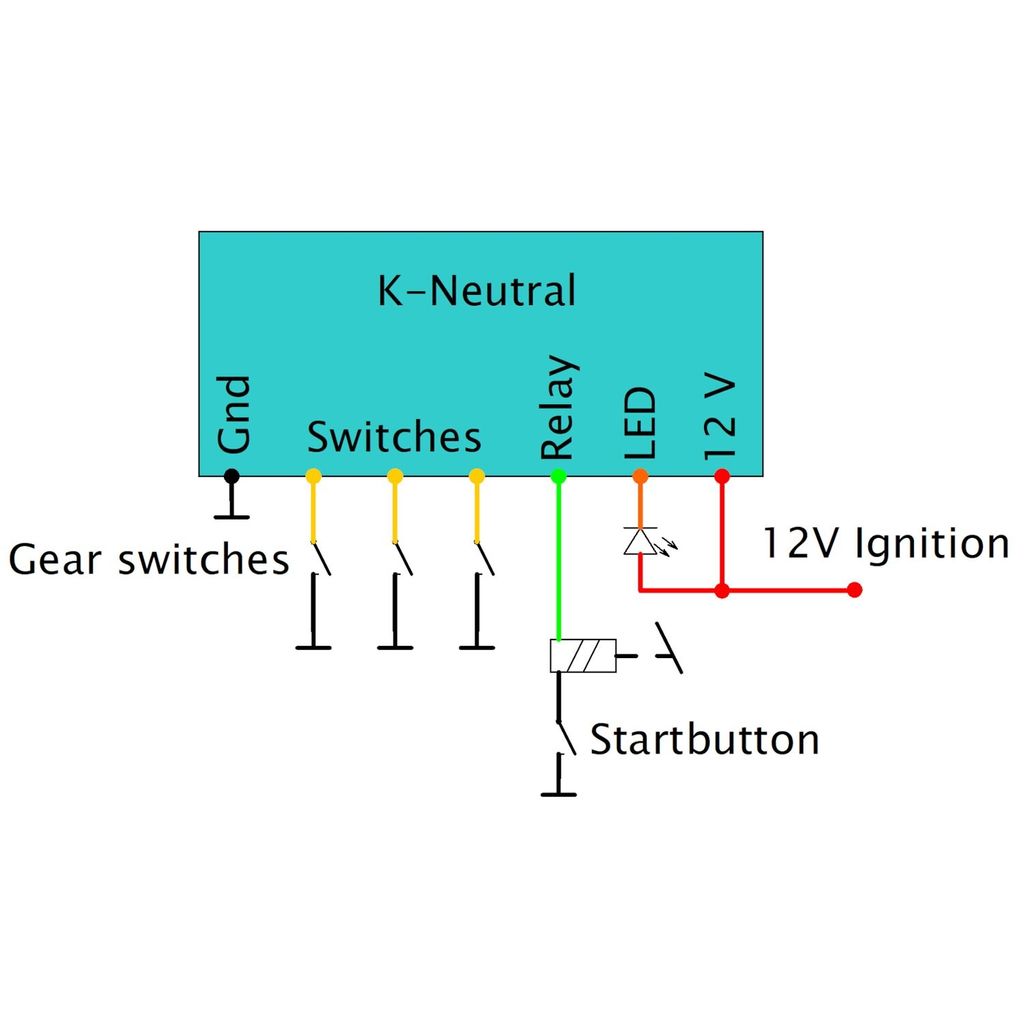

- Used to provide a neutral gear indication on any new speedometer
- The K Neutral uses the 3 gear switches found on BMW K motorcycles
- The module has with a power output for both the neutral indicator LED and the starter relay
- It therefore also allows using the starter relay (start the bike) without the need to pull the clutch
- Dimensions: 38 mm length x 16 mm wide x 11 mm height
- Body material: shock resistant ABS plastic, waterproof poured raisin
- Power consumption: approx
- 20 mA
- Case Color: Black

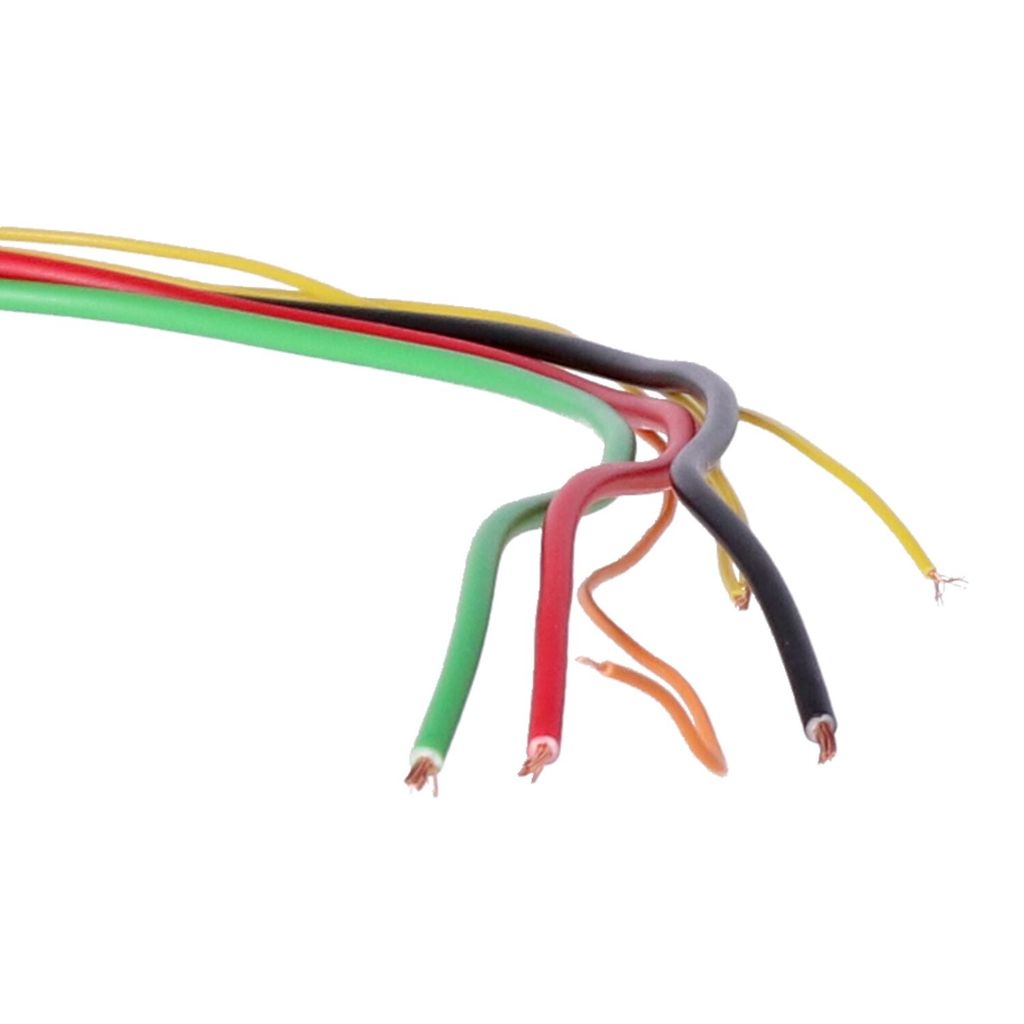

- Connections: 0.14 qmm and 0,5 qmm, 20 cm
- Maximum ambient temperature: 80 degree Celsius
- Input voltage range: 6
- 18 Volt
Fits: BMW K models
