Modul Elektronikbox Axel Joost Elektronik Safety 0.5
Axel Joost Elektronik Mini Safety Box säkerhetsmodul
Läs mer
- Kontrollerar signaler från friläge och sidostöd för att aktivera eller inaktivera tändning eller startmotor
- Tändningen förblir på när sidostödet är nere så att motorn kan startas, men bryts om en växel läggs i
- Mått: 38 mm x 16 mm x 11 mm
- Tillverkad i gjuten, vattentät svart ABS-plast
- Driftspänning: 7–18 V
- Anslutningar: ingångar 0,14 mm², utgångar 0,5 mm²
- Maximal utgångsström: 5 A för broms- och blinkerutgångar
- Maximal omgivningstemperatur: 80 °C
| Kategori | Electrical |
| Produkt-typ | Electrical |

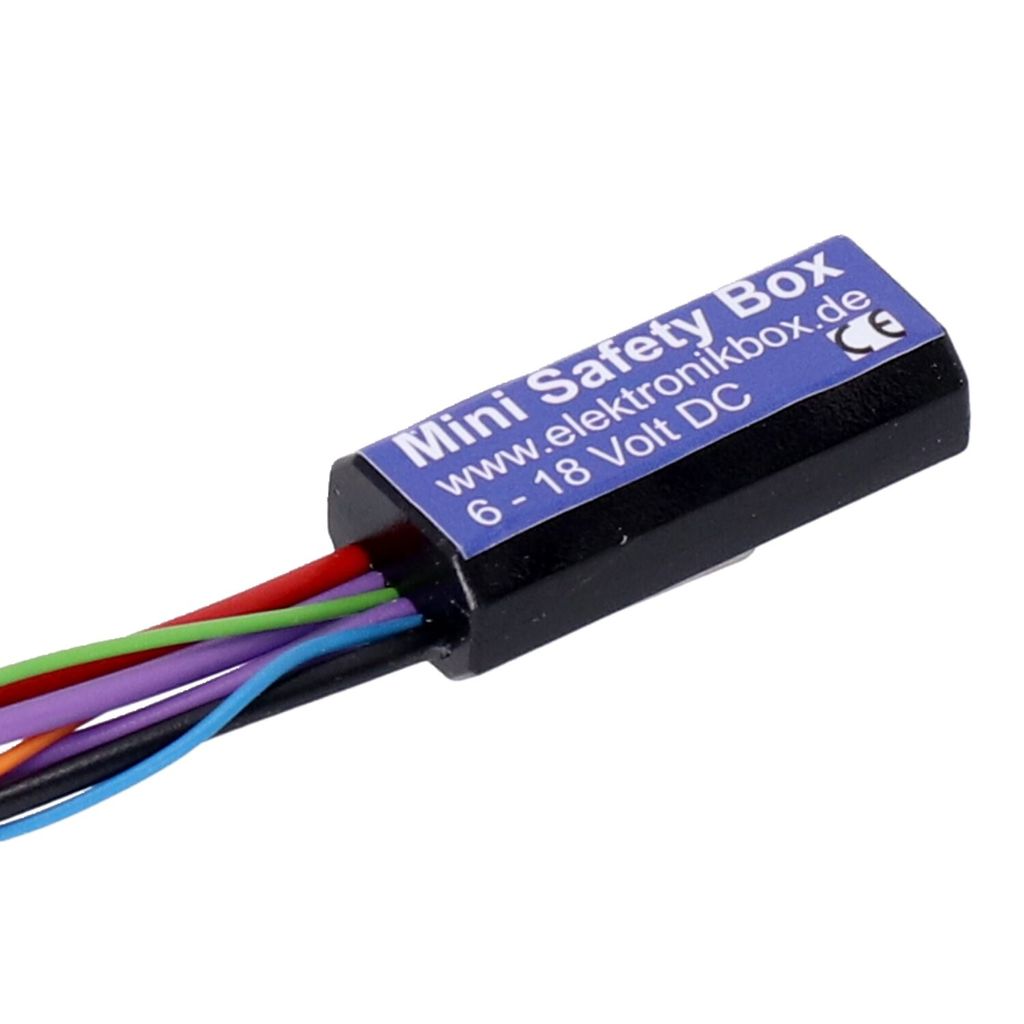

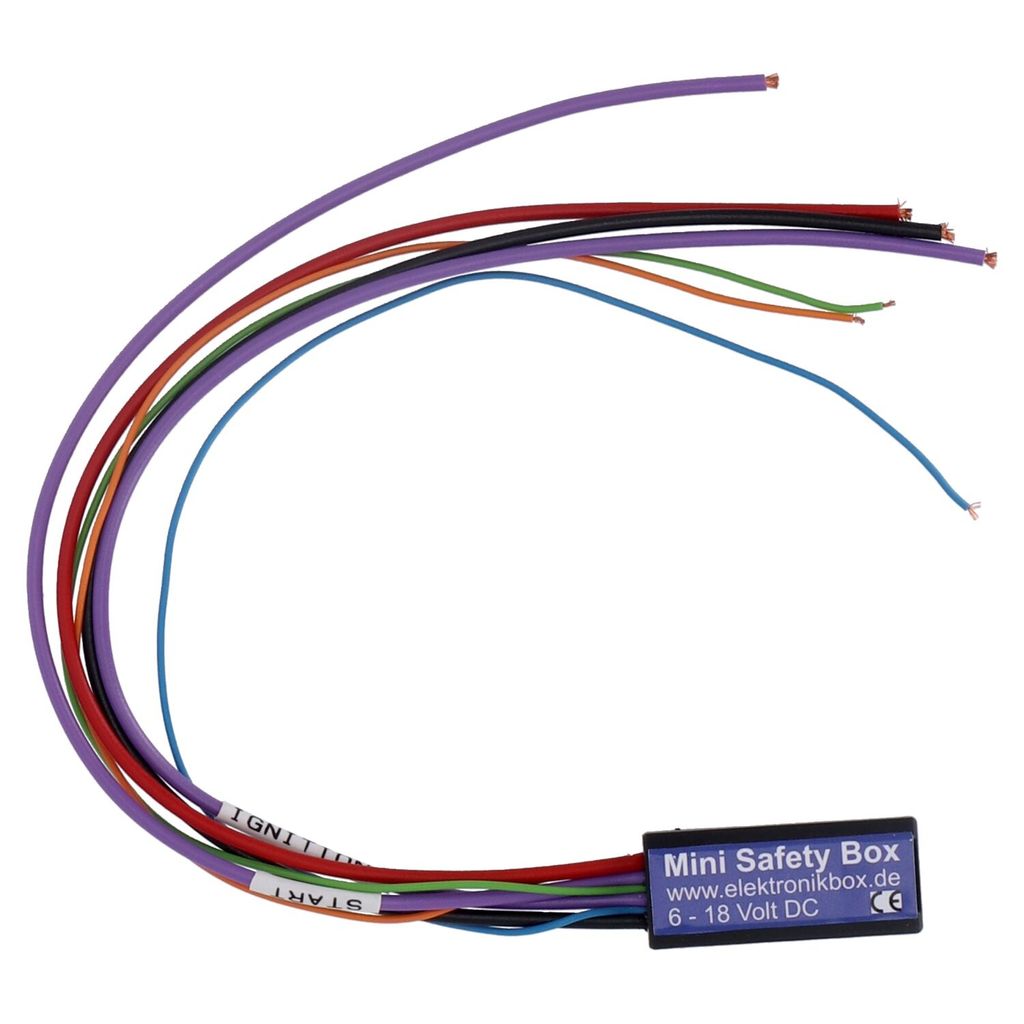

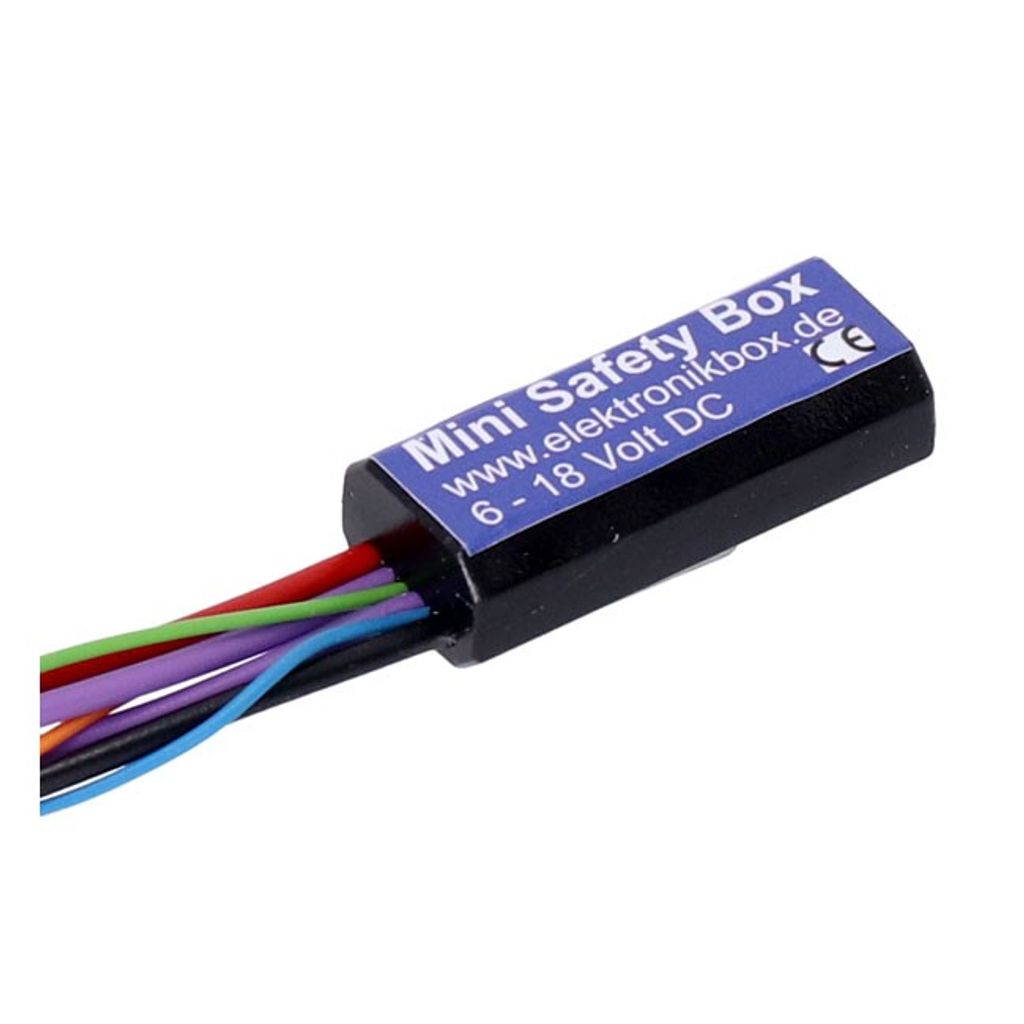

Axel Joost Elektronik, Mini Safety Box module

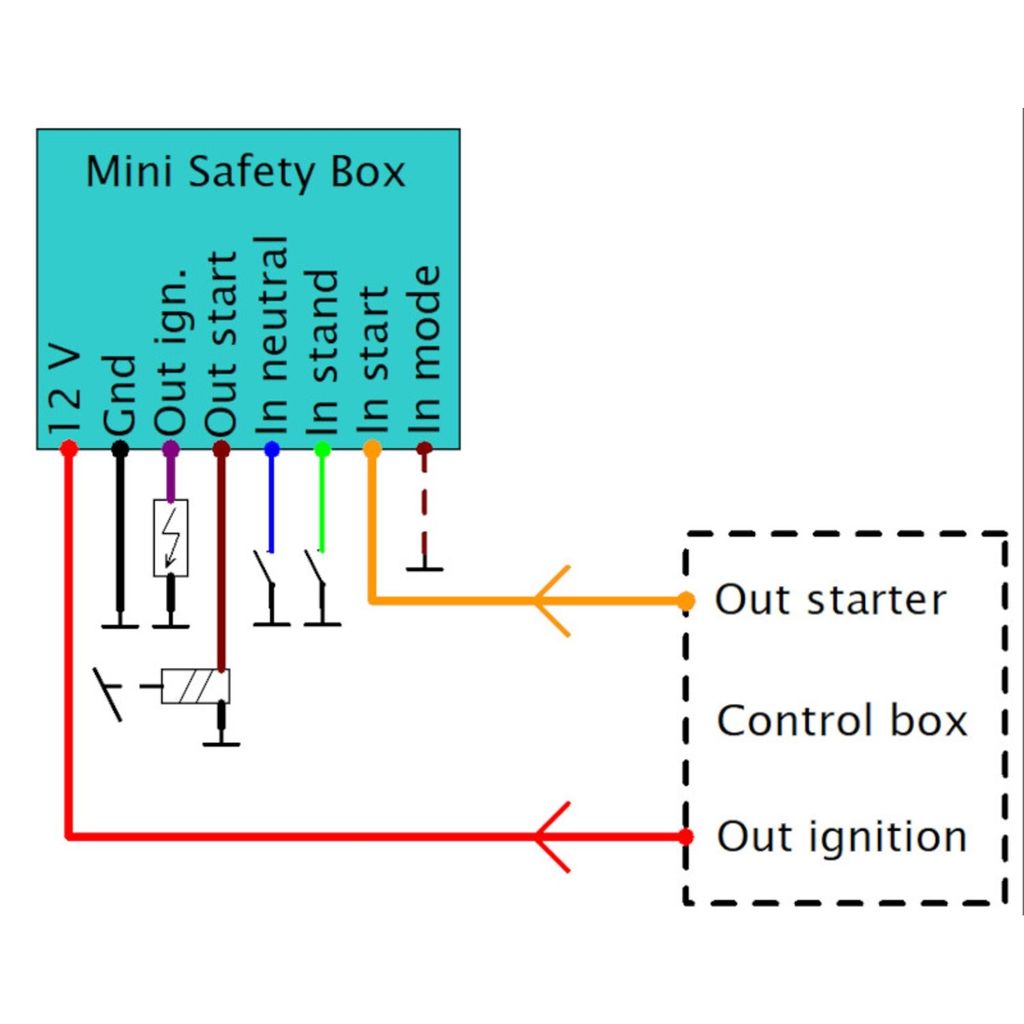

- This safety module checks the neutral and sidestand/jiffy switch inputs, to enable or disable the ignition or starter motor
- The ignition remains on when the side stand is out, so the bike can be started
- But when the bike is put in gear the ignition will be killed if the side stand is not in
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: Black ABS waterproof molded
- Input voltages range: 7
- 18 Volt

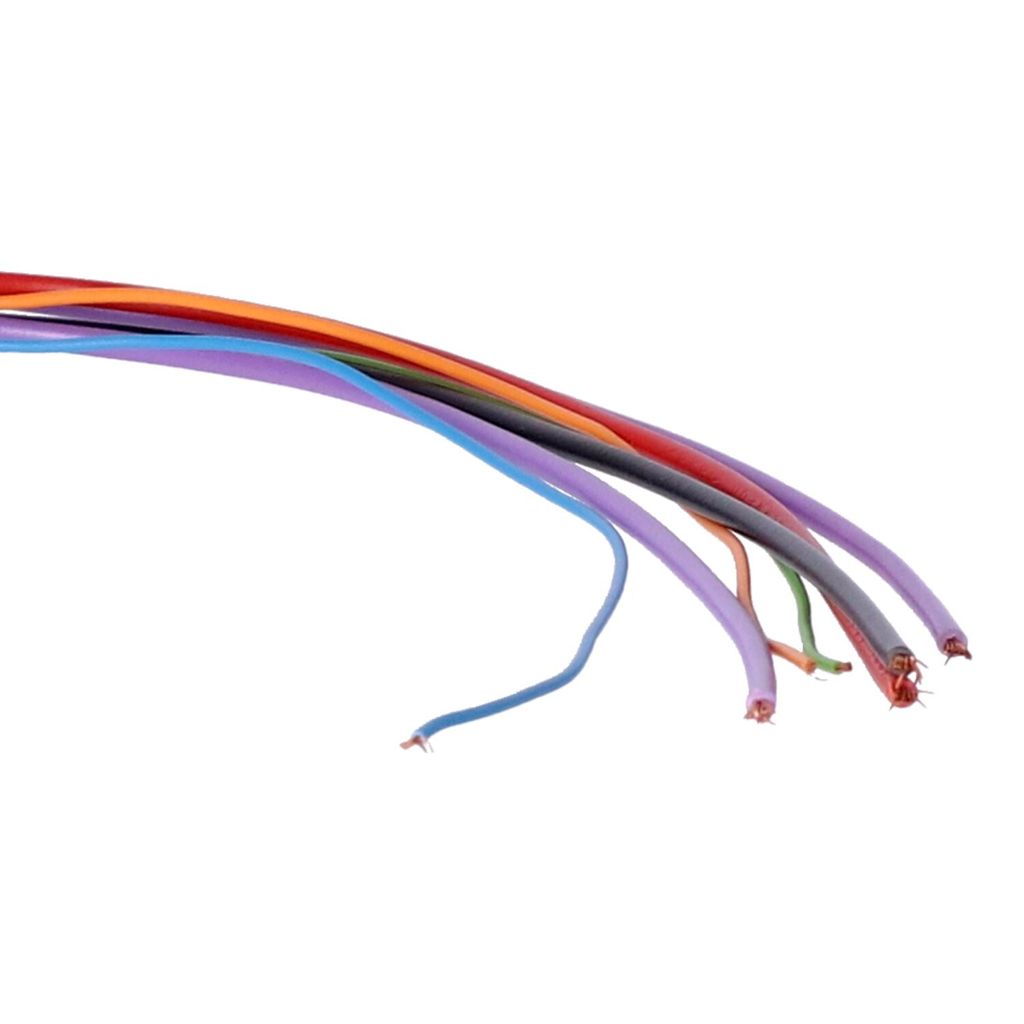

- Connections: Inputs 0.14mm², Outputs 0.5 mm²
- Max
- Output current: 5 Ampere for brake and indicator outpus
- Maximum ambient temperature: 80 degrees Celsius
