Modul Elektronikbox Axel Joost Elektronik Minimal
Axel Joost Elektronik Minimal Indicator modul
Läs mer
- Förenklar instrumenteringen för ett renare utseende
- Kan monteras inuti strålkastaren eller styret
- Driver en 3-färgs LED som visar blinkers, helljus, neutral eller oljetryck
- Visar upp till 4 indikeringar samtidigt i rött, grönt, blått eller orange
- Visar även 2 eller 3 signaler samtidigt
- Hus i ABS ingjuten med vattentät 2K-epoxiharts
- Mått: 38 mm x 16 mm x 11 mm
- Ingångsspänning: 7–18 V, anslutningar: 0,14 mm², 20 cm, max omgivningstemperatur: 80 °C
| Kategori | Indicator lights led |
| Produkt-typ | Indicator lights led |

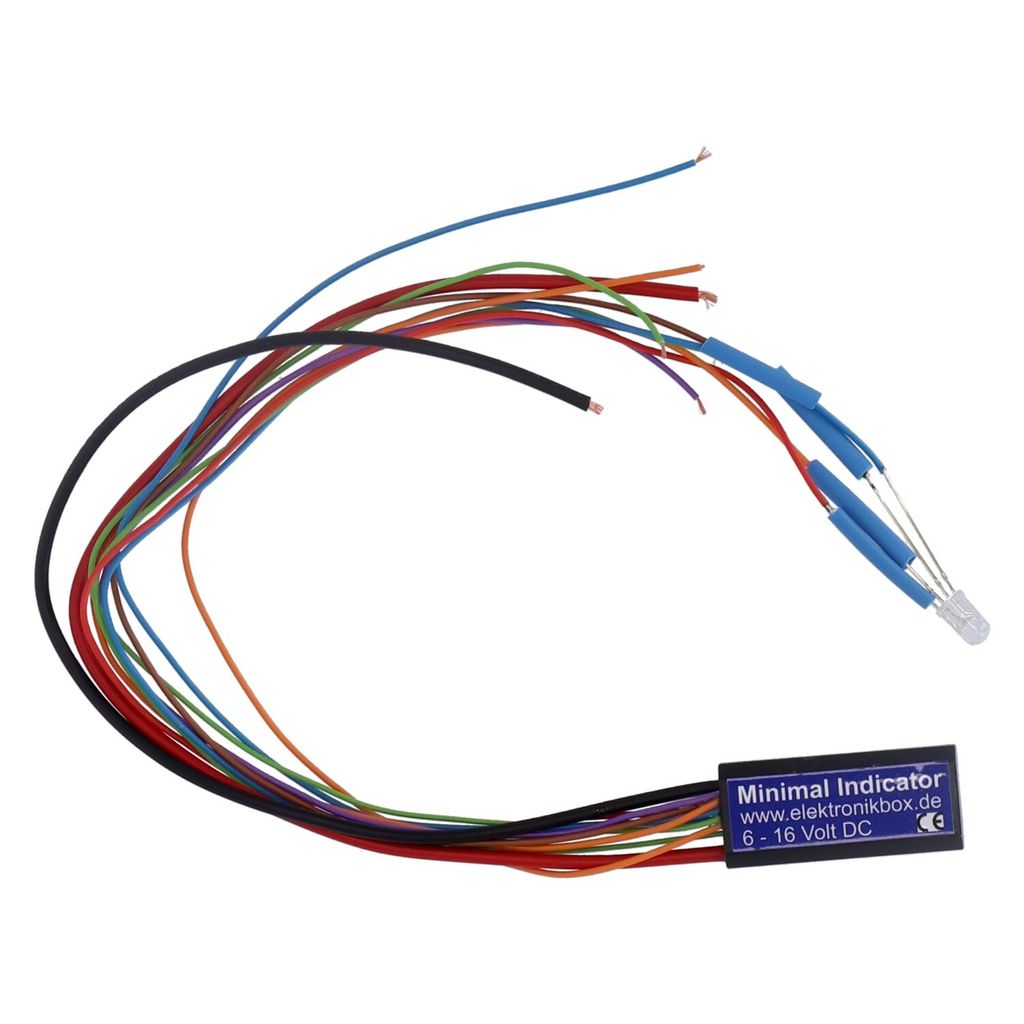

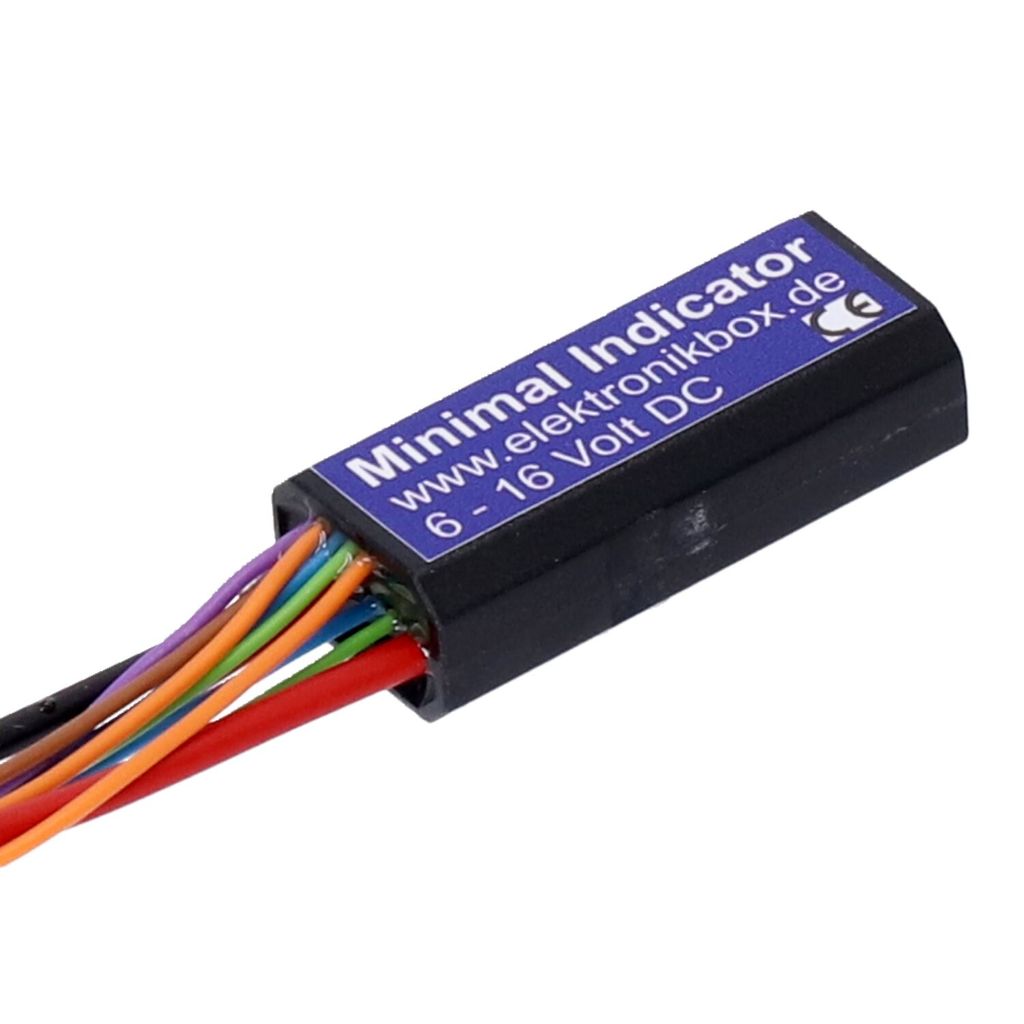

Axel Joost Elektronik, Minimal Indicator module
- This module can help simplify your dash for a much cleaner look

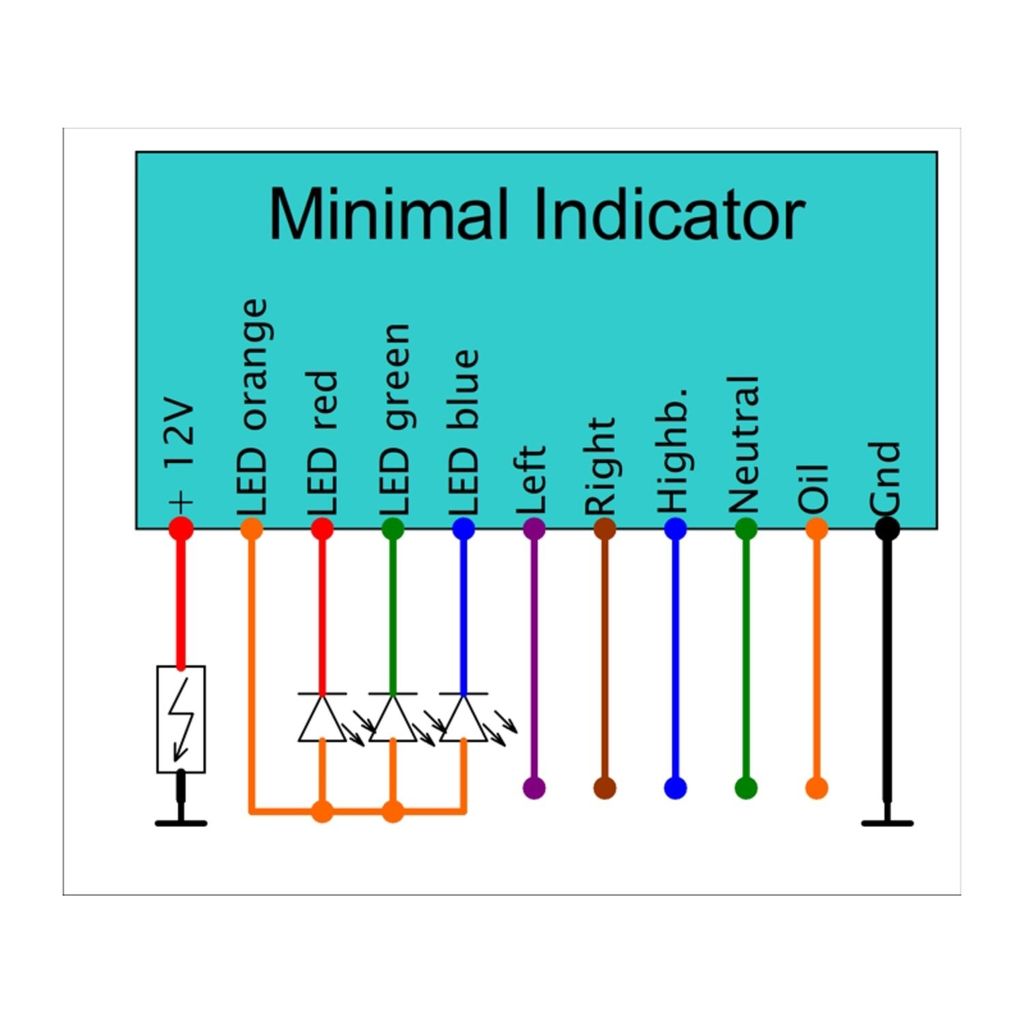

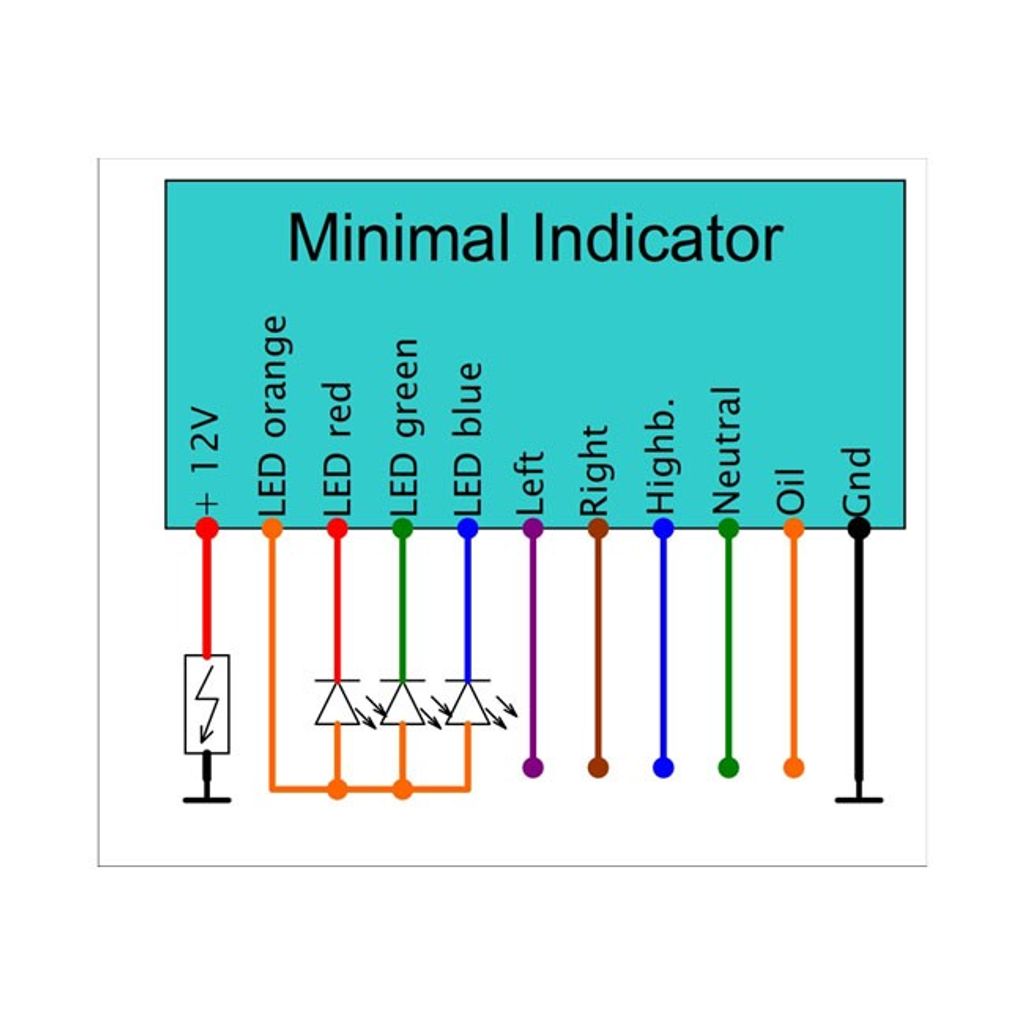

- This small module (installs inside headlamp or even inside the handlebar) can power a 3-color LED to show turn signal, high beam, neutral or oil pressure LED indicators
- Up to 4 indicators can be clearly displayed at the same time on a single 3-color LED showing Red, green, blue or orange
- Even 2 or 3 signals can be shown simultaneously
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7
- 18 Volt
- Connections: 0.14 mm², 20 cm
- Maximum ambient temperature: 80 degree Celsius
