Modul bak Elektronikbox Axel Joost Elektronik Light 0.14 0.75
Axel Joost Elektronik konverteringsmodul för bakljus till US-standard
Läs mer
- Mikrokontrollerstyrd modul som konverterar EU-bakljus till US-krav
- Konverterar tre signaler från separata blinkers och ett bak-/bromsljus till två utgångar för kombinerat bak-, broms- och blinkersljus
- Hus i ABS ingjutet med vattentät 2K-epoxiharts
- Mått: 40 mm x 25 mm x 12,5 mm
- Ingångsspänning: 7–18 Volt
- Anslutningar: Ingångar 0,14 mm², utgångar 0,75 qmm
- Uteffekt: Max 21 Watt per utgång
- Maximal omgivningstemperatur: 80 °C
Används för att anpassa en EU-motorcykel till reglerna på US-marknaden, exempelvis vid export till USA.
| Kategori | Taillights misc |
| Produkt-typ | Taillights misc |

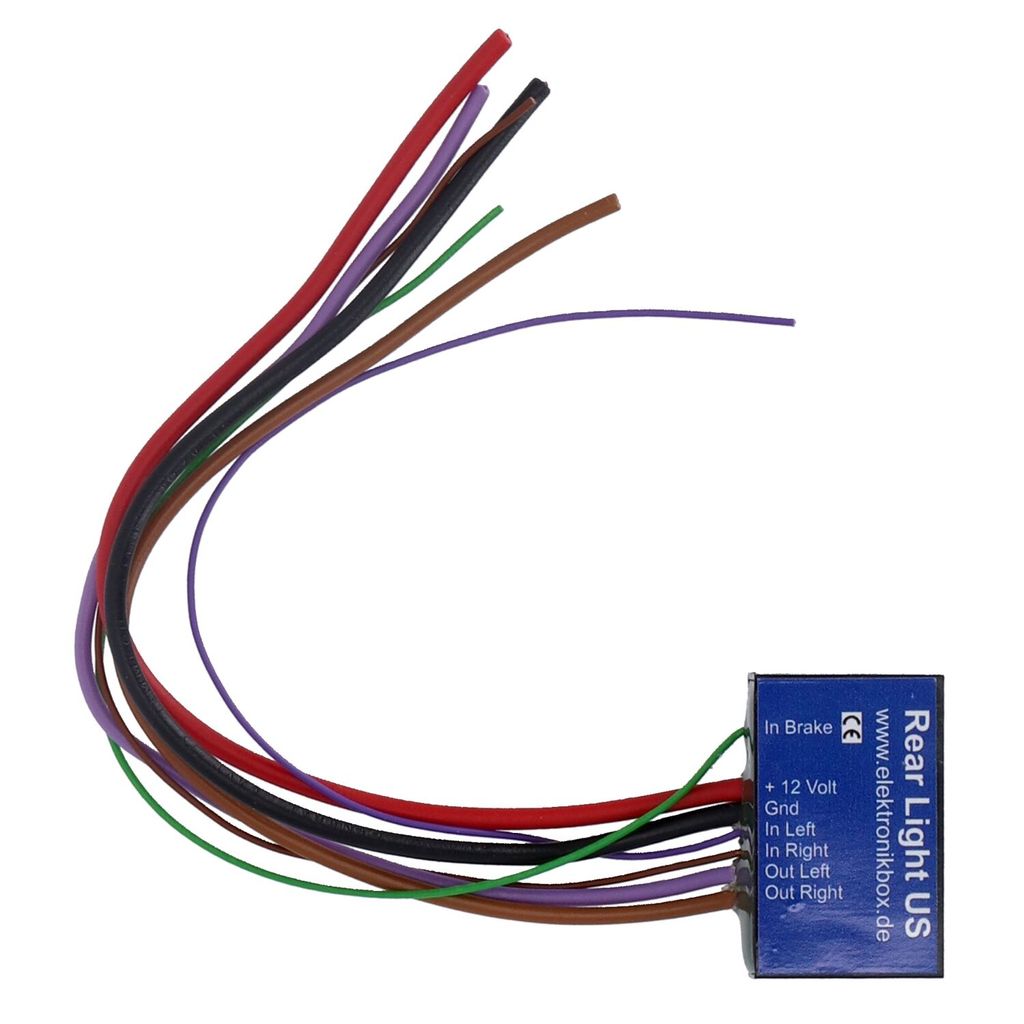

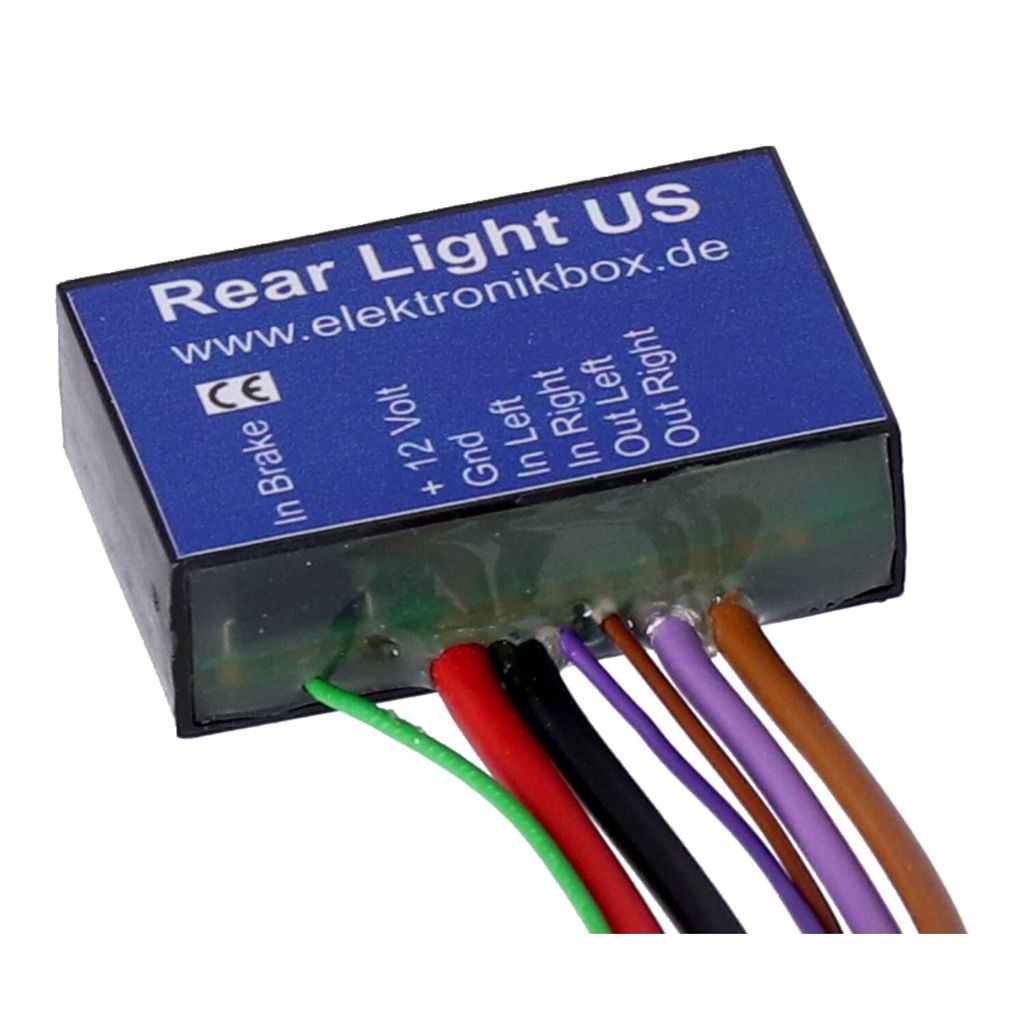

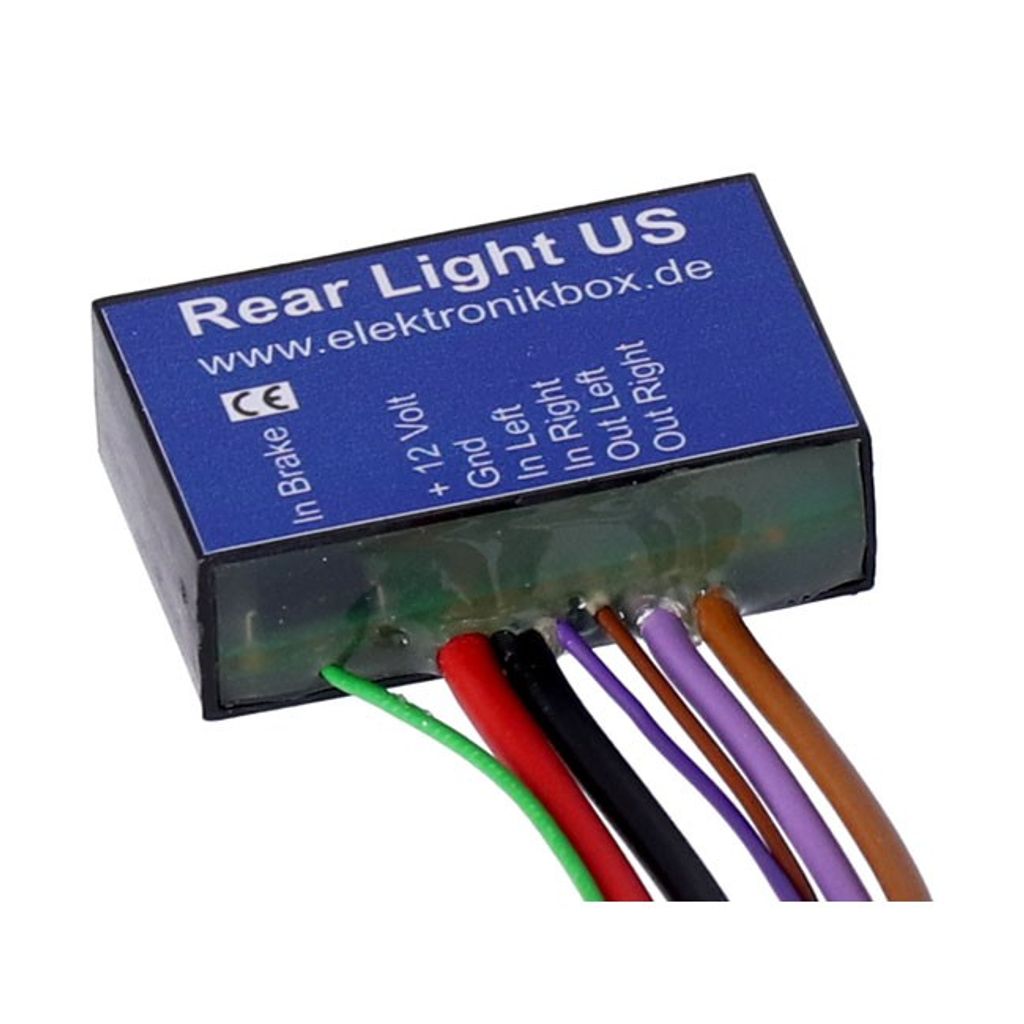

Axel Joost Elektronik, Rear Light US conversion module
- Used to change an EU taillight to US requirements, used when exporting to the US
- Most US bikes have a combined taillight/brakelight, where the taillight bulb shines brighter when the brake is applied

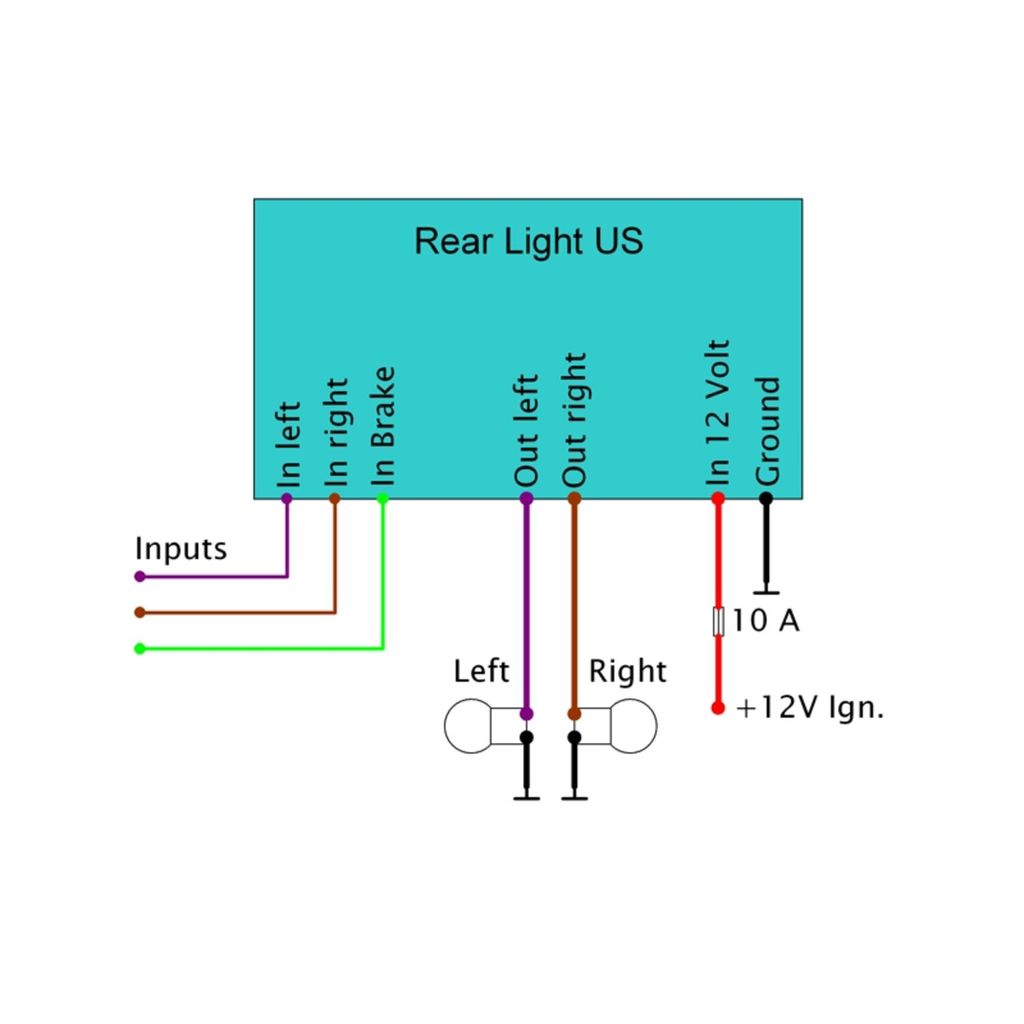

- The 'Rear Light US' is a micro-controller based module that converts the three signals from separate turn signals and 1 taillight/brakelight into two outputs for a taillight/brake/turn signal combination set-up
- For converting an EU-bike to the regulations of the US-market, the Rear Light US is the perfect choice
- Dimensions: 40 mm x 25 mm x 12,5 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 7
- 18 Volt
- Connections: Inputs 0.14 mm², Outputs 0.75 qmm
- Output power: Max
- 21 Watt / Output
- Maximum ambient temperature: 80 degree Celsius
