Styre Biltwell Tracker 1″ krom H-D e-throttle 08-24
Biltwell 1" Tracker-styre i 4130 chromoly med TBW-pluggar
Läs mer
- Sömlös konstruktion i tjockväggigt 0.120" (3 mm) 4130 chromolystål
- Precisionsbockat på dorn med geringsskurna och TIG-svetsade fogar
- Frästa spår vid styrändar och styrfäste för invändig kabeldragning
- Höger styrände är skårad och konisk invändigt för Harley Throttle-By-Wire

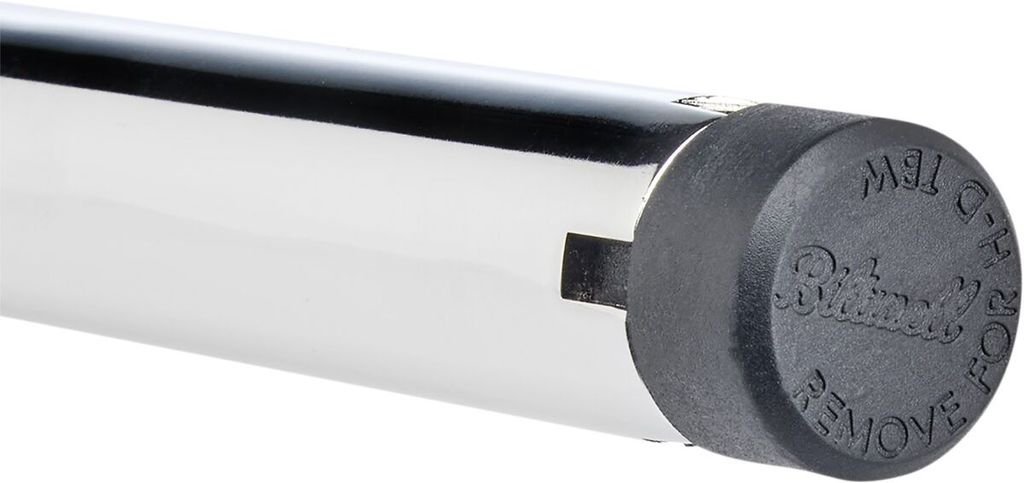

- Urtagbar formsprutad nylonplugg i gasänden för enkel- och dubbelvajer
- Mått: 30.5" (77.5 cm) bredd, 2.25" (5.7 cm) resning, 5" (12.7 cm) centrumbredd, 2.5" (6.4 cm) pullback
Kompatibel med både mekanisk gas och Throttle-By-Wire. Den medföljande styrändepluggen kompenserar för den kortare styränden på gassidan när mekanisk gasvajer används och tas enkelt bort vid Throttle-By-Wire.
Passar: H-D e-throttle 08-24
| Produkt-typ | Handlebar |
1" Handlebar w/ TBW Plugs
- Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
- Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
- Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
- Milled slots on bar ends and clamping area for clean internal wire routing
- Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
- Precision mitered, TIG welded tube joints
- 1" handlebar Tracker chrome
- Satin black electroplated handlebar of Seamless 4130 chromoly steel
- Approx. dimensions: 30.5" (77.5cm) wide x 2.25" (5.7cm) rise x 5" (12.7cm) center width x 2.5" (6.4cm) pullback
- Note: Compatible with mechanical and e-throttle (Throttle By Wire)
- Tube end comes with a special (removable) plug to compensate for the shorter throttle (right) side bar length when running e-throttle
- Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report
Fits: 08-24 H-D e-throttle; 24-25 FLHRXS; 2024 FLTRK (excl. 2024 FLT/Touring; 23-24 CVO Touring). e-throttle with 1" I.D. risers
