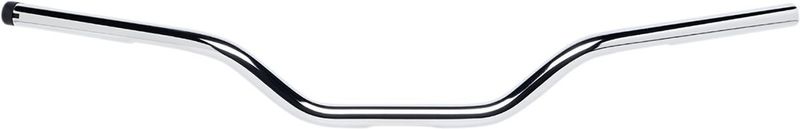

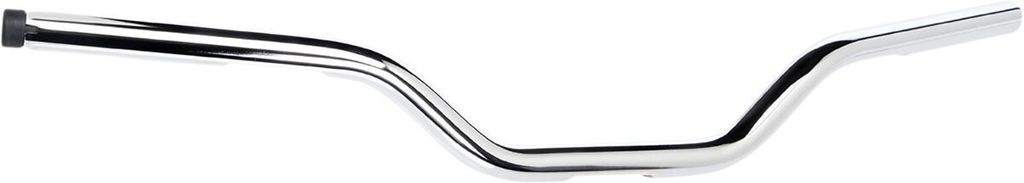

Styre Biltwell Tracker Mid 1″ H-D mechanical or e-throttle

2 320 kr

1" Tracker Mid styre från Biltwell i satinsvart utförande
Läs mer

06015649 Biltwell
  • Tillverkat i sömlöst 4130 chromoly-stål med 0.120" (3 mm) godstjocklek
  • Precisionsbockat och TIG-svetsat för exakt passform och god ergonomi
  • Frästa spår vid styrändar och fästområde för invändig kabeldragning
  • Urtag och invändigt konisk höger styrände anpassad för Harleys Throttle-By-Wire-modul
  • Mått: ca 30.5" (77.5 cm) bredd x 3.25" (8.3 cm) resning x 5" (12.7 cm) centrumbredd x 2.75" (7 cm) pullback
  • Finish: satinsvart ytbehandling (electroplated)

Kompatibel med både mekanisk gasvajer (enkel eller dubbel) och elektronisk gas (Throttle-By-Wire). En formsprutad och förstärkt nylonplugg i gasreglagesidan används för mekanisk gas och tas enkelt bort vid användning av TBW.

Passar: H-D mekanisk eller e-gas

Produkt-typ Handlebar

1" Handlebar w/ TBW Plugs

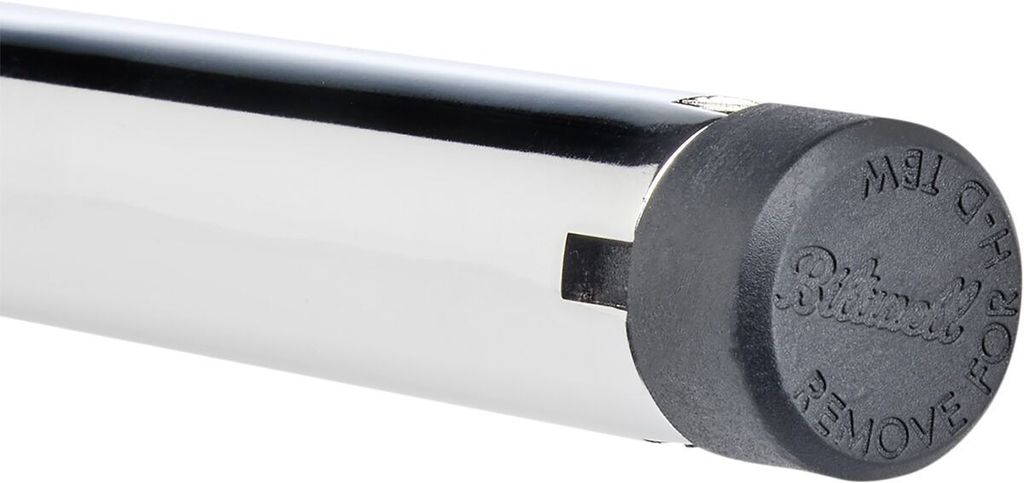

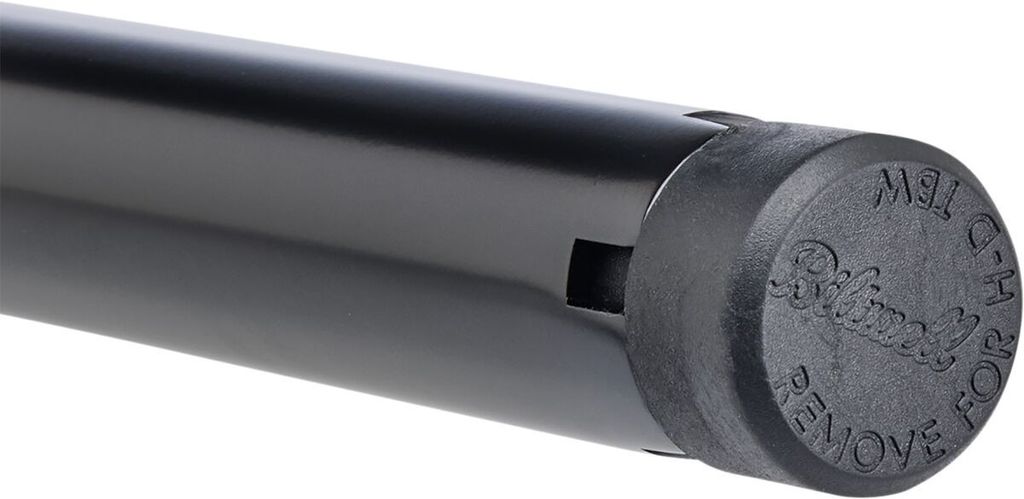

  • Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
  • Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
  • Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
  • Milled slots on bar ends and clamping area for clean internal wire routing
  • Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
  • Precision mitered, TIG welded tube joints

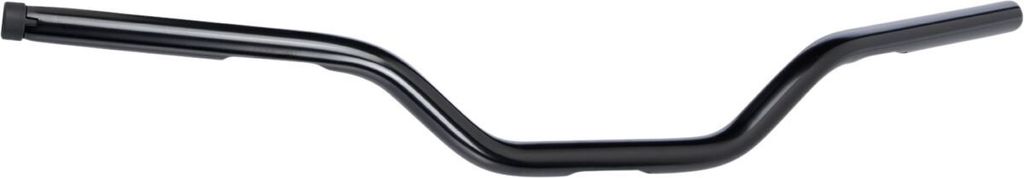

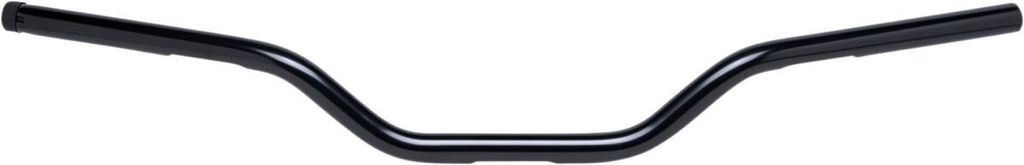

  • 1" handlebar Tracker Mid. Black
  • Satin Black electroplated handlebar of 4130 seamless chromoly tubing with a 3mm wall thickness and CNC machined slots with an internally tapered bar for a state of the art throttle module integration
  • Approx dimensions: 30.5" (77.5cm) wide x 3.25" (8.3cm) rise x 5" (12.7cm) center width x 2.75" 7cm) pullback
  • Note: Compatible with mechanical and e-throttle (Throttle By Wire)
  • Tube end comes with a special (removable) plug to compensate for the shorter throttle (right) side bar length when running e-throttle
  • Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report

Fits: 82-24 H-D mechanical or e-throttle (excl. 88-11 Springers) with 1" I.D. risers (NU)
