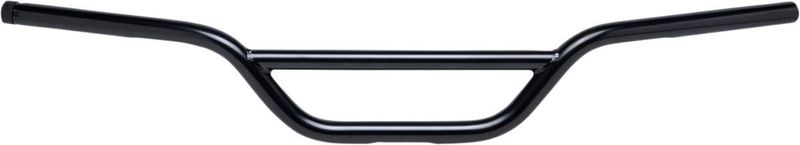

Styre Biltwell 1″ H-D mech. or e-throttle 82-24

3 200 kr

Biltwell 1" Moto-styre i satinsvart chromoly för mekanisk gas och TBW
Läs mer

06015655 Biltwell
  • Tillverkat i sömlöst 4130 chromoly-stål med en godstjocklek på 0.120" (3 mm)
  • Satinsvart elektropläterad finish med precisionsbockade och TIG-svetsade rör
  • Mått: 31" (78,7 cm) bred x 4.25" (10,8 cm) resning x 4.75" (12,1 cm) centrumbredd x 2.75" (7 cm) pullback
  • Kompatibel med både mekanisk gas (enkel- och dubbelvajer) och elektronisk gas (Throttle-By-Wire)
  • Urtag och invändigt konad höger styrände för integration av Harleys TBW-gashandtagsmodul
  • Inkluderar formsprutad, förstärkt nylonplugg för styränden vid användning av vajergas
  • Frästa öppningar vid styrändar och fästområde för invändig kabeldragning
  • Med godkännande

Matchande styrskydd finns som tillval (artikelnr 956190).

Passar: H-D mek. eller e-gas 82-24

Produkt-typ Handlebar

1" Handlebar w/ TBW Plugs

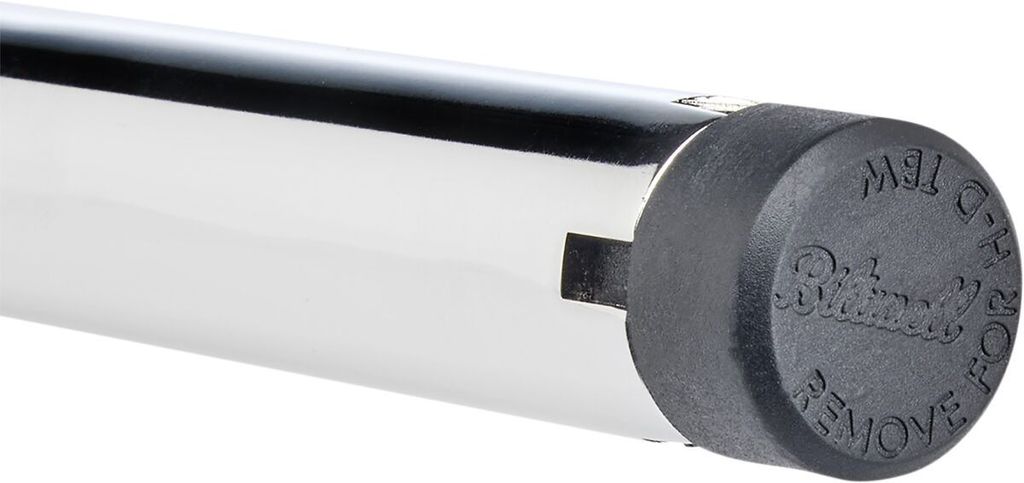

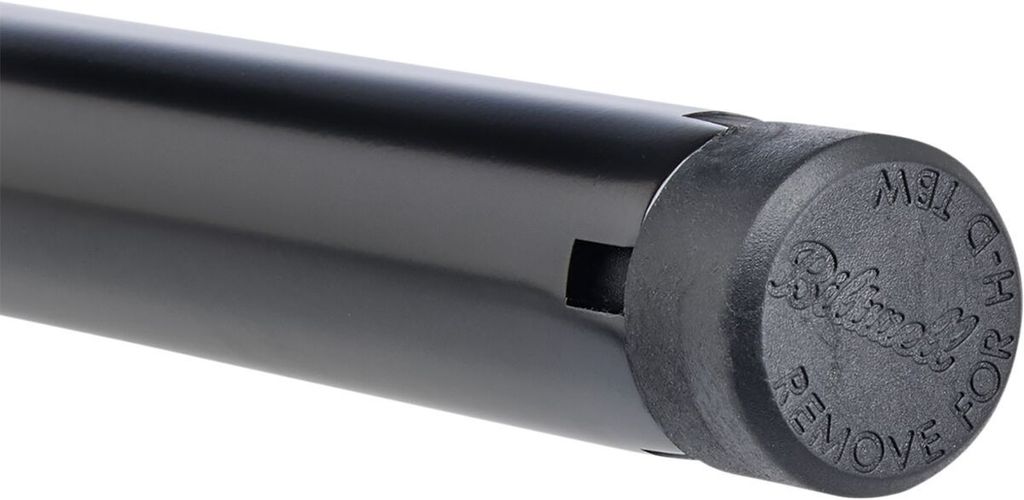

  • Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
  • Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
  • Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
  • Milled slots on bar ends and clamping area for clean internal wire routing
  • Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
  • Precision mitered, TIG welded tube joints
  • 1" Moto bar black
  • With approval
  • Satin black electroplated handlebar of 4130 seamless chromoly tubing with a 3mm wall thickness and CNC machined slots with an internally tapered bar for a state of the art throttle module integration
  • Approx dimensions: 31" (78.7cm) wide x 4.25" (10.8cm) rise x 4.75" (12.1cm) center width x 2.75" (7cm) pullback
  • See 956190 for optional moto bar pad
  • Note: Compatible with mechanical and e-throttle (Throttle By Wire)
  • Tube end comes with a special (removable) plug to compensate for the shorter throttle (right) side bar length when running e-throttle
  • Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report

Fits: 82-24 H-D mech. or e-throttle (excl. 88-11 Springers) with 1" I.D. risers (NU)
