Styre Biltwell Tracker 1″ H-D mechanical or e-throttle

2 320 kr

Biltwell Tracker High 1" styre i satinsvart med TBW-plugg
Läs mer

06015651 Biltwell
  • Sömlös konstruktion i 4130 chromoly med 0,120" (3 mm) godstjocklek
  • Mått: 30" (76,2 cm) bredd x 4,5" (11,4 cm) resning x 5" (12,7 cm) centrumbredd x 2,5" (6,4 cm) pullback
  • Satinsvart elektrolytbehandlad ytfinish
  • Frästa urtag vid styrändar och styrkronsinfästning för invändig kabeldragning
  • Urtag och invändigt konisk höger styrände för Harley-Davidson Throttle-By-Wire-modul

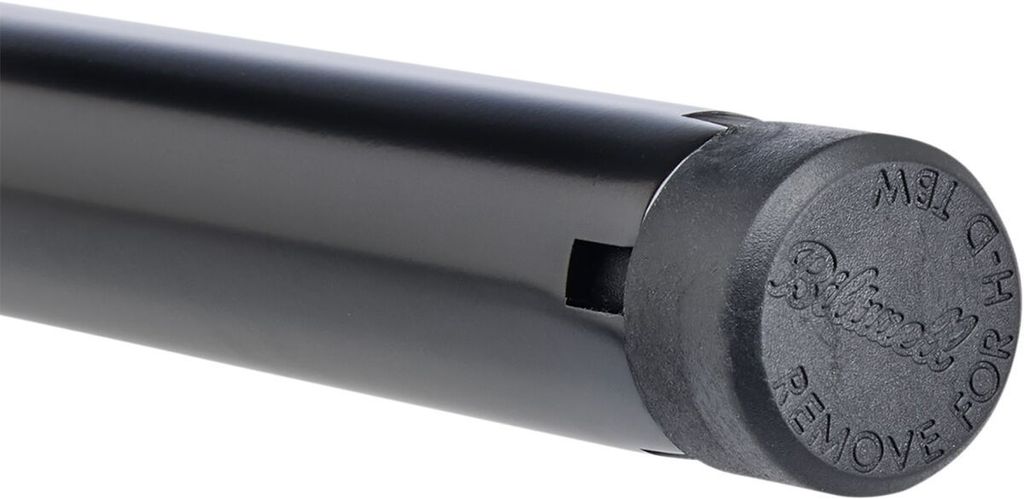

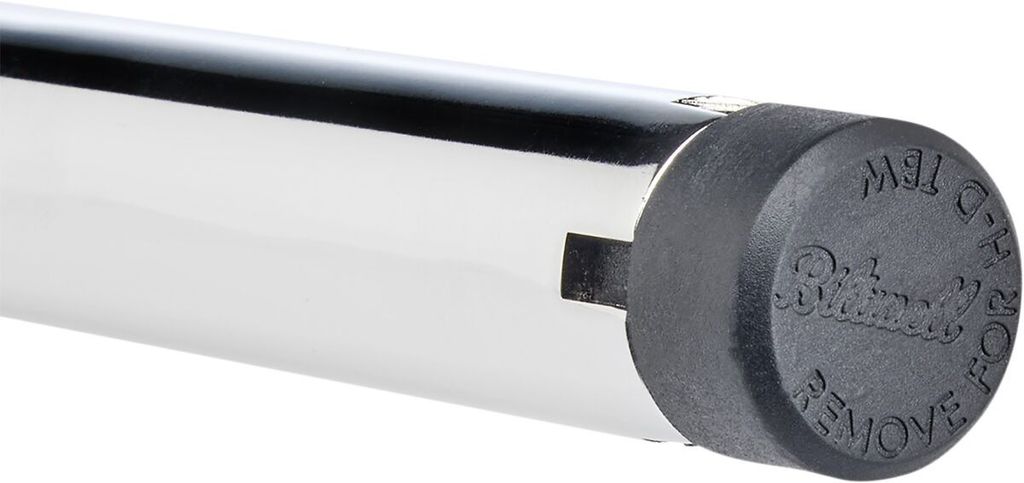

  • Inkluderar formsprutad, förstärkt nylonplugg för användning med mekanisk enkel- eller dubbelgasvajer
  • Precisionsbockat på dorn med geringssågade och TIG-svetsade fogar

Kompatibel med både mekanisk gasvajer och elektronisk gas (Throttle-By-Wire). Pluggen i styränden tas enkelt bort vid montering av elektronisk gasmodul.

Passar: H-D mekanisk eller e-gas

Produkt-typ Handlebar

1" Handlebar w/ TBW Plugs

  • Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
  • Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
  • Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
  • Milled slots on bar ends and clamping area for clean internal wire routing
  • Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
  • Precision mitered, TIG welded tube joints
  • 1" handlebar Tracker High black
  • Satin Black electroplated
  • 4130 seamless chromoly tubing with a 3mm wall thickness and CNC machined slots with an internally tapered bar for a state of the art throttle module integration
  • 30" (76.2cm) wide x 4.5" (11.4cm) rise x 5" (12.7cm) center width x 2.5" (6.4cm) pullback
  • Note: Compatible with mechanical and e-throttle (Throttle By Wire)
  • Tube end comes with a special (removable) plug to compensate for the shorter throttle (right) side bar length when running e-throttle
  • Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report

Fits: 82-24 H-D mechanical or e-throttle (excl. 88-11 Springers) with 1" I.D. risers (NU)
