Framgaffel fram Öhlins 43 USD N 800mm 8.5 guld universal

34 610 kr

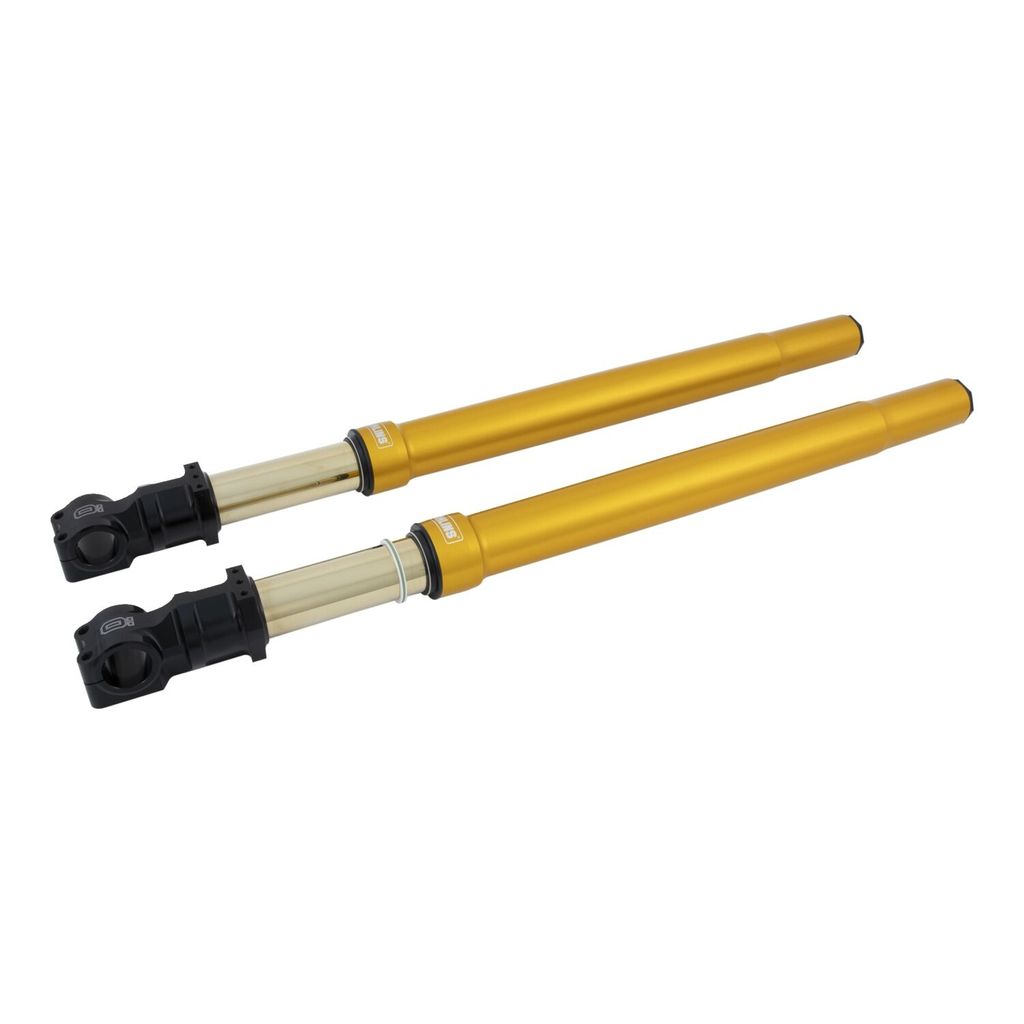

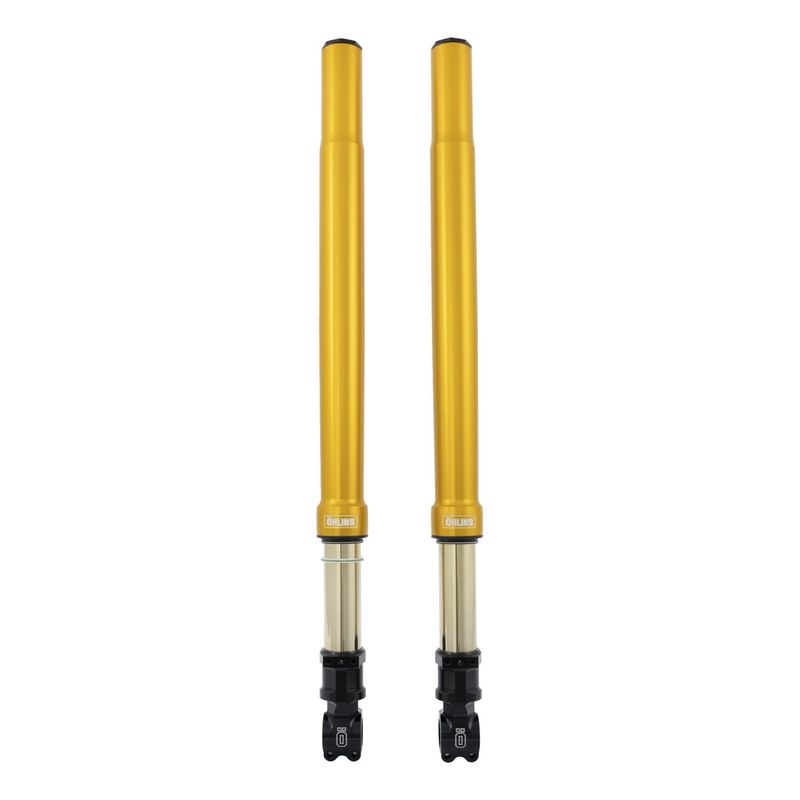

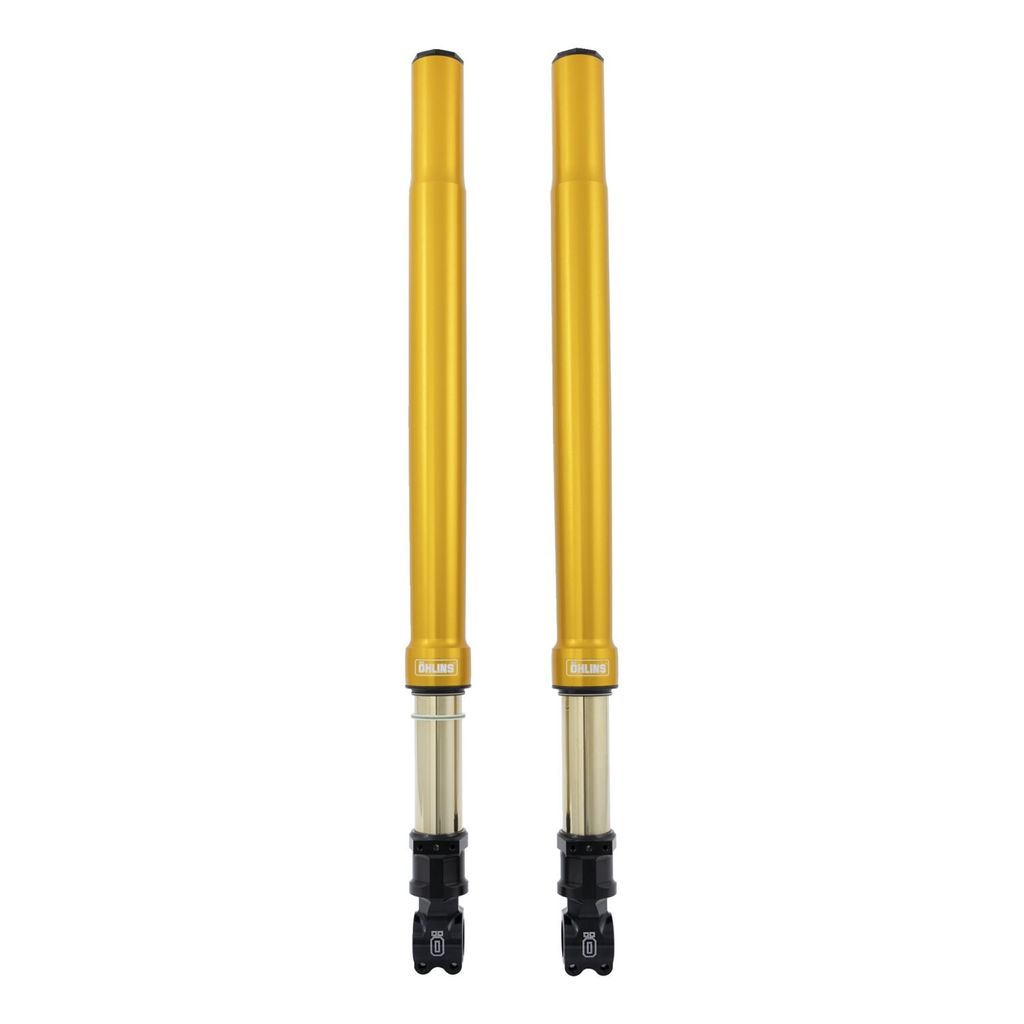

Öhlins Custom 43 USD universell framgaffel, 800 mm
Läs mer

961993 Öhlins
  • 43 mm Upside Down / inverterad universell framgaffel
  • Guld anodiserad finish med Blackline-design
  • Längd 800 mm och slaglängd 120 mm
  • Fjäderhastighet 8.5 N/mm med monterad fjäder 04744-85 (MCS 962698)

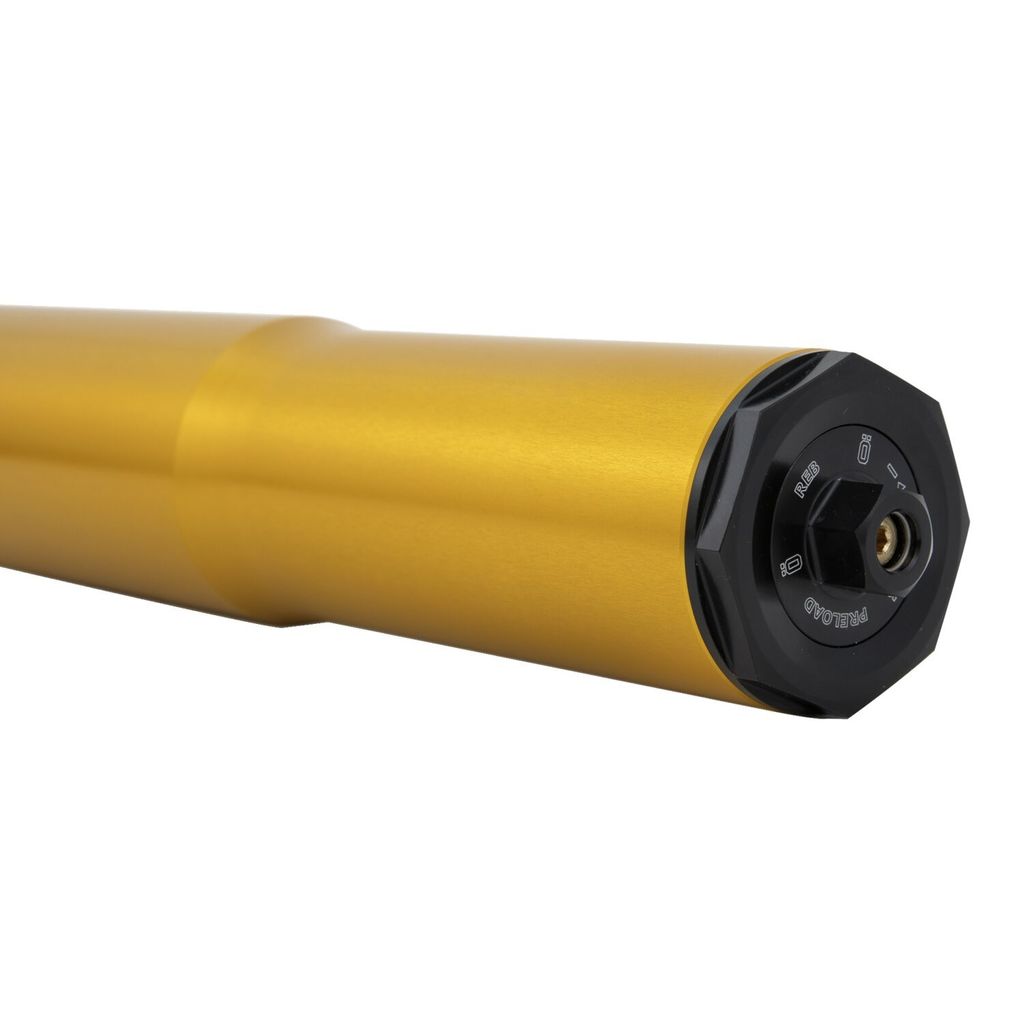

  • Helt justerbar förspänning, kompression och returdämpning
  • Övre klämdiameter 50 mm, nedre klämdiameter 54 mm
  • Hjul axeldiameter 32 mm

Fästen för bromsok eller skärm ingår inte för att ge maximal anpassningsbarhet vid custombyggen. För 14-up Touring kan Öhlins 988984 KR8 Component Kit (uppgraderad gaffelkrona) köpas till.

Passar: Universal

OEM-nr: 04744-85

Custom 43 USD 800mm 8.5N/mm front fork. Gold

  • Gold anodized. Öhlins offers a high quality 43 mm Upside Down / inverted universal front fork for any ­custom builder that wants to give the bike supreme inverted ­suspension in the familiar Öhlins Racing design
  • The technology used is ­proven throughout the years and works perfectly in a whole range of custom applications
  • The fork allows tuning by allowing adjustment of spring preload, compression and rebound damping adjustment to best match the rider's preferences
  • Note: Does not include brake caliper or fender mounts for maximum adaptability
  • Length 800 mm
  • Spring rate 8.5 N/mm
  • Fitted spring 04744-85 (MCS 962698)
  • Fully adjustable preload, compression & rebound
  • Stroke 120 mm
  • Blackline design, with gold anodized finish
  • Top clamp diameter 50mm
  • Lower clamp diameter 54mm
  • Wheel axle diameter 32mm
  • Note: Please contact Motorcycle Storehouse Tech Support if you want to add Öhlins 988984 KR8 Component Kit (upgraded triple tree set), for 14-up Tourings, to your order
  • Tech Support can advise you on correct spring set-up for a specific rider weight and, if required, mods for Bagger Racing applications

Fits: Universal
