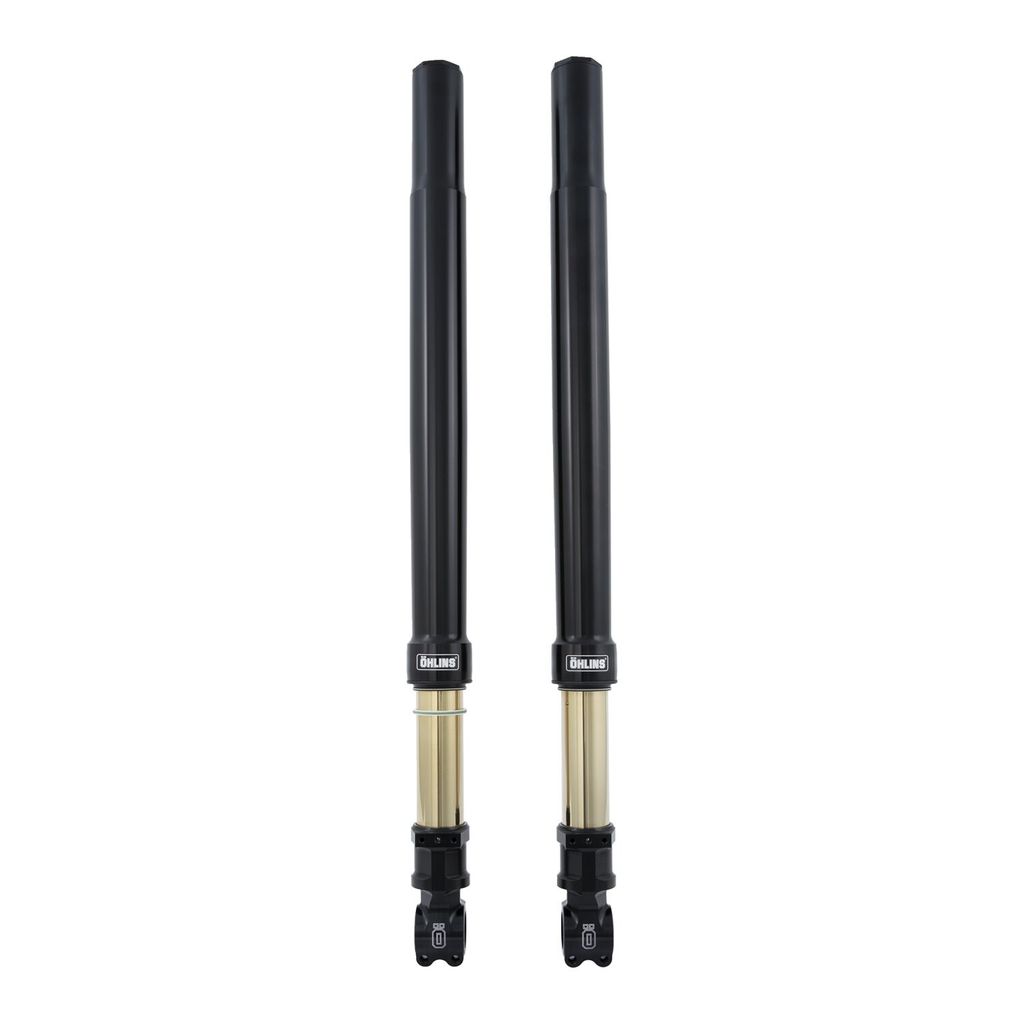

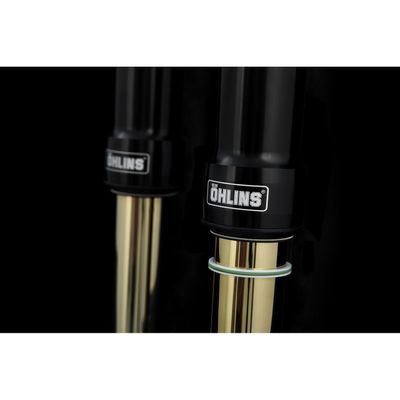

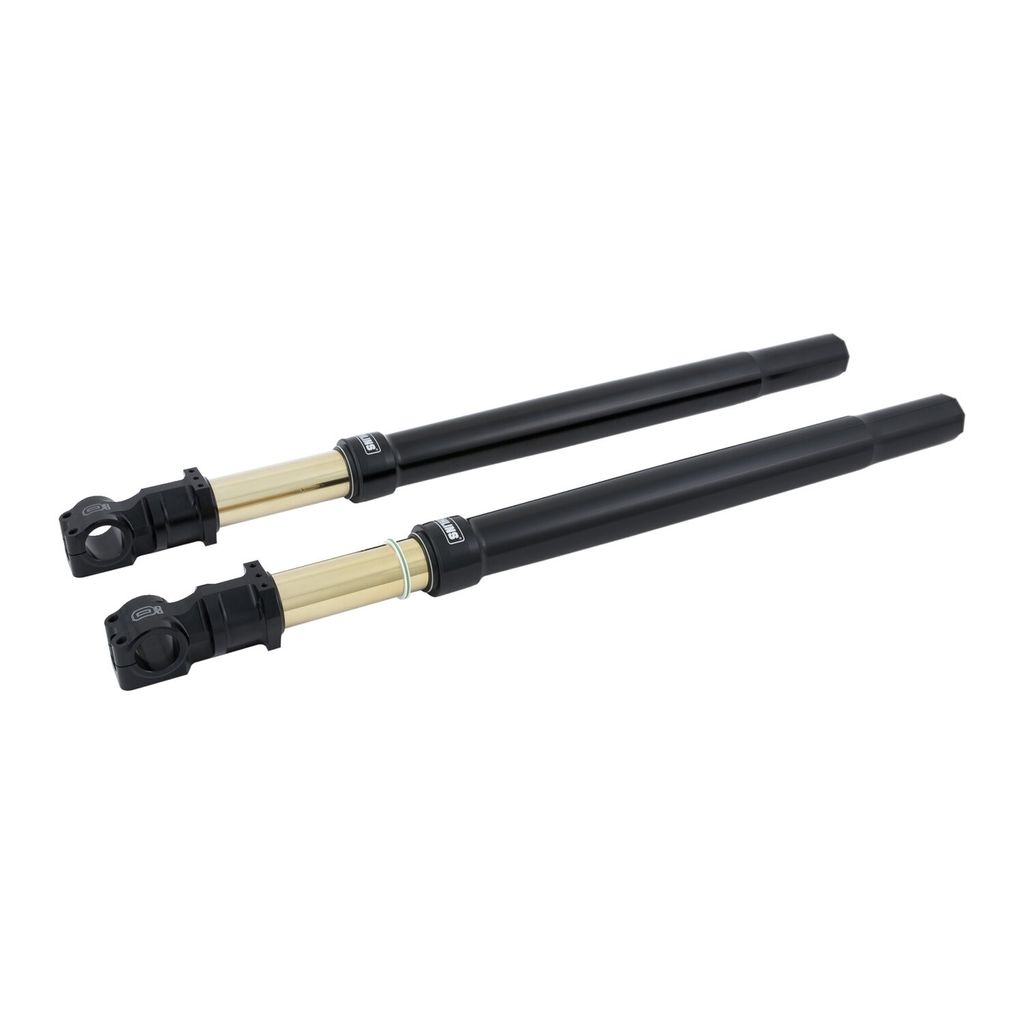

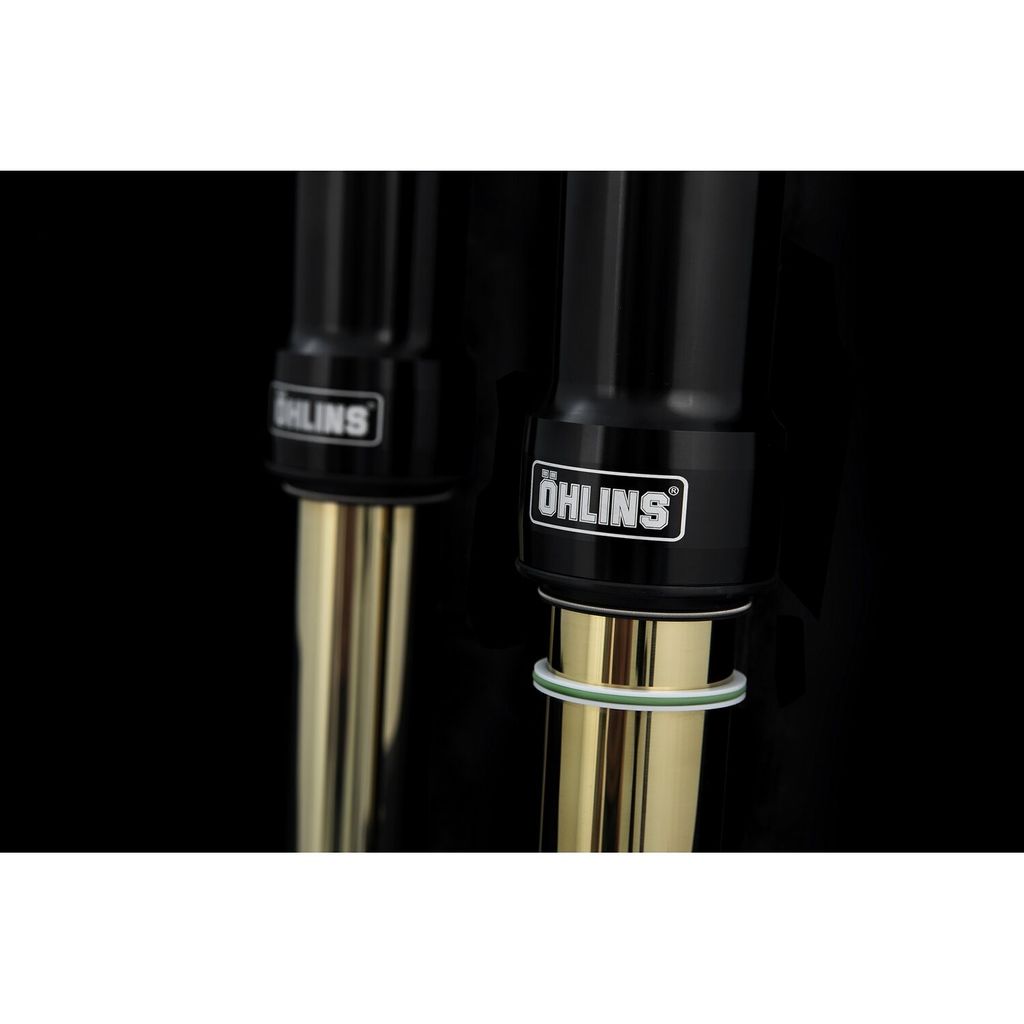

Framgaffel fram Öhlins USD 12N 765mm svart universal
Öhlins universell USD-framgaffel, 765 mm
Läs mer
- 43 mm Upside Down-framgaffel (USD)
- Svartanodiserad (Blackline) med guldanodiserad finish
- Längd: 765 mm
- Slaglängd: 120 mm
- Fjäderhastighet: 12 N/mm (monterad fjäder 08866-02 / MCS 963139)

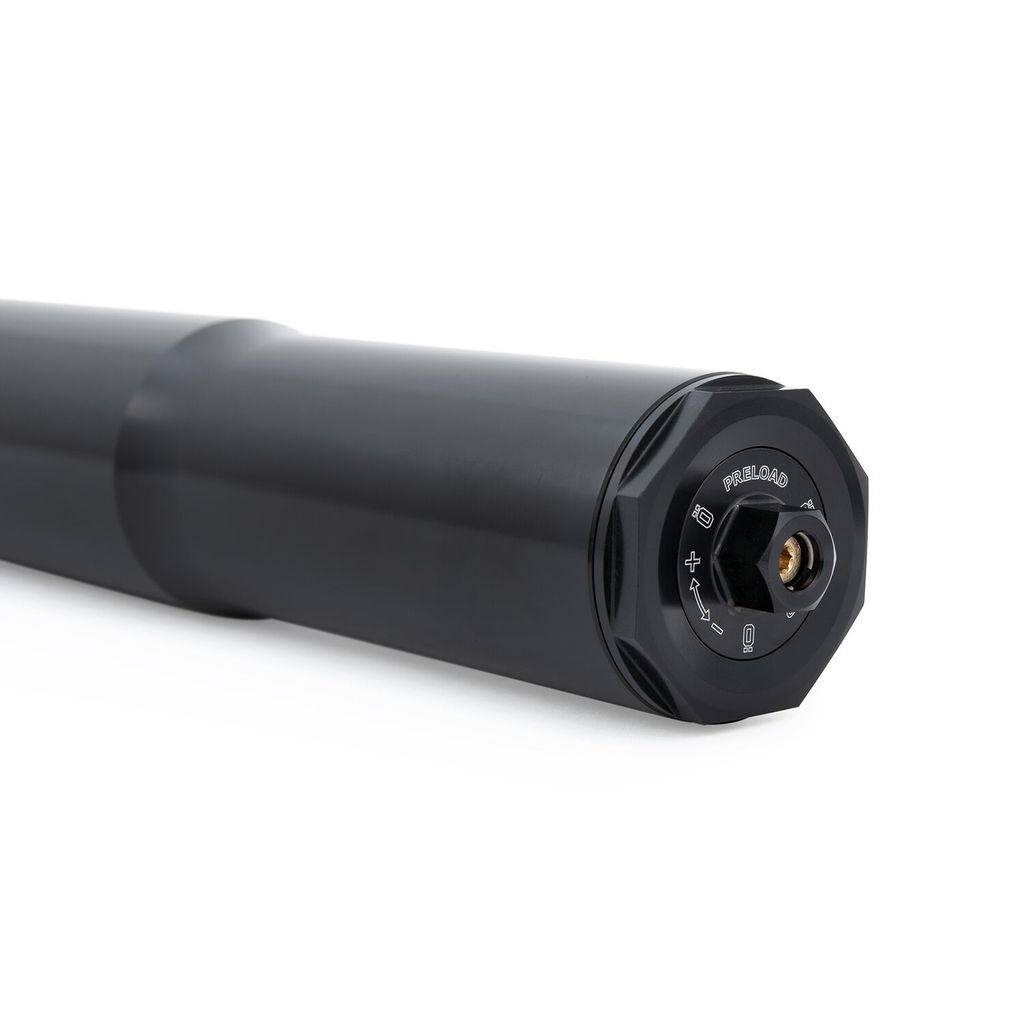

- Fullt justerbar förspänning, kompression och returdämpning
- Klämdiameter: 50 mm uppe, 54 mm nere

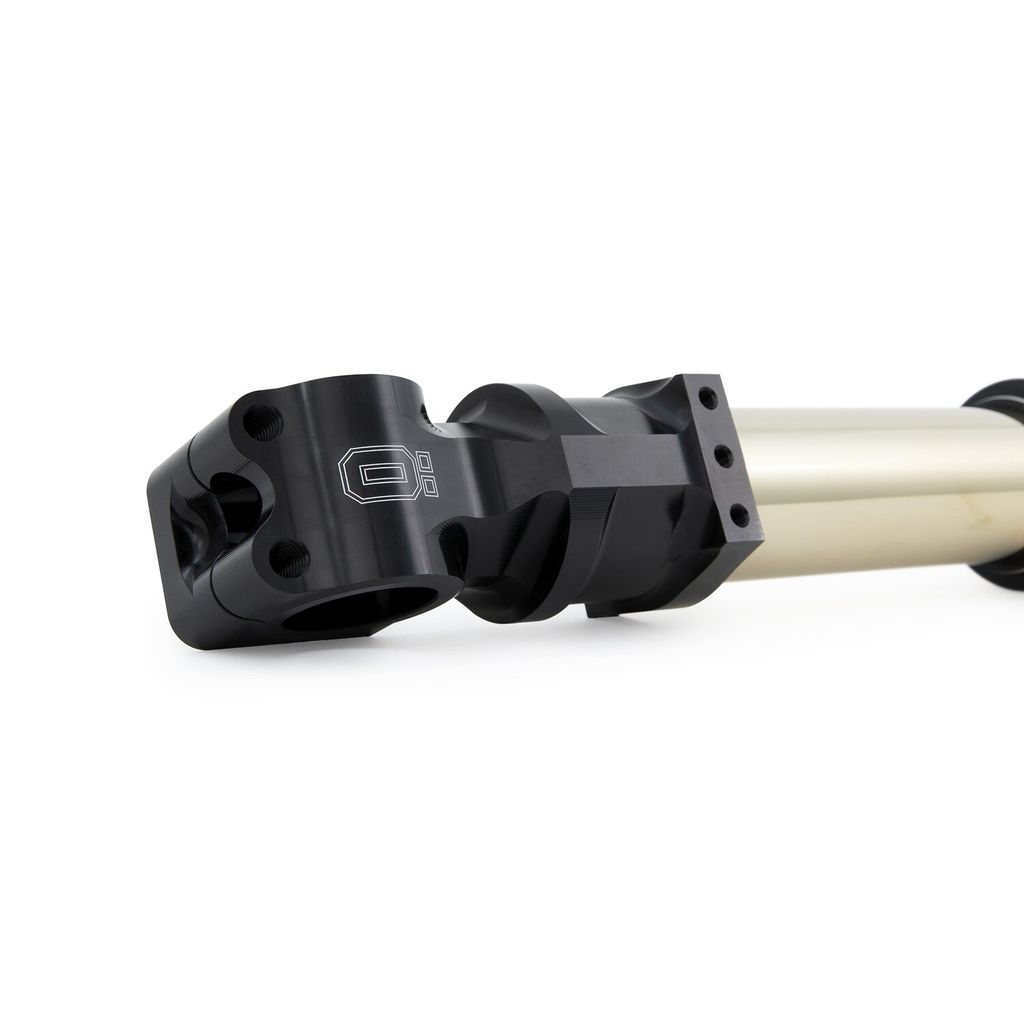

- Hjulaxeldiameter: 32 mm
Levereras utan fästen för bromsok eller skärm för maximal anpassningsbarhet. För 14-upp H-D Touring kan Öhlins 988984 KR8 Component Kit (uppgraderad gaffelkrona) användas.
Passar: Universal
OEM-nr: 08866-02
Universal USD 765mm 12N/mm front fork. Black
- Black anodized (Blackline). Öhlins offers a high quality 43 mm Upside Down / inverted universal front fork for any custom builder that wants to give the bike supreme inverted suspension in the familiar Öhlins Racing design
- The technology used is proven throughout the years and works perfectly in a whole range of custom applications
- The fork allows tuning by allowing adjustment of spring preload, compression and rebound damping adjustment to best match the rider's preferences
- Note: Does not include brake caliper or fender mounts for maximum adaptability
- Length 765 mm
- Spring rate 12 N/mm
- Fitted spring 08866-02 (MCS 963139)
- Fully adjustable preload, compression & rebound
- Stroke 120 mm
- Blackline design, with gold anodized finish
- Top clamp diameter 50mm
- Lower clamp diameter 54mm
- Wheel axle diameter 32mm
- Note: Please contact Motorcycle Storehouse Tech Support if you want to add Öhlins 988984 KR8 Component Kit (upgraded triple tree set), for 14-up H-D Tourings, to your order
- Tech Support can advise you on correct spring set-up for a specific rider weight and, if required, mods for Bagger Racing applications
Fits: Universal
