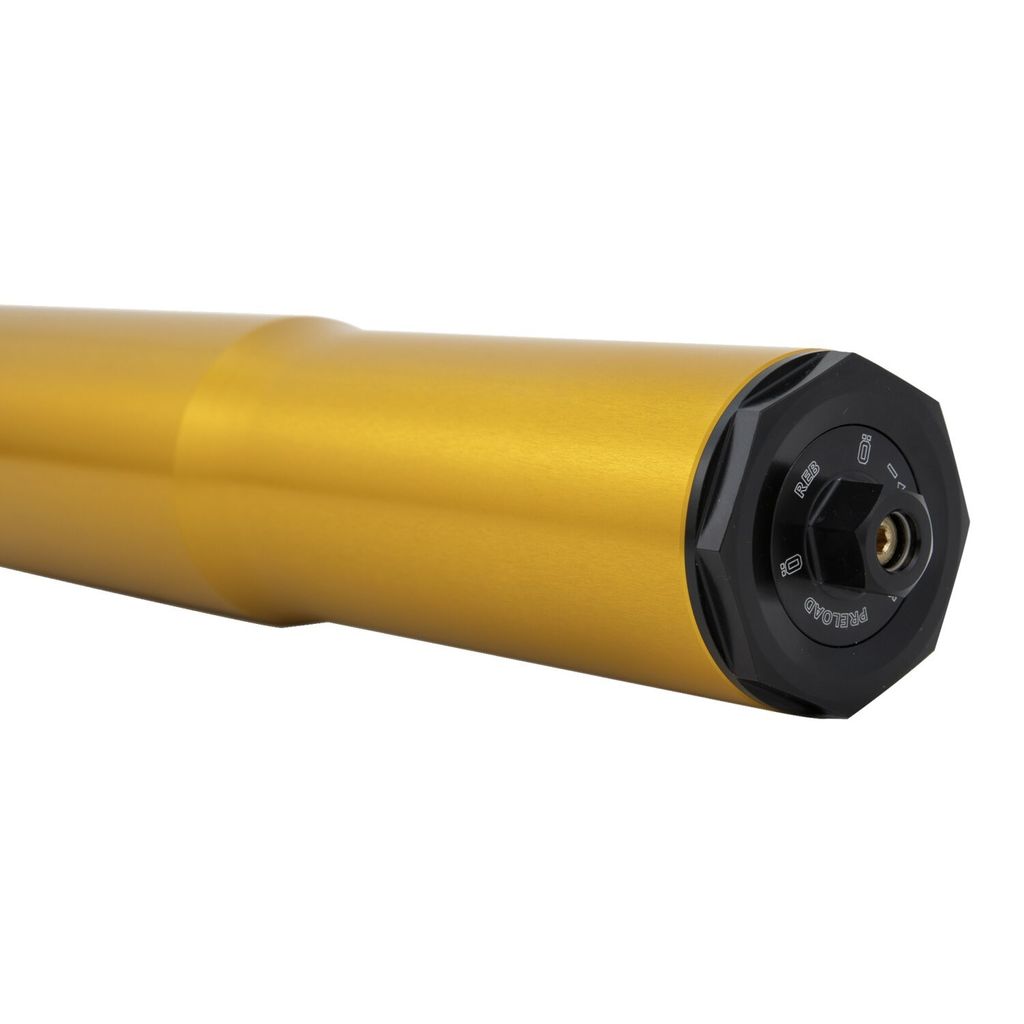

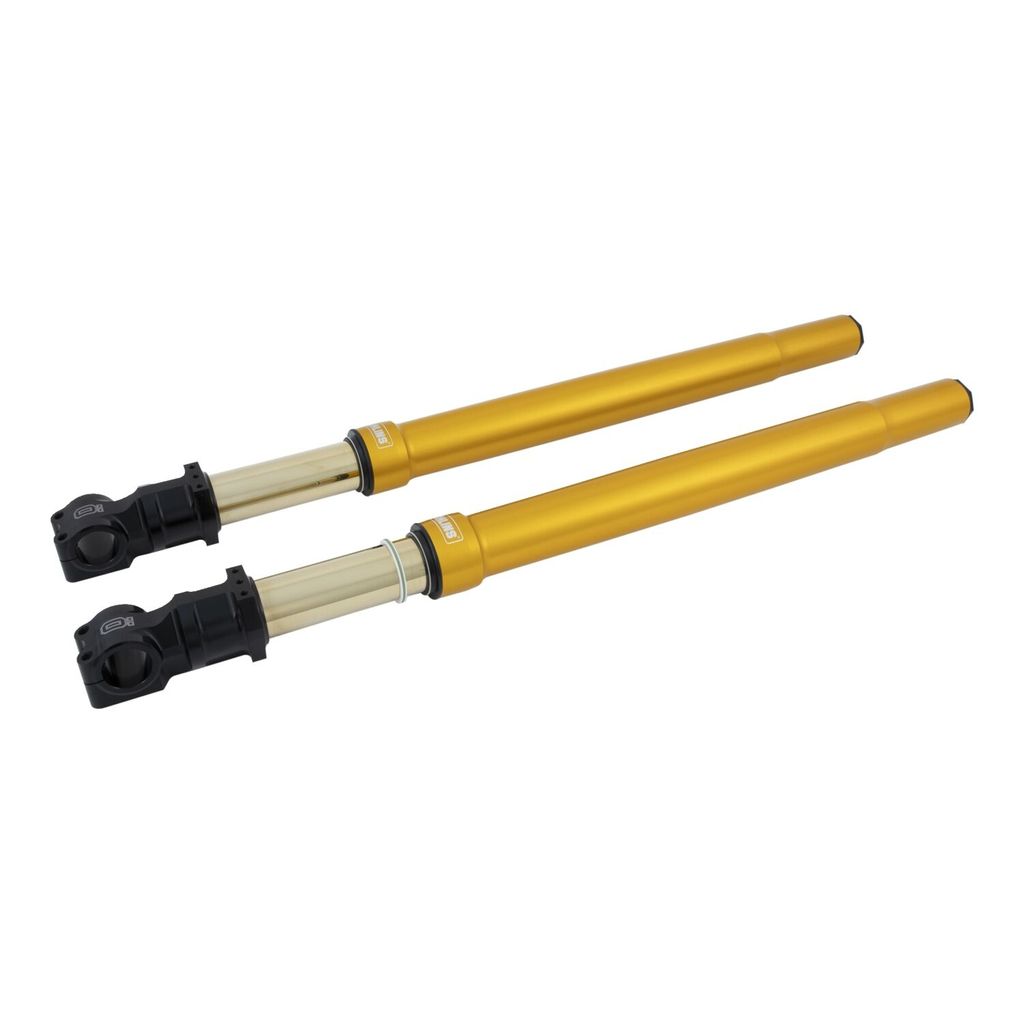

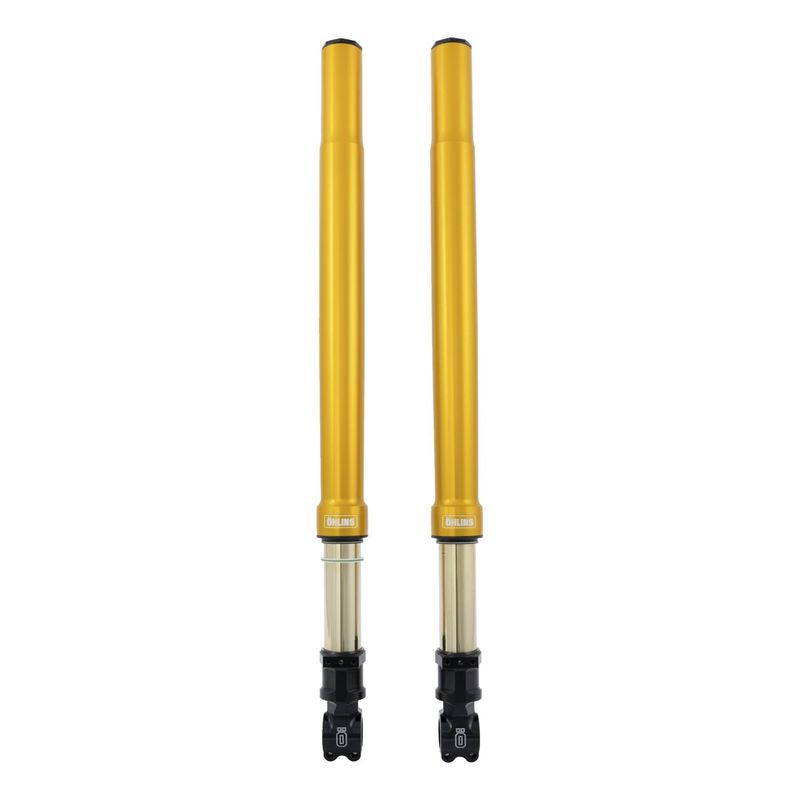

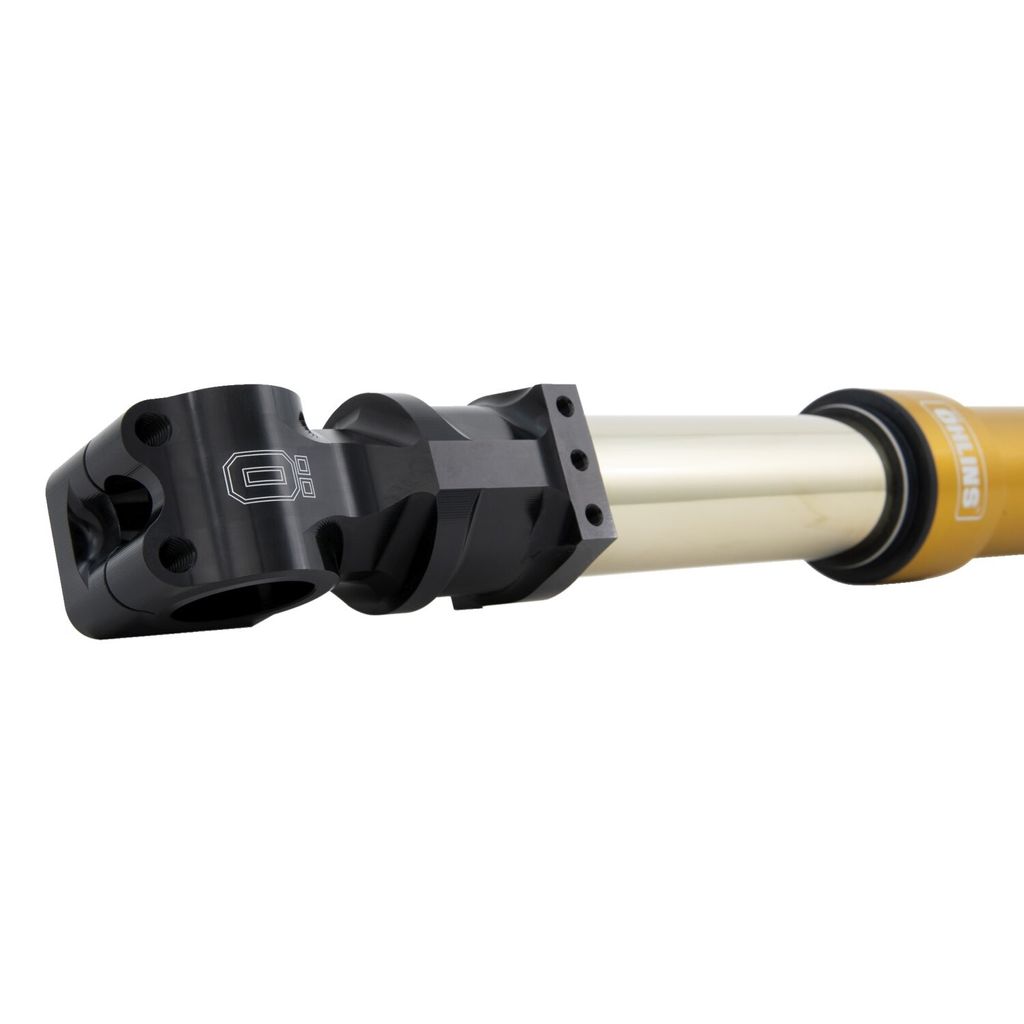

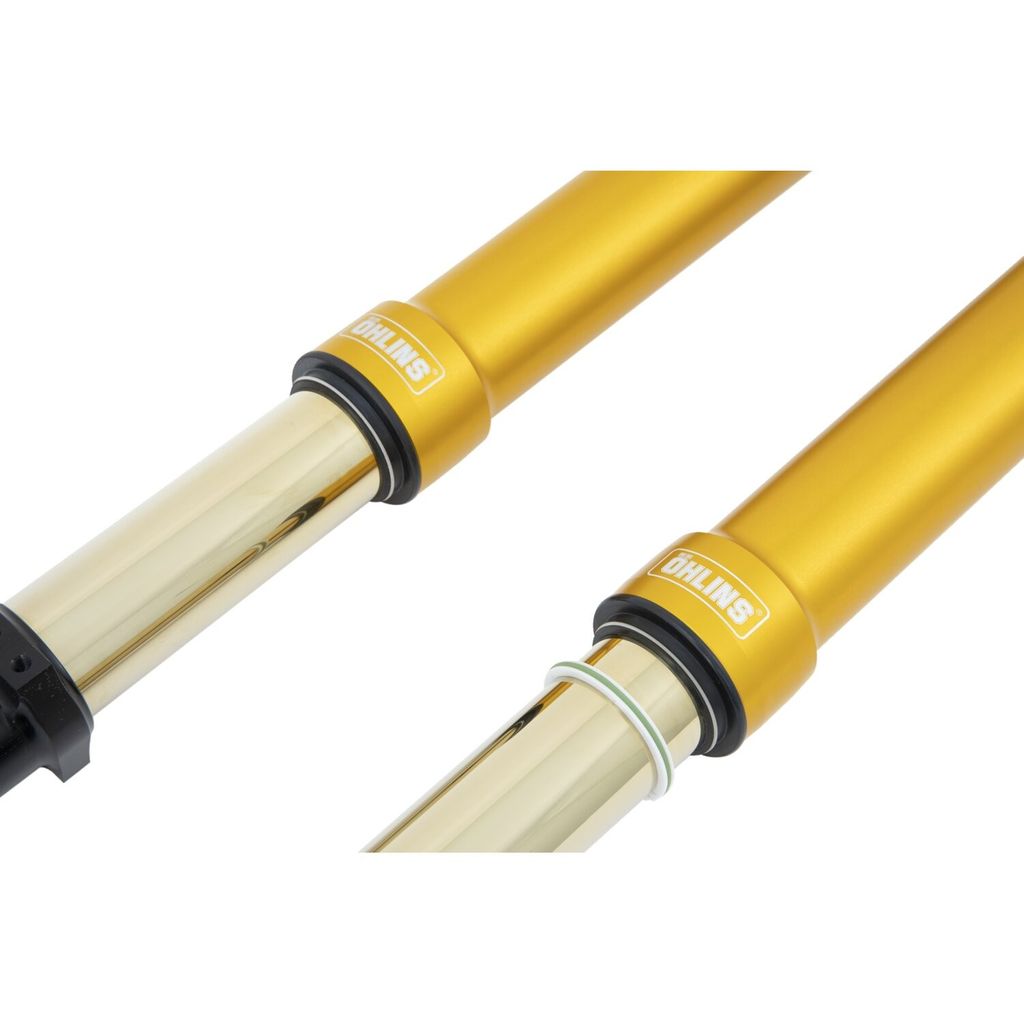

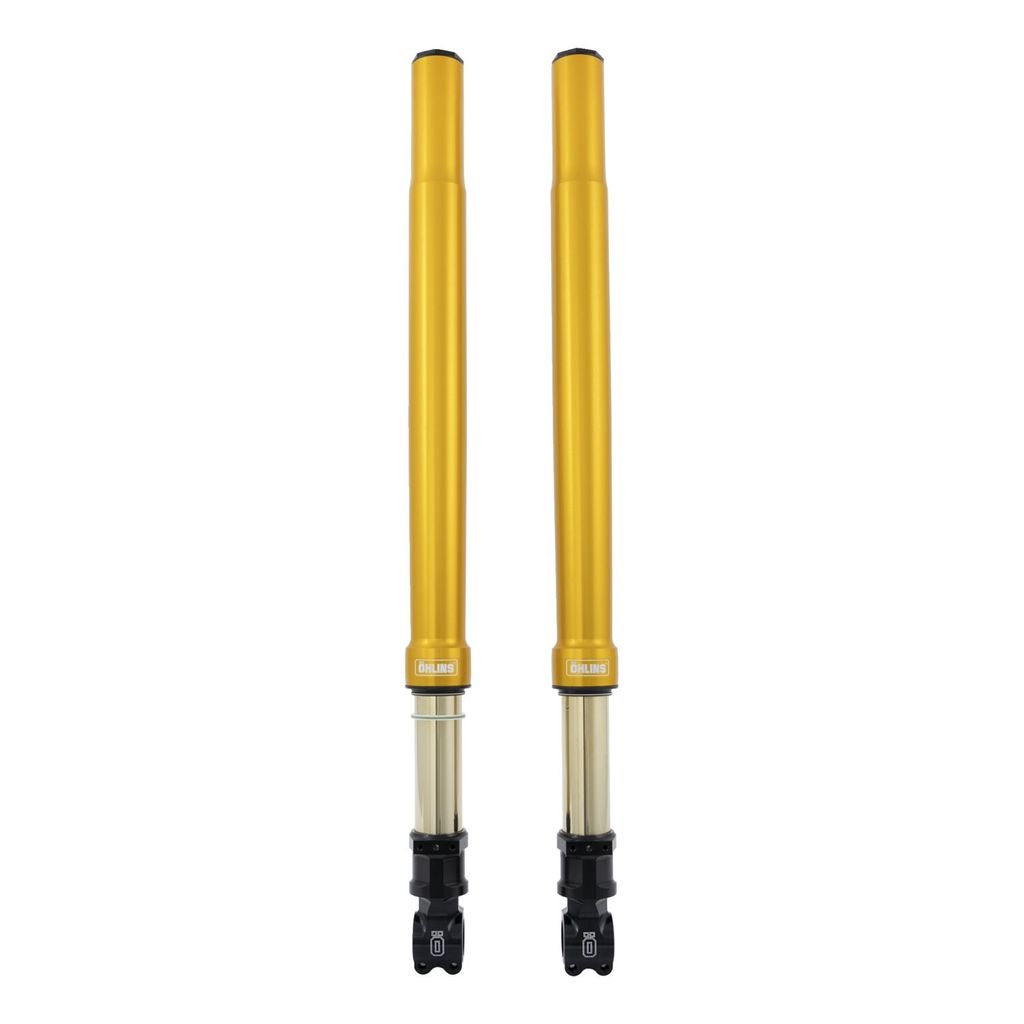

Framgaffel fram Öhlins USD 12N 765mm guld universal

34 020 kr

Öhlins universell USD framgaffel, 765 mm, guld
Läs mer

993834 Öhlins
  • 43 mm Upside Down-framgaffel (USD) i universellt utförande
  • Guldanodiserad finish med Blackline-design
  • Fullt justerbar förspänning, kompressions- och returdämpning
  • Längd: 765 mm, slaglängd: 120 mm
  • Fjäderhastighet: 12 N/mm (monterad fjäder 08866-02 / MCS 963139)
  • Klämdiameter: övre 50 mm, nedre 54 mm
  • Hjulaxeldiameter: 32 mm

Levereras utan fästen för bromsok eller framskärm för maximal anpassningsbarhet. För 14-upp H-D Touring kan gaffelkronesatsen Öhlins 988984 KR8 Component Kit väljas till.

Passar: Universal

OEM-nr: 08866-02

Universal USD 765mm 12N/mm front fork. Gold

  • Gold anodized. Öhlins offers a high quality 43 mm Upside Down / inverted universal front fork for any ­custom builder that wants to give the bike supreme inverted ­suspension in the familiar Öhlins Racing design
  • The technology used is ­proven throughout the years and works perfectly in a whole range of custom applications
  • The fork allows tuning by allowing adjustment of spring preload, compression and rebound damping adjustment to best match the rider's preferences
  • Note: Does not include brake caliper or fender mounts for maximum adaptability
  • Length 765 mm
  • Spring rate 12 N/mm
  • Fitted spring 08866-02 (MCS 963139)
  • Fully adjustable preload, compression & rebound
  • Stroke 120 mm
  • Blackline design, with gold anodized finish
  • Top clamp diameter 50mm
  • Lower clamp diameter 54mm
  • Wheel axle diameter 32mm
  • Note: Please contact Motorcycle Storehouse Tech Support if you want to add Öhlins 988984 KR8 Component Kit (upgraded triple tree set), for 14-up H-D Tourings, to your order
  • Tech Support can advise you on correct spring set-up for a specific rider weight and, if required, mods for Bagger Racing applications

Fits: Universal
