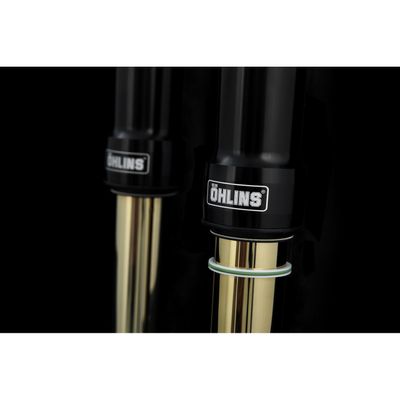

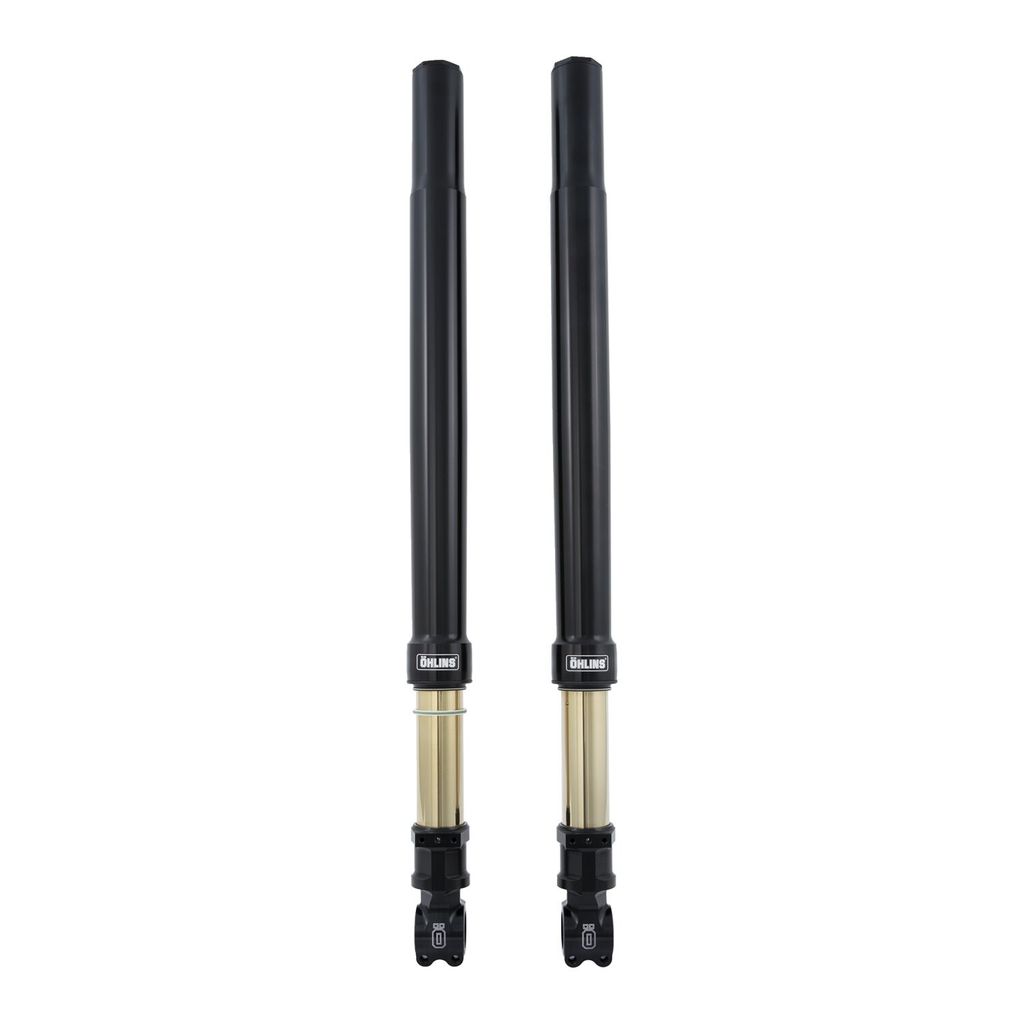

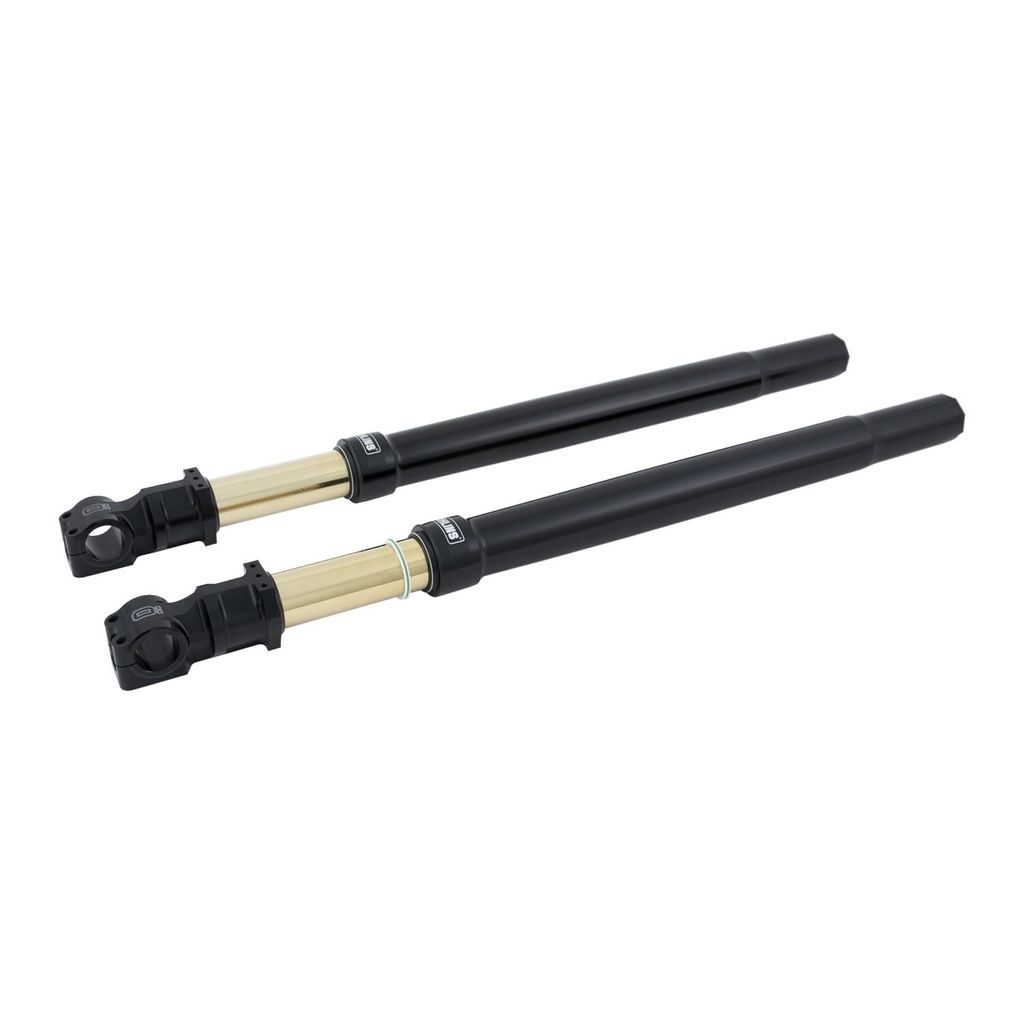

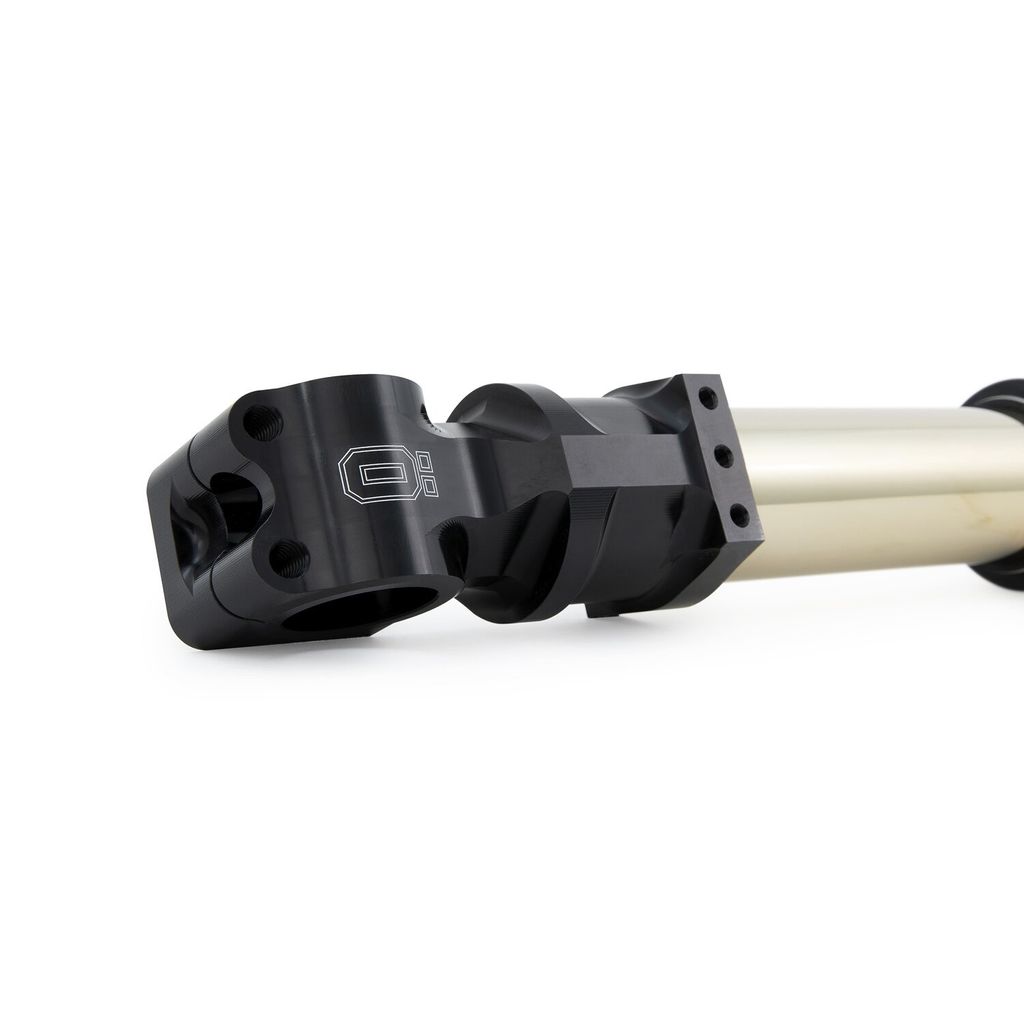

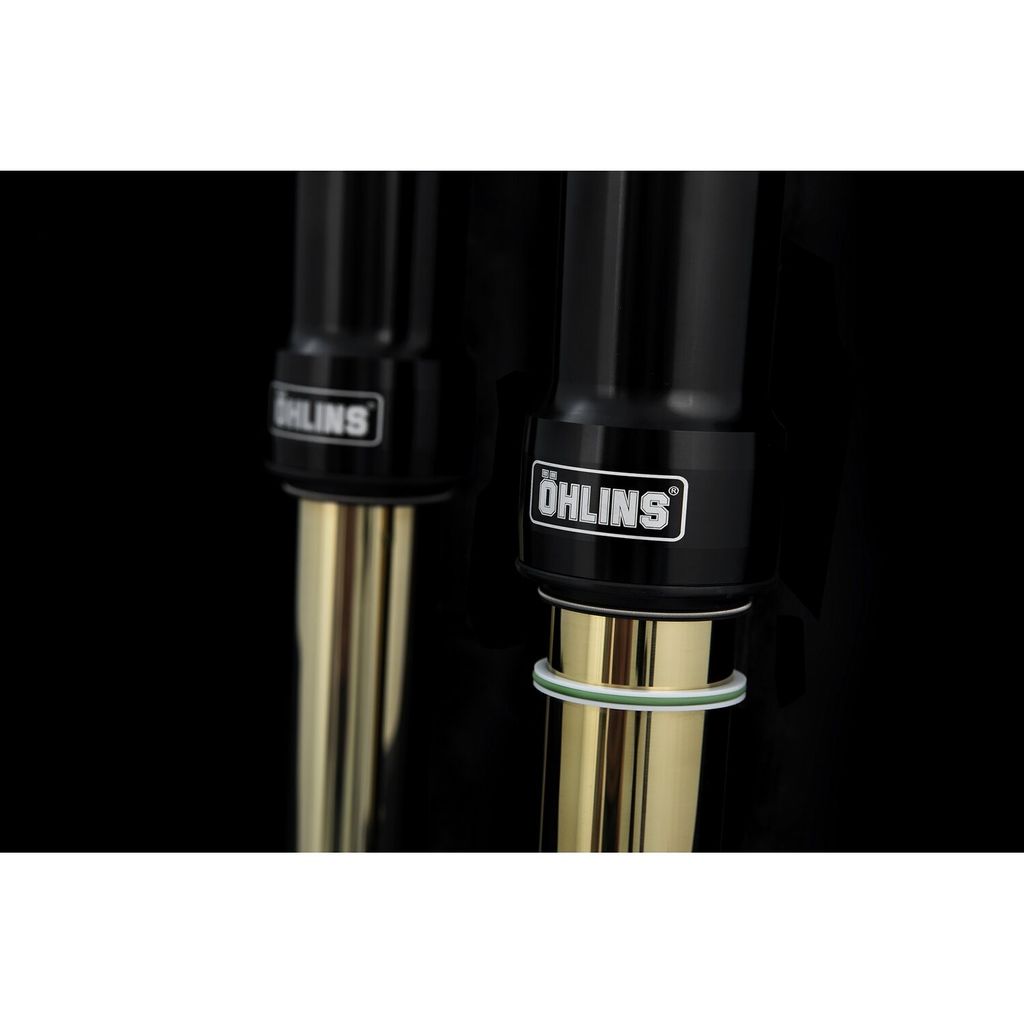

Framgaffel fram Öhlins USD 12N 800mm svart universal
Öhlins universal USD framgaffel, 800 mm
Läs mer
- 43 mm Upside Down / inverterad universal framgaffel
- Längd 800 mm och slaglängd 120 mm
- Helt justerbar fjäderförspänning samt kompression- och returdämpning
- Fjäderhastighet 12 N/mm med monterad fjäder 08866-02 (MCS 963139)
- Övre klämdiameter 50 mm, nedre klämdiameter 54 mm
- Hjulens axeldiameter 32 mm
- Svartanodiserad (Blackline) med detaljer i guld
Levereras utan fästen för bromsok eller framskärm för maximal anpassningsbarhet vid custombyggen. För 14-upp H-D Touring kan gaffelkrona kompletteras med Öhlins 988984 KR8 Component Kit.
Passar: Universal
OEM-nr: 08866-02
Universal USD 800mm 12N/mm front fork. Black
- Note: Special Order Product only
- To order please contact your MCS sales representative
- Black anodized (Blackline). Öhlins offers a high quality 43 mm Upside Down / inverted universal front fork for any custom builder that wants to give the bike supreme inverted suspension in the familiar Öhlins Racing design
- The technology used is proven throughout the years and works perfectly in a whole range of custom applications
- The fork allows tuning by allowing adjustment of spring preload, compression and rebound damping adjustment to best match the rider's preferences
- Note: Does not include brake caliper or fender mounts for maximum adaptability
- Length 800 mm
- Spring rate 12 N/mm
- Fitted spring 08866-02 (MCS 963139)

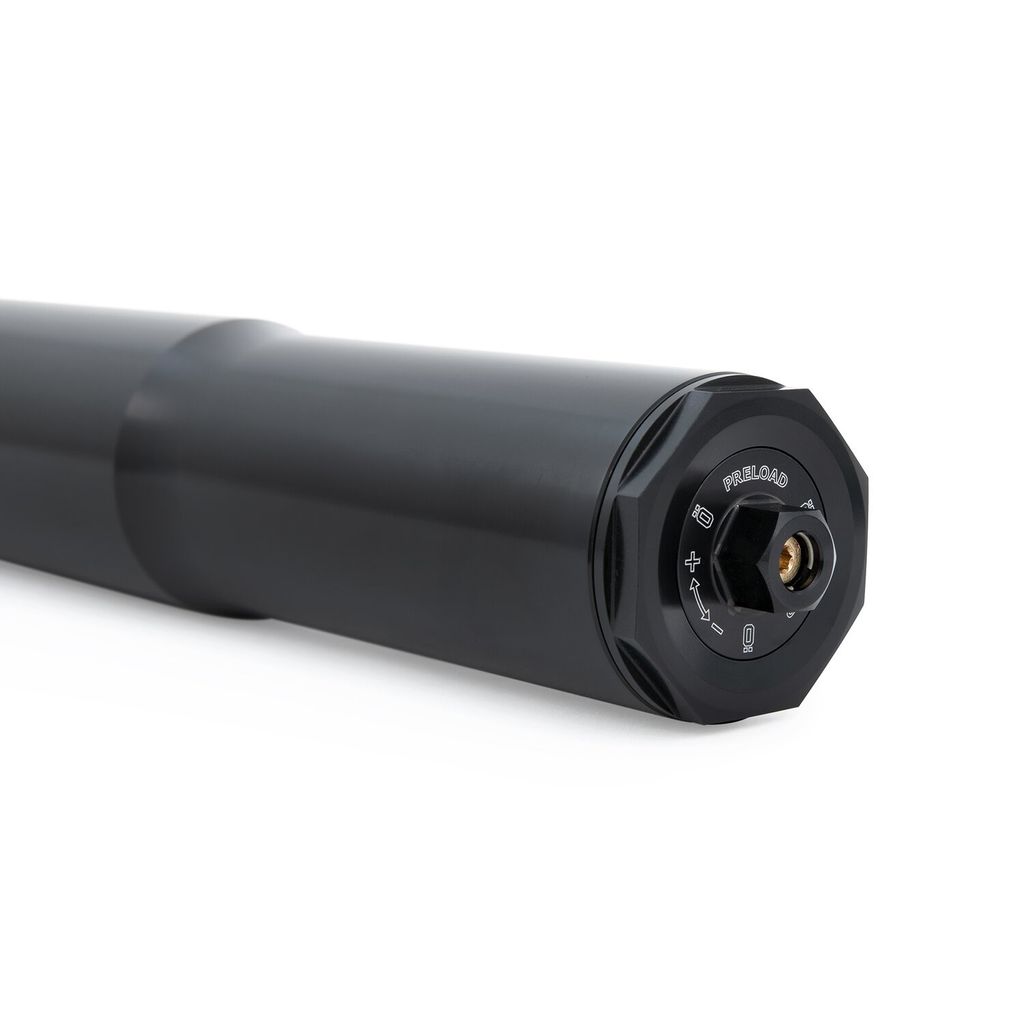

- Fully adjustable preload, compression & rebound
- Stroke 120 mm
- Blackline design, with gold anodized finish
- Top clamp diameter 50mm
- Lower clamp diameter 54mm
- Wheel axle diameter 32mm
- Note: Please contact Motorcycle Storehouse Tech Support if you want to add Öhlins 988984 KR8 Component Kit (upgraded triple tree set), for 14-up H-D Tourings, to your order
- Tech Support can advise you on correct spring set-up for a specific rider weight and, if required, mods for Bagger Racing applications
Fits: Universal
