Kamaxel Feuling Reaper 521 Softail 18-26
Feuling Reaper Race Series 521 kamaxelsats för kedjedrift
Läs mer
- Kedjedriven kamaxel i Reaper 521-profil
- Inkluderar Race Series hydrauliska lyftare med fullt 0,200" rörelseomfång
- Monteringssats ingår med kamlager, bultar och packnings-/o-ringssats för original stötstänger
- Varvtalsområde: 2 250–6 250 RPM
- Lyft: insug 0,518", avgas 0,521"
- Duration vid 0,050": insug 231°, avgas 243°
- Utvecklad för M8-motorer på 114" och större med högre kompressionsförhållande
Kräver High Lift-ventilfjädrar på original topplock (se Feuling Beehive ventilfjädersats 993530). För optimal prestanda rekommenderas ett högflödes avgassystem och luftfilter, samt Feulings kraftiga stötstångssats 993528 och bultsats 707450 för vipparmslådorna.
Passar: Softail 18-26
Reaper Race Series 521 cam kit
- Note: Special Order Product only
- To order please contact your MCS sales representative
- Chain drive

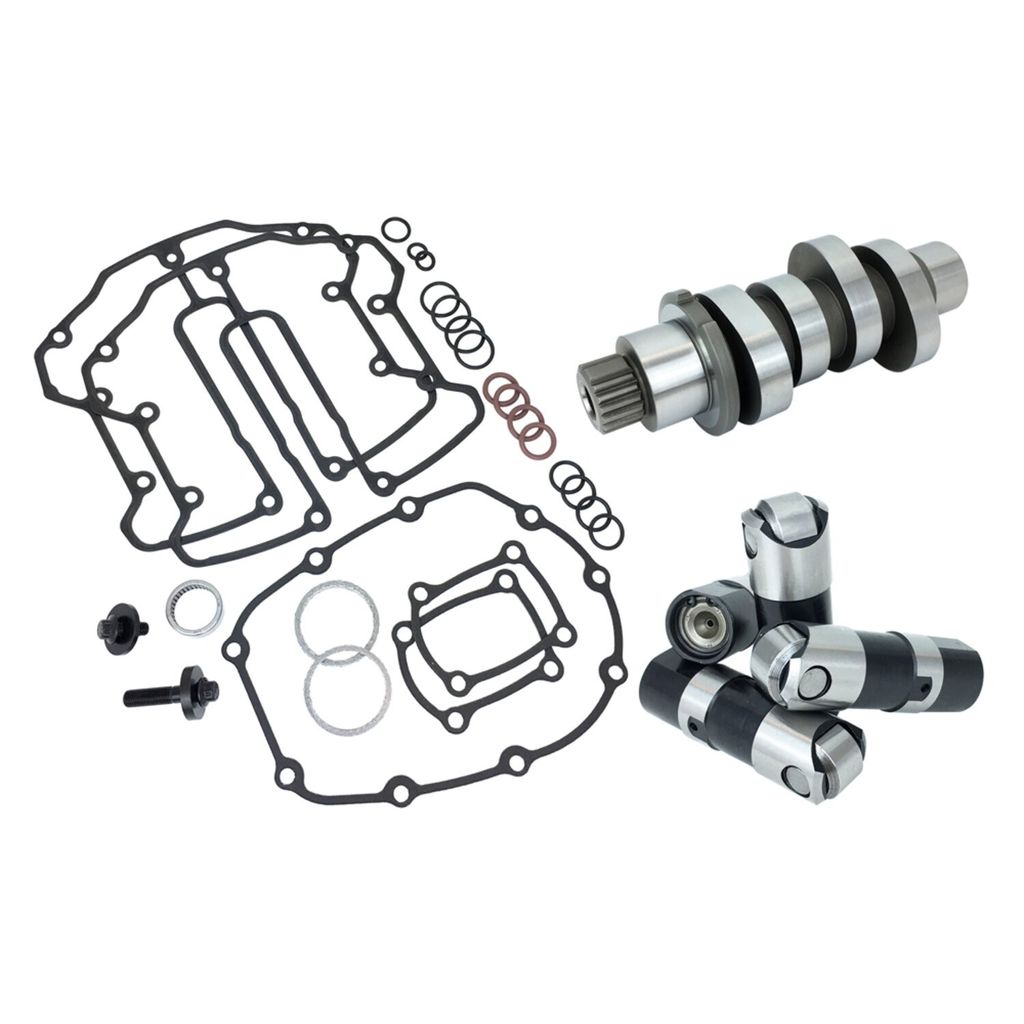

- This Feuling M8 camshaft kit includes chain drive camshaft, Race Series lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one-piece pushrods
- Feuling recommends the optional 993528 Feuling one-piece heavy duty HP+ pushrod kit, with 0.165" wall thickness
- Feuling rocker box fastener kit 707450 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs
- Aggressive pulling power with a "nasty" sound, the REAPER 521 grind will shine in 114" and larger cubic inch engines with added compression ratio
- Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range
- The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers
- A high flow exhaust system and air cleaner is highly recommended for optimal performance
- NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit 993530
- RPM range 2,250
- 6,250
- Valve Lift Open Close Duration @ 50" lift @ TDC Lobe Centerline Intake .518 17 BTDC 34 ABDC 231 .162 98.5 Exhaust .521 51.5 BBDC 11.5 ATDC 243 .125 110 Overlap: 28.5 Race Series hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange. *Cam specs measured on the lifter @ 0.050" lift with 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling does not recommend tuning beyond stock emissions standards
Fits: 18-26 Softail; 17-26 FLT/Touring (excl. 23-26 VVT); 17-26 Trikes
