Kamaxelsats Feuling O 114" 117" kort M8 '17-'24 Except VVT OIL

31 830 kr

Feuling Race Series Kamaxelsats med 487 Reaper-kamaxel för M8
Läs mer

707060 Feuling
  • Satsen innehåller 487 Reaper-kamaxel, Race Series oljepump, High Flow kamplatta, Race Series Short Travel-lyftare och HP+ stötstänger i en del
  • Inkluderar även monteringssats för kamaxel, ARP vipparmsbultar/muttrar samt fästelement för kamplatta och oljepump
  • Kamaxel med kedjedrift, varvtalsområde 2 250–6 100 rpm
  • Utvecklad som en bolt-in-uppgradering för 114" och 117" M8-motorer
  • Race Series oljepump i 7075 billet-aluminium med 2.250" krommolybden-rotorer
  • Ger 27 % mer tryck- och returvolym samt 42 % mer returvolym med matchade kanaler mot motorblocket
  • Sänker motortemperaturen med 15°–25° och oljetemperaturen med 15°–30°
  • Minskar risken för wet-sumping, blow-by och olja i luftfilter

För oljekylda Milwaukee-Eight-motorer. Vid montering på en 107" originalmotor kan de medföljande stötstängerna i en del inte användas – justerbara stötstänger måste köpas separat för att ställa in rätt förspänning och undvika allvarliga ventilskador. Högflödande luftfilter och avgassystem rekommenderas för optimal prestanda.

Passar: M8 '17-'24 utom VVT OLJE-

Race Series Camchest Kit with Short Travel Lifters

  • 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Race Series Short Travel Lifters, One Piece Pushrod, Race Series Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
  • 487 Reaper Camshaft
  • Chain Drive
  • RPM range 2,250 - 6,100
  • Engineered specifically as a bolt-in camshaft upgrade for factory 114" and 117" M8 engines
  • Responds very well to increased bore and or compression
  • Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
  • Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
  • Cam Installation Kit
  • Includes cam bearing, cam/crank hardware and gasket/O-ring kit
  • Race Series Short Travel Lifters
  • Hydraulic lifters made from machined steel designed with 0.115" of travel
  • One Piece Pushrods
  • HP+ 0.165 wall thickness, +0.040, one piece
  • Race Series Oil Pump
  • High flow 2.250 Chrome Moly gerotor gears
  • 27% more pressure and scavenge gear volume over stock
  • 42% more scavenge volume with matched passages, port sizing and holes to the engine case
  • 46% more oil volume to the crankshaft and connecting rod bearing
  • 15°- 25° cooler engine temperatures
  • 15°- 30° cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • FEULING test results show a 50% reduction of engine sump oil level.
  • High Flow Camplate
  • Rear wheel power gains of 2 horsepower and 2 ft lb of torque can be achieved
  • Made in the USA
  • Feuling does not recommend tuning beyond stock emissions standards.
  • To install this kit on a stock 107" engine, you cannot use the included one-piece pushrods. You must purchase a separate set of Adjustable Pushrods to manually set the correct lifter preload for your 107" motor. Using the included one-piece pushrods on a 107" engine will cause catastrophic valvetrain damage.
  • FEULING M8 OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
  • These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
  • These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
  • Quieter and smoother engine operation
  • Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
  • Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
  • Although Feulings in house testing on healthy engines did not show a benefit
  • The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
  • Hot rod camshaft, Great for 114" & 117" looking for the most out of their engine
  • Nasty chop at idle
  • Responds very well to increased bore and or compression A high flow exhaust system and air cleaner is highly recommended for optimal performance
  • FEULING recommends matching this cam with our RACE SERIES oiling system
  • Grind: 487 .............................Valve Lift Open Close Duration@ 50" lift @ TDC Lobe Centerline Intake/Exhaust .478"/.487" 20.5°/44° 37°/17.5° 237°/241.5° .180"/.146" 98.5°/103.25° Overlap 38 *Cam specs measured in the engine on the lifter @ 0.050" using a 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling dOEs not recommend tuning beyond stock emissions standards
  • Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump
  • RACE SERIES hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange
  • OIL LEVEL NOTE
  • DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
  • Note: The M8 oil pick up port is on the right side of the engine
  • Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
  • We recommend the following steps to achieve proper oil level: 1
  • Check cold oil level
  • Ride the bike until operating temperature is reached
  • 3
  • Shut the bike off while still in the upright position. (This insures an accurate reading) 4
  • Add or remove oil as needed
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

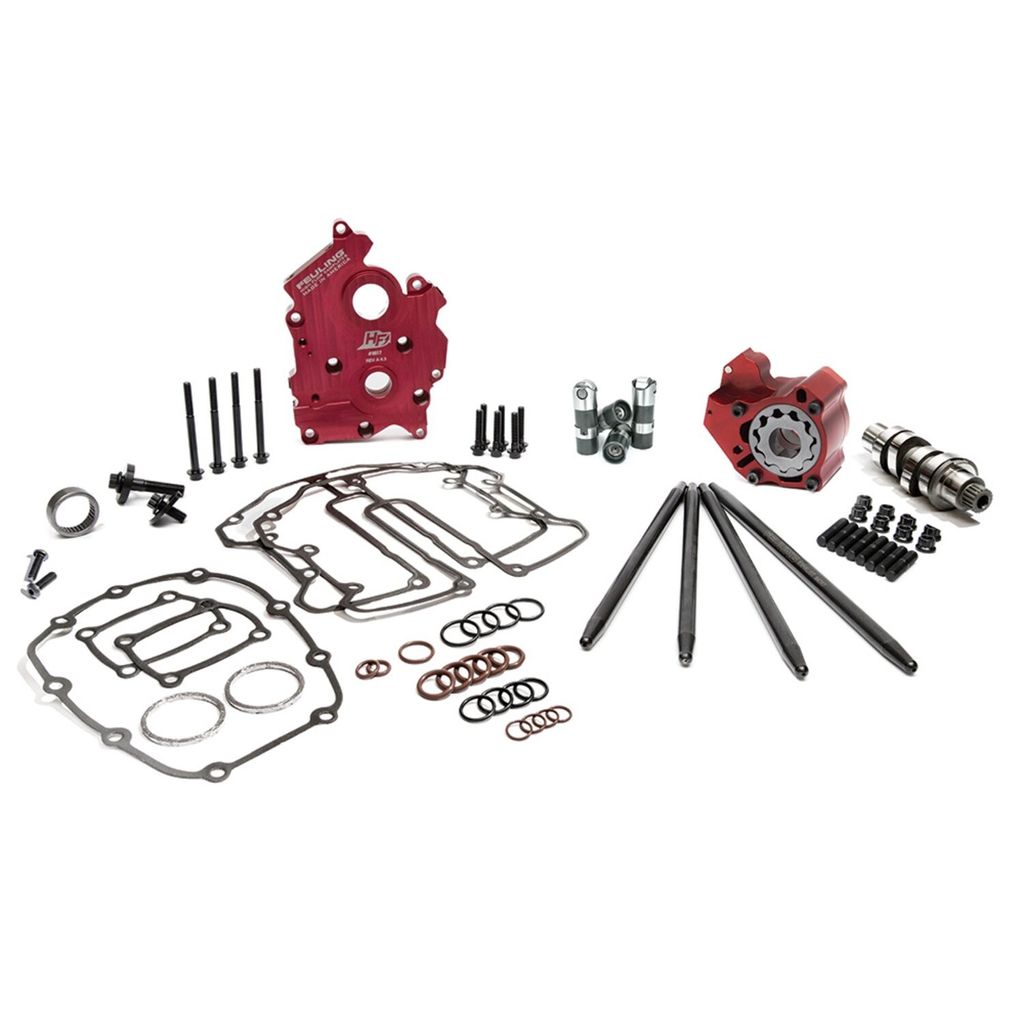

Kit Includes: • 487 Reaper Camshaft • HP+ Pushrods • Race Series Short Travel Lifters • High Flow Camplate • Race Series Oil Pump • Cam Installation Kit • ARP Rocker Studs and Nuts • Camplate/Oil Pump Fasteners

Fits: M8 '17-'24 Except VVT OIL cooled, Chain Drive, Includes 487 Reaper Camshafts #1354, Cam Install kit #2030, RACE SERIES Short Travel Lifters #4017ST, one piece pushrods #4088, RACE SERIES oil pump #7020, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
