Kamaxelsats Feuling Cooled 114" 117" M8 '17-'24 Except VVT water
Feuling Race Series 487 Reaper kamaxelsats för kedjedrift
Läs mer
- Komplett kamaxelsats med 487 Reaper-kamaxel, oljepump, kamplatta, lyftare och stötstänger
- Kedjedriven bolt-in-kamaxel med varvtalsområde 2 250–6 100 rpm för 114"- och 117"-motorer
- Race Series oljepump och High Flow kamplatta i CNC-fräst 7075-aluminium
- Ökar oljetryck och flöde: 30 % mer matningsvolym och upp till 53 % mer returvolym än original
- Sänker oljetemperaturen med 15°–30° och motortemperaturen med 15°–25°
- Race Series hydrauliska rull-lyftare med 0,200" slaglängd för kraftiga ventilfjädrar
- Kraftiga stötstänger i ett stycke med 7/16" diameter och 0,165" godstjocklek
- Inkluderar monteringssats med kamlager, packningar, O-ringar samt ARP-fästelement
För Milwaukee-Eight vattenkylda motorer (passar inte VVT-motorer). Ett högflödande luftfilter och avgassystem rekommenderas för optimal prestanda. Överfyll inte oljetanken, kontrollera alltid varm oljenivå med motorcykeln upprättstående.
Passar: M8 '17-'24 utom VVT vätske-
Race Series Camchest Kit
- 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Chain Drive
- Camshaft for 114" and 117" engine
- Responds very well to increased bore and or compression
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- RPM range 2,250 - 6,100
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series Full-Travel Lifters
- Hydraulic roller lifters, standard OD (0.8420-0.8423)
- Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
- One Piece Pushrods
- Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Billet 7075 aluminum
- Bolts into stock location
- Made in the USA
- Cam specs measured on the lifter @ 0.050" using a 1.61 rocker arm ratio. Feuling does not recommend tuning beyond stock emissions standards.
- FEULING M8 WATER COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
- These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
- These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
- Quieter and smoother engine operation
- Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
- Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
- Although Feulings in house testing on healthy engines did not show a benefit
- The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
- Hot rod camshaft, Great for 114" & 117" looking for the most out of their engine
- Nasty chop at idle
- Responds very well to increased bore and or compression A high flow exhaust system and air cleaner is highly recommended for optimal performance
- FEULING recommends matching this cam with our RACE SERIES oiling system
- Grind: 487 .............................Valve Lift Open Close Duration@ 50" lift @ TDC Lobe Centerline Intake/Exhaust .478"/.487" 20.5°/44° 37°/17.5° 237°/241.5° .180"/.146" 98.5°/103.25° Overlap 38 *Cam specs measured in the engine on the lifter @ 0.050" using a 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling dOEs not recommend tuning beyond stock emissions standards
- Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump
- OIL LEVEL NOTE
- DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
- Note: The M8 oil pick up port is on the right side of the engine
- Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
- We recommend the following steps to achieve proper oil level: 1
- Check cold oil level
- Ride the bike until operating temperature is reached
- 3
- Shut the bike off while still in the upright position. (This insures an accurate reading) 4
- Add or remove oil as needed
- Note: Special Order Product only
- To order please contact your MCS sales representative

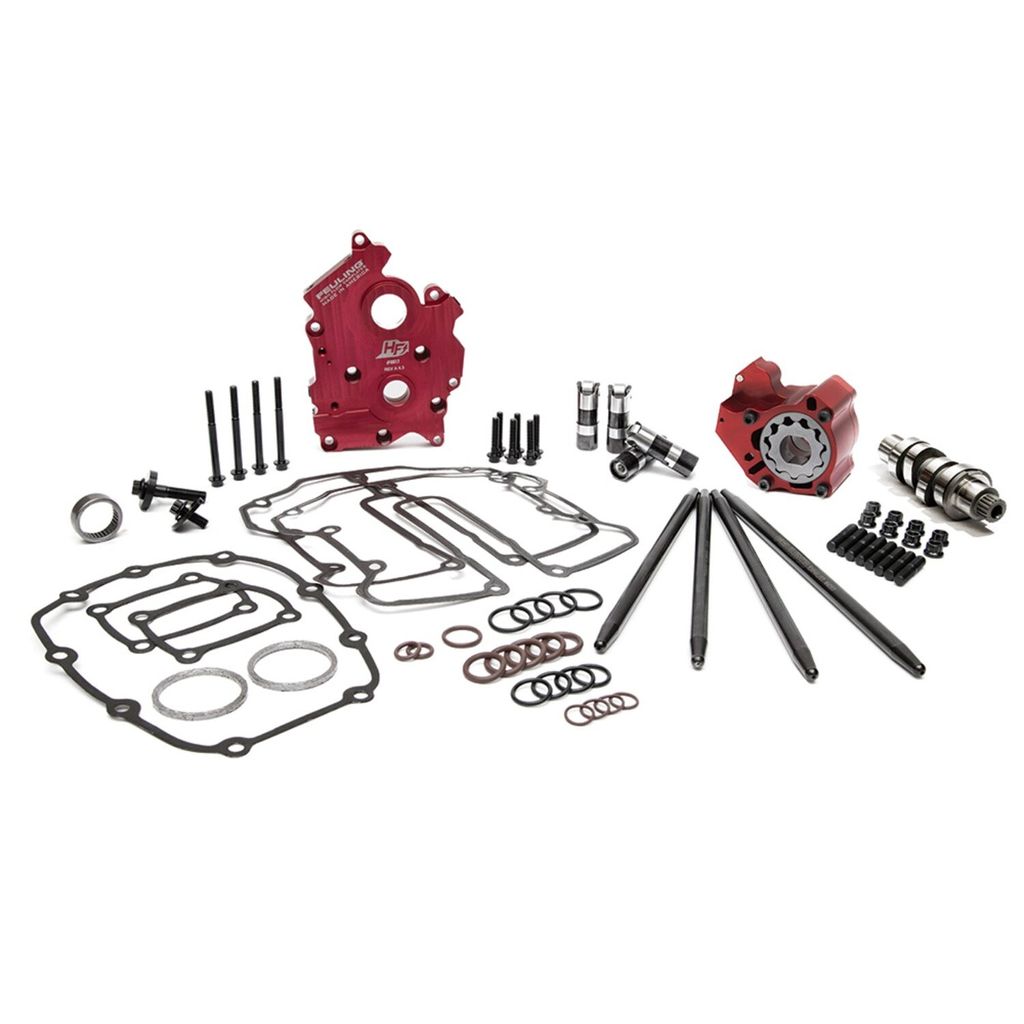

Not for VVT water cooled engines. Kit Includes: • 487 Reaper Chain Drive Camshaft • Cam Installation Kit • Race Series Lifters • One Piece HP+ Pushrods • Race Series Oil Pump • High Flow Camplate • ARP Rocker Studs and Nuts • Camplate/Oil Pump Fasteners
Fits: M8 '17-'24 Except VVT water cooled, Chain Drive, Includes 487 Reaper Camshafts #1354, Cam Install kit #2030, RACE SERIES Lifters #4017, one piece pushrods #4087, RACE SERIES oil pump #7021, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
