Kamaxelsats Feuling C 114" 117" kort M8 '17-'24

31 830 kr

Feuling Race Series kamaxelsats med korta lyftare och 487 Reaper-kamaxel
Läs mer

707062 Feuling
  • Komplett kamaxelsats för Milwaukee-Eight (M8) vattenkylda/centerkylda motorer
  • Kedjedriven 487 Reaper-kamaxel (varvtalsområde 2 250–6 100 rpm, lyft .478"/.487") för 114" och 117"
  • Race Series oljepump i billet 7075-aluminium som ger 30 % mer tryckvolym och sänker motortemperaturen
  • High Flow kamplatta i billet 7075-aluminium
  • Race Series Short Travel hydrauliska rull-lyftare och kraftiga helgjutna stötstänger i 7/16"-rör (.165" godstjocklek)
  • Satsen innehåller kamaxel, monteringssats, lyftare, stötstänger, oljepump, kamplatta och ARP-fästelement
  • Tillverkad i USA

Passar Milwaukee-Eight-motorer på 114" och 117" (vattenkylda/centerkylda). Passar inte VVT-vattenkylda motorer. Högflödande luftfilter och avgassystem rekommenderas starkt för optimal prestanda.

Passar: M8 '17-'24

Race Series Camchest Kit with Short Travel Lifters

  • 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Race Series Sort Travel Lifters, One Piece Pushrod, Race Series Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
  • 487 Reaper Camshaft.
  • Bolt-in
  • Chain Drive
  • Camshaft for 114" and 117" engine
  • Responds very well to increased bore and or compression
  • Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
  • RPM range 2,250 - 6,100
  • 38° overlap
  • Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
  • Cam Installation Kit
  • Includes cam bearing, cam/crank hardware and gasket/O-ring kit
  • Race Series Short Travel Lifters
  • Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
  • Designed with 0.115 of total travel
  • One Piece Pushrod
  • HP+ 0.165 wall, +0.040 longer
  • Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
  • Race Series Oil Pump
  • Increase oil pressure, scavenge volume and engine oil flow
  • 30% more pressure gear volume over stock
  • 53% more scavenge gear volume over stock
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 46% more oil volume to the crankshaft and connecting rod bearing
  • 15°- 25° cooler engine temperatures
  • 15°- 30° cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
  • FEULING test results show a 50% reduction of engine sump oil level.
  • High Flow Camplate
  • Bolts into stock location
  • Billet 7075 aluminum
  • Made in the USA
  • Feuling does not recommend tuning beyond stock emissions standards.
  • FEULING M8 CENTER/WATER COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #
  • These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony
  • These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable
  • Quieter and smoother engine operation
  • Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
  • Due to the mass call volume & inquires with requests for the M8 oil pump back cover O-ring/seal groove, we’ve added the groove! (5/11/21)
  • Although Feulings in house testing on healthy engines did not show a benefit
  • The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances
  • Hot rod camshaft, Great for 114" & 117" looking for the most out of their engine
  • Nasty chop at idle
  • Responds very well to increased bore and or compression A high flow exhaust system and air cleaner is highly recommended for optimal performance
  • FEULING recommends matching this cam with our RACE SERIES oiling system
  • Grind: 487 .............................Valve Lift Open Close Duration@ 50" lift @ TDC Lobe Centerline Intake/Exhaust .478"/.487" 20.5°/44° 37°/17.5° 237°/241.5° .180"/.146" 98.5°/103.25° Overlap 38 *Cam specs measured in the engine on the lifter @ 0.050" using a 1.61 rocker arm ratio DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE Feuling dOEs not recommend tuning beyond stock emissions standards
  • Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump
  • RACE SERIES hydraulic lifters have a full .200" of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the M8 front exhaust camshaft lobe flange
  • OIL LEVEL NOTE
  • DO NOT OVERFILL OIL TANK It is important to get the correct hot oil level in your bike
  • Note: The M8 oil pick up port is on the right side of the engine
  • Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank
  • We recommend the following steps to achieve proper oil level: 1
  • Check cold oil level
  • Ride the bike until operating temperature is reached
  • 3
  • Shut the bike off while still in the upright position. (This insures an accurate reading) 4
  • Add or remove oil as needed
  • Note: Special Order Product only
  • To order please contact your MCS sales representative

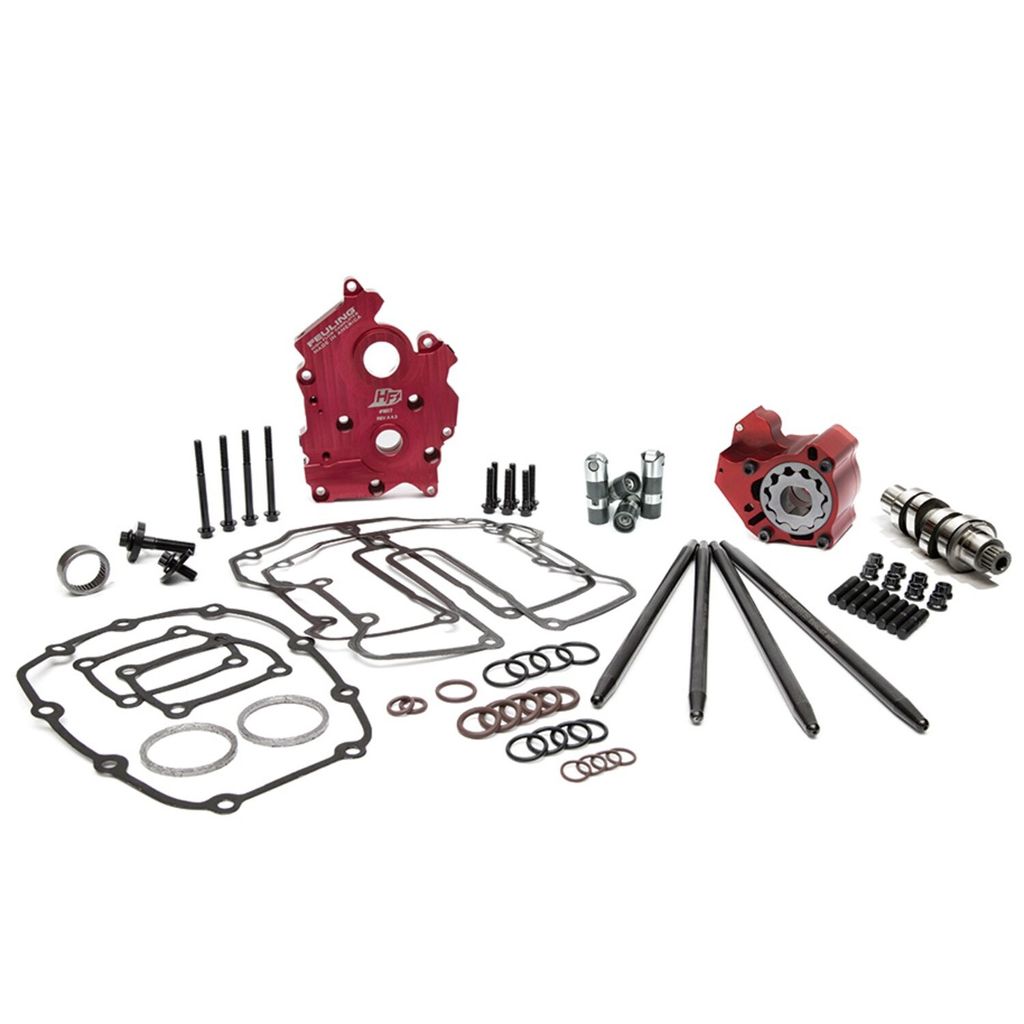

Not for VVT water cooled engines. Kit Includes: • 487 Reaper Chain Drive Camshaft • Cam Installation Kit • Race Series Short Travel Lifters • One Piece HP+ Pushrods • Race Series Oil Pump • High Flow Camplate • ARP Rocker Studs and Nuts • Camplate/Oil Pump Fasteners

Fits: M8 '17-'24 (Except VVT) center/water cooled, Chain Drive, Includes 487 Reaper Camshafts #1354, Cam Install kit #2030, RACE SERIES Short Travel Lifters #4017ST, one piece pushrods #4088, RACE SERIES oil pump #7021, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
