Hastighetsmätare Motogadget Motoscope Tiny 49 mm universal

3 580 kr

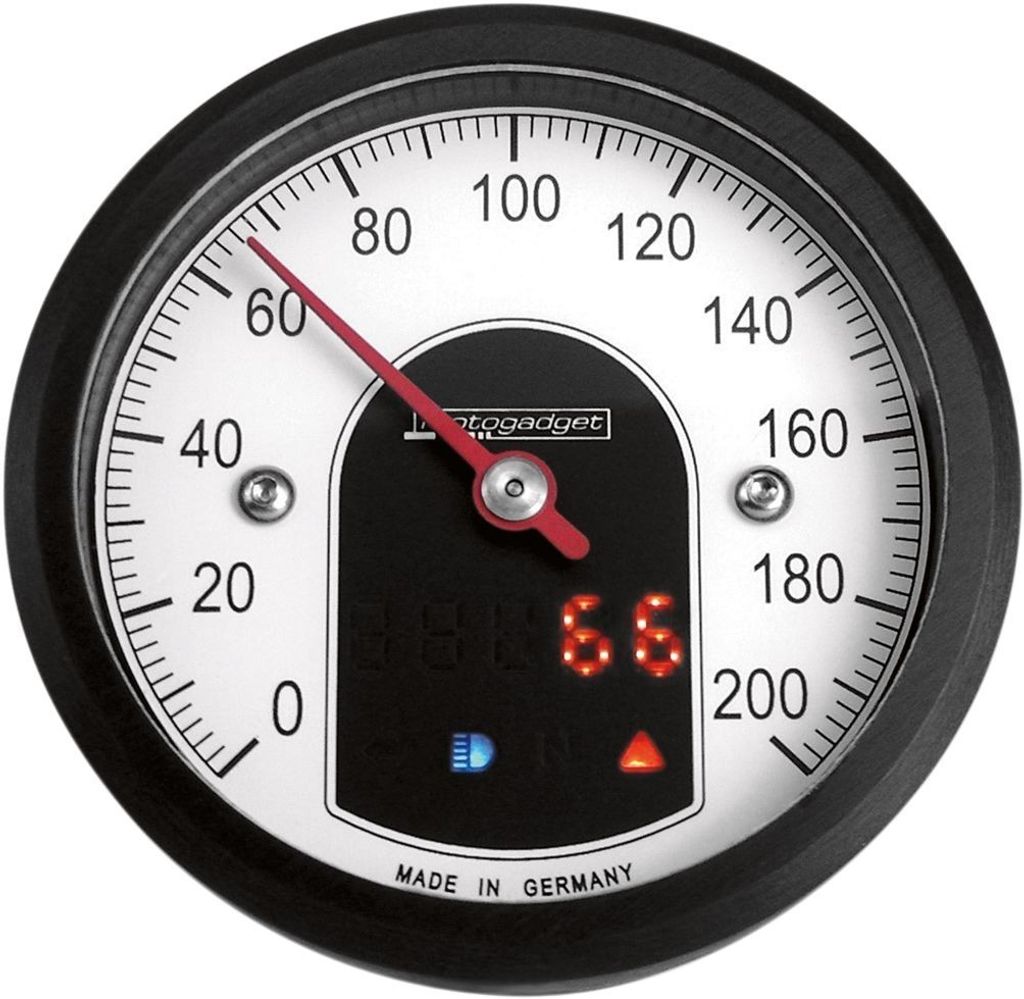

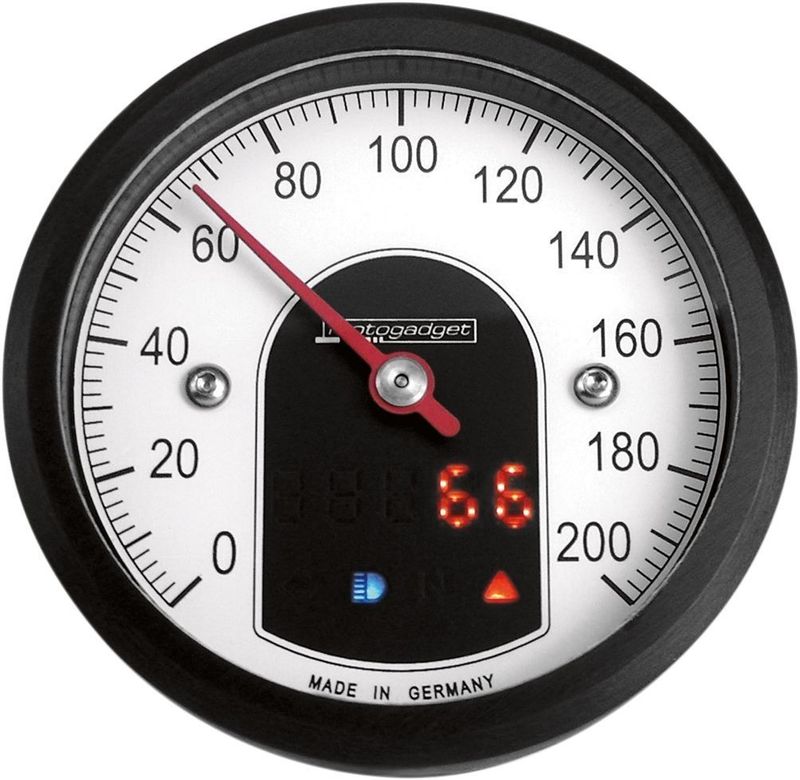

Analog hastighetsmätare i miniformat med svart hus och svart ram
Läs mer

22100196 MotoGadget
  • Klassisk analog stil med stegmotor och visare kombinerat med digital teknik
  • Kompakt format med 49 mm husdiameter och 24 mm monteringsdjup
  • Svart hus med svart ram runt displayen
  • Visar hastighet, klocka, total- och trippmätare, spänning samt maxhastighet
  • Digital LED-visning lyser igenom urtavlan när tändningen slås på
  • Vattentät och vibrationsresistent
  • Omkopplingsbar mellan km/h och mph (visar hastighet upp till 999 km/h)
  • Fyra integrerade kontrollampor för blinkers m.m.
  • Styrs via en separat tryckknapp och har intelligent självkalibrering
  • Kompatibel med vissa originalsensorer som Dry-Reed och induktiva givare på H-D och Buell

Levereras med utförlig bruksanvisning. Monteringskopparna 'Tiny Streamline' finns som tillval och säljs separat för 1" (25,4 mm) eller 22 mm styren, för insvetsning i bensintank/instrumentpanel eller som universalfästen.

Passar: Universal

Material Aluminum
Produkt-typ Gauge
Tillverkarens Art. Nr. 5001010
Tillverkarens Art. Nr. 5001012

Motoscope Tiny

  • Small (49 mm) analog speedometer
  • Provides a classic style with digital technology
  • Measures speed digitally and displays it with a stepper motor and a pointer
  • Also displays a clock, odometer, trip odometer, on board voltage and maximum speed
  • Includes four control LEDs
  • Wide range of mounting options

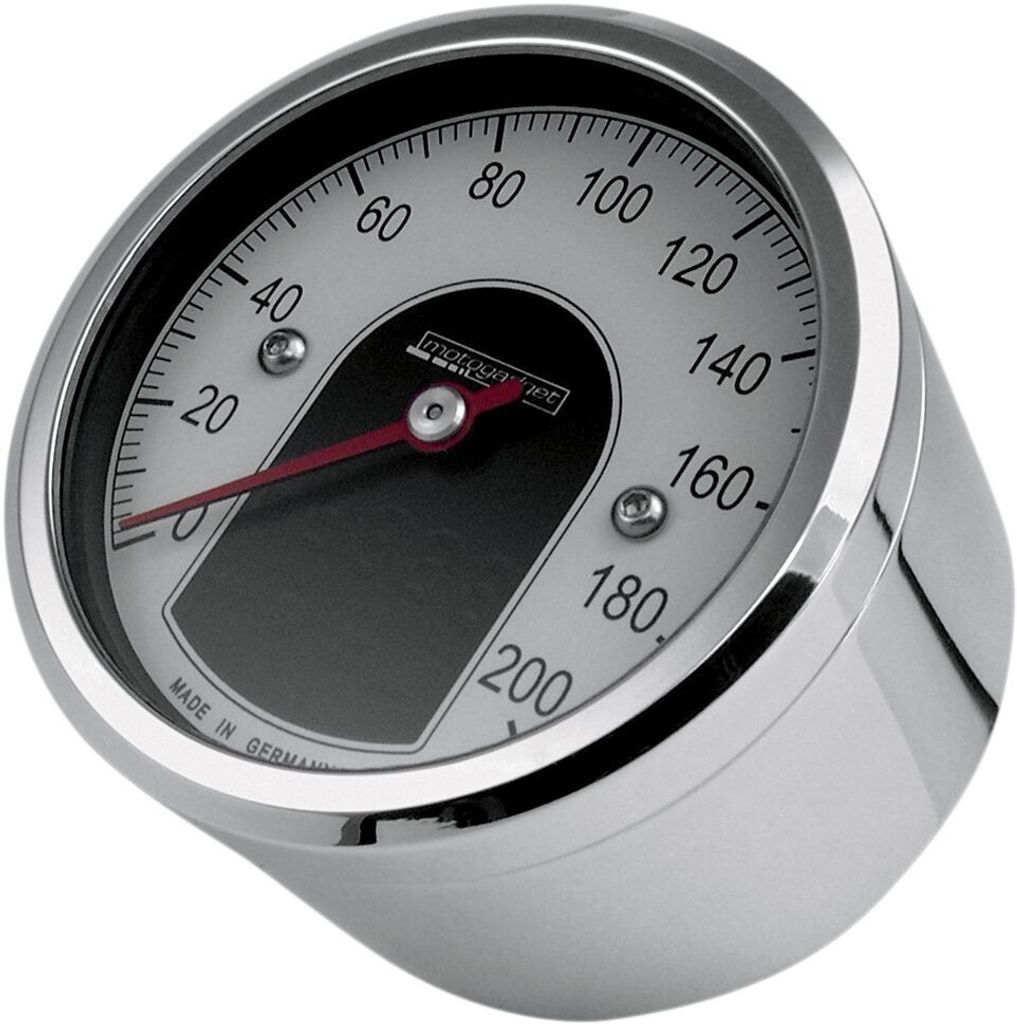

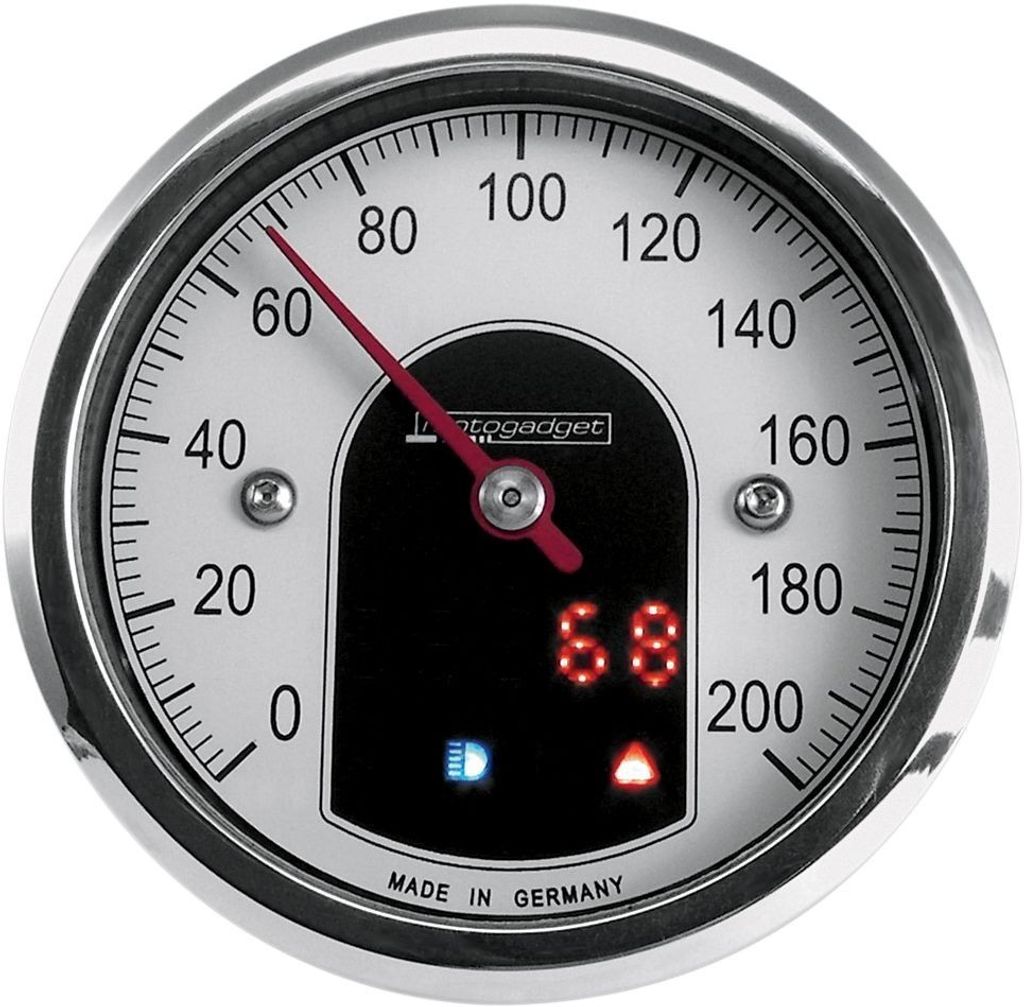

  • Available in black or polished finish
  • Motoscope Tiny. Standard. Black bezel
  • Black housing with black bezel around the display
  • Analog styled speedo but with true digital functions
  • Miniature, with a just 49mm diameter housing and an installation depth of 24mm
  • Waterproof and vibration resistant
  • No digital display cutout to maximize the classic analog look
  • Digital information will be illuminated by LEDs through the blacked-out part of the speedo, only when the ignition is turned on
  • All options within the speedo are controlled and adjusted with a single push button switch that can be installed anywhere
  • Speedo can be switched from KMH to MPH function
  • When 200km/h is exceeded, the correct speed will still be shown through the blacked-out part of the speedo, up to 999km/h
  • Compatible with some stock speedo sensors like Dry-Reed and inductive proximity sensors as used on stock H-D and Buell models
  • Comes complete with detailed instruction manual
  • MPH switchable
  • Trip meter
  • Intelligent self-calibrating teach function
  • 4 LED indicator lights
  • Note: Optional 'Tiny Streamline' mounting cups are separately available
  • For use with 1" (25.4mm) or 22mm diameter handlebars or as weld-in cups, for recessed installation in fuel tank/dashboard etc. and as 'universal brackets'

Fits: Universal
