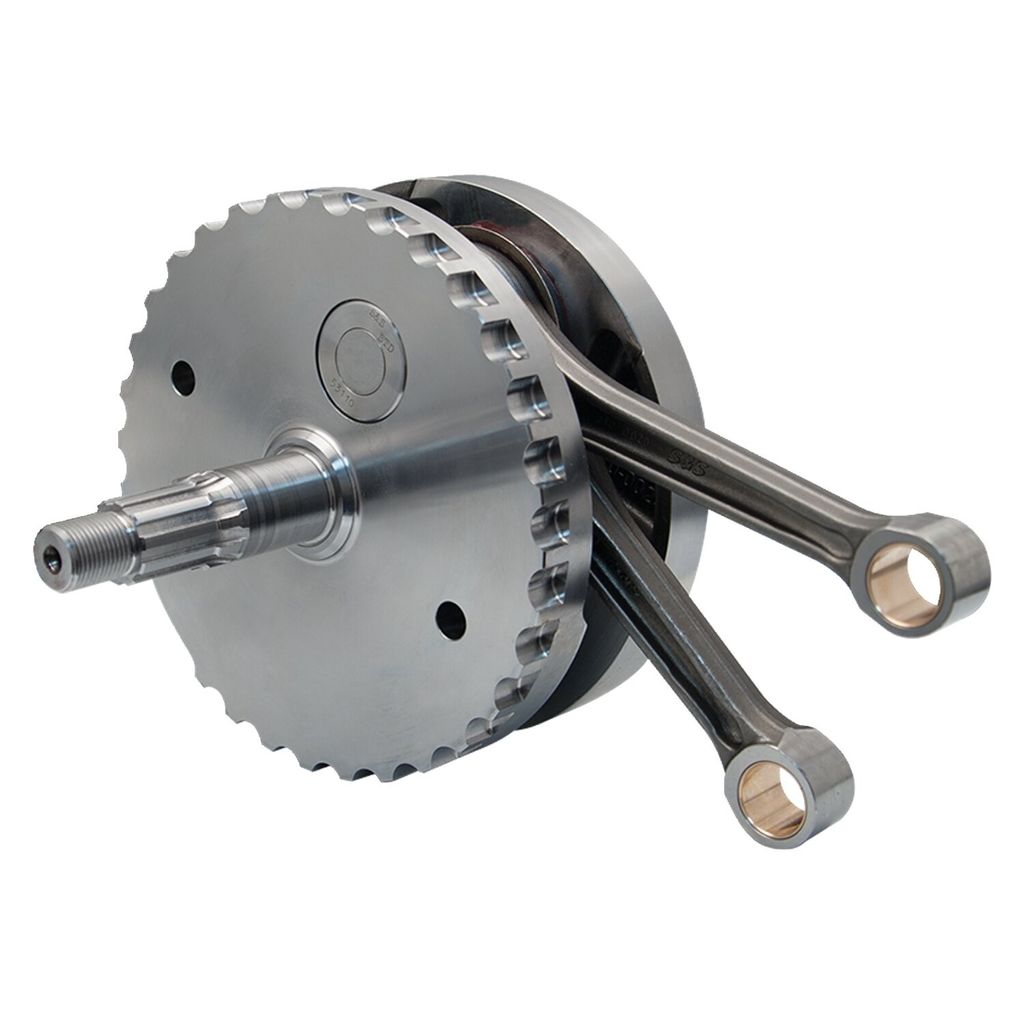

Svänghjul S&S 96/103 4-5/8 H-D 07-17

28 730 kr

S&S 3-delat svänghjul med 4-5/8" slaglängd för 116" och 124" motorer
Läs mer

09220150 S&S
  • 3-delat svänghjul med integrerade huvudaxlar, tillverkat i 4140 stål
  • Större vevtapp på 1.671"
  • 4-5/8" slaglängd, anpassat för 116" och 124" motorer
  • Passar direkt i originalvevhus utan modifieringar
  • Balanserat för 1035 gram total kolvvikt
  • Vevstakar har raka (ej koniska) ändar för kolvbulten
  • Konstruerat för användning med Timken-konvertering på transmissionsaxeln
  • Tillverkat i USA

Vevstakarna är ej kompatibla med original H-D-kolvar eller original transmissionsaxellager. För 03–17 modeller krävs konvertering till Timken-lager på transmissionsaxeln (konverteringssats säljs separat), då garantin inte gäller vid användning av original rullager. Motorer med slaglängd över 4" kan kräva S&S kolvkylningsmunstycken och bearbetning av kolvkjolen för frigång.

Passar: H-D 07-17

OEM-nr: 24004-03B, 24605-07

Material Steel
Produkt-typ Flywheel Assembly
Tillverkarens Art. Nr. 320-0464

Replacement Flywheel Assembly

  • S&S 3-piece flywheels with integral main shafts are the strongest yet, made from 4140 steel and feature a larger 1.671" crankpin
  • Fits directly in stock crankcases with no modifications
  • Made in the U.S.A.
  • Flywheel assembly without sprocket bearing race are designed for use with Timken bearing conversion (sold separately).
  • 06-17 4-5/8" stroke flywheel assembly
  • For 116/124" engines
  • S&S conrods do not have tapered wristpin ends and are not compatible with stock H-D pistons or stock H-D sprocket shaft bearings
  • Balanced to 1035 grams total piston weight
  • Note: Engines with strokes exceeding 4" may require S&S piston oiling jets and piston to jet clearance notches in the piston skirt to avoid contact
  • Note: S&S crankpins allow the use of replaceable bearing races in the lower end of the connecting rods
  • The first generation of S&S crankpins, in use up to 2012, were 1.500" diameter
  • Now S&S & OEM crankpins are identical in diameter so now S&S parts can be used to rebuild stock H-D flywheels, something that previously was not possible since H-D rebuild parts were, and are, not available
  • Note: Following is regarding 03-17 models
  • S&S has designed these flywheels to work with a Timken style sprocket shaft bearing, they will fit stock 99-02 model year and all S&S cases without modifications
  • Stock H-D 03-17 Twin Cam engines use the same sprocket shaft roller bearing as is used on the pinion shaft, a cost saving but weaker solution
  • However, S&S feels this roller bearing will not take the side loads produced in a high performance motor
  • S&S will not honor any warranty claims in an application where the OEM 24004-03B/24605-07 03-17 sprocket shaft roller bearing style bearing assembly is used
  • To upgrade to the pre-2003 style sprocket shaft bearing MCS 978517 JIMS conversion tool kit is available
  • Bearing inserts only are available as 978519, bearings only as 508960
  • Note: In any and all applications the technician must be able to judge components for their suitability in combination with the other engine components, prior to installation
  • It is of importance that a knowledgeable mechanic will install & make adjustments as required

Fits: 06-17 Dyna; 07-16 FLT/Touring (NU)
