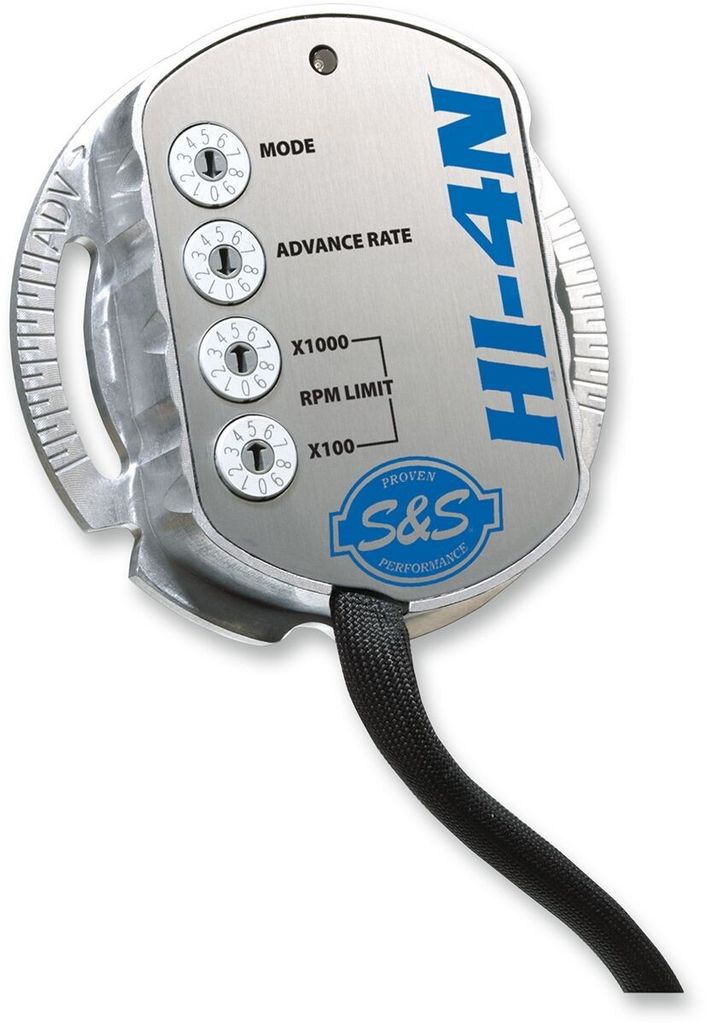

Tändmodul S&S HI-4N H-D 70-99

5 630 kr

S&S HI-4N elektronisk tändmodul för single- och dual-fire
Läs mer

21010345 S&S
  • Single-fire och dual-fire-funktion integrerad i samma modul
  • Helgjutet metallhölje som fungerar som kylfläns för förbättrad värmeavledning
  • Sensorer med samarium/kobolt-magneter tål höga temperaturer för exakt tändning
  • Helt inkapslad elektronik som skyddar mot vibrationer, fukt och smuts
  • Fyra vridomkopplare för tändläge, tändkurva, varvtalsstopp samt kick-/elstartsläge
  • Valbart multi- eller single spark samt lägen för race eller gata utan krav på dator
  • Inbyggd LED-indikering för enkel statisk grundinställning av tändningen
  • Tillverkad i USA

Passar inte modeller med bränsleinsprutning, 91-99 XL eller eventuellt 00-03 XL på grund av tändkåpans mindre diameter. Kompatibel med 2–3 Ohm tändspolar. Tändrotor och fästbult ingår inte utan återanvänds eller beställs separat (finns som bultsats 902268 eller 920402).

Passar: H-D 70-99

OEM-nr: 32402-83

Färg Gray
Produkt-typ Ignition Module
Tillverkarens Art. Nr. 550-0501

HI-4N Ignition Module

  • Single-fire and dual-fire function built into a single module
  • All-metal housing provides improved heat dissipation
  • Ignition advance and timing degree markings are on the metal flange
  • Sensor housings contain advanced flux concentrators with high-temperature-resistant samarium/cobalt magnets for accurate, reliable ignition triggering
  • Electronics are fully enclosed to resist vibration, moisture and dirt
  • Four rotary switches for ignition mode selection, advance rate, and rev limit
  • Made in the USA
  • Not for fuel-injected models
  • Offers switchable multi/single spark, race/street mode, RPM limiter and a kick/electric start mode, no PC required
  • This HI-4N module used to be made by Crane, now by S&S
  • Nothing changed but the name
  • Same great technique, same dependable electronics
  • The HI-4N offers more options than the famous HI-4, with even better reliability
  • Easy initial static set-up with built-in LED timing light
  • The sensor housing contains fully encapsulated electronics to resist vibration, moisture and dust, and are mounted directly to the metal housing which serves as a heat-sink to prevent overheating
  • Easy adjustment with 4 rotary switches that offer perfect precision
  • Note: Compatible with 2-3 Ohm coils
  • It is recommended to use ignition modules & coils of the same manufacturer
  • Intermixing different brands may cause premature failure
  • Note: The ignition rotor (OEM 32402-83) and mount bolt (2611B) must be ordered separately or re-used
  • Rotor & bolt kit is available as 902268 (S&S) or 920402 (import)
  • Note: Module may not fit 00-03 XL models due to the slightly smaller diameter of the ignition cone used on 00-03 Sportsters
  • Note: The difference between single dual fire explained:
  • This is the way the earlier, pre-Twin Cam, engines work
  • A single coil is used and both spark plugs fire simultaneously
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM

Ignition module only.

Fits: 70-99 Big Twin (Excl. Twin Cam, Excl. fuel injection); 71-99 XL Sportster (NU)
