Tändmodul S&S SuperStock Shovel 93"

6 170 kr

S&S SuperStock tändmodul för 93" S&S Shovelhead med kickstart
Läs mer

902173 S&S
  • Single fire
  • Förberedd för kickstart och ger gnista direkt på första varvet
  • Förprogrammerade tändkurvor anpassade för specifika S&S-motorer
  • Kräver endast grundinställning av tändningen, inga ytterligare justeringar behövs
  • Kan ställas om mellan kick- och elstart av certifierad S&S-återförsäljare via Super Stock-diagnostikkabel och mjukvara
  • Möjlighet till aktivering av 24-timmars inkörningsvarvtalsbegränsare via återförsäljare
  • Fullt varvtal på max 6300 RPM nås först efter 24 timmars drifttid vid aktiverad inkörningsfunktion
  • Levereras med tändmodul och instruktioner

Modulen är anpassad för 93" S&S Shovel-motorer. Via S&S-återförsäljare kan diagnostikdata avläsas, såsom tid vid full gas (WOT), drifttid vid olika temperaturer, antal starter, total körtid, tid i olika varvtalsområden samt maxvarvtal och tid vid varvtalsstopp.

Passar: FÖR 93" S&S SHOVEL-MOTORER

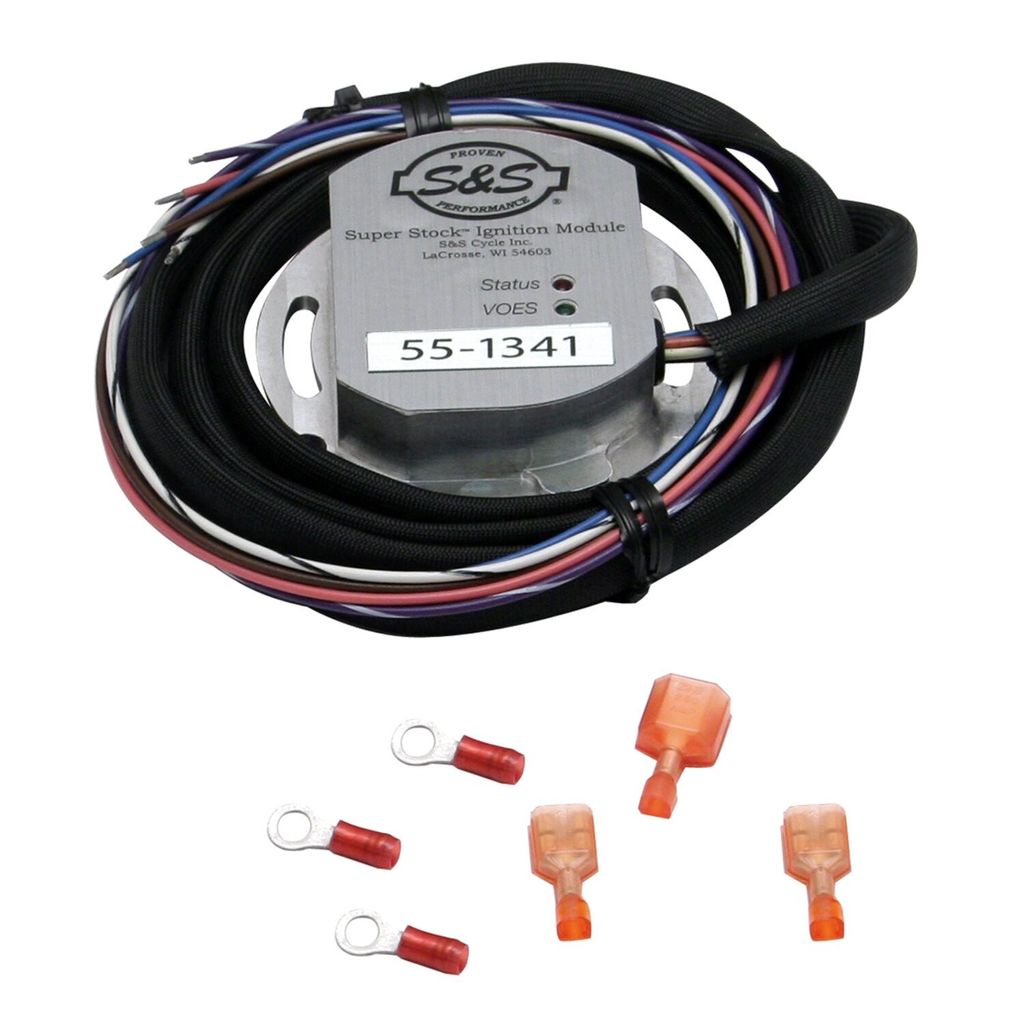

SuperStock ignition module. 93" S&S Shovel

  • Single fire
  • For kick start
  • Module only with instructions
  • Modules are pre-programmed with ignition curves for use with specific S&S engines
  • Only set basic timing, no further adjustments necessary
  • Set-up for kick start, where the engine wil spark the first time. (electric start models will turn 3 revolutions before ignition sparks, this to prevent kick-back and damage to electric start components)
  • Note: All modules can be set to kick or electric start by a certified S&S dealer equipped with Super Stock diagnostic cable & software
  • Then it is also possible to view: Time at wide open throttle (WOT); length of time engine was operated at various temperatures; number of engine starts; total running time; time spent in various RPM ranges; max
  • RPM and amount of time spent at rev. limit
  • It also enables the dealer to turn-on the 24 hour 'break-in' rev. limiter function
  • If set it will protect a new engine by limiting engine revolution
  • Only after 24 hours runtime the engine will be able to reach the maximum of 6300 RPM

Fits: FOR 93" S&S SHOVEL ENGINES
