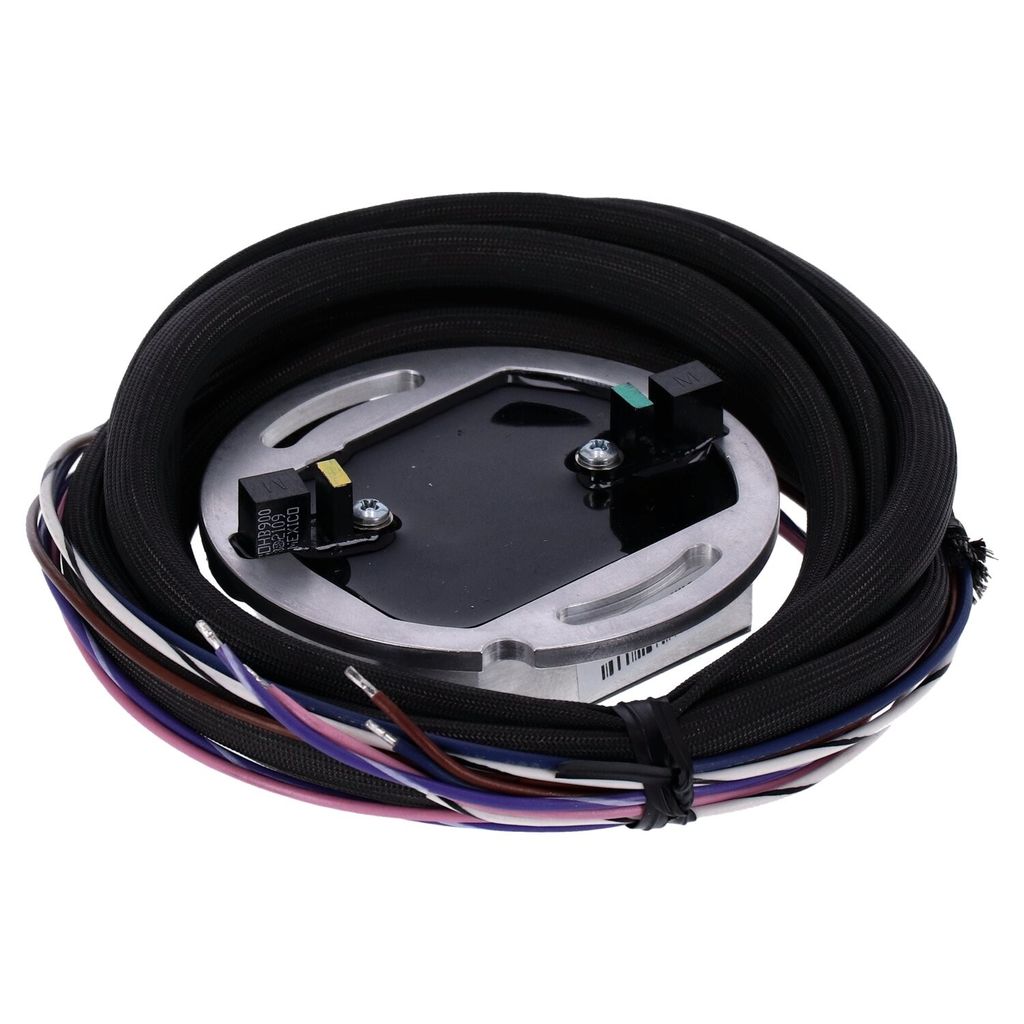

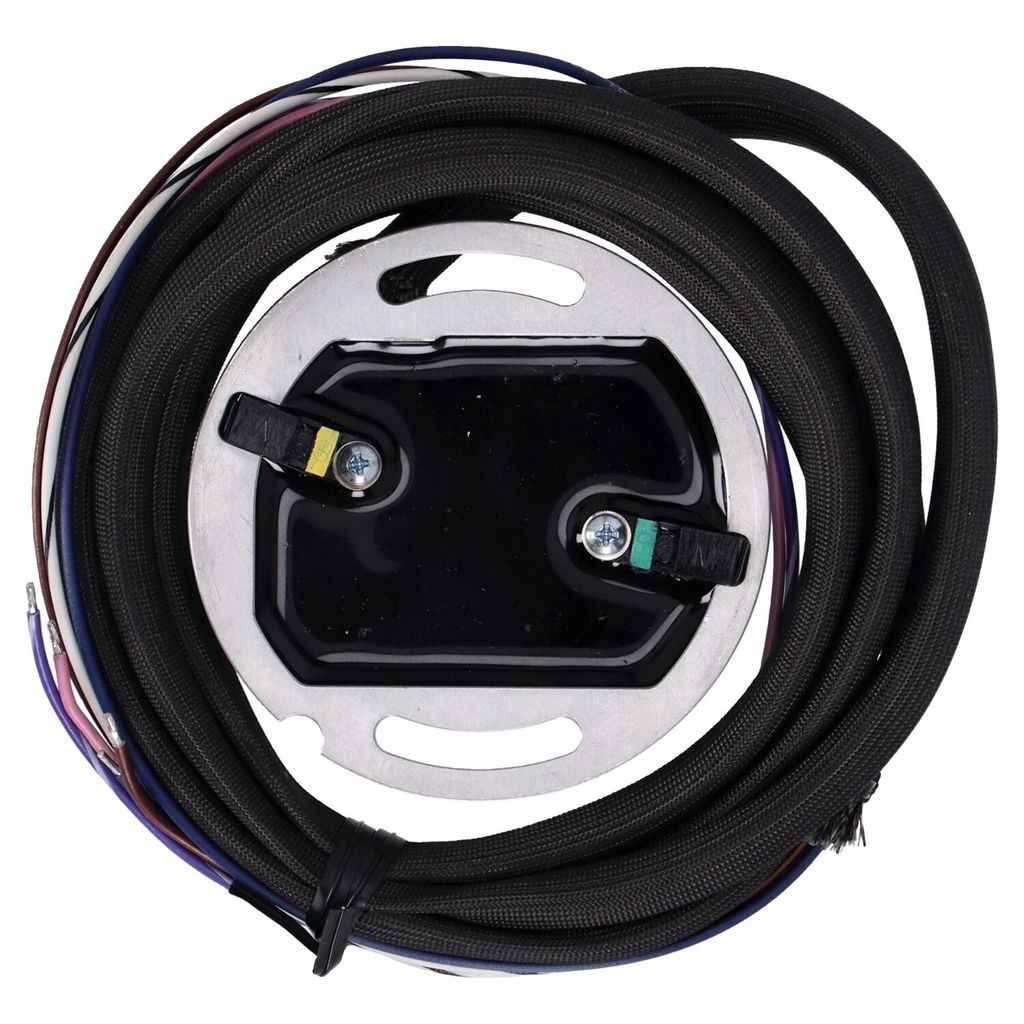

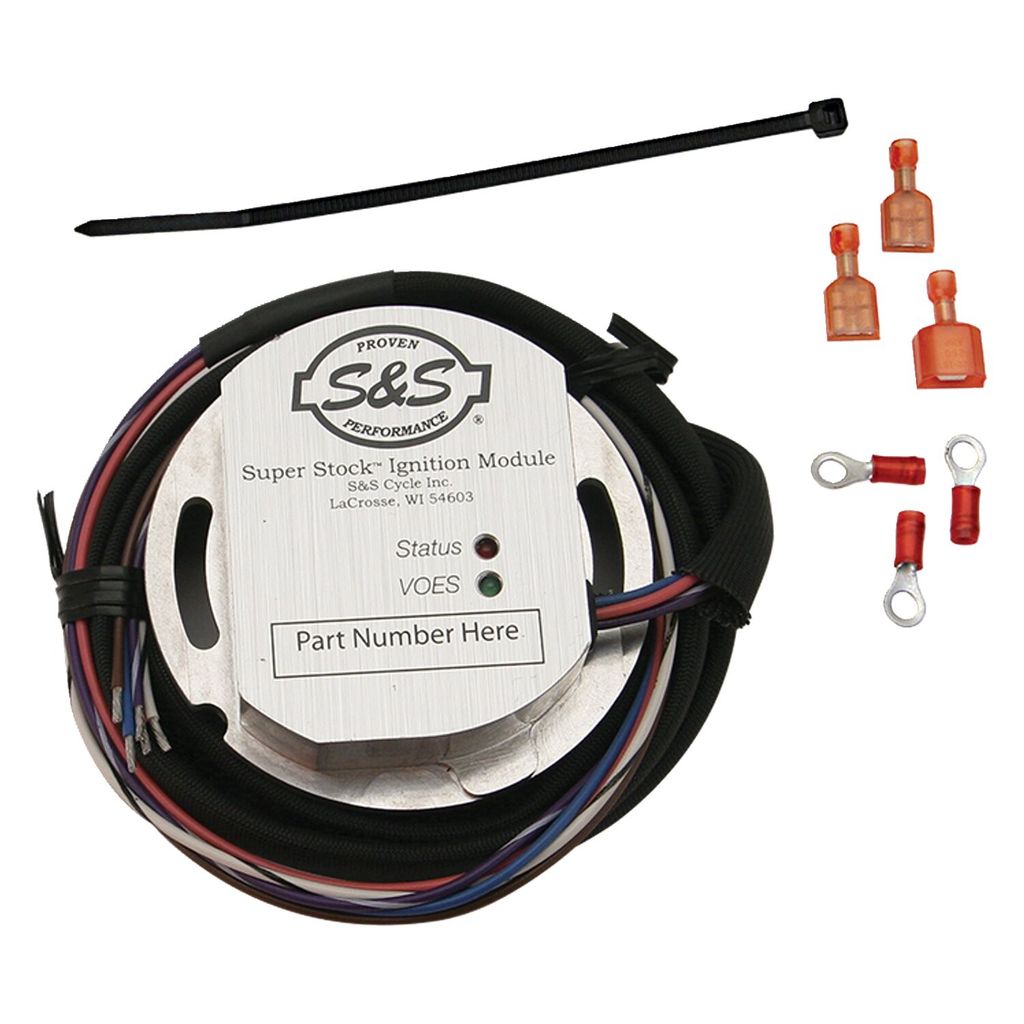

Tändmodul S&S SuperStock Shovel 103"
S&S SuperStock tändmodul för 103" S&S Shovelhead-motorer
Läs mer
- Single fire
- Förprogrammerad med tändkurvor anpassade för 103" S&S Shovelhead
- Konfigurerad för kickstart där motorn tänder redan på första varvet
- Kräver endast inställning av grundtändning, inga ytterligare justeringar krävs

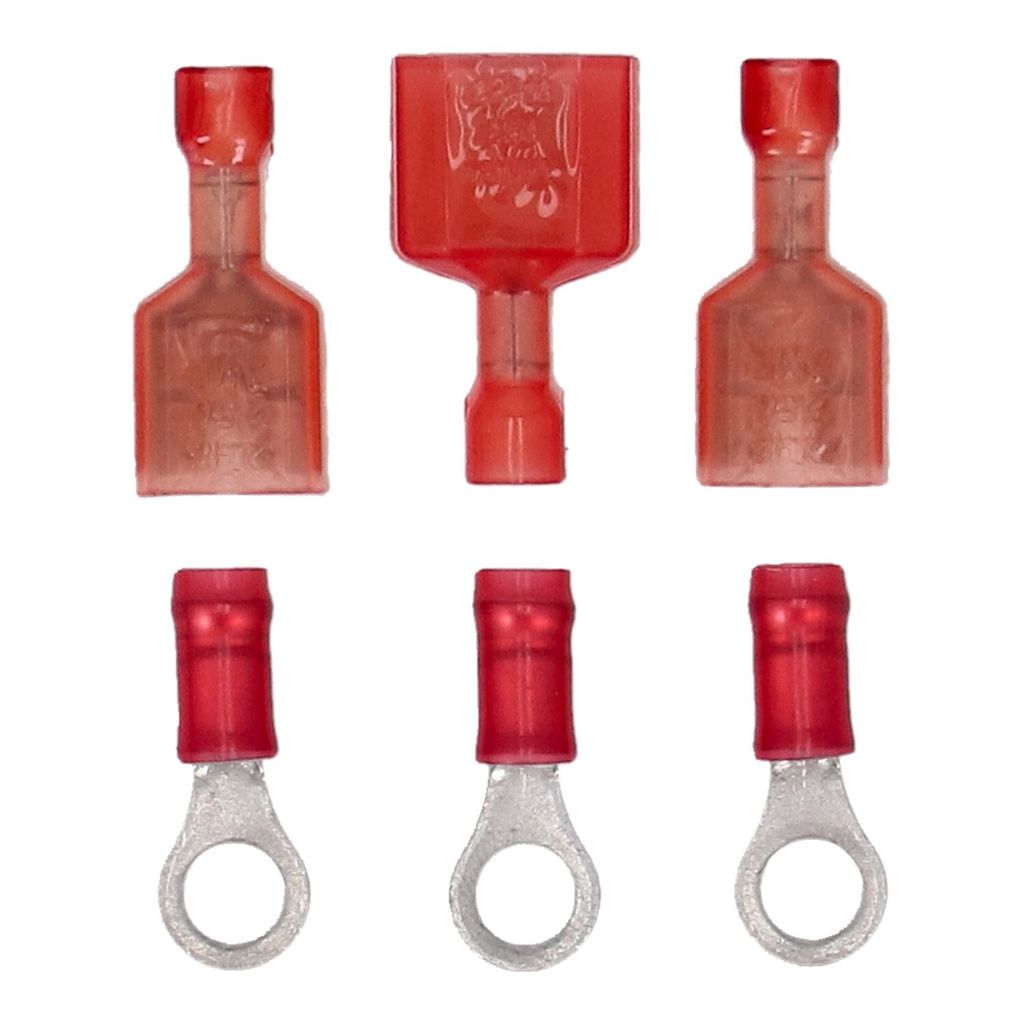

- Endast modul och instruktioner ingår
Alla moduler kan ställas om mellan kick- och elstart av en certifierad S&S-handlare med Super Stock-diagnostikkabel och mjukvara. Via mjukvaran kan handlaren även läsa av driftdata samt aktivera en 24-timmars inkörningsbegränsare som spärrar maxvarvet till 6300 RPM först efter 24 timmars drifttid.
Passar: FÖR 103" S&S SHOVEL-MOTORER
SuperStock ignition module. 103" S&S Shovel
- Single fire
- For kick start
- Module only with instructions
- Modules are pre-programmed with ignition curves for use with specific S&S engines
- Only set basic timing, no further adjustments necessary
- Set-up for kick start, where the engine wil spark the first time. (electric start models will turn 3 revolutions before ignition sparks, this to prevent kick-back and damage to electric start components)
- Note: All modules can be set to kick or electric start by a certified S&S dealer equipped with Super Stock diagnostic cable & software
- Then it is also possible to view: Time at wide open throttle (WOT); length of time engine was operated at various temperatures; number of engine starts; total running time; time spent in various RPM ranges; max
- RPM and amount of time spent at rev. limit
- It also enables the dealer to turn-on the 24 hour 'break-in' rev. limiter function
- If set it will protect a new engine by limiting engine revolution
- Only after 24 hours runtime the engine will be able to reach the maximum of 6300 RPM
Fits: FOR 103" S&S SHOVEL ENGINES
