Tändning S&S HI-4N enkel H-D 70-99

8 200 kr

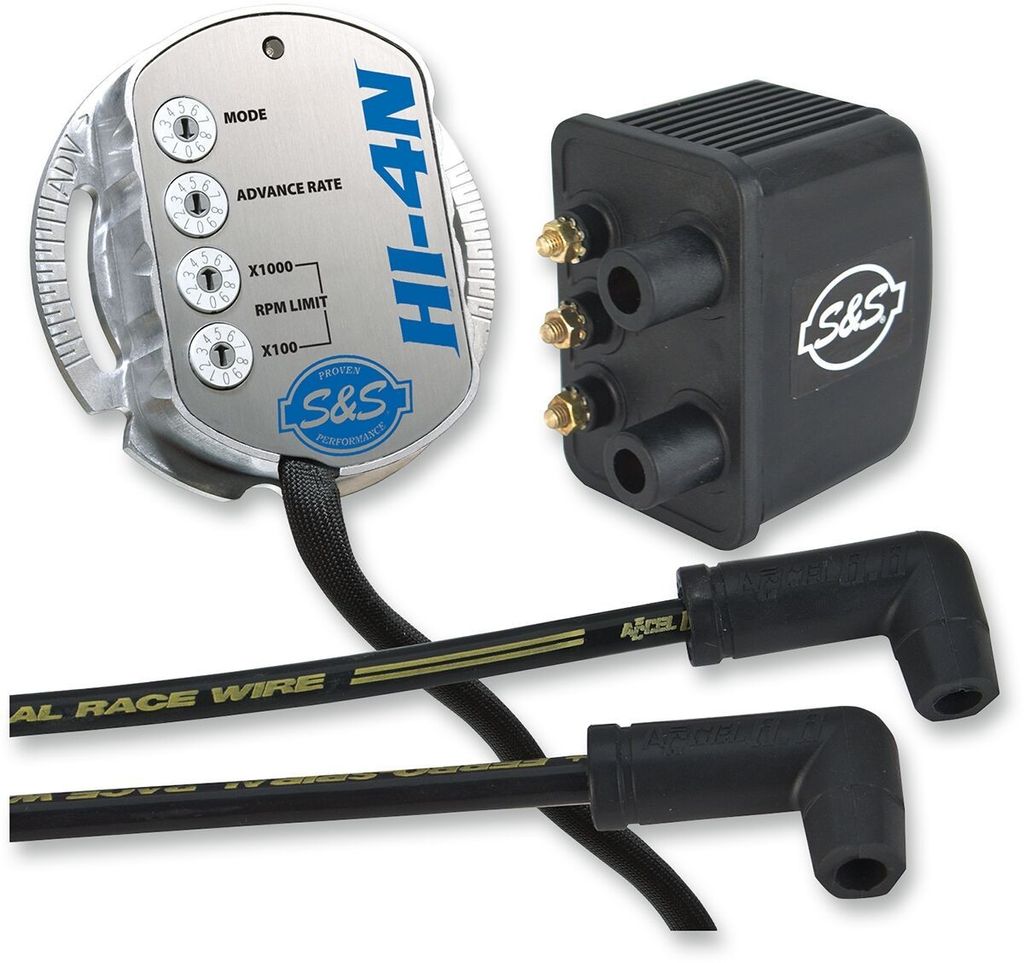

S&S HI-4N komplett tändningssats med tändspole och tändkablar
Läs mer

21010346 S&S
  • Innehåller HI-4N tändmodul, S&S tändspole och tändkablar i rätt längd
  • Single-fire och dual-fire-funktion integrerad i samma modul
  • Fyra vridomkopplare för val av tändläge, tändkurva, varvtalsbegränsare och kick-/elstart (ingen dator krävs)
  • Valbart läge för multi-/singelgnista samt race/gata
  • Helgjutet metallhölje fungerar som kylfläns och ger förbättrad värmeavledning
  • Helt inkapslad elektronik som motstår vibrationer, fukt och smuts
  • Inbyggd LED-lampa för enkel statisk grundinställning av tändningen
  • Tillverkad i USA

Passar inte modeller med bränsleinsprutning och kan kräva modifiering eller inte passa 00-03 XL på grund av tändkåpans mindre innerdiameter. Tändrotor och monteringsbult ingår inte utan återanvänds från original eller beställs separat (finns som bultsats/rotor 902268 eller 920402). Modulen är kompatibel med spolar på 2-3 Ohm.

Passar: Big Twin 70-99

OEM-nr: 32402-83

Färg Black- Gray
Produkt-typ Ignition Kit
Tillverkarens Art. Nr. 550-0502

HI-4N Ignition Kit

  • More power than the stock ignition
  • Single-fire and dual-fire function built into a single module
  • All-metal housing provides improved heat dissipation
  • Ignition advance and timing degree markings are on the metal flange
  • Convenient cable notch in the housing makes installation easier and prevents damage to the cable
  • Sensor and magnet housings are built into the all-metal back plate to protect the sensors from damage during installation
  • Sensor housings contain advanced flux concentrators with high-temperature-resistant samarium/cobalt magnets for accurate, reliable ignition triggering
  • Electronics are fully enclosed to resist vibration, moisture and dirt
  • All electronics are mounted directly to the metal housing, which acts as a heat sink
  • Four rotary switches for ignition mode selection, advance rate, and rev limit
  • Switches provide accurate, repeatable settings
  • Includes ignition module, S&S ignition coil and correct-length spark plug wires
  • Made in the USA
  • Not for fuel-injected models
  • Offers switchable multi/single spark, race/street mode, RPM limiter and a kick/electric start mode, no PC required
  • This HI-4N module used to be made by Crane, now by S&S
  • Nothing changed but the name
  • Same great technique, same dependable electronics
  • The HI-4N offers more options than the famous HI-4, with even better reliability
  • Easy initial static set-up with built-in LED timing light
  • Easy adjustment with 4 rotary switches that offer perfect precision
  • Note: Compatible with 2-3 Ohm coils
  • It is recommended to use ignition modules & coils of the same manufacturer
  • Intermixing different brands may cause premature failure
  • Note: The ignition rotor (OEM 32402-83) and mount bolt (2611B) must be ordered separately or re-used
  • Rotor & bolt kit is available as 902268 (S&S) or 920402 (import)
  • Note: Module may not fit 00-03 XL models due to the slightly smaller diameter of the ignition cone used on 00-03 Sportsters
  • Note: The difference between single dual fire explained:
  • This is the way the earlier, pre-Twin Cam, engines work
  • A single coil is used and both spark plugs fire simultaneously
  • This is the simplest system
  • The 'wasted' spark is sometimes said to be horsepower robbing
  • Two separate coils will fire the spark plugs independently and only the spark plug of the cylinder that is on compression stroke will be fired
  • It is said that these engines vibrate less and can improve power
  • The effects will become more pronounced with hotter cams and higher RPM

Fits: 70-99 Big Twin (Excl. Twin Cam, Excl. fuel injection); 71-99 XL Sportster (NU)
