Tändning S&S Stock Shovel 93" enkel

7 920 kr

S&S Super Stock single fire tändningskit för 93" Shovel
Läs mer

902180 S&S

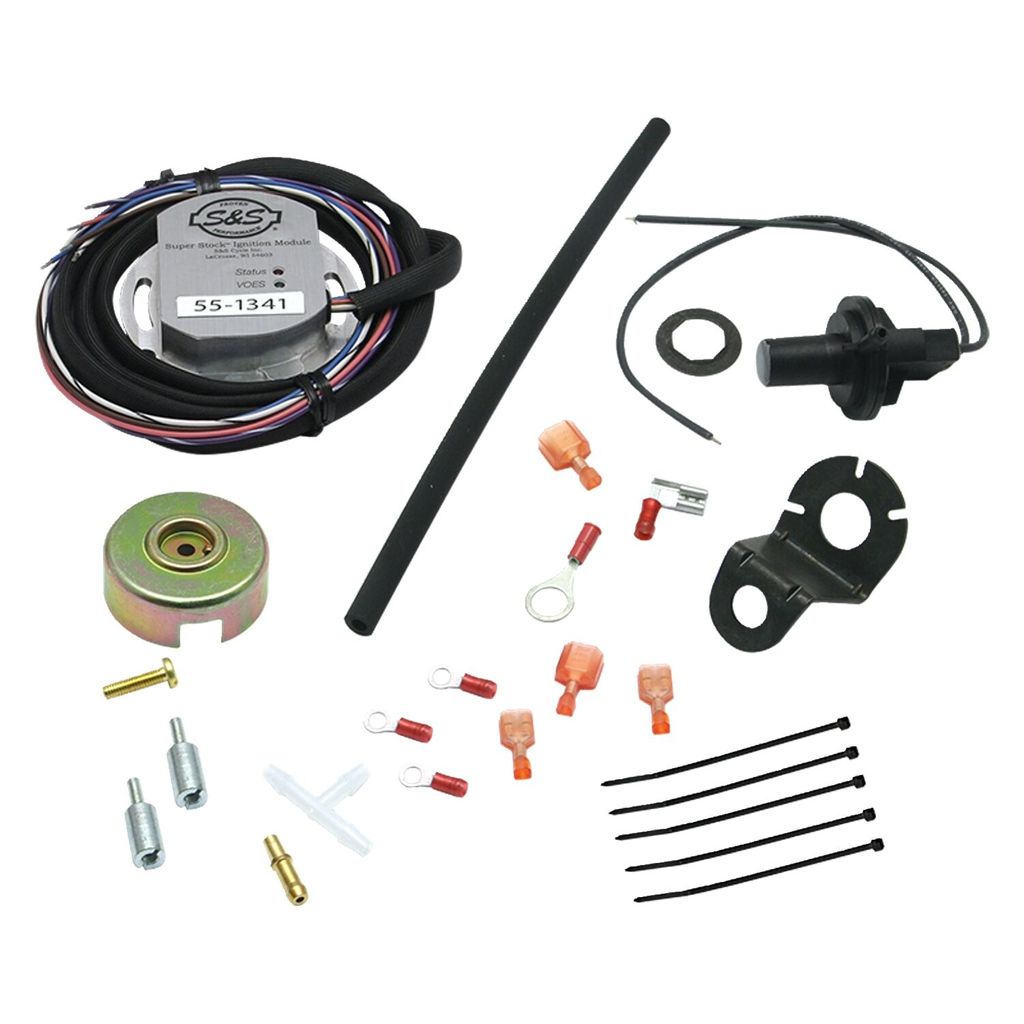

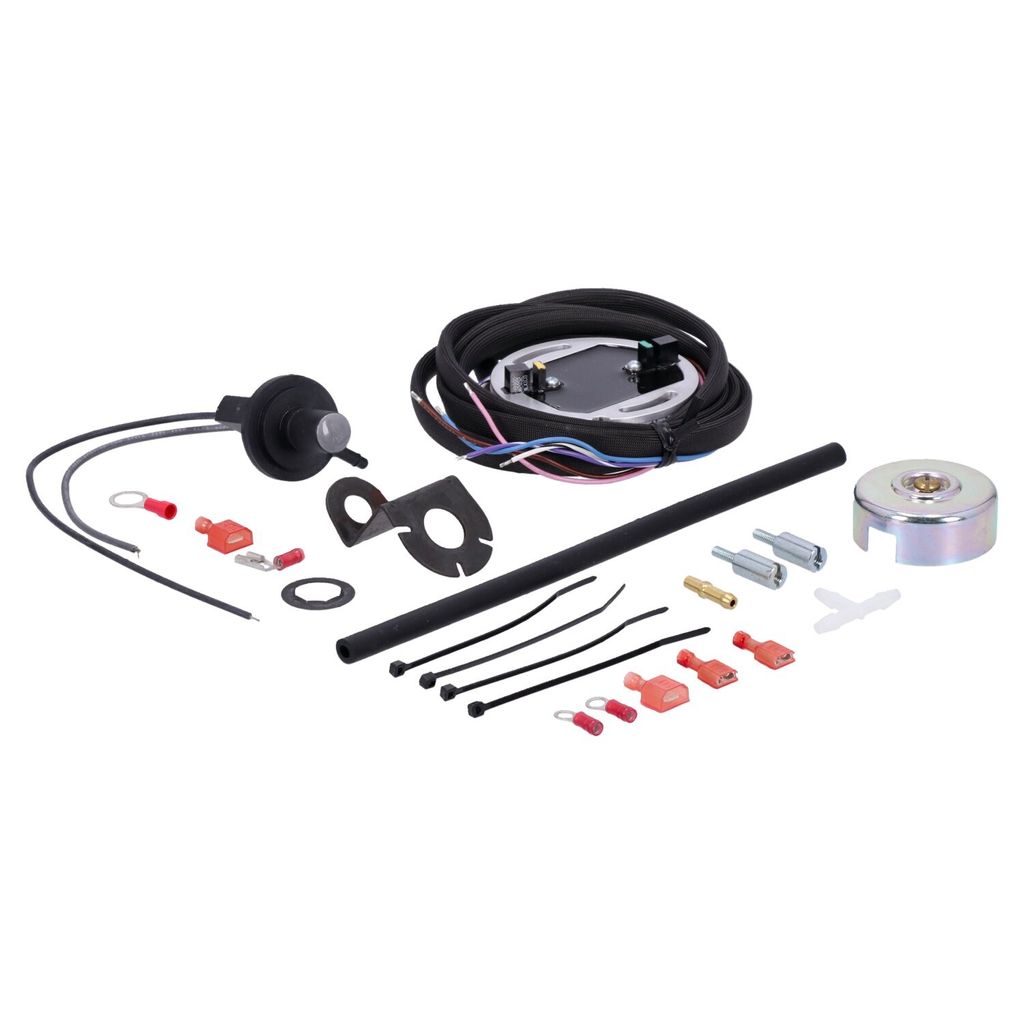

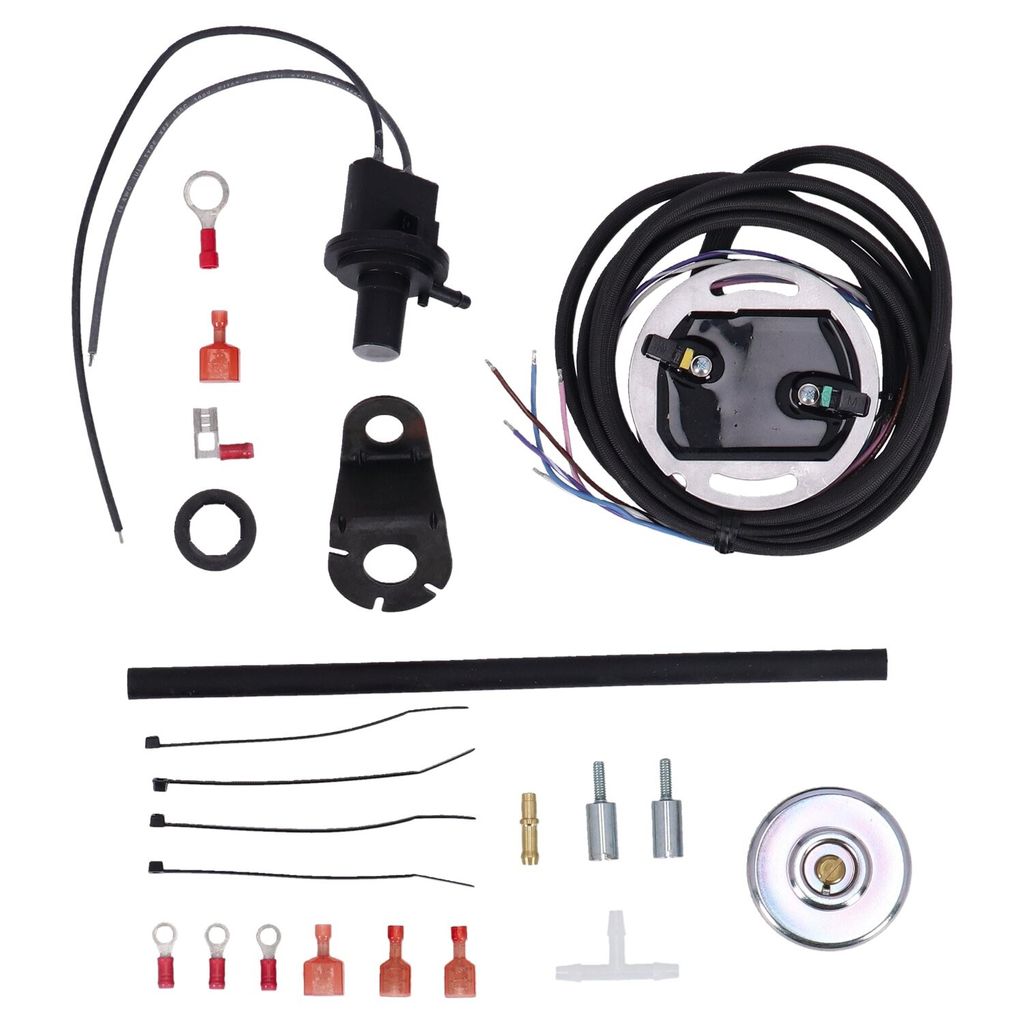

  • Komplett kit med tändmodul och monteringsdetaljer, pick-up-rotor med skruvar, VOES-brytare, kontakter samt instruktioner
  • Förprogrammerad tändkurva anpassad för 93" S&S Shovelhead-motorer
  • Konfigurerad för kickstart med gnista redan vid första motorvarvet
  • Endast grundinställning av tändningen krävs, inga ytterligare justeringar behövs

Modulen kan ställas om mellan kick- och elstart av en auktoriserad S&S-återförsäljare via Super Stock-diagnostikkabel och mjukvara. Återförsäljaren kan även aktivera en 24-timmars inkörningsvarvtalsspärr samt läsa av motordata som körtid, starter och varvtalsintervall.

Passar: FÖR 93" S&S SHOVEL-MOTORER

Super Stock single fire ignition kit. 93" S&S Shovel

  • For kick start
  • Complete kit that includes the module with hardware, pick-up cup and mounting screws, VOES switch with hardware, connectors and instructions
  • Modules are pre-programmed with ignition curves for use with specific S&S engines
  • Only set basic timing, no further adjustments necessary
  • Set-up for kick start, where the engine wil spark the first time. (electric start models will turn 3 revolutions before ignition sparks, this to prevent kick-back and damage to electric start components)
  • Note: All modules can be set to kick or electric start by a certified S&S dealer equipped with Super Stock diagnostic cable & software
  • Then it is also possible to view: Time at wide open throttle (WOT); length of time engine was operated at various temperatures; number of engine starts; total running time; time spent in various RPM ranges; max
  • RPM and amount of time spent at rev. limit
  • It also enables the dealer to turn-on the 24 hour 'break-in' rev. limiter function
  • If set it will protect a new engine by limiting engine revolution
  • Only after 24 hours runtime the engine will be able to reach the maximum of 6300 RPM

Fits: FOR 93" S&S SHOVEL ENGINES
