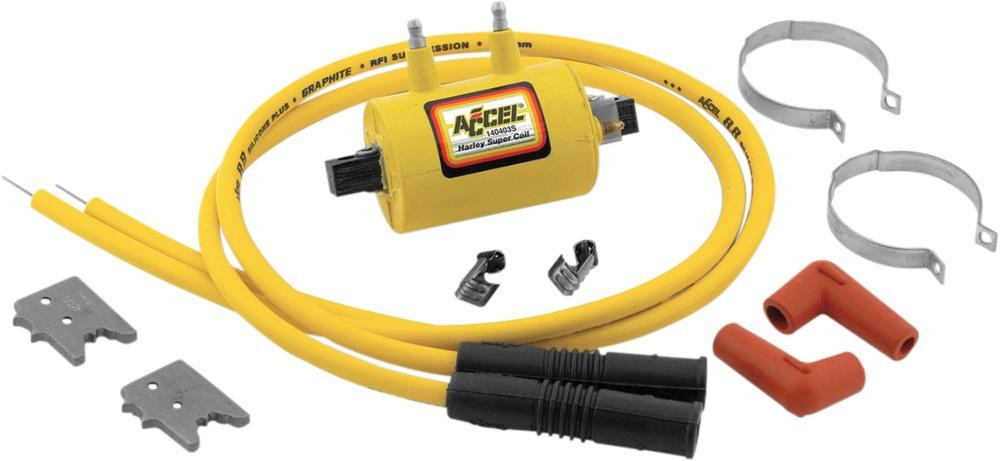

Universal Super Coil Kit

High-output coils for use in 2 cylinder motorcycles

ACCEL engineers designed these coils' special low-resistance primary winding to match the operating characteristics of factory and aftermarket CDI systems

Maximum performance with fast rise times

Extra-heavy-duty 8.8mm silicone wires included

Made in the U.S.A.

Using the wrong coil may damage your motorcycle's electronic ignition module. To determine your ignition type, complete the following test: 1. Determine whether the type of coil you are replacing is a high tower coil. (These coils will NOT replace single tower coils.)2. Using a volt meter or 12V test light, hook the positive lead to the positive post and the negative lead to the ground on one of the stock coils.3. Turn the ignition on, but DO NOT engage the starter button.4. If there are 12V at the coil, the motorcycle has an inductive type ignition. If there is no voltage at the coil, then the motorcycle has a CDI ignition because the power goes to the control box first.

Style: External
Color/Finish: Yellow
Input Voltage: 12 V
Units: Kit
Ignition Fire Method: Dual
Model: Super Coil
Type: Ignition
Product Name: Coil
Ignition Type: Electronic (Capacitor Discharge)
Electrical Resistance: 0.7 Ohms
